MikroTik
Точка за достъп Mikrotik mAP
Артикул №: 1000115631
Категория:
Мрежови адаптери
47,99 €
✓ Ограничена наличност
Mikrotik mAP
RTB-RBMAP2ND

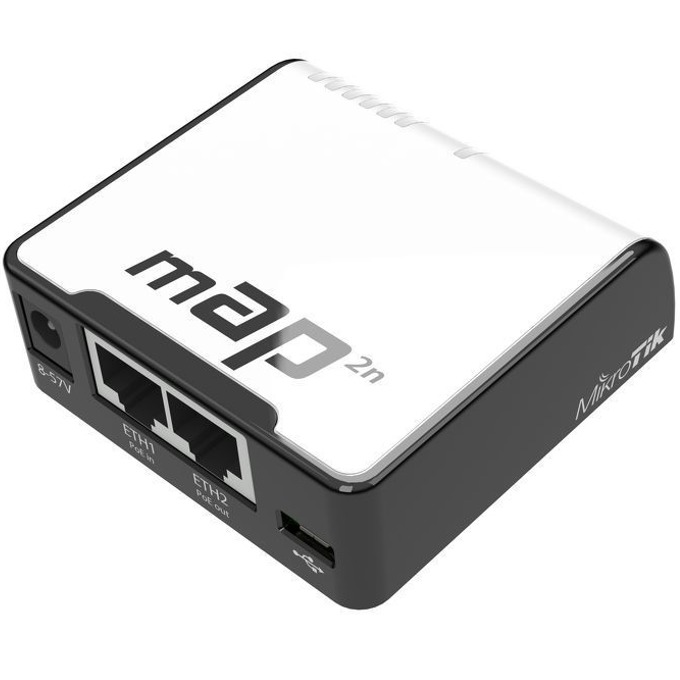

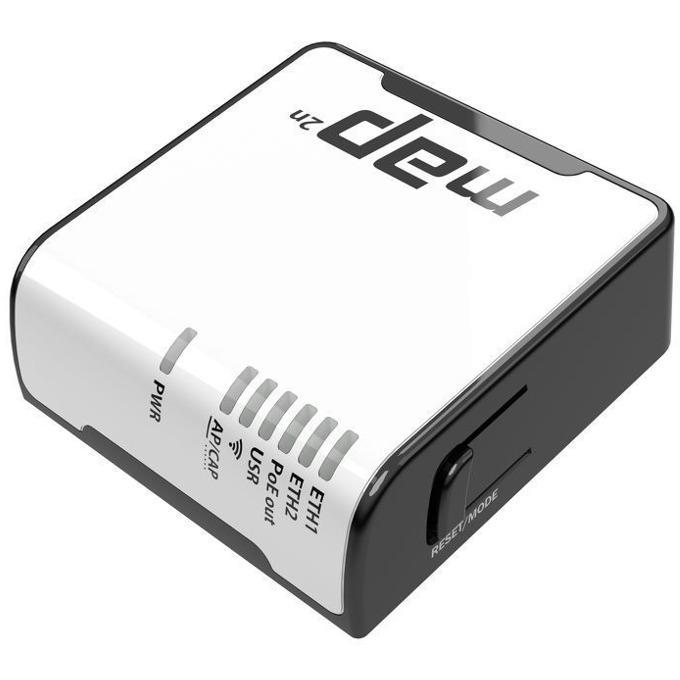

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Характеристики
| Процесор | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| License level | 4 |
| Операционна система | RouterOS |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| 10/100 Ethernet ports | 2 |
| Number of USB ports | 1 |
| USB Power Reset | Да |
| USB slot type | microUSB type AB |
| GHz Transmit (dBm) Receive Sensitivity | 2.4 |
| 1MBit/s 22 -96 | Да |
| 11MBit/s 22 -89 | Да |
| 6MBit/s 20 -93 | Да |
| 54MBit/s 18 -74 | Да |
| MCS0 | 20 -93 |
| MCS7 | 16 -71 |
| Max Power consumption | 5W |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| PoE in | 802.3af/at |
| DC jack input Voltage | 8-57 V |
| PoE in input Voltage | 12-57 V |
| MicroUSB input Voltage | 5V |
| PoE out | Passive PoE |
| PCB temperature monitor | Да |
| Voltage Monitor | Да |
| Tested ambient temperature | -10C to +70C tested |
| Размери | 68x68x19mm |
