Точка за достъп MikroTik L11UG-5HaxD-NB
MikroTik L11UG-5HaxD-NB

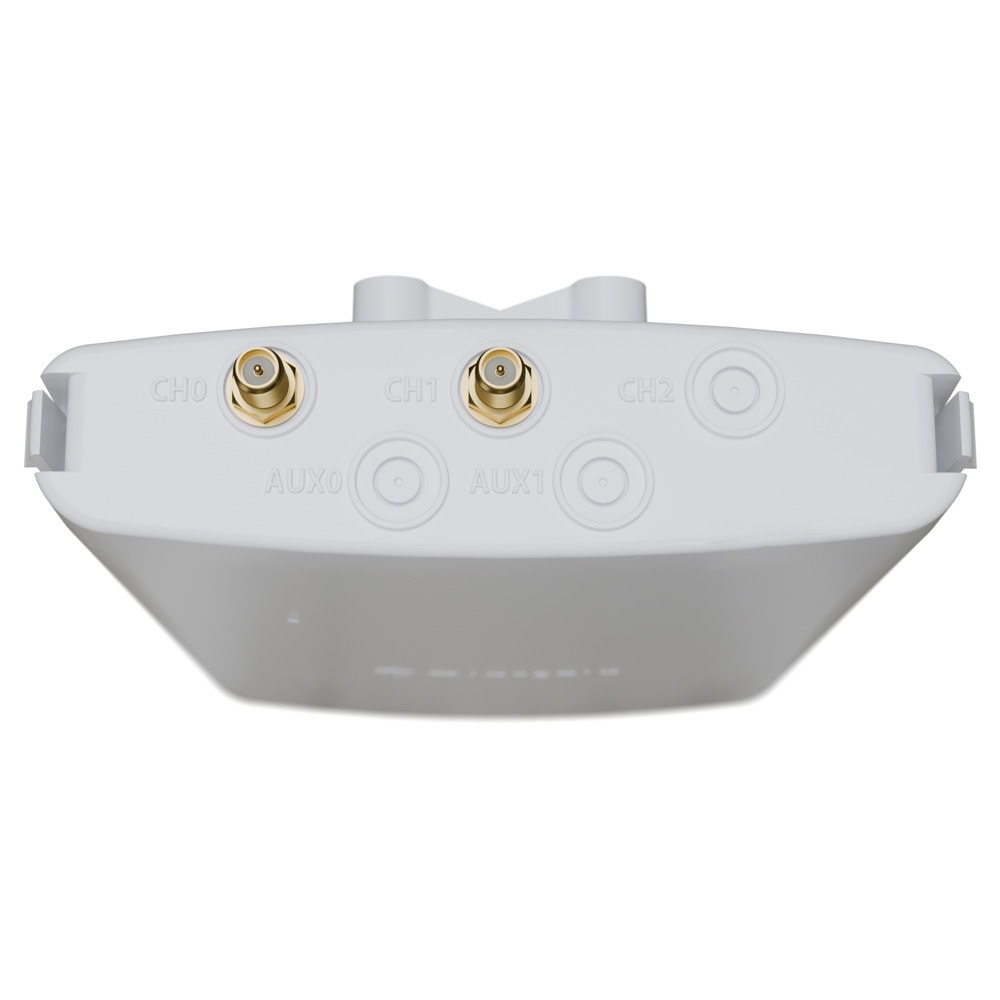

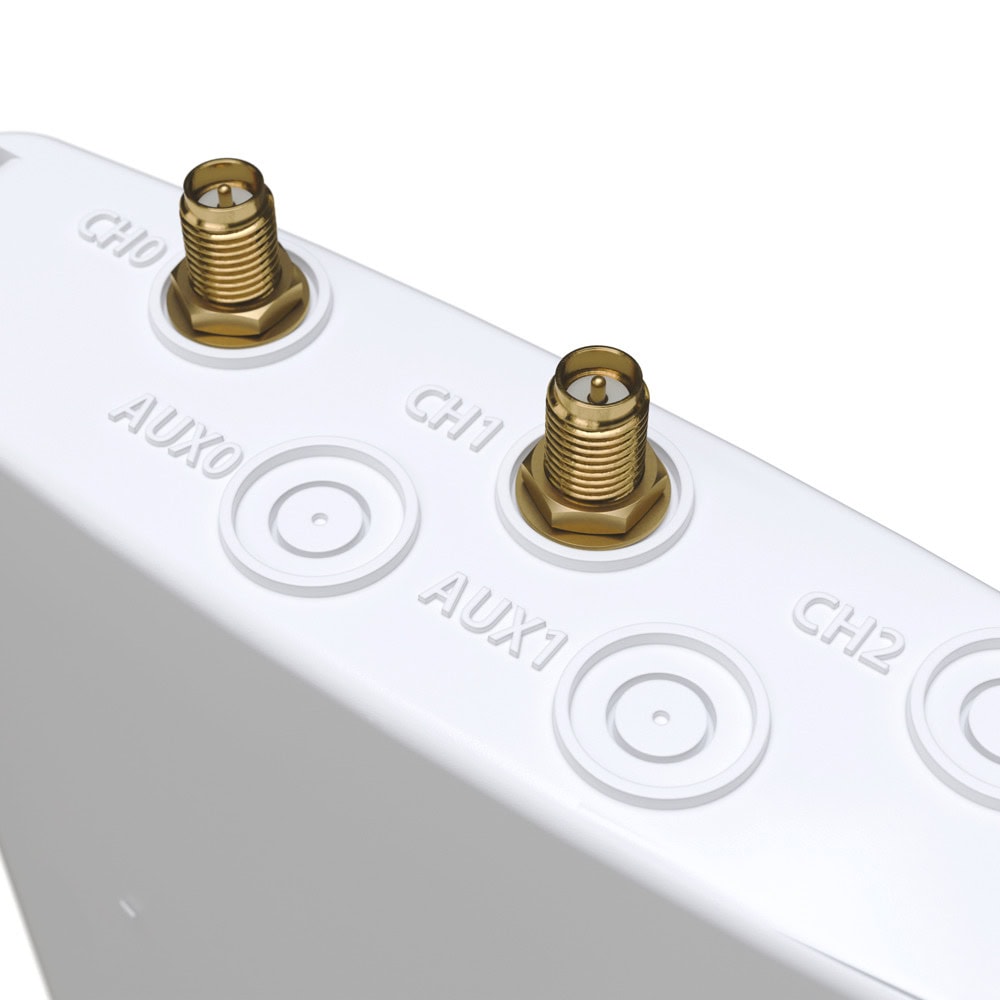

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

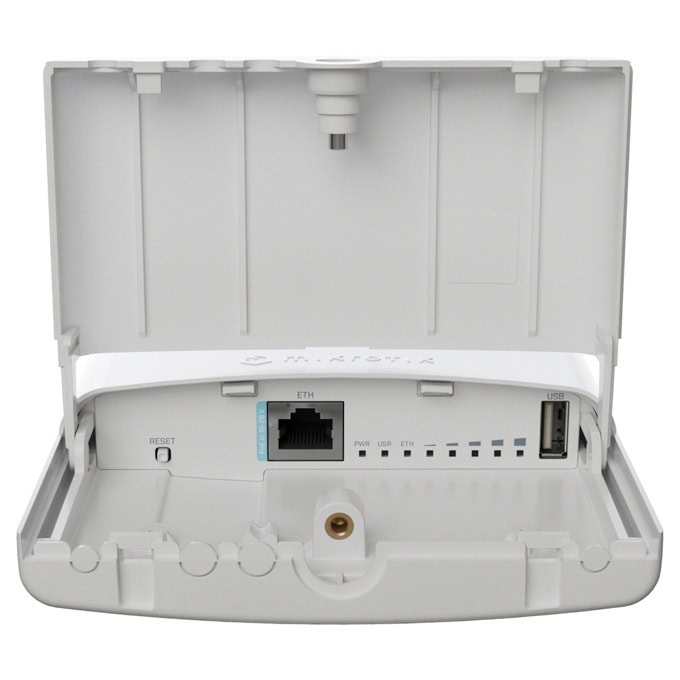

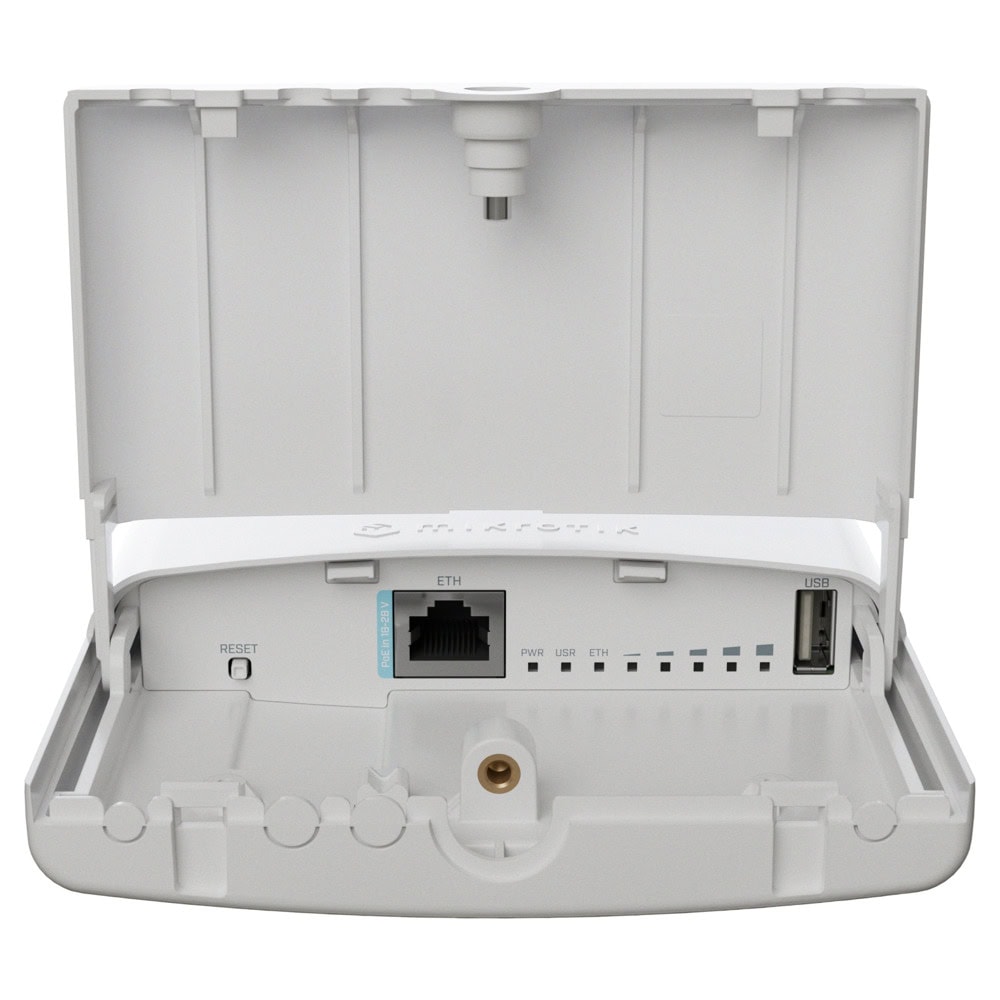

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
Характеристики
| Details | ArchitectureARM CPUIPQ-5010 CPU core count2 CPU nominal frequency800 MHz RouterOS license4 Operating SystemRouterOS v7 Size of RAM256 MB Storage size128 MB Storage typeNAND MTBFApproximately 200'000 hours at 25C Tested ambient temperature-40°C to 70°C |
Powering
| Details | Number of DC inputs1 (PoE-IN) Max power consumption15 W Max power consumption without attachments6 W Cooling typePassive PoE inPassive PoE PoE in input Voltage18-28 V |
Wireless specifications
| Details | Wireless 5 GHz Max data rate2400 Mbit/s Wireless 5 GHz number of chains2 Wireless 5 GHz standards802.11a/n/ac/ax Wireless 5 GHz chip modelQCN-6102 Wireless 5 GHz generationWi-Fi 6 |
Ethernet
| Details | 10/100/1000 Ethernet ports1 |
Peripherals
| Details | Number of USB ports1 USB Power ResetYes USB slot typeUSB type A Max USB current (A)1.5 |
Other
| Details | PCB temperature monitorYes Voltage MonitorYes BeeperYes |
