Термовизионна камера UNI-T UTi260K
UTi260K
EST Thermal Camera

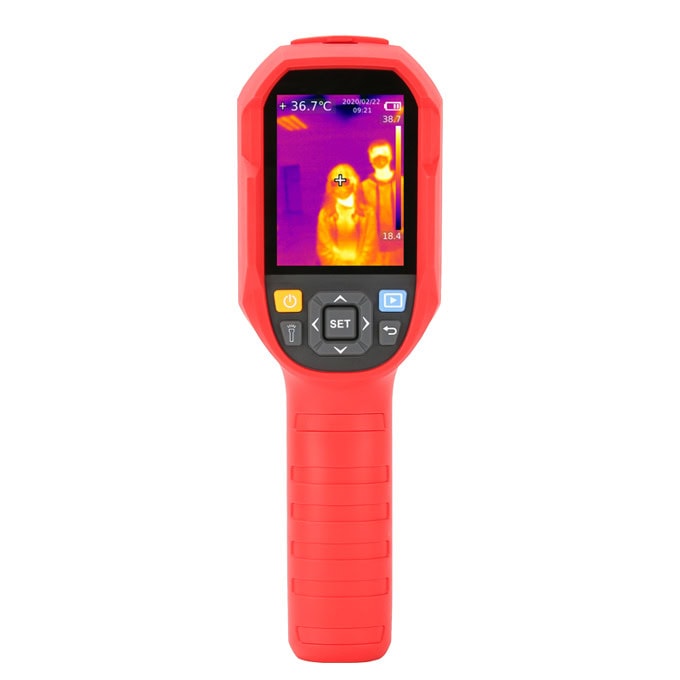

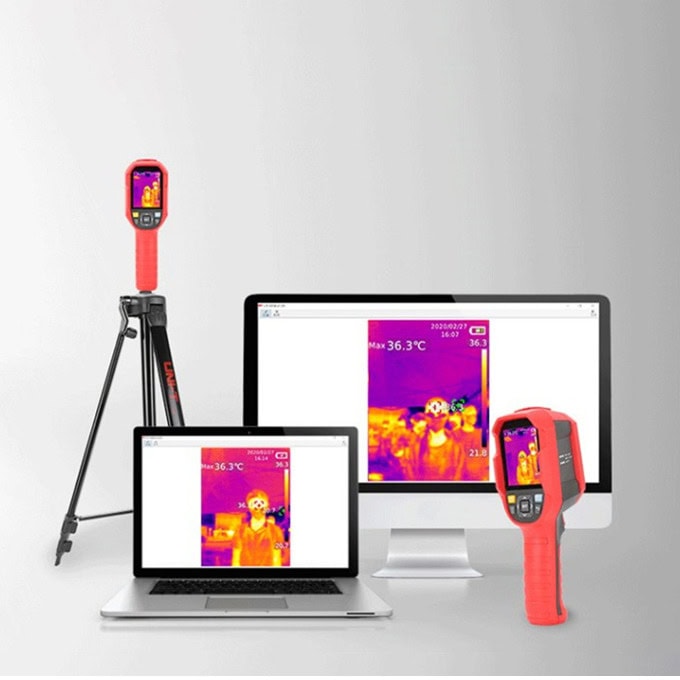

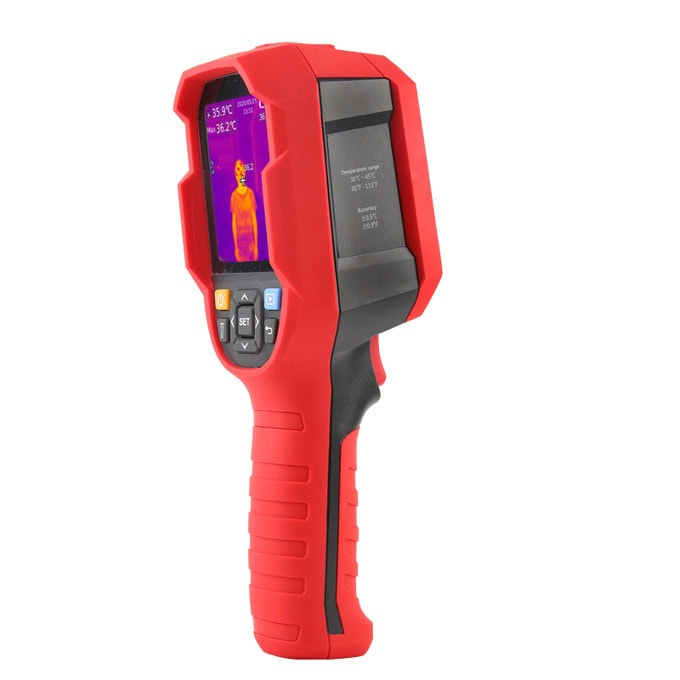

UTi260K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.
Elevated Skin Temperature Thermal Cameras
UTi260K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.
Features :
- Durable and user-friendly
- IR resolution: 256×192
- 2.8” TFT display screen (320×240 Pixels)
- Temperature measurement range: 30℃ to 45℃
- Auto alarm for high temperature
- Image modess: Thermal,Visual image,Fusion
- Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
Характеристики
| PC software analysis | Real-time image projection |
| RIO | LED flashlight |
| Rechargeable Li-ion battery | 1/4” tripod mounting hole |
| Technical Data | IR resolution (Pixels)256×192 |
| Display2.8”TFT LCD (320×240) | Field of view(FOV)56°×42° |
| Thermal sensitivity(NETD)≤60mk | Spatial resolution(IFOV)3.8mrad |
| Frame rate≤25Hz | Spectral range8~14µm |
| FocusFocus Free | Temperature measurement range30℃~45℃ (86℉-113℉) |
