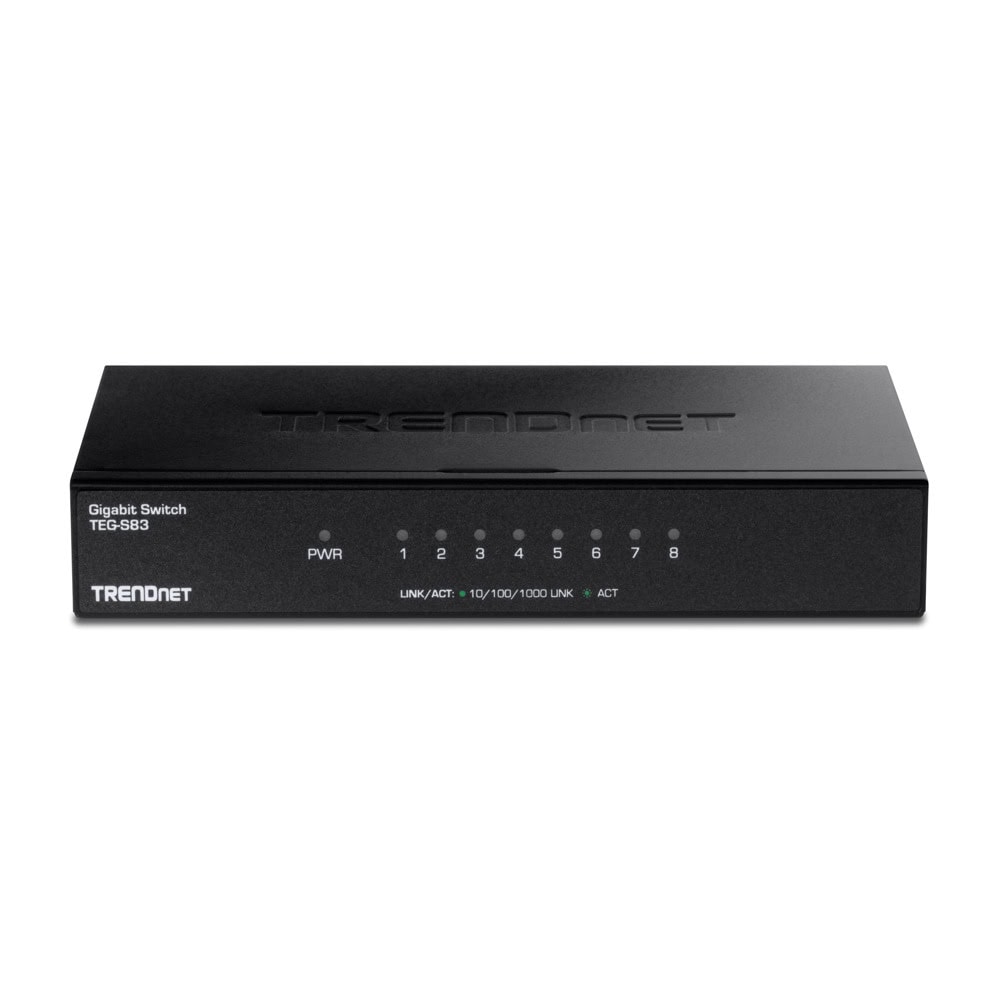

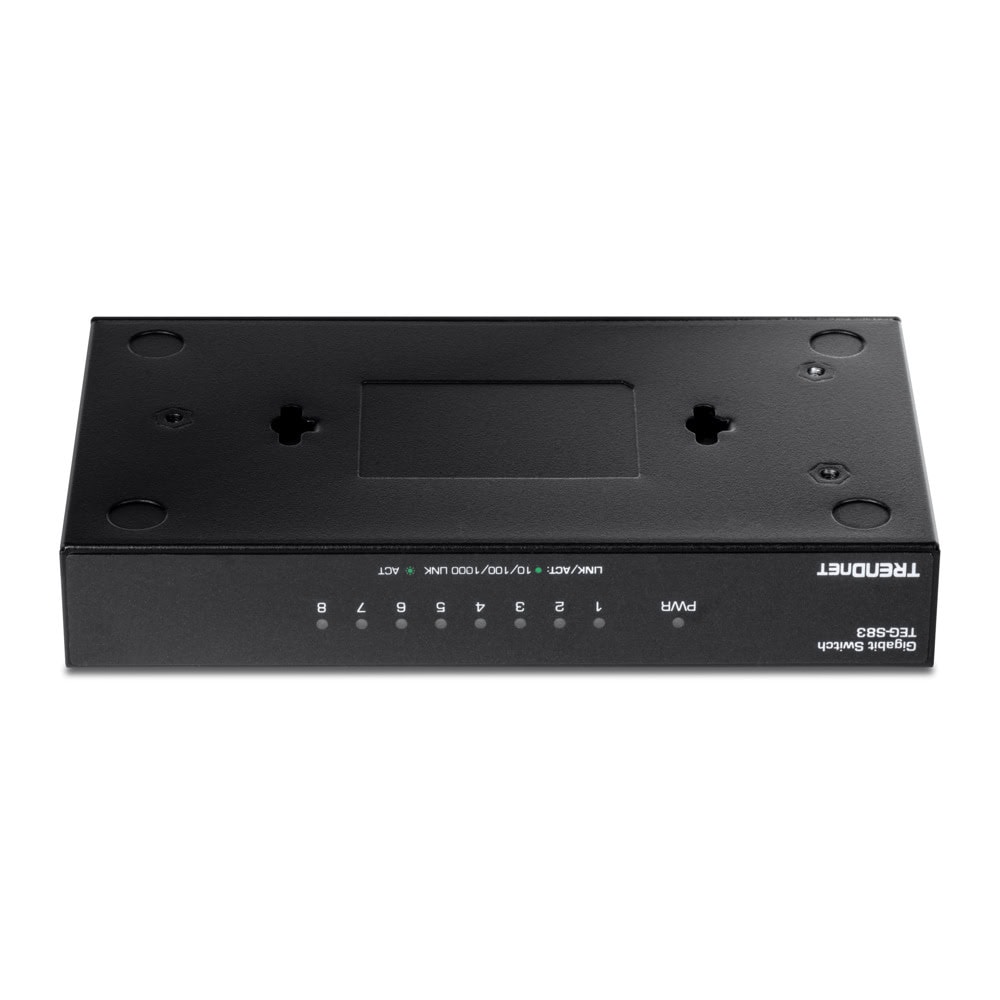

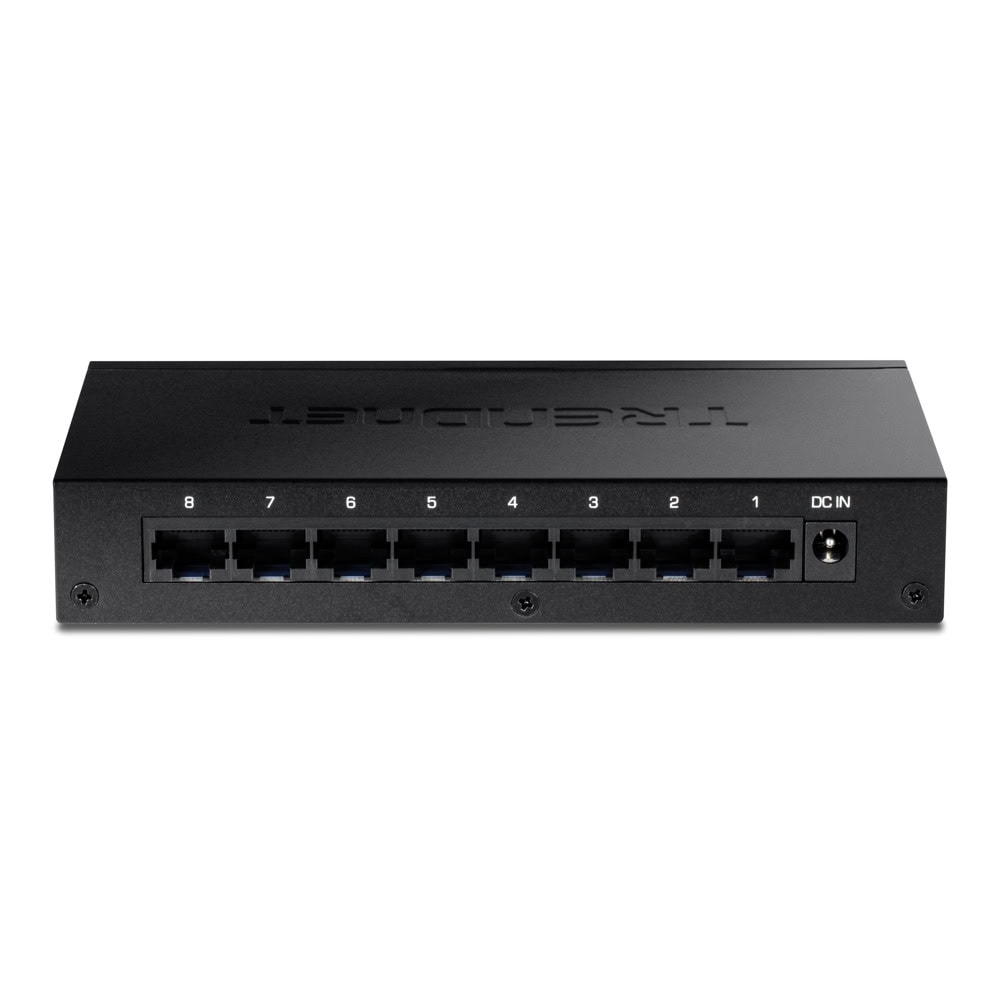

Суич TRENDnet TEG-S83
The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.
Switching Capacity
16Gbps switching capacity
Jumbo Frame
This gigabit Ethernet switch sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Housing Design
Compact and lightweight metal housing
Характеристики
| Standards | IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3ab |
| Device Interface | 8 x Gigabit portsLED indicators |
| Скорост на трансфер на данни | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)Gigabit: 2000Mbps (full duplex) |
| Performance | Switching Capacity: 16GbpsRAM Buffer: 192KBMAC Address Table: 4K entriesForwarding Rate: 11.9Mpps (64-byte packet size)Jumbo Frames: 9KB |
| Мощност | Input: 100 – 240V AC, 50/60 Hz, 0.2AOutput: 5 V DC, 1A external power adapterMax. Consumption: 3.2W |
| Fan/Acoustics | Fanless design |
| MTBF | 1,451,740 hours |
| Работна температура | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions (L x W x H) | 160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.) |
| Тегло | 414g (14.6 oz.) |
| Certifications | FCCCE |
