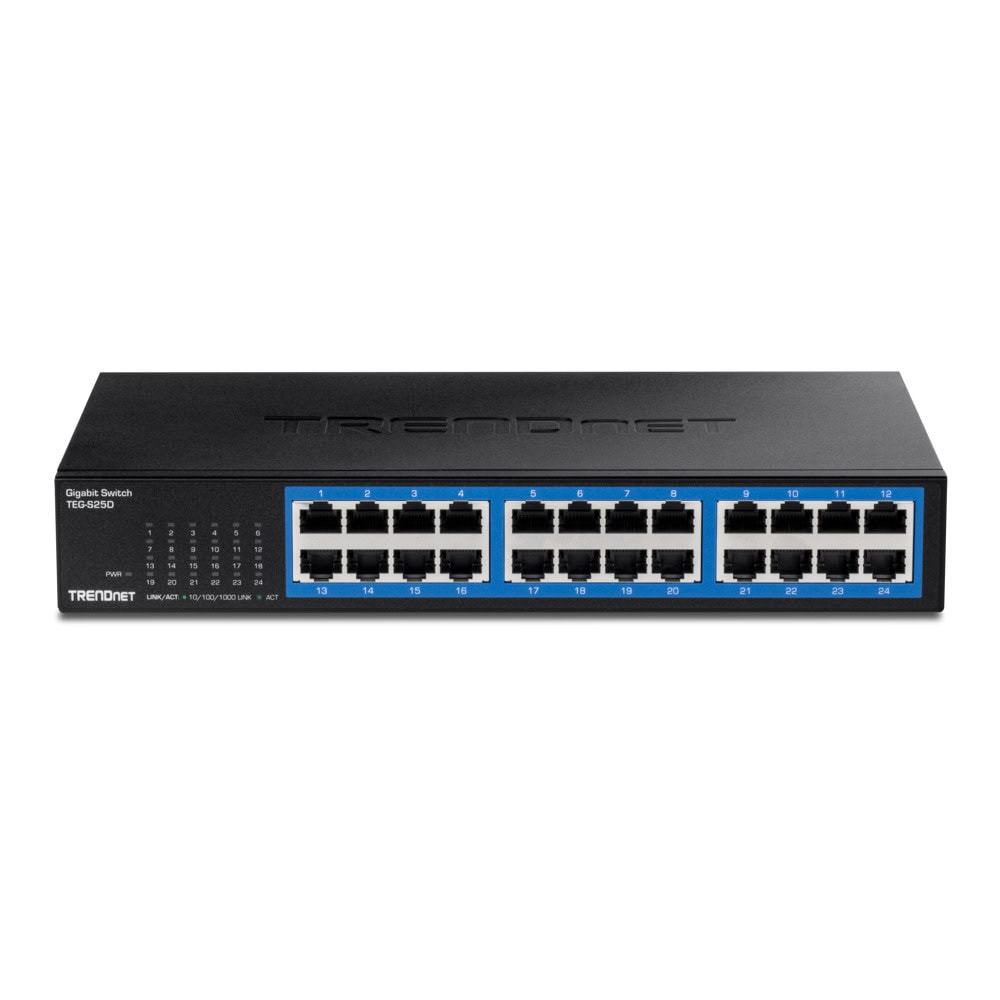

Суич TRENDnet TEG-S25D
The 24-Port Gigabit Desktop Switch, model TEG-S25D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Plug and Play
Simply power up the switch and plug in connected devices
Switching Capacity
48Gbps switching capacity
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Характеристики
| Standards | IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3ab |
| Device Interface | 24x Gigabit portsLED indicators |
| Скорост на трансфер на данни | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)Gigabit: 2000Mbps (full duplex) |
| Performance | Switching Capacity: 48GbpsRAM Buffer: 512KBMAC Address Table: 8K entriesForwarding Rate: 35.71Mpps (64-byte packet size)Jumbo Frames: 9KB |
| Special Features | Rack Mountable |

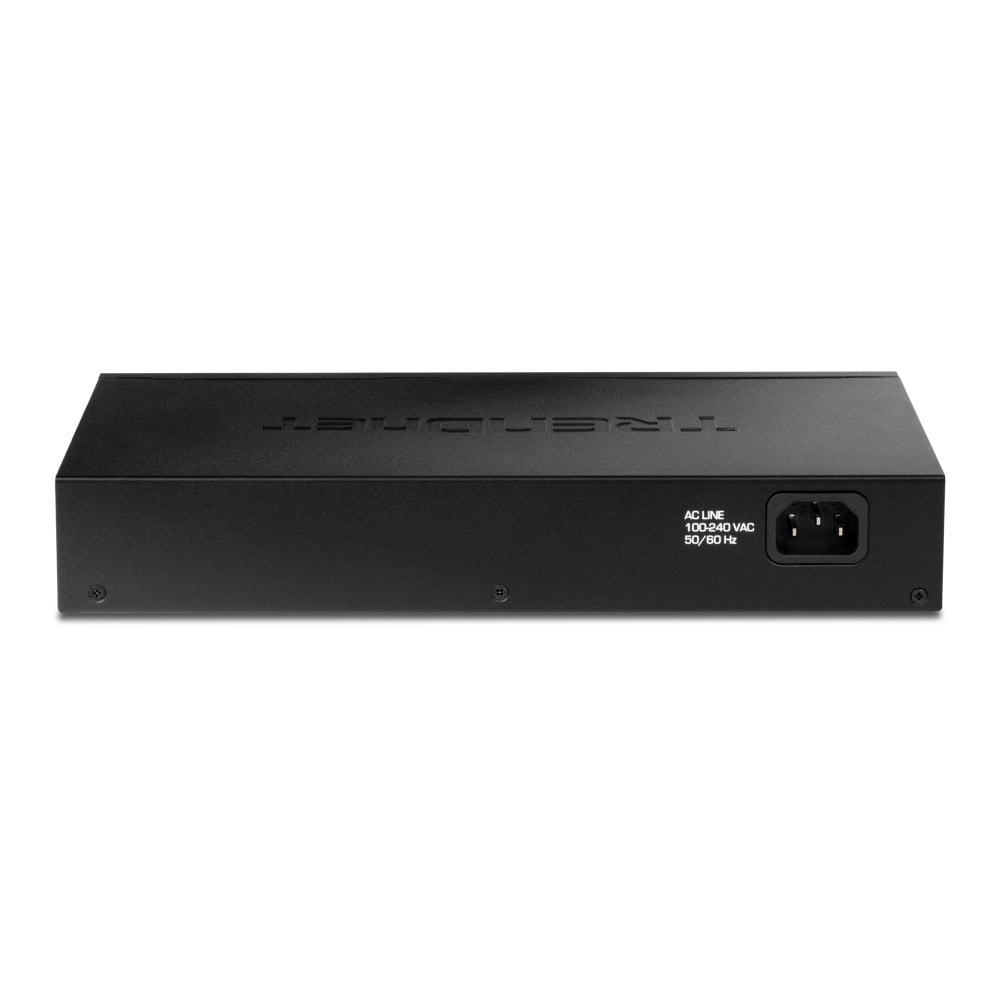

| Мощност | Internal power supply: 100 – 240V AC, 50/60 Hz, 1AMax. Consumption: 14.24W |
| Fan/Acoustics | Fanless design |
| MTBF | 364,460 hours |
| Работна температура | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions (L x W x H) | 267 x 162 x 42mm (10.51 x 6.38 x 1.65 in.) |
| Тегло | 1.3kg (2.93 lbs.) |
| Certifications | FCCCEETL |
