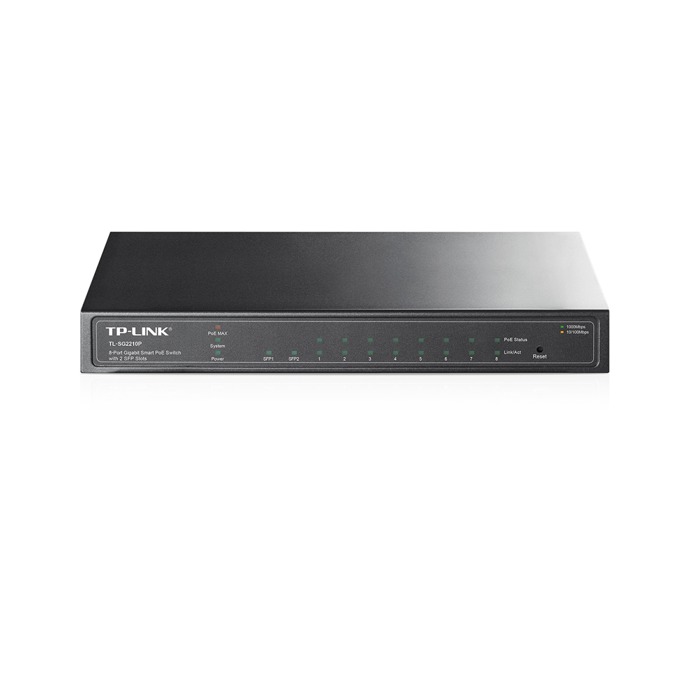

Суич TP-Link TL-SG2210P

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,

IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1p

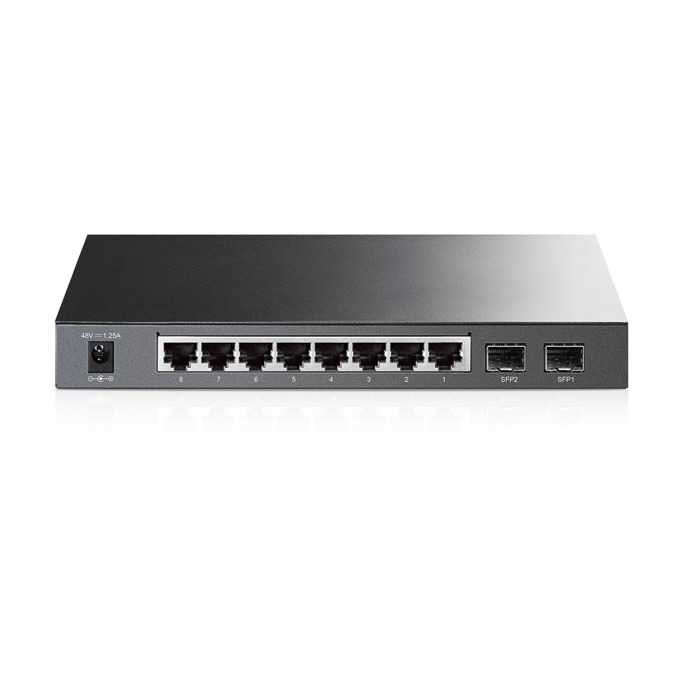

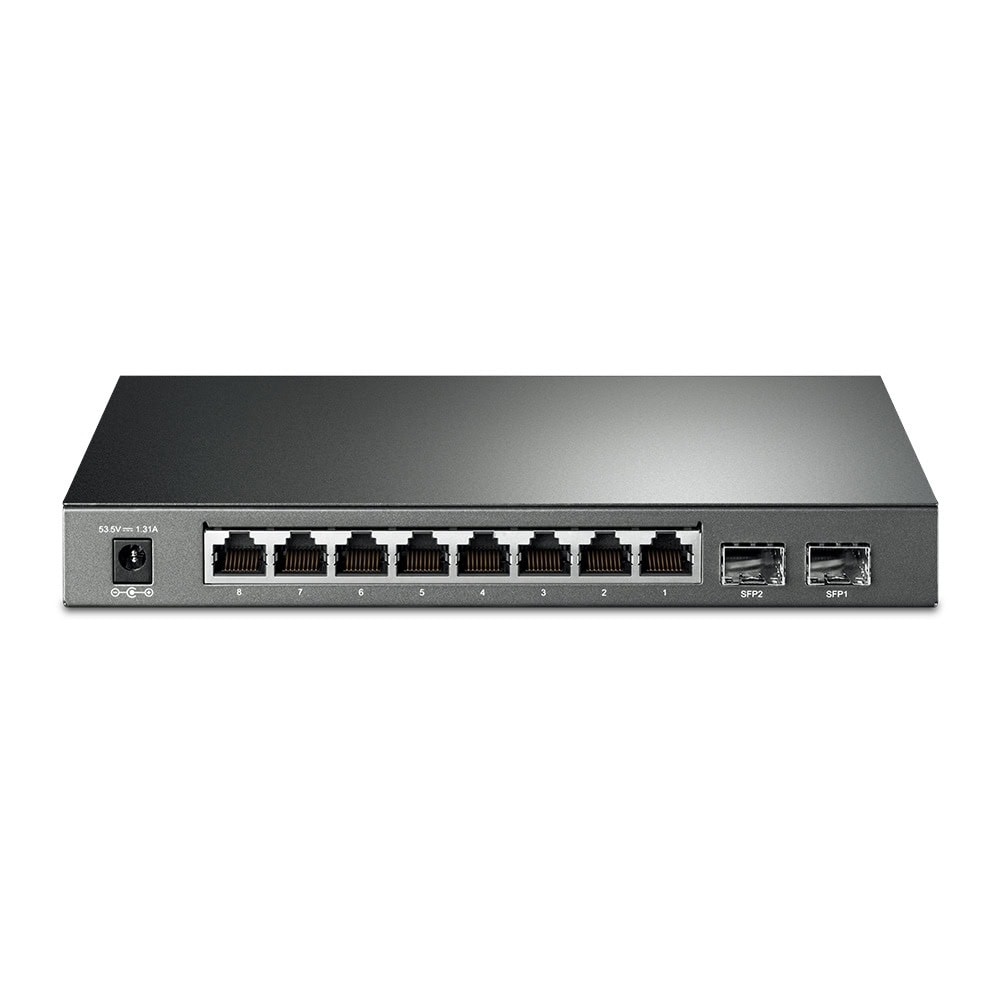

Interface

8 10/100/1000Mbps RJ45 Ports

2 1000Mbps SFP Slots

(Auto-Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

PoE Ports (RJ45)

Standard: 802.3af compliant

PoE Ports: 8 Ports

Power Supply: 53W

Dimensions (W X D X H) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

Fan Quantity Fanless

Power Consumption

Maximum (PoE on): 63.4W (220V/50Hz)

Maximum (PoE off): 10.4W (220V/50Hz)

Power Supply: 100~240VAC, 50/60Hz

PERFORMANCE

Bandwidth/Backplane: 20Gbps

MAC Address Table: 8k

Packet Buffer Memory: 512KB

Packet Forwarding Rate: 14.9Mpps

Jumbo Frame: 9216 Bytes
