Суич TP-LINK TL-SG1016PE
Артикул №: 1000106446
Категория:
Мрежови адаптери
157,99 €
✓ Налично във външен склад

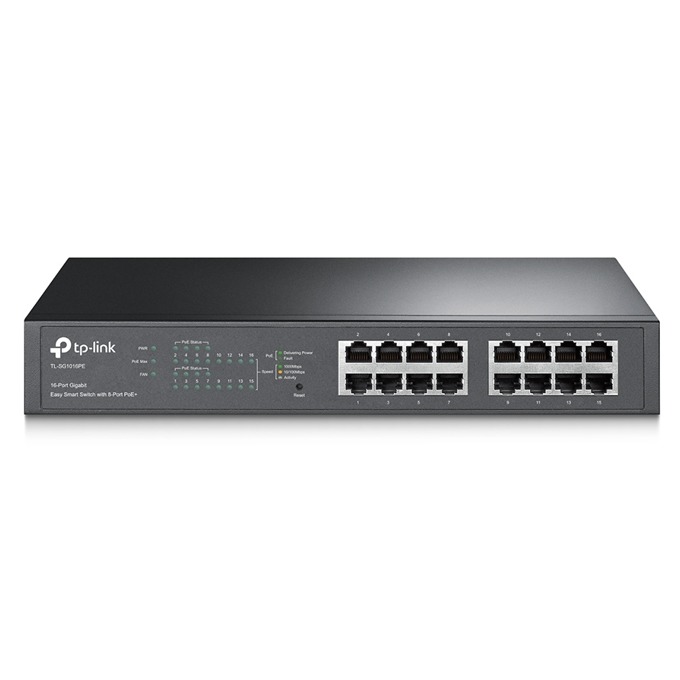

TP-LINK 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
TL-SG1016PE
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Характеристики
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Интерфейс | 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | Да |
| 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-T | UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Switching Capacity: 32Gbps Packet Forwarding Rate: 23.8Mbps MAC Address Table: 8K Packet Buffer Memory: 4.1Mbit Jumbo Frame: 9KB |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility Transmission Method: Store-And-Forward System Requirements: Microsoft® Windows® for running Utility Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Fan Quantity: 1 Power Supply: 100-240VAC, 50/60Hz Power Consumption (Maximum): 124.4W (220V/50Hz) PoE Ports (RJ45): Standard: 802.3 at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 110W Dimensions ( W x D x H ): 294 x 180 x 44 mm |
