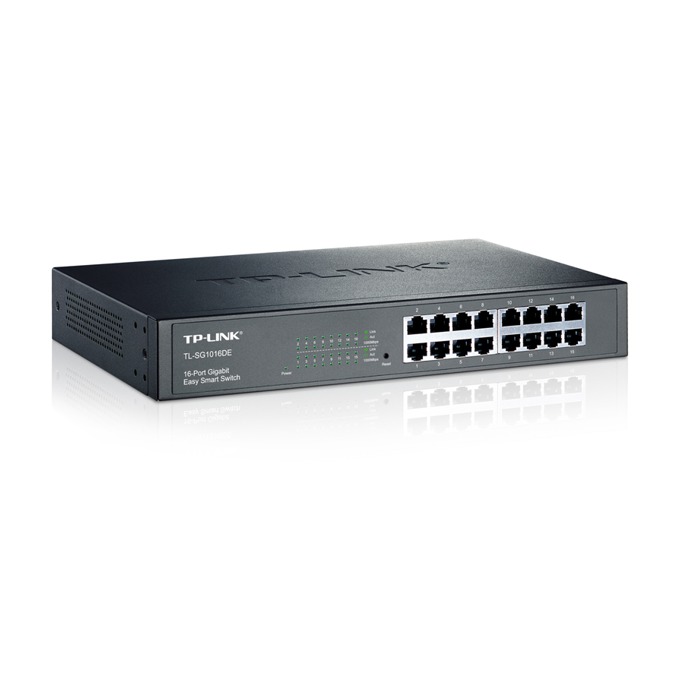

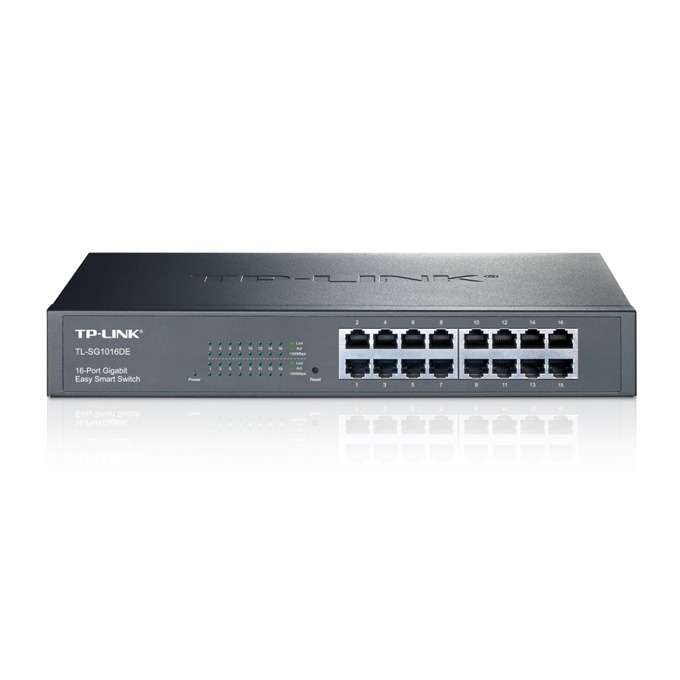

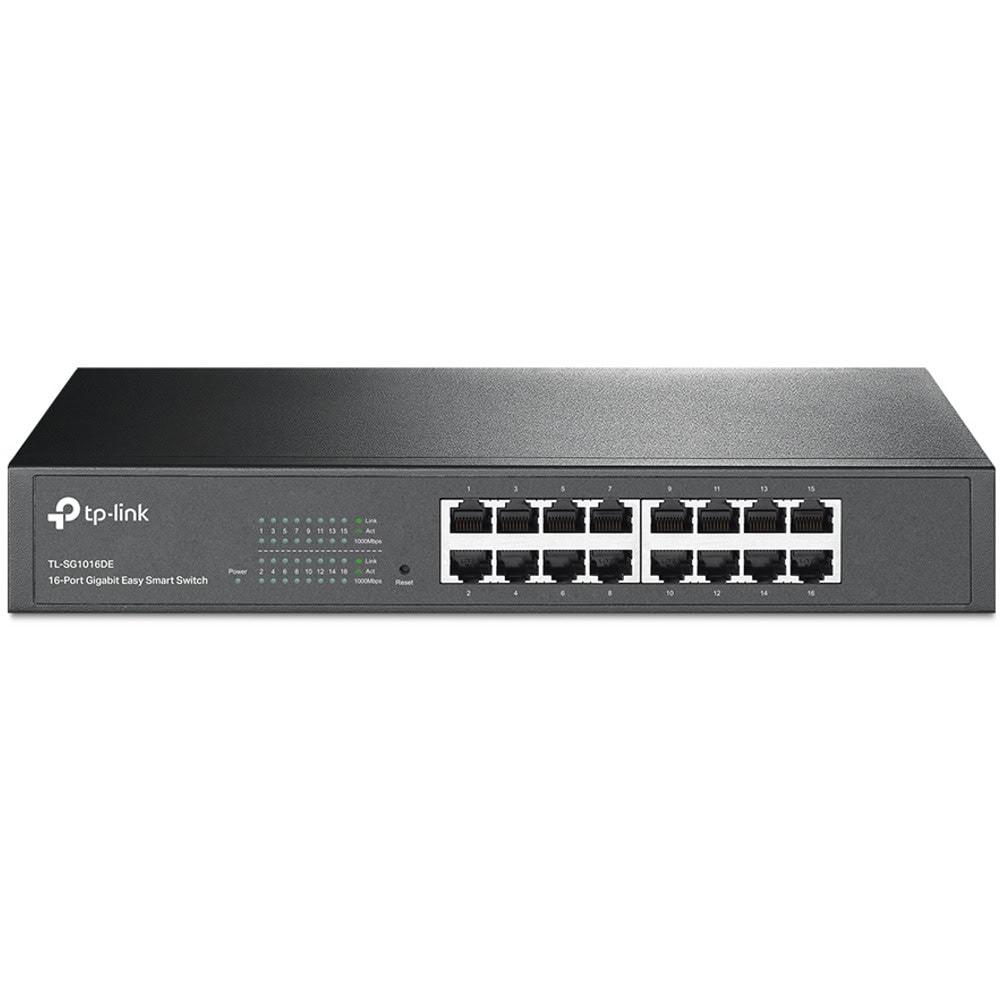

Суич TP-Link TL-SG1016DE
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Fan Quantity Fanless
Power Consumption Maximum: 12.55W (220V/50Hz)
Power Supply 100-240VAC, 50/60Hz
PERFORMANCE
Switching Capacity 32Gbps
MAC Address Table 8K
Packet Buffer Memory 512KB
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10240Bytes
Quality of Service
Support Port Based/802.1p Based priority
Support 4 priority queues
Характеристики
| Rate Limit | Storm Control |
| L2 Features | IGMP Snooping |
| Link Aggregation | Port Mirroring |
| Cable Diagnostics | Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| MTU/Port/Tag VLAN | Transmission Method Store-And-Forward |
| OTHERS | Certification FCC, CE, RoHS |
| Съдържание на пакета | TL-SG1016DE |
| Power Cord | Installation Guide |
| Resource CD | Rackmount Kit |
| Rubber Feet | System Requirements |
