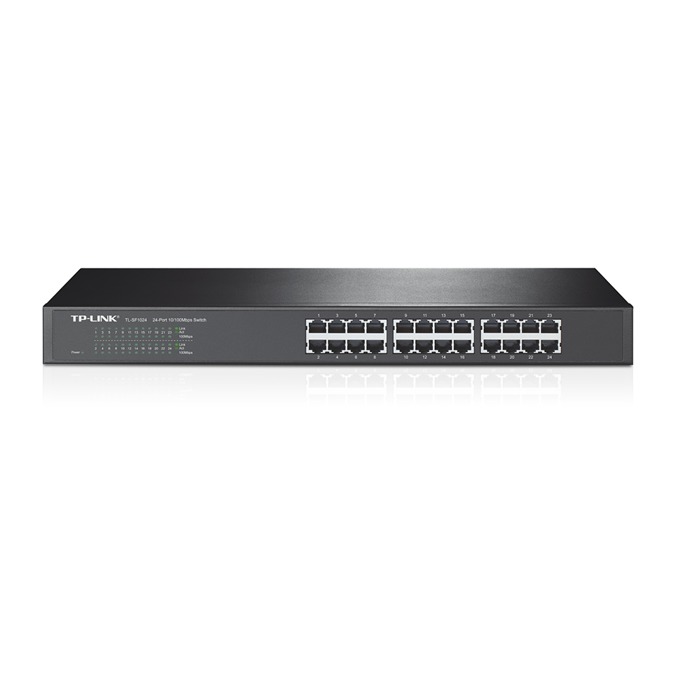

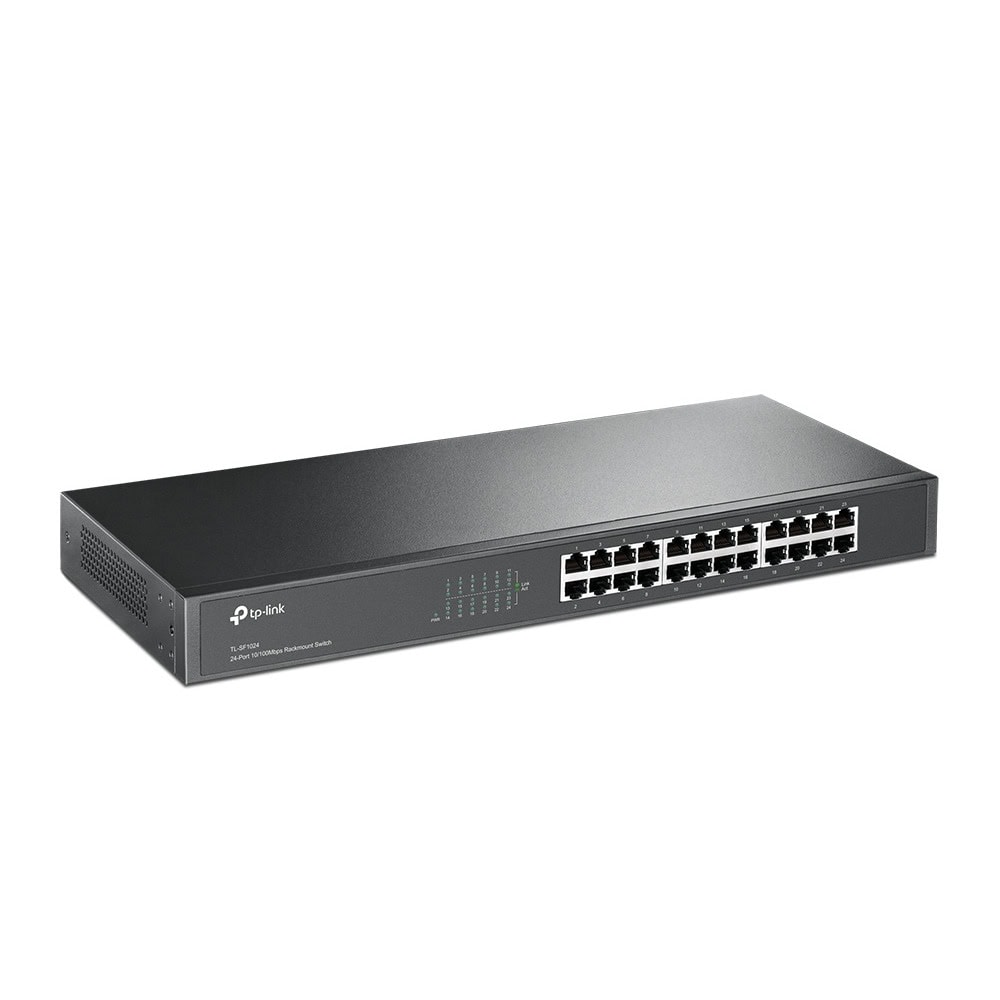

Суич TP-Link TL-SF1024
TP-Link TL-SF1024
24-Port 10/100Mbps Rackmount Switch
- 24 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Features
- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly
HARDWARE FEATURES
Характеристики
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Интерфейс | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX | UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |

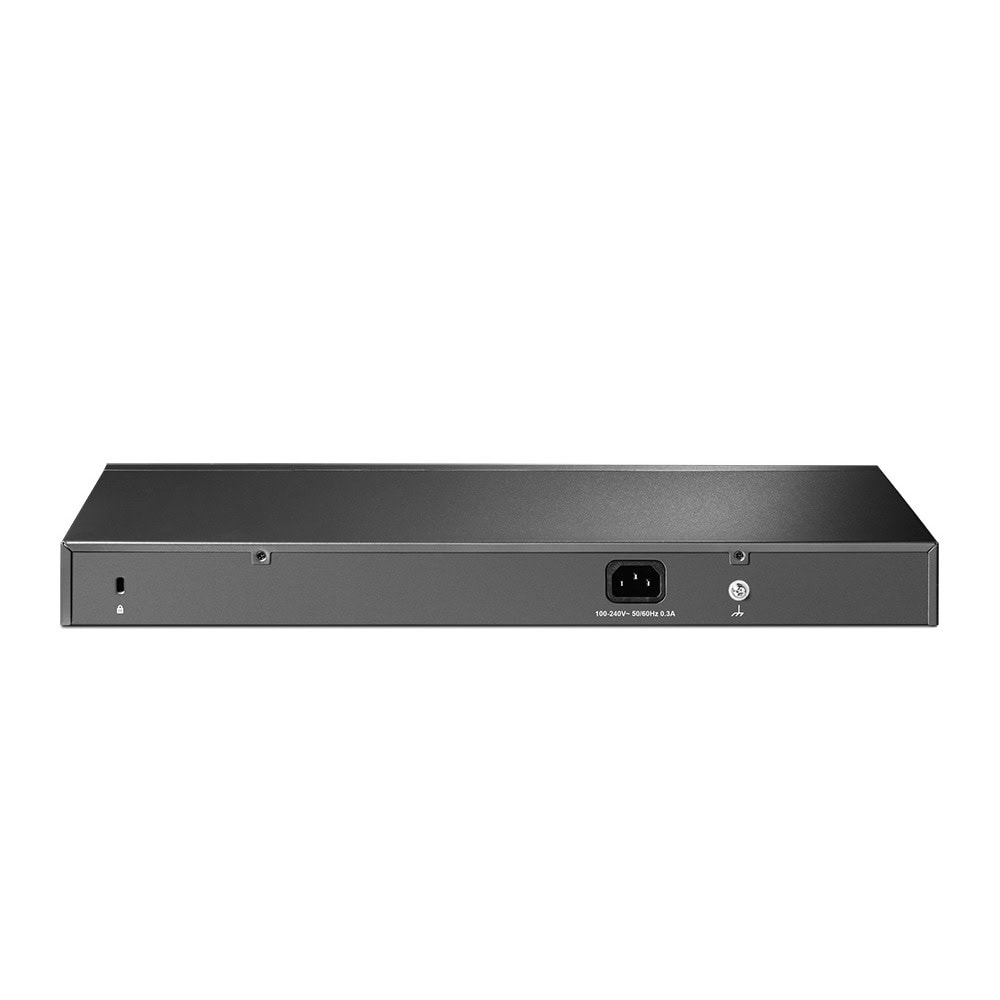

| Захранване | 100-240VAC, 50/60Hz |
| Консумация на енергия | Maximum: 3.53W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
| PERFORMANCE | Да |
| Switching Capacity | 4.8Gbps |
| Packet Forwarding Rate | 3.57Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2Mb |
| Green Technology | Innovative energy-efficient technology saves power up to 75% |
| Transfer Method | Store-and-Forward |
| OTHERS | Да |
| Сертификация | FCC, CE, RoHS |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
