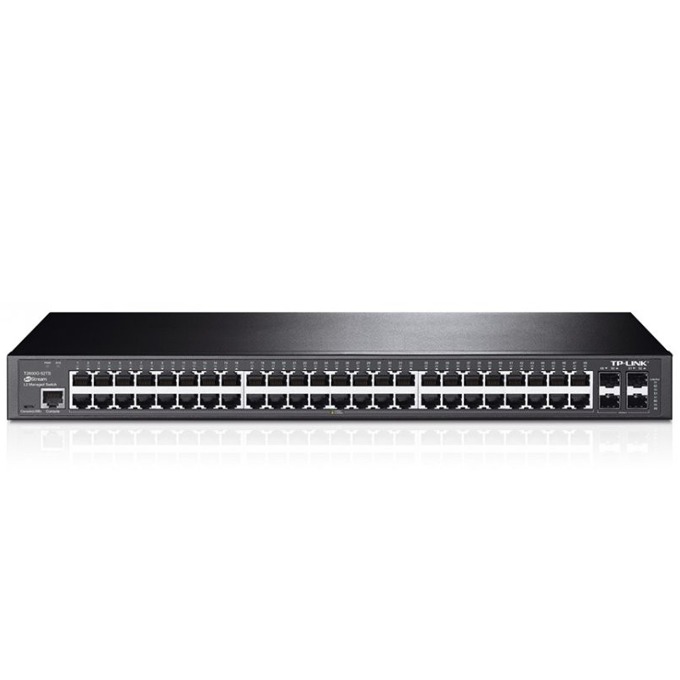

Суич TP-LINK T2600G-52TS (TL-SG3452)

Gigabit Ethernet connections on all ports provide full speed of data transferring

L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies

L2/L3/L4 QoS and IGMP snooping optimize voice and video application

IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.

Standards and Protocols:

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface:

48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

4 1000Mbps SFP Slots

1 RJ45 Console Port

1 Micro-USB Console Port

Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity Fanless

Power Supply ~240VAC, 50/60Hz

Power Consumption Maximum: 33.52W (220V/50Hz)

Dimensions ( W x D x H ) 17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)

PERFORMANCE

Bandwidth/Backplane 104Gbps

Packet Forwarding Rate 77.4Mpps

MAC Address Table 16k

Jumbo Frame 9216 Bytes

SOFTWARE FEATURES

Quality of Service:

Support 802.1p CoS/DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 and L2+ Features:

Static Routing、DHCP Relay*

IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loopback detection

802.3x Flow Control

L2PT*

VLAN:

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port/ MAC/Protocol-based/Private VLAN

GARP/GVRP

Access Control List:

L2～L4 package filtering based on source and destination MAC address,

IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based

Security:

IP-MAC-Port-VID Binding

AAA*

802.1x and Radius Authentication

DoS Defend

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

IPv6:

Dual IPv4/IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 Applications:

DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL
