Суич TP-Link SG2005P-PD
Артикул №: 1000137665
Категория:
Мрежови адаптери
109,99 €
✓ Налично във външен склад

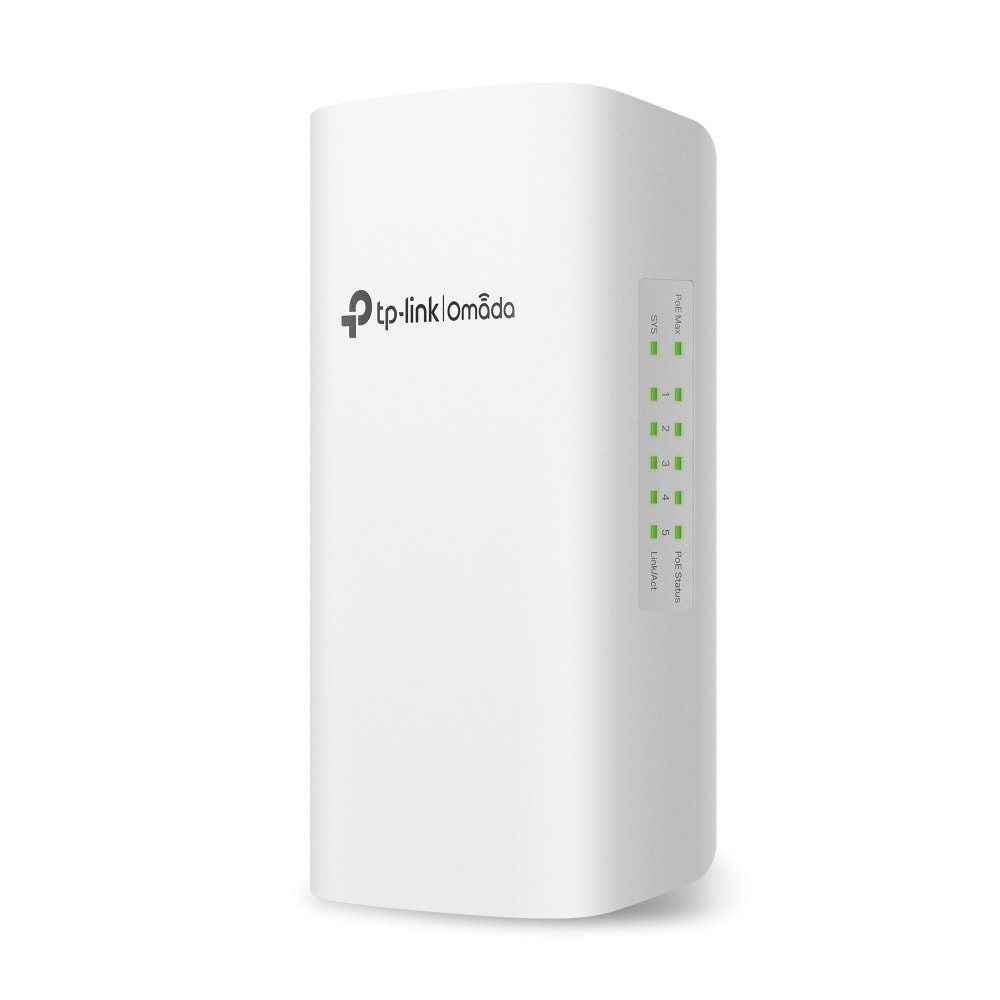

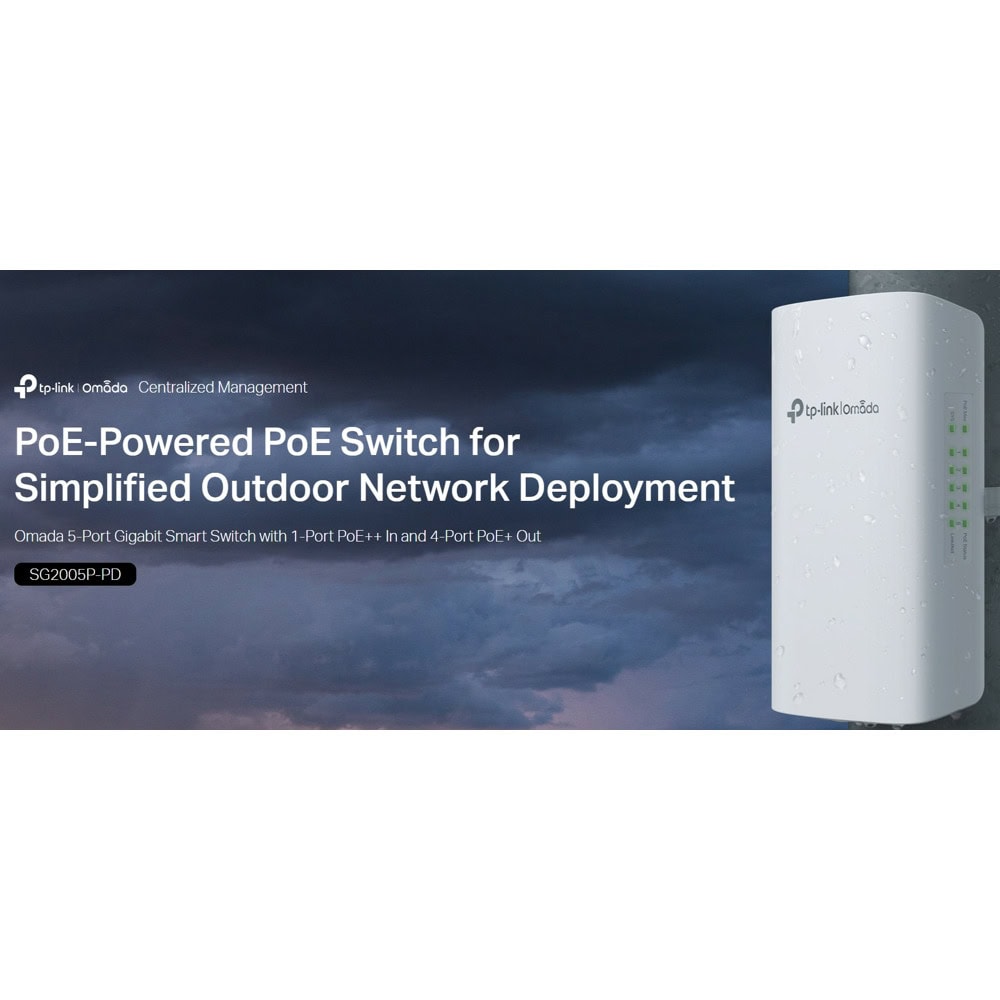

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

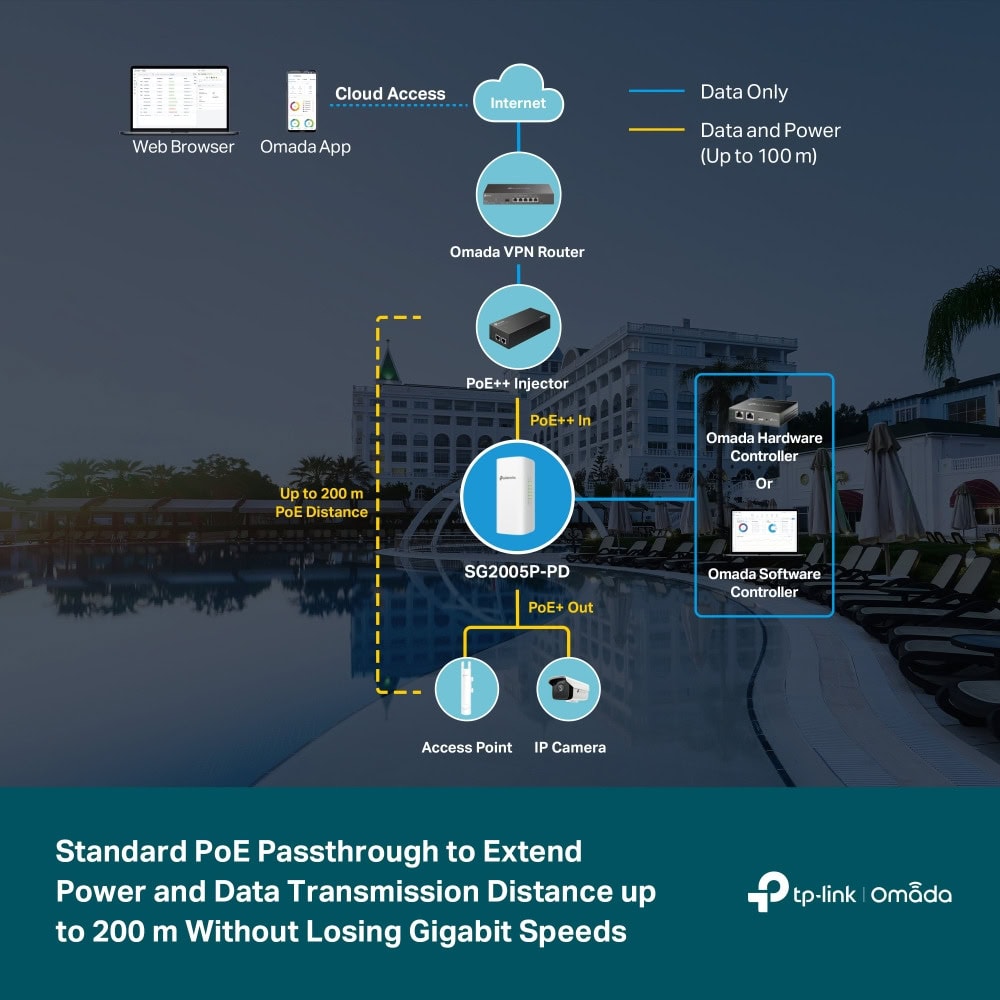

| Up to 200 m PoE Distance | Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.* |
| 1-Port Gigabit PoE++ In and 4-Port PoE+ Out | Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** |
| Outdoor Weatherproof | IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions. |

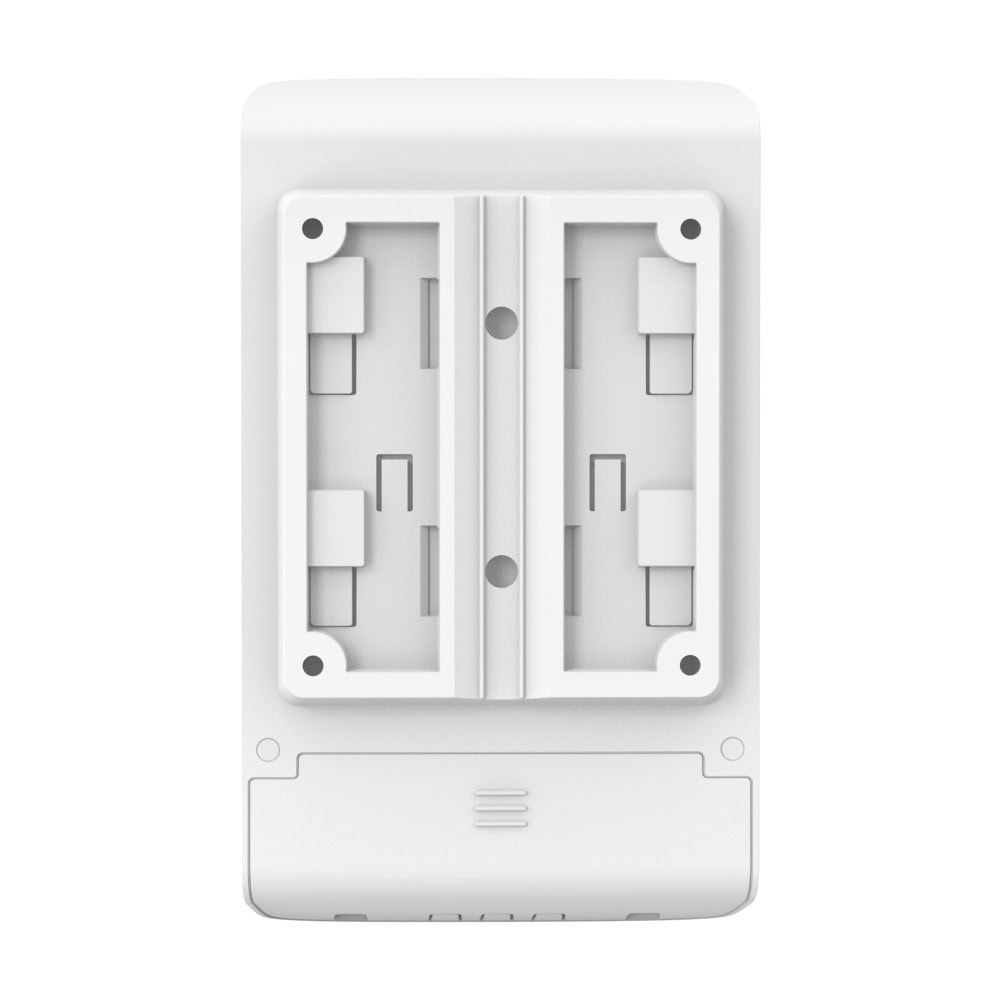

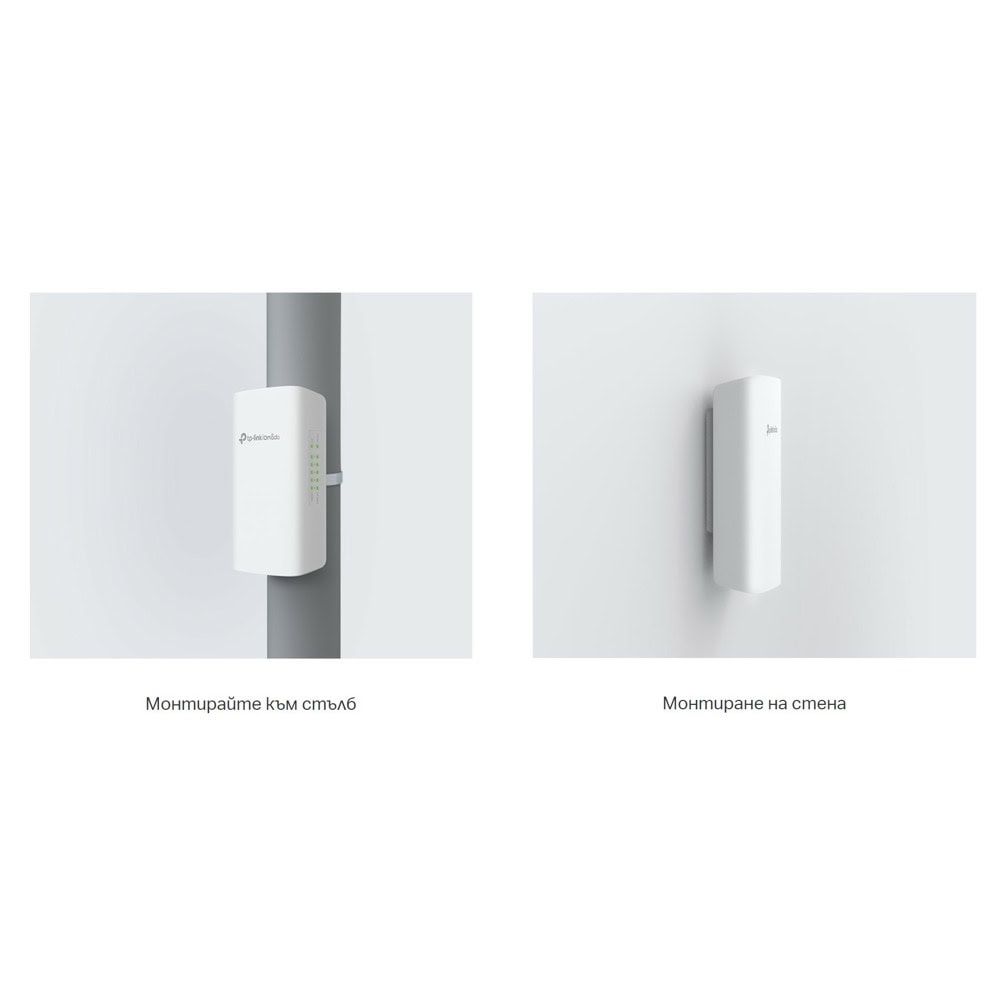

| Easy Installation | Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs. |
| Centralized Cloud Management | Integrates into Omada SDN for cloud access, remote management, and multi-site management. |
| Value-Added Features Foster Touchpoint Experiences | Static Routing, Access Control List (ACL), QoS, and VLAN. |

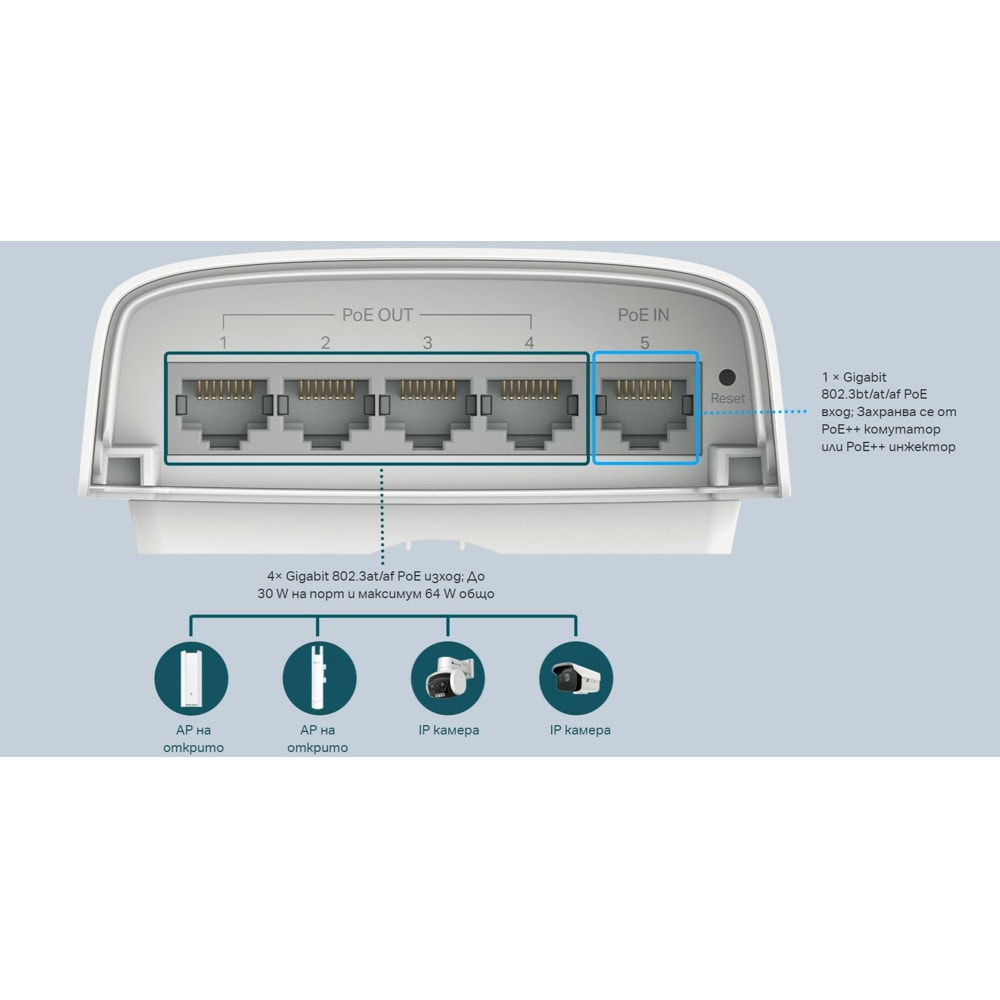

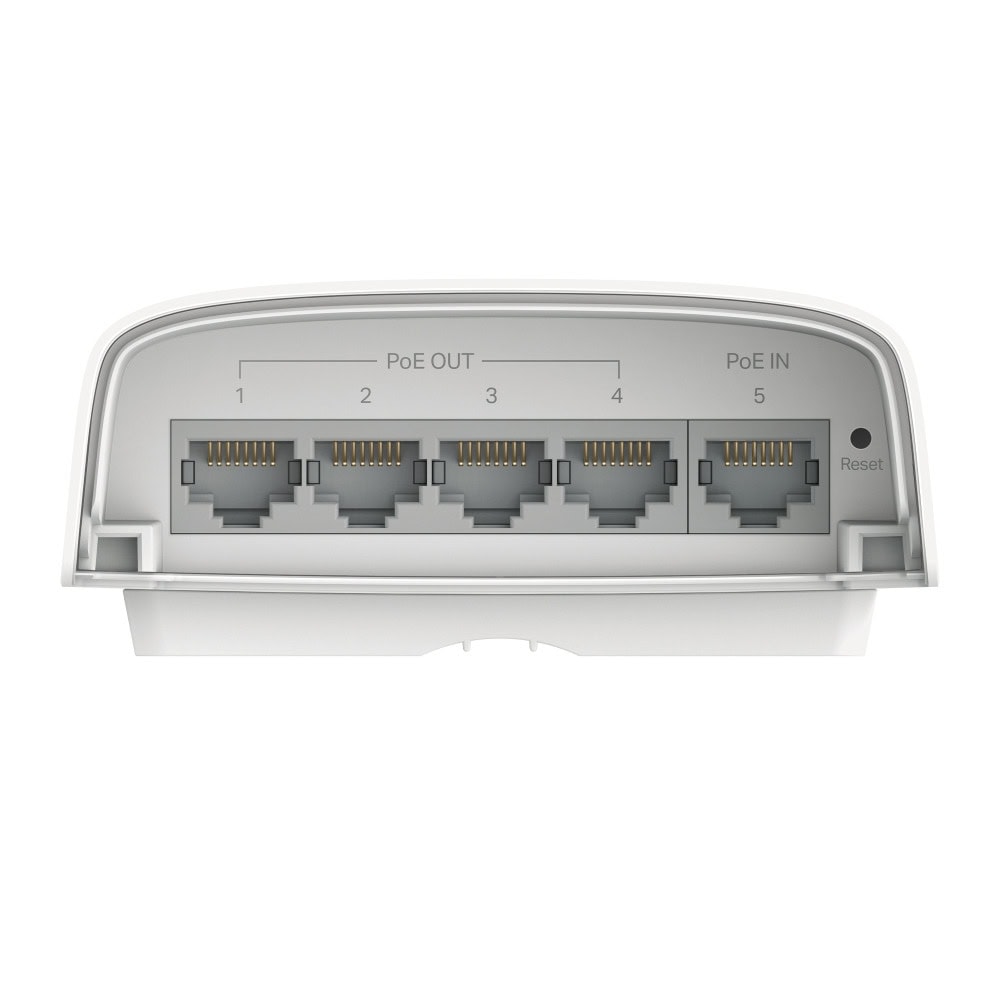

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | Стандарти и протоколи: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x Интерфейс: • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) · • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE) Мрежова медия: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Брой вентилатори: Fanless Захранване: Obtain Power from 802.3af/at/bt PoE Source PoE портове (RJ45): • PoE In Port: Port 5, Compliance with 802.3af/at/bt · • PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE · • PoE Power Budget: · -64 W when powered by 802.3bt Type 4 (90 W) · -44 W when powered by 802.3bt Type 3 (60 W) · -19 W when powered by 802.3at · -6 W when powered by 802.3af Размери (Ш x Д x В ): 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) Макс. консумация на енергия: 71.5 W (when powered by 802.3bt Type 4 (90 W)) Max Heat Dissipation: 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
| ПРОИЗВОДИТЕЛНОСТ | Комутационен капацитет: 10 Gbps Скорост на предаване на пакети данни: 7.44 Mpps Таблица на МАС адресите: 8k Packet Buffer Memory: 4.1 Mbit Jumbo кадър: 9 KB |
| СОФТУЕРНИ ХАРАКТЕРИСТИКИ | Качество на услугата: • 802.1p CoS/DSCP priority · • 8 priority queues · • Priority Schedule Mode · - SP (Strict Priority) · - WRR (Weighted Round Robin) · • Queue Weight Config · • Bandwidth Control · - Port/Flow-based Rating Limit · • Smoother Performance · • Storm Control · - Multiple Control Modes(kbps/ratio) · - Broadcast/Multicast/Unknown-Unicast Control L2 and L2+ Features: • 32 IP Interfaces · - Support IPv4/IPv6 Interface · • Static Routing · - 32 IPv4/IPv6 Static Routes · • DHCP Server · • DHCP Relay · - DHCP Interface Relay · - DHCP VLAN Relay · • DHCP L2 Relay · • Static ARP · • Proxy ARP · • Gratuitous ARP · • Link Aggregation · - Static link aggregation · - 802.3ad LACP · - Up to 8 aggregation groups and up to 8 ports · per group · • Spanning Tree Protocol · - 802.1D STP · - 802.1w RSTP · - 802.1s MSTP · - STP Security: TC Protect, BPDU Filter/Protect, · Root Protect · • Loopback Detection · • Flow Control · - 802.3x Flow Control · • Mirroring · - Port Mirroring · - CPU Mirroring · - One-to-One · - Many-to-One · - Flow-Based · - Ingress/Egress/Both · • Device Link Detect Protocol (DLDP) · • 802.1ab LLDP/ LLDP-MED L2 Multicast: • 511 IPv4, IPv6 shared multicast groups · • IGMP Snooping · - IGMP v1/v2/v3 Snooping · - Fast Leave · - IGMP Snooping Querier · - Static Group Config · • Multicast VLAN Registration (MVR) · • Multicast Filtering · • MLD Snooping · - MLD v1/v2 Snooping · - Fast Leave · - MLD Snooping Querier · - Static Group Config · • Limited IP Multicast (256 profiles and 16 entries per profile) Разширени характеристики: • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule IPv6 Support: • IPv6 Dual IPv4/IPv6 · • Multicast Listener Discovery (MLD) Snooping · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications · - DHCPv6 Client · - Ping6 · - Tracert6 · - Telnet (v6) · - IPv6 SNMP · - IPv6 SSH · - IPv6 SSL · - Http/Https · - IPv6 TFTP VLAN: • VLAN Group · - Max. 4K VLAN Groups · • 802.1Q tag VLAN · • MAC VLAN: 12 Entries · • Protocol VLAN · • GVRP · • Voice VLAN Access Control List: • Support up to 230 entries · • Time-Range · - Time Slice · - Week Time-Range · - Absolute Time-Range · - Holiday · • Time-based ACL · • MAC ACL · - Source MAC · - Destination MAC · - VLAN ID · - User Priority · - Ether Type · • IP ACL · - Source IP · - Destination IP · - IP Protocol · - TCP Flag · - TCP/UDP Source Port · - TCP/UDP Destination Port · - DSCP/IP TOS · • IPv6 ACL · • Combined ACL · • Rule Operation · - Permit/Deny · • Policy Action · - Mirror · - Rate Limit · - Redirect · - QoS Remark · • ACL Rules Binding · - Port Binding · - VLAN Binding · • Actions for flows · - Mirror (to supported interface) · - Redirect (to supported interface) · - Rate Limit · - QoS Remark Защита: • AAA · • 802.1X · - Port-based authentication · - MAC (Host) based authentication · - Authentication Method includes PAP/EAP-MD5 · - MAB · - Guest VLAN · - Support Radius authentication and accountability · • IP/IPv6-MAC Binding · - 512 Binding Entries · - DHCP Snooping · - DHCPv6 Snooping · - ARP Inspection · - ND Detection · • IP Source Guard · - 253 Entries · - Source IP+Source MAC · • IPv6 Source Guard · - 183 Entries · - Source IPv6 Address+Source MAC · • DoS Defend · • Static/Dynamic/Permanent Port Security · - Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control · - kbps/ratio control mode · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC-based access control MIBs: • MIB II (RFC1213) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIBs · • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | Omada App: Yes, through · • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller Centralized Management: • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller Cloud Access: Yes, through · • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller. Management Features: • Web-based GUI · • Command Line Interface (CLI) through telnet · • SNMPv1/v2c/v3 · • SNMP Trap/Inform · • RMON (1,2,3,9 groups) · • SDM Template · • DHCP/BOOTP Client · • Dual Image, Dual Configuration · • CPU Monitoring · • Cable Diagnostics · • EEE · • SNTP · • System Log |
