TP-Link
Суич TP-Link Omada SG5428X
Артикул №: 1000141271
Категория:
Мрежови адаптери
522,99 €
✓ Налично във външен склад

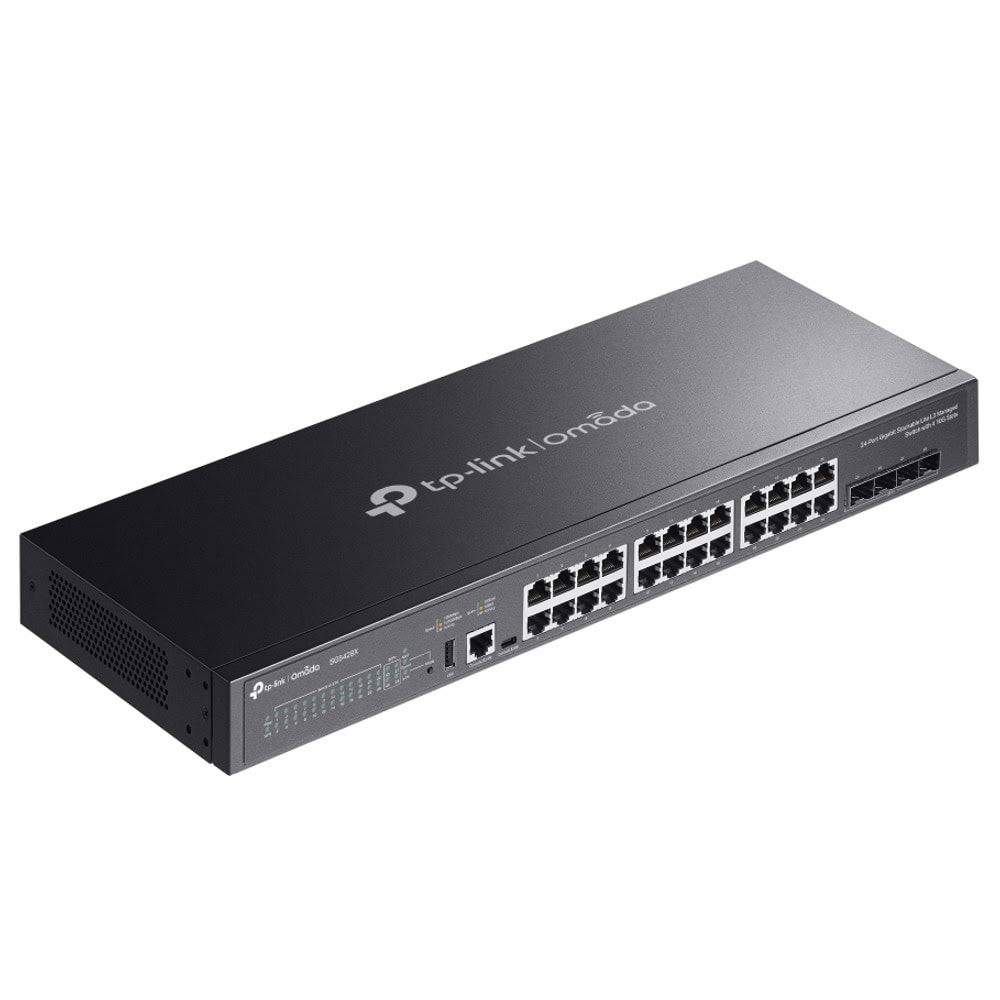

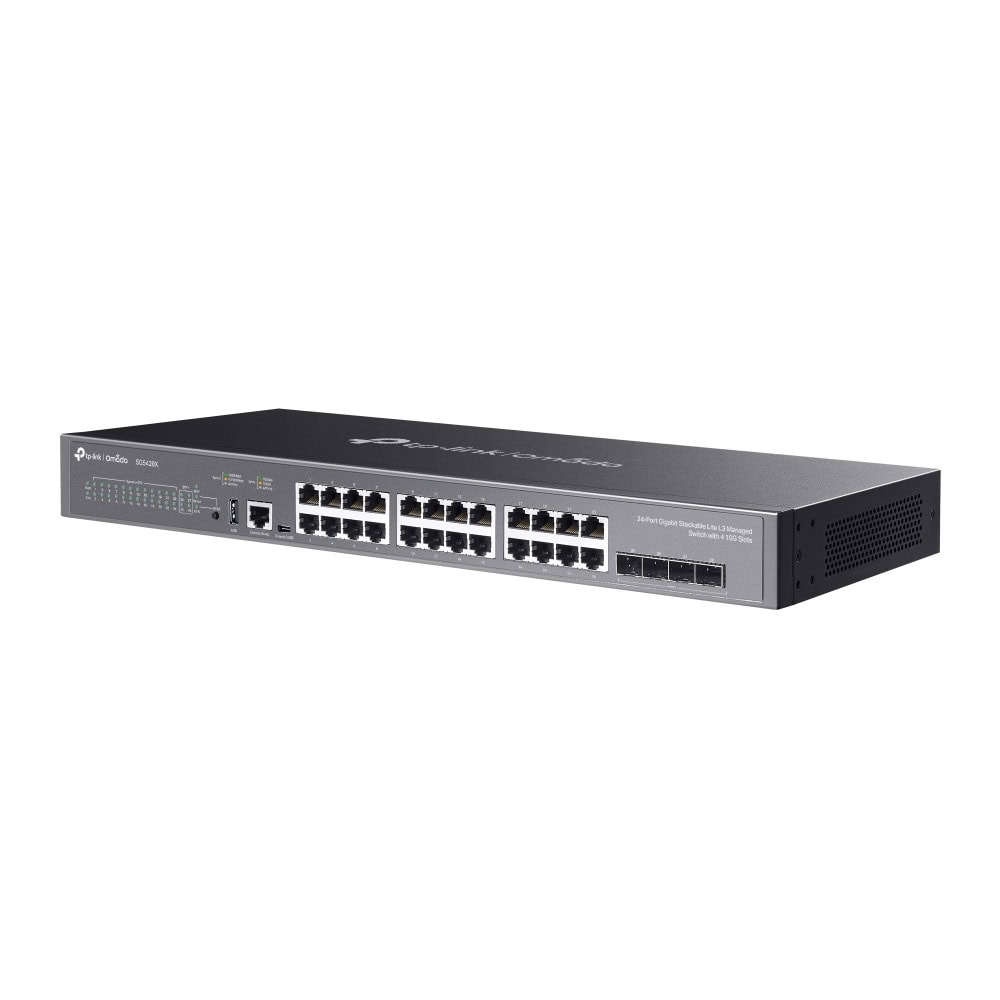

TP-Link Omada SG5428X
Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical Stacking up to 4 units for built-in redundancy and performance
Характеристики
| L3 features | RIP, OSPF, Static Routing, and DHCP Server/Relay |
| Security Strategies | ACL, Port Security, DoS Defend, 802.1X |
| Centralized cloud management via the Omada SDN controller | Да |
| Standalone management via web, CLI, SNMP, and RMON | Да |
| What This Product Does | Да |
| High-speed Connectivity and Powerful Stacking | Да |
| Abundant Layer | 3 Capabilities |
| Highly Available | Да |
| Category | HARDWARE FEATURESInterface: 24× 10/100/1000 Mbps RJ45 Ports; 4× 1/10 Gbps SFP+ Slots; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console PortFan Quantity: FanlessPower Supply: 100-240 V~50/60 HzDimensions (W×D×H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)Mounting: RackmountableMax. Power Consumption: 19.90 W (110 V/60 Hz)Max Heat Dissipation: 67.86 BTU/hr (110 V/60 Hz) PERFORMANCESwitching Capacity: 128 Gbps per UnitStacking: Number: 4; Port: 10G SFP+ Slot (all uplink ports usable as stacking ports); Bandwidth: Up to 40 Gbps (4 stacking ports)Packet Forwarding Rate: 95.23 MppsMAC Address Table: 16 KPacket Buffer Memory: 12 MbitJumbo Frame: 9 KB SOFTWARE FEATURESQuality of Service:- Class of Service: 8 Queues of Priority, Port Priority, IEEE 802.1p Priority, DSCP Priority, Queue Min-Bandwidth, Schedule Mode (SP, WRR, SP+WRR)- Bandwidth Control: Rate Limit, Storm Control- Voice VLAN, User-Defined OUI, Smoother Performance- Action for Flows: QoS remark (802.1P, DSCP) L3 Features:- IP Interfaces: IPv4 max 128, IPv6 max 128- Static Routing: IPv4 max 512, IPv6 max 128- Host Route Table max 1,024 entries- RIP v1/v2 max 1,796- OSPF v2/v3; v2 max 1,796, v3 max 450- Static ARP: 512 entries; Dynamic ARP: 3,600 entries- Proxy ARP- DHCP Server: Max 64 IP Pools, 1,000 Manual Bindings- DHCP Relay: Relayed Interface, Relayed VLAN L2 and L2+ Features:- Link Aggregation, Spanning Tree Protocol, Loopback Detection (port- and VLAN-based), 802.3x Flow Control, ERPS, Mirroring, RSPAN, MAC Address Table- Multicast: IGMP/MLD Snooping, L2 Multicast Table max 2,000, Fast Leave, Multicast VLAN Registration, Static Multicast Groups, Multicast Filtering Advanced Features:- Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Intelligent Network Monitoring†, Abnormal Event Warnings†, Unified Configuration†, Reboot Schedule† ISP Features:- 802.3ah Ethernet Link OAM, L2PT, Device Link Detect Protocol (DLDP), DDM, sFlow VLAN:- Max 4K VLAN Group (802.1q), 802.1Q Tagged VLAN, MAC VLAN Entries 60, Multicast VLAN, Management VLAN, VLAN VPN (QinQ) max 256 entries, GVRP, Protocol VLAN (Template 16, VLAN 12 entries), Voice VLAN, Private VLAN Security:- Port Isolation, CPU-Defend, ARP Inspection (Dynamic ARP Inspection), DoS Defend, IP-MAC-Port Binding (1,024 Entries), DHCP Snooping, ARP Inspection, IPv4 Source Guard- IPv6-MAC Port Binding (1,024 Entries), DHCPv6 Snooping, ND Detection/Snooping, IPv6 Source Guard- DHCP Filter, Static/Dynamic Port Security (up to 64 MAC per port)- Broadcast/Multicast/Unknown-unicast Storm Control (kbps/ratio mode)- 802.1X (Port, MAC base authentication, VLAN Assignment, MAB, Guest VLAN, RADIUS auth/accountability)- AAA (incl. TACACS+)- Secure web management (HTTPS with SSLv3/TLS 1.2)- Secure CLI management (SSHv2)- IP/Port/MAC-based access control Management FeaturesOmada App: Yes, requires Omada Hardware/Cloud-Based/Software ControllerCentralized Management: Omada Cloud-Based, Hardware, Software ControllersCloud Access: Yes, requires Omada ControllerZero-Touch Provisioning: Yes, requires Omada Cloud-Based ControllerManagement Features: Web GUI, CLI (console, telnet), SNMP v1/v2c/v3 (Trap/Inform, RMON groups 1,2,3,9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP Auto Install, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, Password Recovery, SNTP, System Log, IEEE 802.3az Energy Efficient Ethernet (EEE) |
