TP-Link

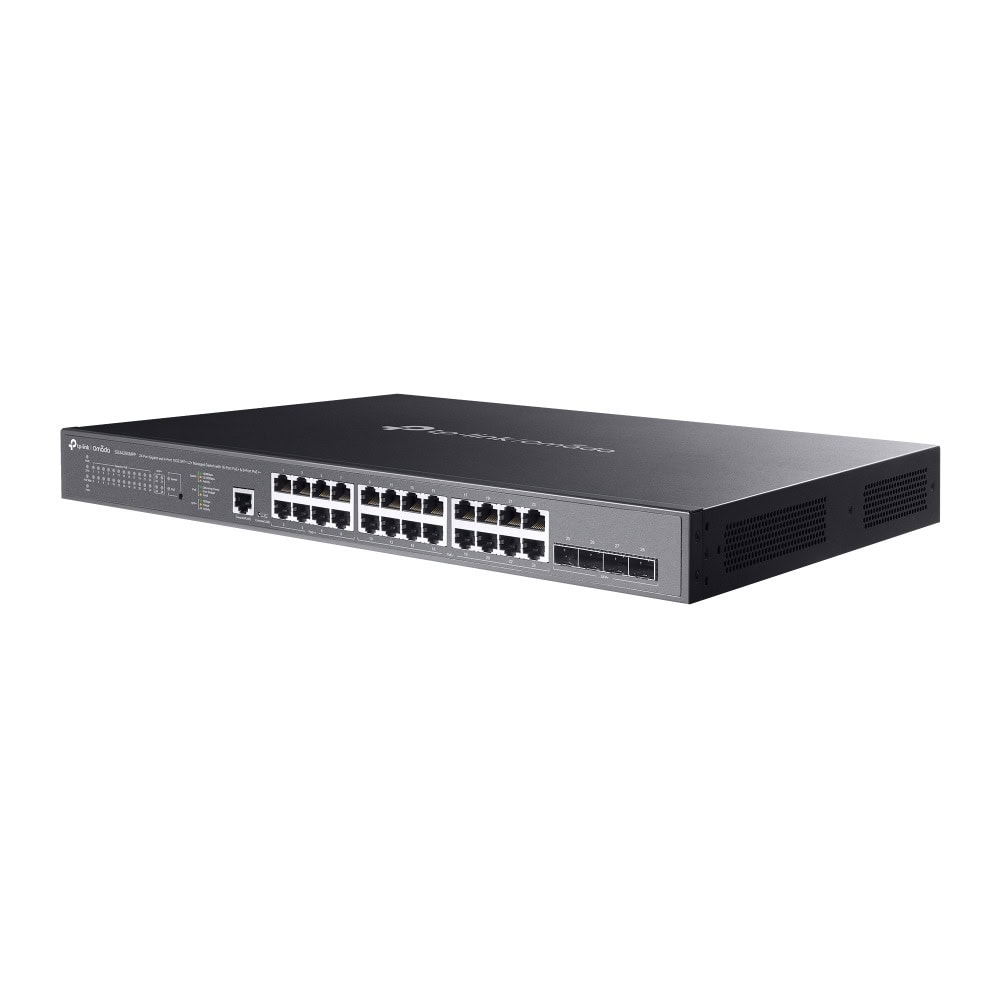

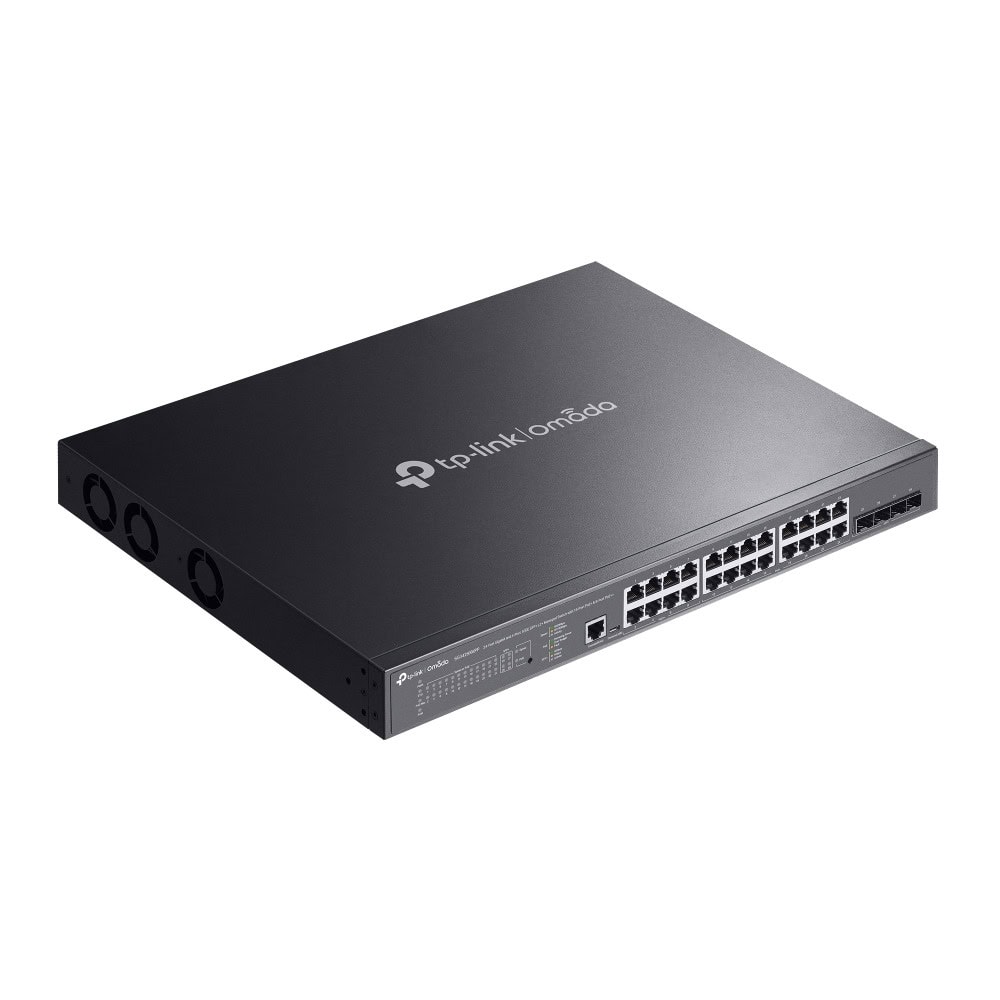

Суич TP Link Omada SG3428XMPP
Артикул №: 1000137682
Категория:
Мрежови адаптери
783,99 €
✓ Ограничена наличност
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
| 4× 10 Gbps SFP+ slots | Да |
| W total PoE budget* | 500 |

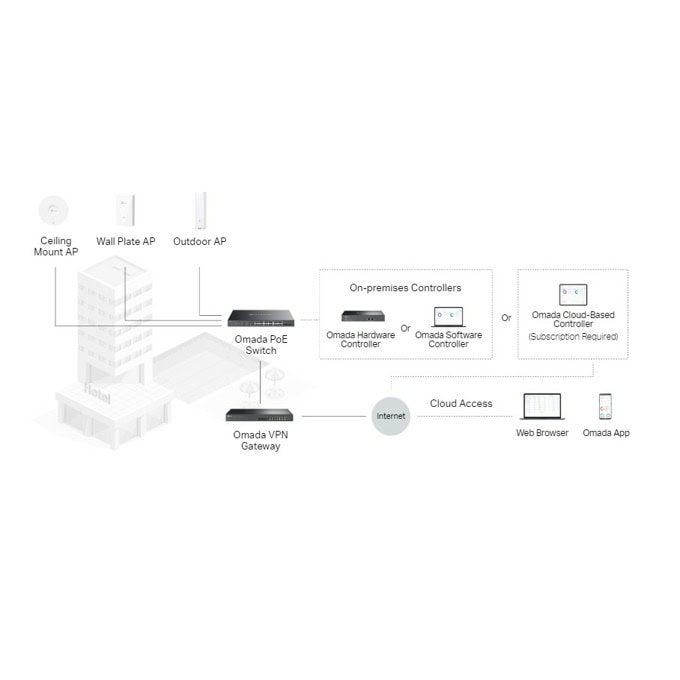

| Centralized cloud management via the web or the Omada app† | Да |
| Standalone management via web, CLI, SNMP, and RMON | Да |
| Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM | Да |
| Durable metal casing and rack-mountable design | Да |

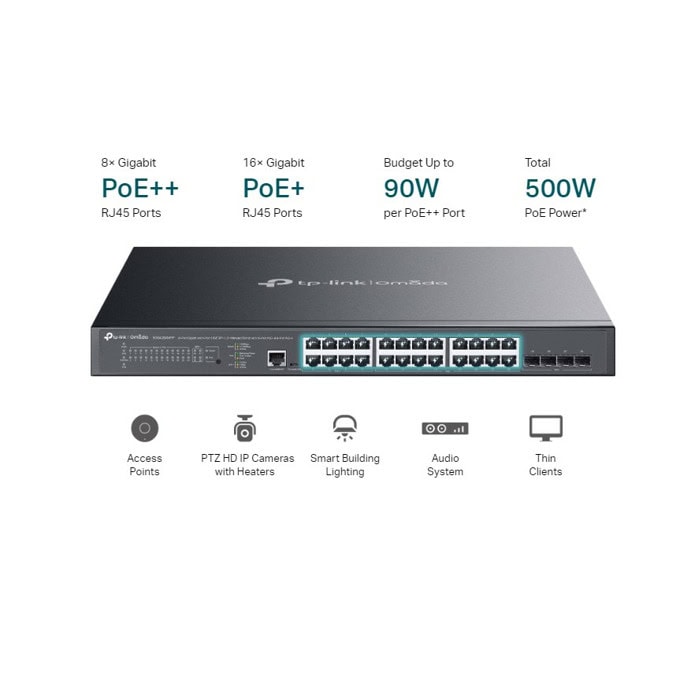

| HARDWARE FEATURES | Interface: • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) · • 4× 10G SFP+ Slots · • 1× RJ45 Console Port · • 1× Micro-USB Console Port Fan Quantity: 3 Physical Security Lock: Yes Power Supply: 100-240 V AC~50/60 Hz PoE Ports (RJ45): • Standard: 802.3at/af/bt compliant · • PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port) · • PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port) · • Power Budget: 500 W* Dimensions ( W x D x H ): 17.3×13.0×1.7 in (440×330×44 mm) Mounting: Rack Mountable Max Power Consumption: 605.5W (110V/60Hz) ( with 500W PD connected) Max Heat Dissipation: 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected) |
| PERFORMANCE | Switching Capacity: 128 Gbps Packet Forwarding Rate: 95.23 Mpps MAC Address Table: 16 K Packet Buffer Memory: 12 Mbit Jumbo Frame: 9 KB |
| SOFTWARE FEATURES | Quality of Service: • 8 priority queues · • 802.1p CoS/DSCP priority · • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR · • Bandwidth Control: Port/Flow-based Rating Limiting · • Smoother Performance · • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) L2 and L2+ Features: • 128 IP Interfaces: Support IPv4/IPv6 Interface · • Static Routing: 48 IPv4/IPv6 Static Routes · • Static ARP: 128 static entries · • 512 ARP Entries · • Proxy ARP · • Gratuitous ARP · • DHCP Server · • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay · • DHCP L2 Relay · • Link Aggregation · • Spanning Tree Protocol · • Loopback Detection · • 802.3x Flow Control · • Mirroring L2 Multicast: • Supports 1000 (IPv4, IPv6) IGMP groups · • IGMP Snooping · • IGMP Authentication · • Multicast VLAN Registration (MVR) · • MLD Snooping · • Multicast Filtering: 256 profiles and 16 entries per profile Advanced Features: • Automatic Device Discovery† · • Batch Configuration† · • Batch Firmware Upgrading† · • Intelligent Network Monitoring† · • Abnormal Event Warnings† · • Unified Configuration† · • Reboot Schedule† · · ISP Features**: · • L2PT (Layer 2 Protocol Tunneling) · • Device Link Detect Protocol (DLDP) · • PPPoE ID Insertion · • ERPS · • 802.3ah Ethernet Link OAM · • DDM · • sFlow VLAN: • VLAN Group: Max 4K VLAN Groups · • 802.1q Tagged VLAN · • MAC VLAN: 30 Entries · • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 · • Private VLAN · • GVRP · • VLAN VPN: VLAN Mapping, VLAN Replace · • Voice VLAN Access Control List: • Time-based ACL · • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type · • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS · • Combined ACL · • Packet Content ACL · • IPv6 ACL · • Policy: Mirroring, Redirect, Rate Limit, QoS Remark · • ACL applies to Port/VLAN Security: • IP-MAC-Port Binding · - 512 Entries · - DHCP Snooping · - ARP Inspection · - IPv4 Source Guard: 100 Entries · • IPv6-MAC-Port Binding · - 512 Entries · - DHCPv6 Snooping · - ND Detection · - ND Snooping · - IPv6 Source Guard: 100 Entries · • DoS Defend · • DHCP Filter · • Static/Dynamic Port Security: Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode · • 802.1X · - Port-based authentication · - Mac-base authentication · - VLAN Assignment · - MAB · - Guest VLAN · - Radius authentication and accountability support · • AAA (including TACACS+) · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC-based access control IPv6: • IPv6 Dual IPv4/IPv6 · • Multicast Listener Discovery (MLD) Snooping · • IPv6 ACL · • IPv6 Interface · • Static IPv6 Routing · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP MIBs: • MIB II (RFC1213) · • Interface MIB (RFC2233) · • Ethernet Interface MIB (RFC1643) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • RMON MIB (RFC2819) · • RMON2 MIB (RFC2021) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIB |
| MANAGEMENT | Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller. Management Features: • Web-based GUI · • Command Line Interface (CLI) through console port, telnet · • SNMPv1/v2c/v3 · - Trap/Inform · - RMON (1, 2, 3, 9 groups) · • SDM Template · • DHCP/BOOTP Client · • 802.1ab LLDP/LLDP-MED · • DHCP AutoInstall · • Dual Image, Dual Configuration · • CPU Monitoring · • Cable Diagnostics · • EEE · • Password Recovery · • SNTP · • System Log |
