TP-Link
Суич TP-Link Omada SG2452LP
Артикул №: 1000035561
Категория:
Суич
630,99 €
✓ Ограничена наличност

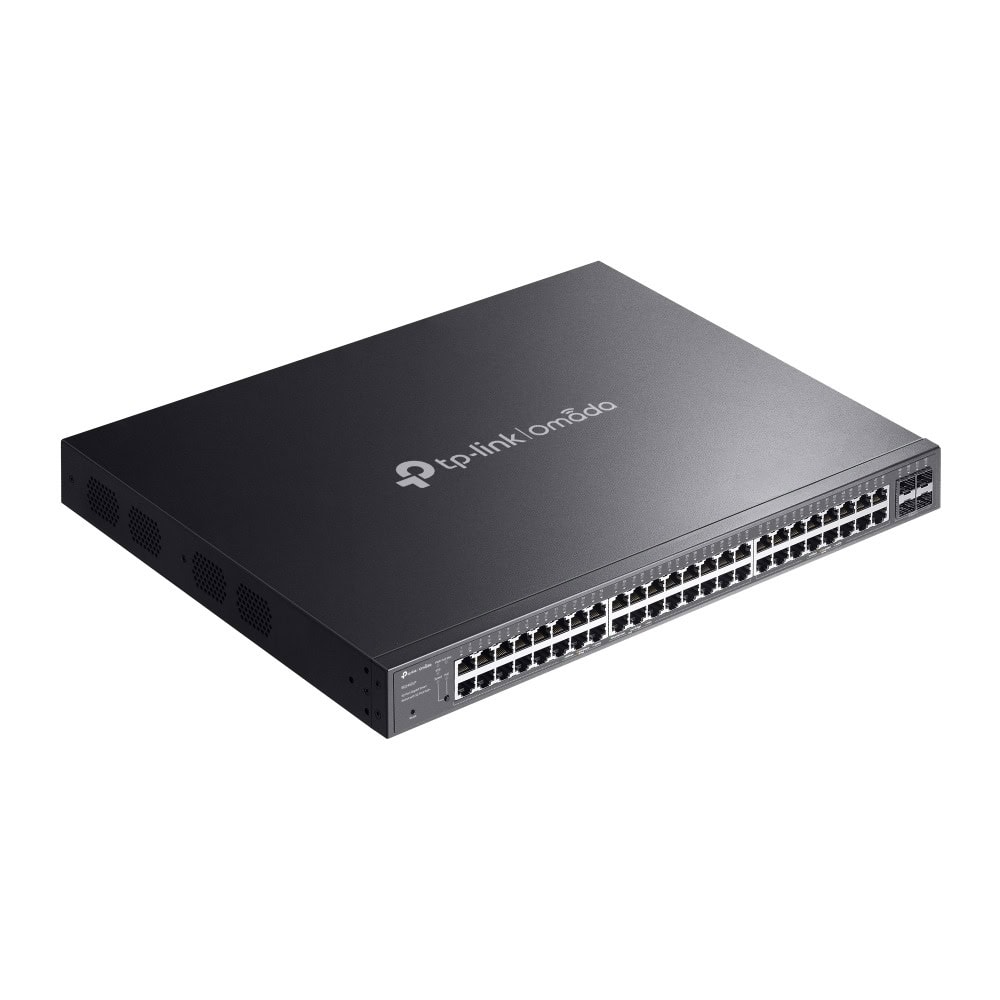

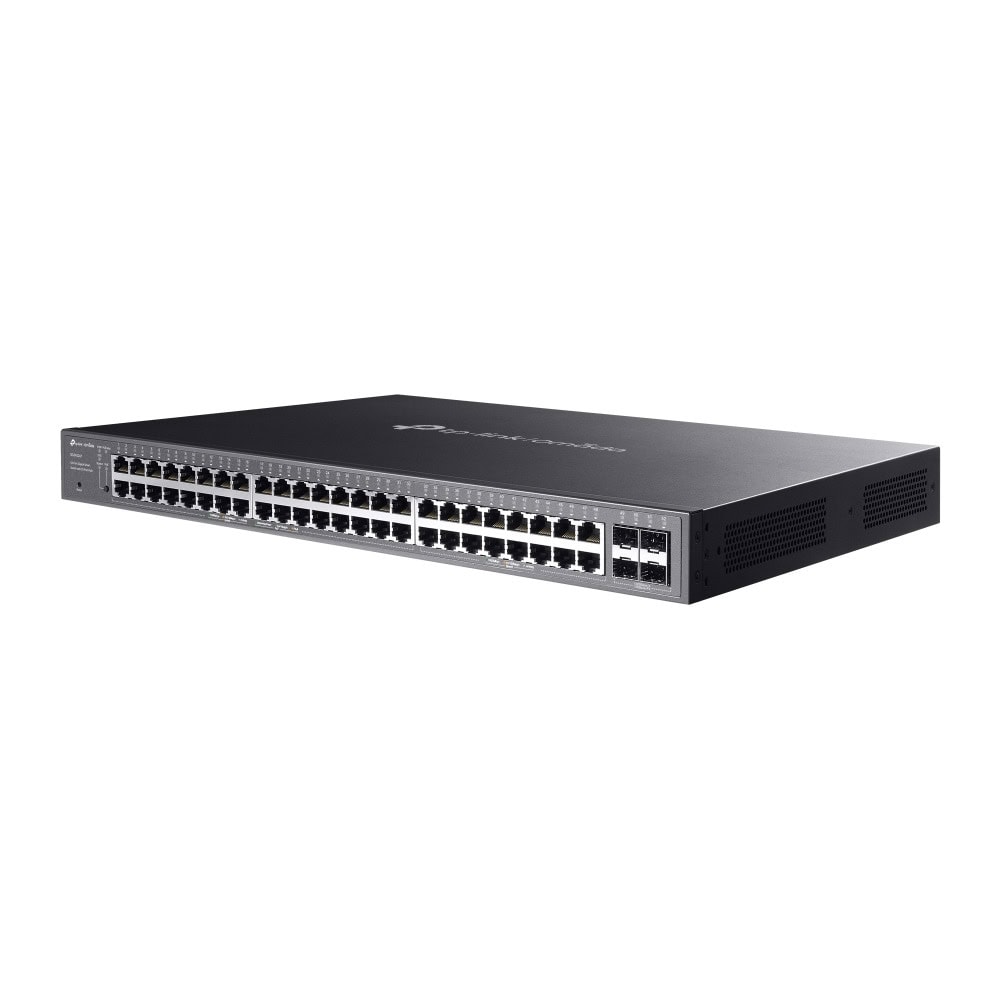

TP-Link Omada SG2452LP
Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
- 32× Gigabit 802.3af/at PoE+ ports
- 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 230 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design

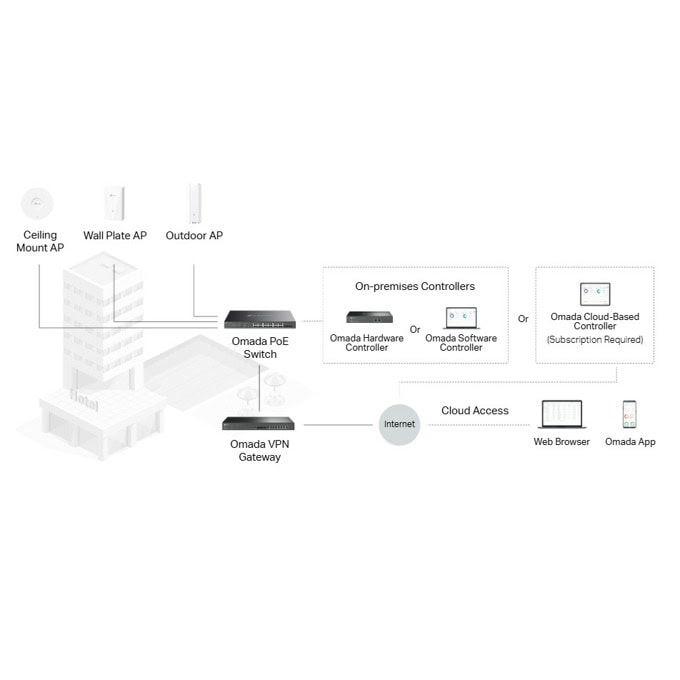

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
HARDWARE FEATURES
| Интерфейс | • 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) · • 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) · • 4× Gigabit SFP Slots |
| Fan Quantity | Fanless |
| Physical Security Lock | √ |
| Захранване | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant · • PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port) · • PoE Power Budget: 230 W* |
| Dimensions ( W x D x H ) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Монтаж | Rack Mountable |
| Max Power Consumption | 304.5W (110 V/60 Hz) (with 230 W PD connected) |
| Max Heat Dissipation | 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected) |
PERFORMANCE
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.37 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
SOFTWARE FEATURES
| Quality of Service | • 802.1p CoS/DSCP priority · • 8 priority queues · • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) · • Queue Weight Config · • Bandwidth Control: Port/Flow-based Rating Limit · • Smoother Performance · • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface · • Static Routing: 32 IPv4/IPv6 Static Routes · • DHCP Server · • DHCP Relay · - DHCP Interface Relay · - DHCP VLAN Relay · • DHCP L2 Relay · • Static ARP · • Proxy ARP · • Gratuitous ARP · • Link Aggregation · • Spanning Tree Protocol · • Loopback Detection · • 802.3x Flow Control · • Mirroring · • Device Link Detect Protocol (DLDP) · • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups · • IGMP Snooping · • Multicast VLAN Registration (MVR) · • Multicast Filtering · • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule |
| VLAN | • VLAN Group: Max. 4K VLAN Groups · • 802.1Q tag VLAN · • MAC VLAN: 12 Entries · • Protocol VLAN · • GVRP · • Voice VLAN |
| Access Control List | • Support up to 230 entries · • Time-based ACL · • MAC ACL · • IP ACL · • IPv6 ACL · • Combined ACL · • Rule Operation: Permit/Deny · • Policy Action · - Mirroring · - Redirect · - Rate Limit · - QoS Remark · • ACL Rules Binding · - Port Binding · - VLAN Binding |
| Security | • IP-MAC-Port Binding · • AAA · • 802.1X · - Port based authentication · - MAC (Host) based authentication · - Authentication Method includes PAP/EAP-MD5 · - MAB · - Guest VLAN · - Radius authentication and accountability support · • IP/IPv6-MAC Binding · - 512 Binding Entries · - DHCP Snooping · - DHCPv6 Snooping · - ARP Inspection · - ND Detection · • IP Source Guard · - 253 Entries · - Source IP+Source MAC · • IPv6 Source Guard · - 183 Entries · - Source IPv6 Address+Source MAC · • DoS Defend · • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL · • IPv6 Dual IPv4/IPv6 · • IPv6 Interface · • Multicast Listener Discovery (MLD) Snooping · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIBs · • RMON MIB(RFC1757, rmon 1,2,3,9) |
MANAGEMENT
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI · • Command Line Interface (CLI) through telnet · • SNMPv1/v2c/v3 · • SNMP Trap/Inform · • RMON (1,2,3,9 groups) · • SDM Template · • DHCP/BOOTP Client · • Dual Image, Dual Configuration · • CPU Monitoring · • Cable Diagnostics · • EEE · • SNTP · • System Log |
