TP-Link
Суич TP-Link Omada IES208G
Артикул №: 1000143099
Категория:
Мрежови адаптери
222,99 €
✓ Ограничена наличност

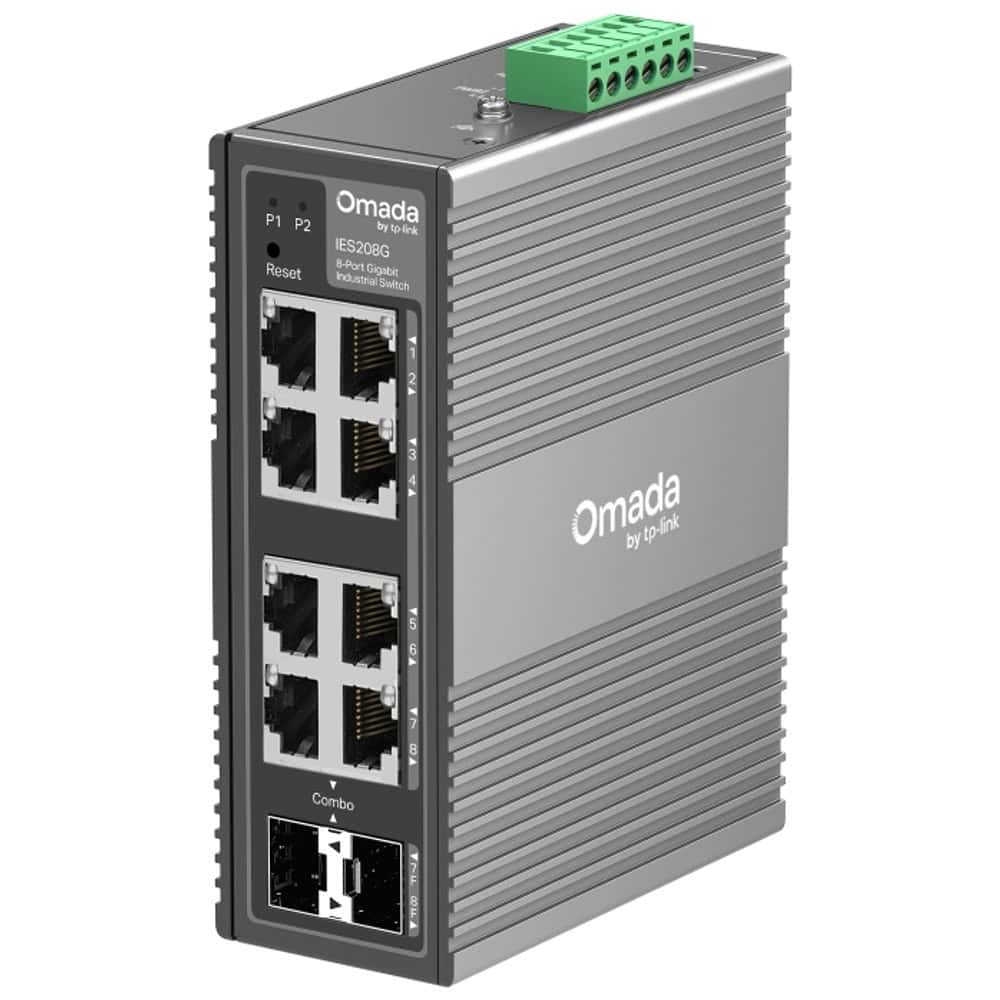

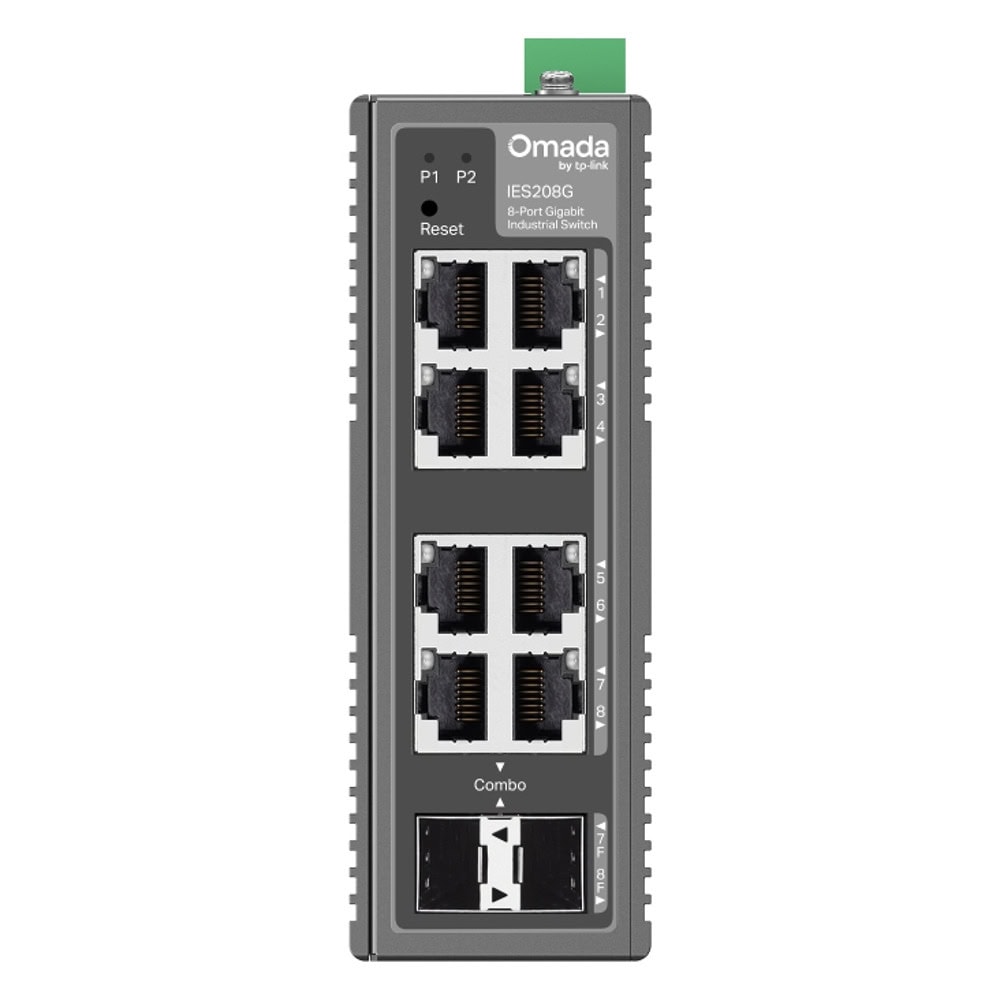

TP-Link Omada IES208G
Omada 8-Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
Характеристики
| Professional Industrial-Grade Design | -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input |
| Abundant Features | VLAN, QoS, and STP/RSTP |
| Centralized Cloud Management via the Web or Omada App | Да |
| Industrial-Grade Protection Built for Harsh Environments | Да |

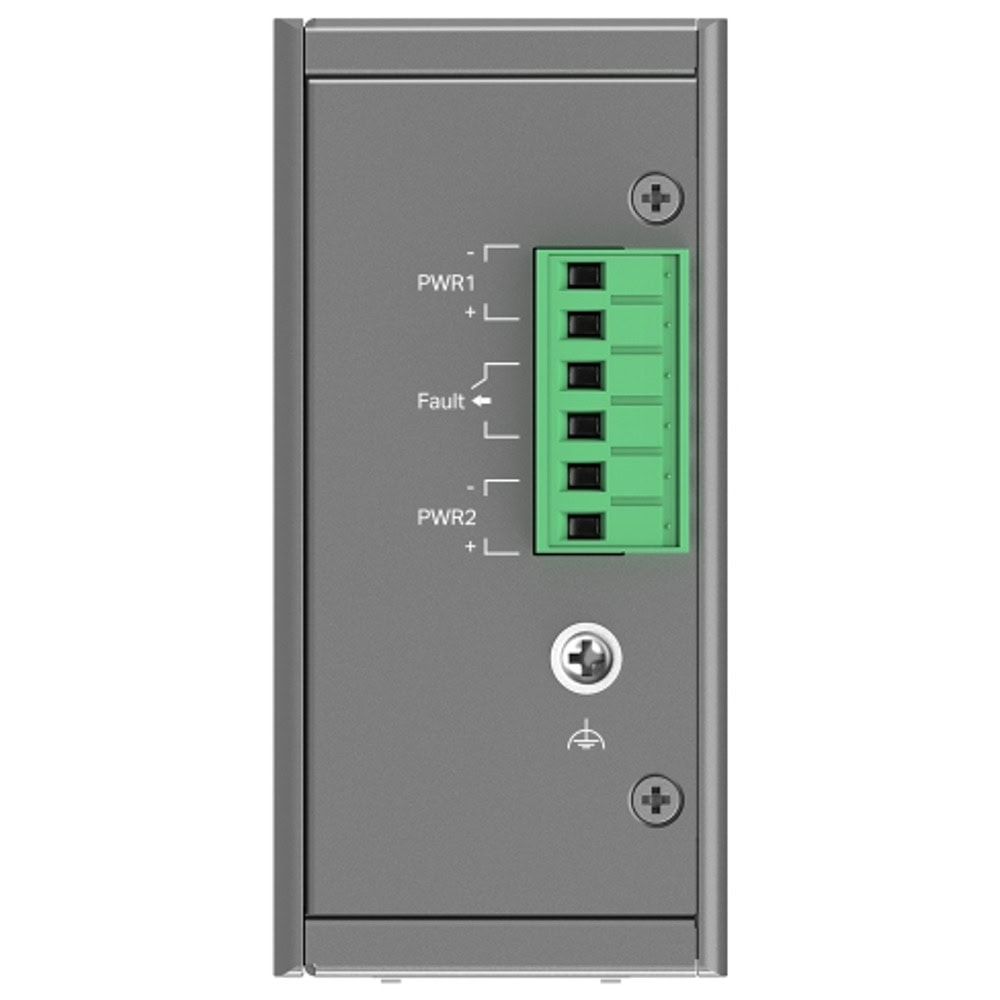

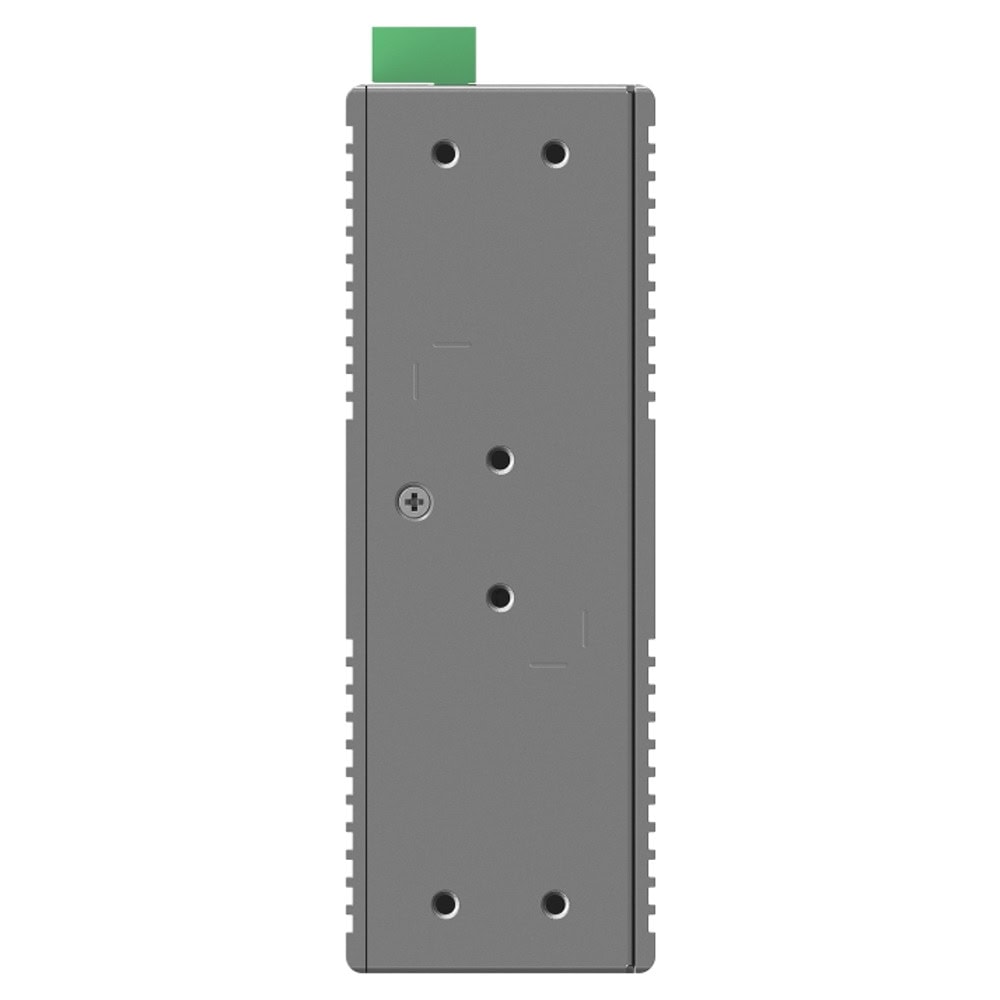

| Category | Hardware FeaturesInterface6× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP/RJ45 Combo Slots; Auto-Negotiation/Auto MDI/MDIX Fan QuantityFanless InstallationDIN-rail mounting; Wall mounting Power Supply9.6-60V 1+1 Redundant DC Power Input Dimensions (W × D × H)5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) Surge Protection±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports PerformanceSwitching Capacity16 Gbps Packet Forwarding Rate11.9 Mpps MAC Address Table8K Packet Buffer Memory4 Mbit Jumbo Frame15 KB Software FeaturesQuality of Service802.1p DSCP Priority; 8 Priority Queues; Priority Schedule Mode - WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control - Port-Based Rate Limit; Storm Control - Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control L2 FeaturesLink Aggregation - Static Link Aggregation (Up to 2 aggregation groups and up to 4 ports per group); Loopback Detection; Flow Control - 802.3x Flow Control; Mirroring - Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both); Port Statistics - Port Mirror Status, Traffic Statistics; 802.1ab LLDP; Spanning Tree - STP (802.1d), RSTP (802.1w) L2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping, Fast Leave VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN - Max 32 VLAN Groups, 4K VID Transmission MethodStore-And-Forward Management FeaturesOmada AppYes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller Cloud AccessYes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller Zero-Touch ProvisioningYes. Requires Omada Cloud-Based Controller Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Digital Diagnostic Monitoring (DDM); Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Unified Configuration† OthersCertificationFCC, CE, RoHS Package ContentIES208G; DIN-Rail Mounting Bracket; Wall-Mounting Plates; Installation Guide EnvironmentOperating Temperature: -40℃~75℃ (-40℉~167℉); Storage Temperature: -40℃~85℃ (-40℉~185℉); Operating Humidity: 5%~95% non-condensing; Storage Humidity: 5%~95% non-condensing |
