TP-Link

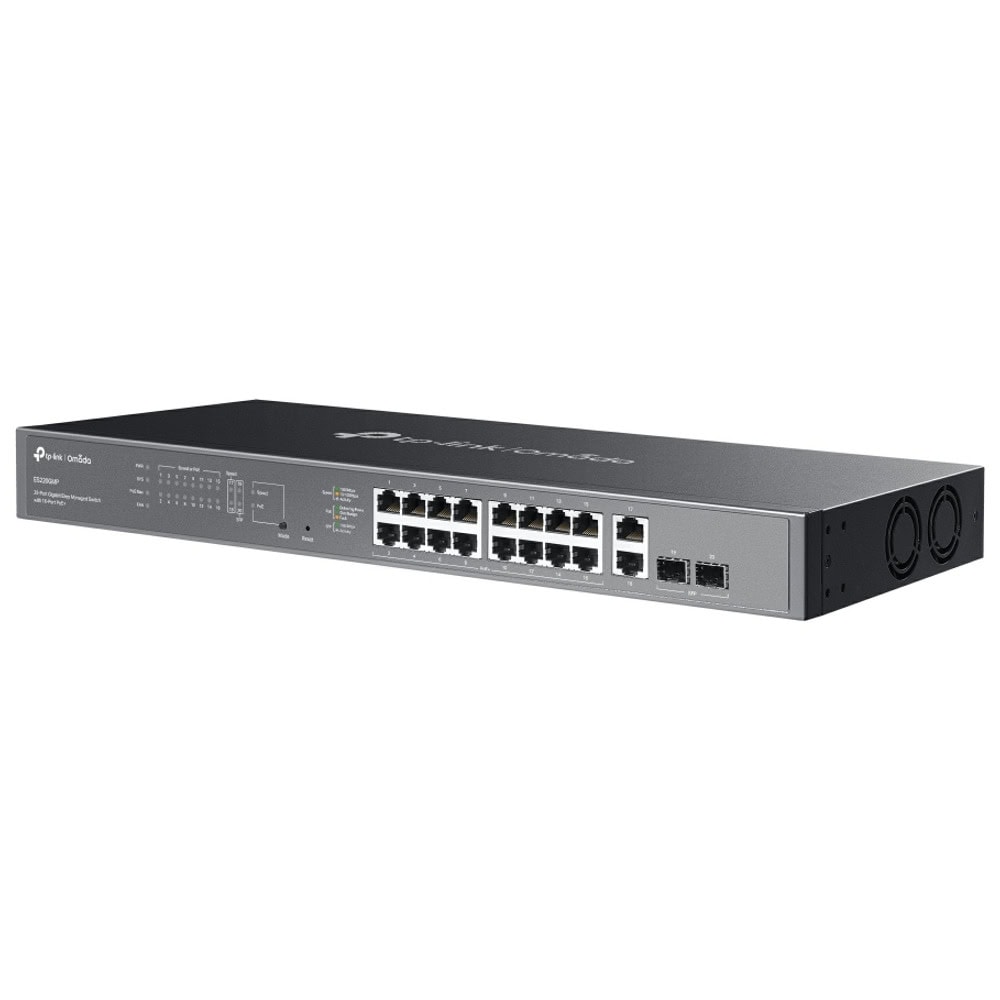

Суич TP-Link Omada ES220GMP
Артикул №: 1000140578
Категория:
Мрежови адаптери
229,99 €
✓ Налично във външен склад
ES220GMP

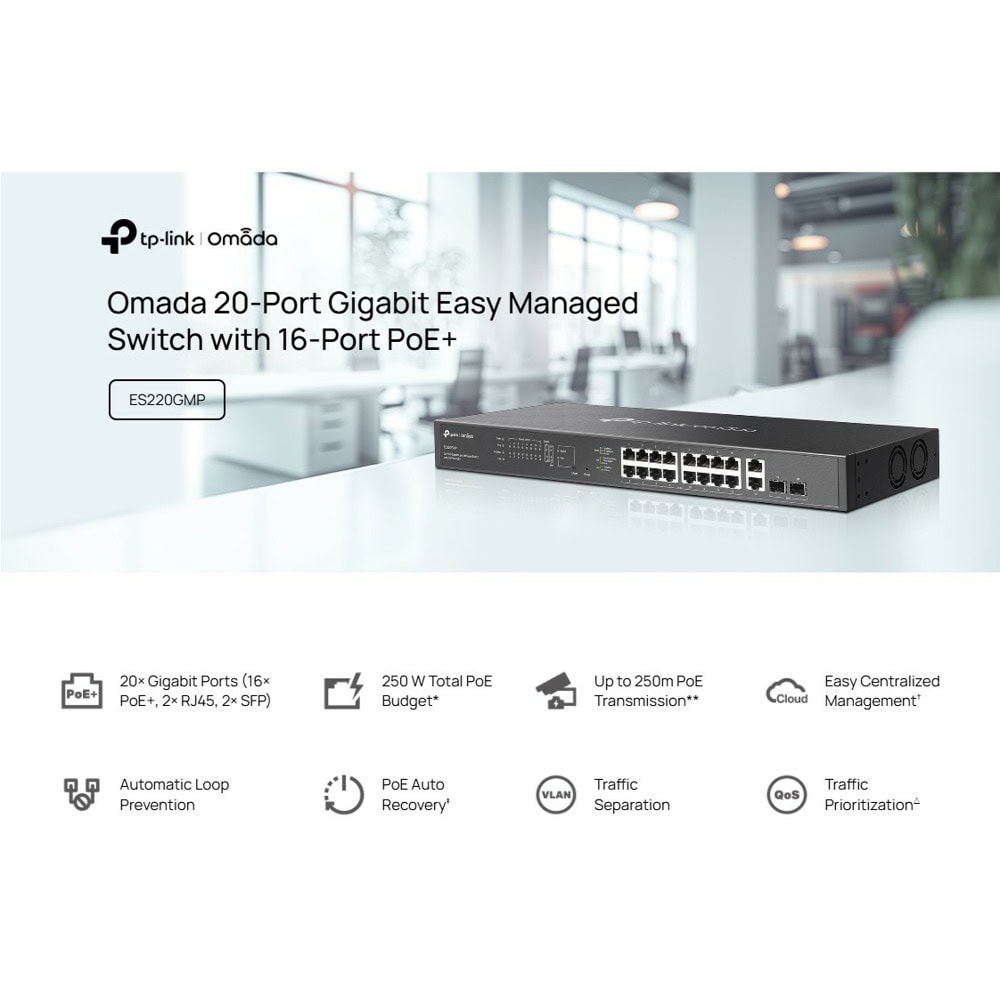

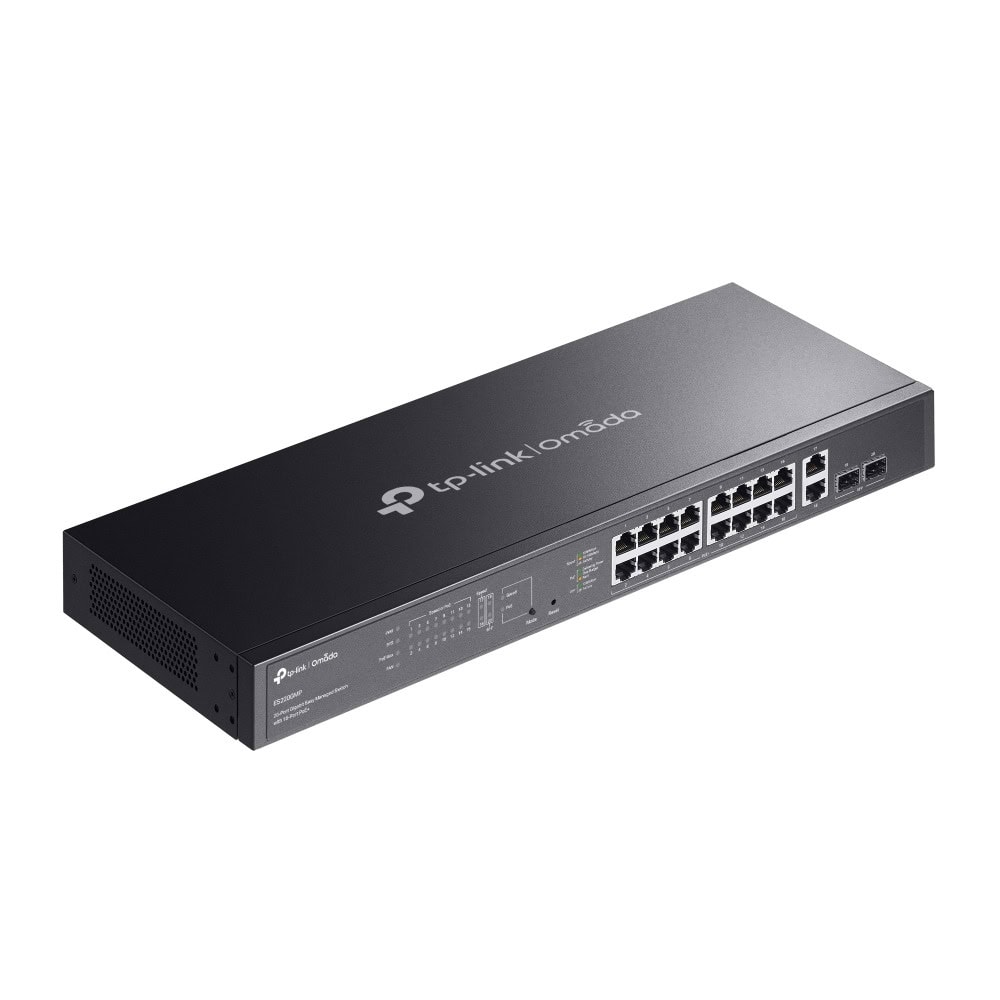

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
Характеристики
| Easy to Use | Supports plug-and-play for instant connectivity and simple configuration for additional features |

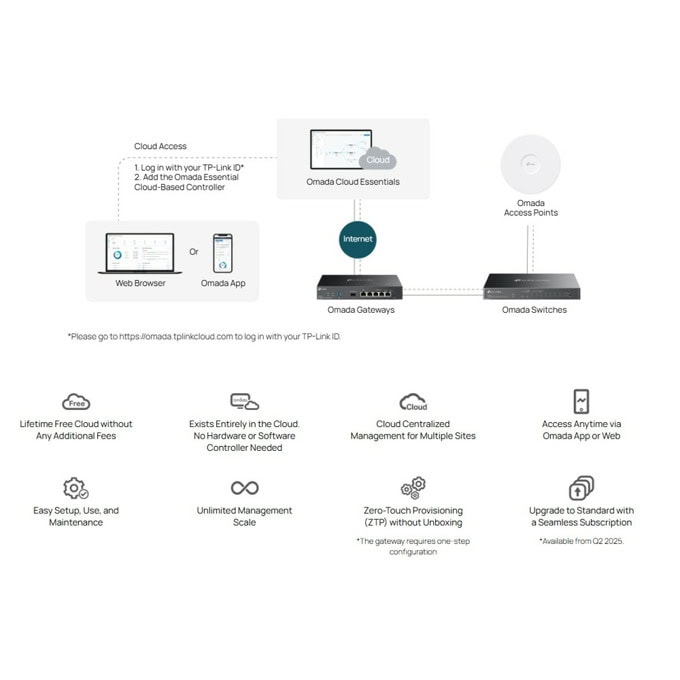

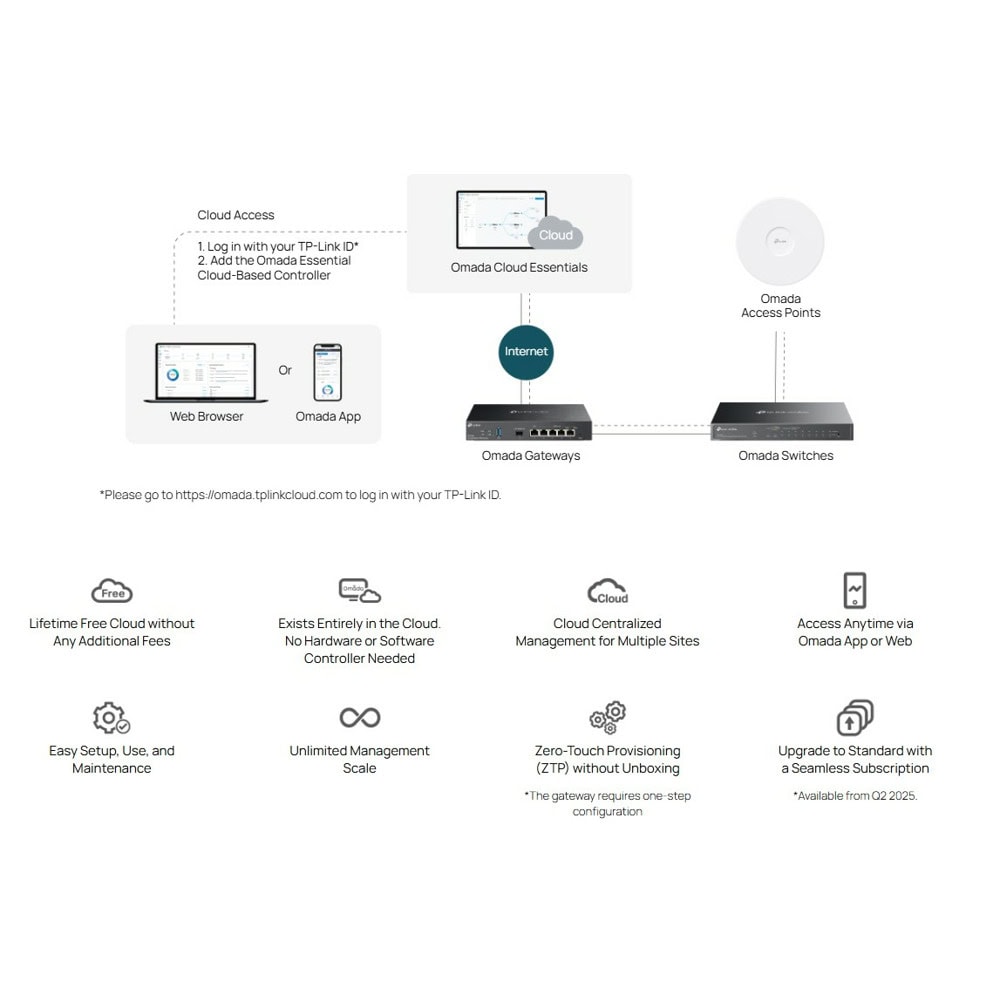

| Centralized Cloud Management via the web or the Omada app† | Да |
| Automatic Loop Prevention, VLAN, and IGMP Snooping | Да |
| Durable metal casing and rack-mountable design | Да |

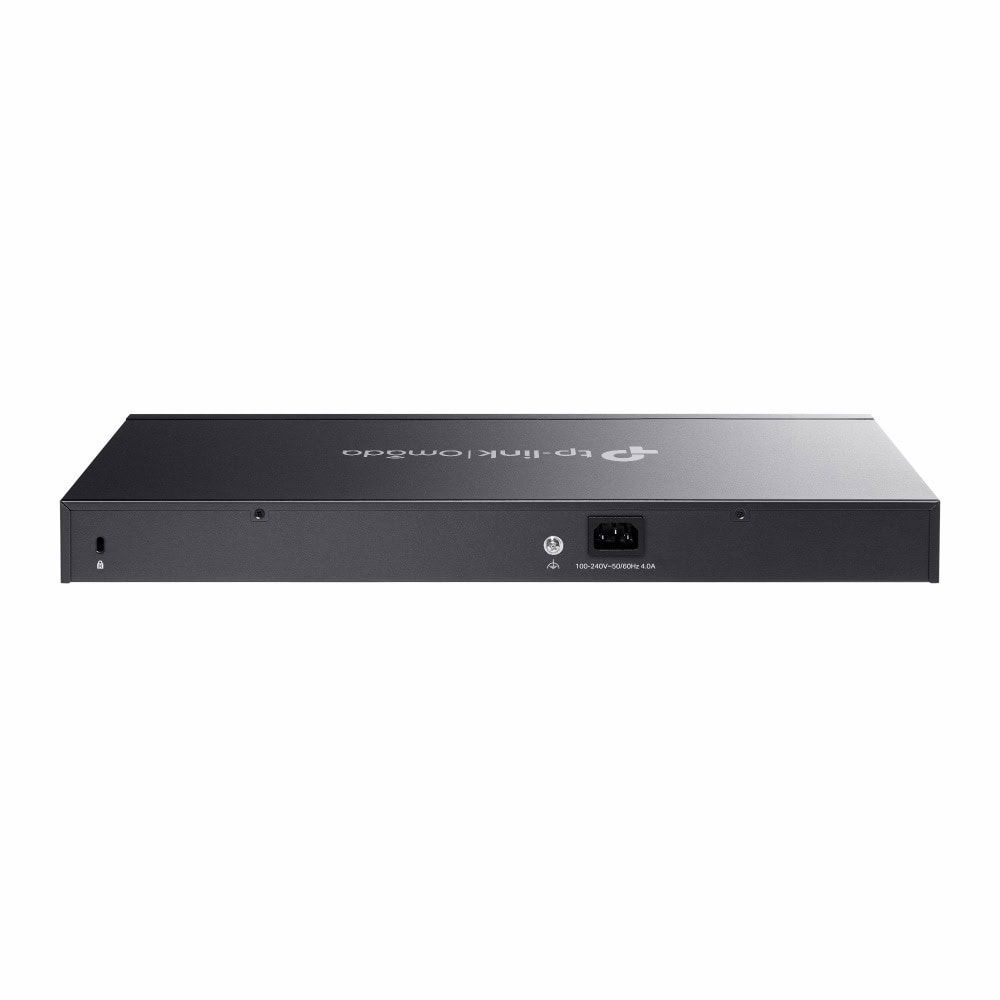

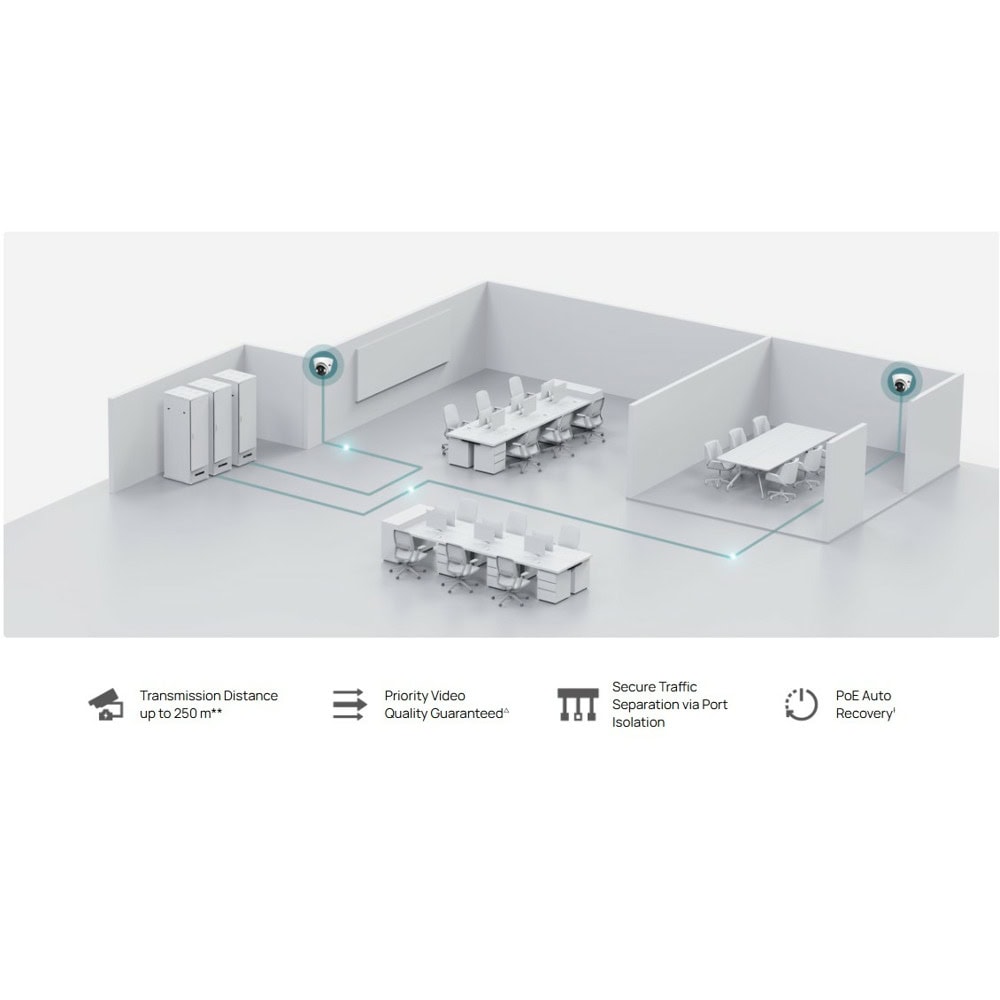

| Category | Hardware FeaturesInterface• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3at/af) • 2× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots Fan Quantity2 InstallationRackmountable Physical Security LockYes Power Supply100–240 VAC, 50/60 Hz PoE Ports (RJ45)• Standard: 802.3af/at • 16 ports • 250W total, 30W max/port • Fast & Perpetual PoE • Auto Recovery‡ • 250m Transmission** Dimensions (W × D × H)17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Surge Protection±6kV PerformanceSwitching Capacity40 Gbps Packet Forwarding Rate29.76 Mpps MAC Address Table8K Packet Buffer Memory4 Mbit Jumbo Frame15 KB Software FeaturesQuality of Service (QoS)• Port-based/802.1p/DSCP • 8 Priority Queues • WRR Scheduling • Queue Weight Config • Bandwidth Control • Storm Control L2 Features• Static Link Aggregation • Loop Prevention • 802.3x Flow Control • Port Mirroring • Port Statistics • LLDP L2 Multicast• IGMP Snooping (v1/v2/v3) • Fast Leave VLAN• MTU VLAN • Port-Based VLAN • 802.1Q VLAN (32 Groups, 4K VID) Transmission MethodStore-and-Forward Management FeaturesOmada AppYes, requires Omada Controller (Hardware/Cloud/Software) Centralized Management• Omada Cloud-Based • Omada Hardware • Omada Software Controllers Cloud AccessYes, requires Omada Controller Zero-Touch ProvisioningYes, requires Omada Cloud-Based Controller Management Functions• Web GUI • DHCP Client • Cable Diagnostics • Auto Device Discovery† • Batch Config/FW Upgrade† • Unified Config† |
