TP-Link
Суич TP-Link Omada DS1018GMP
Артикул №: 1000034877
Категория:
Суич
258,99 €
✓ Налично във външен склад
DS1018GMP

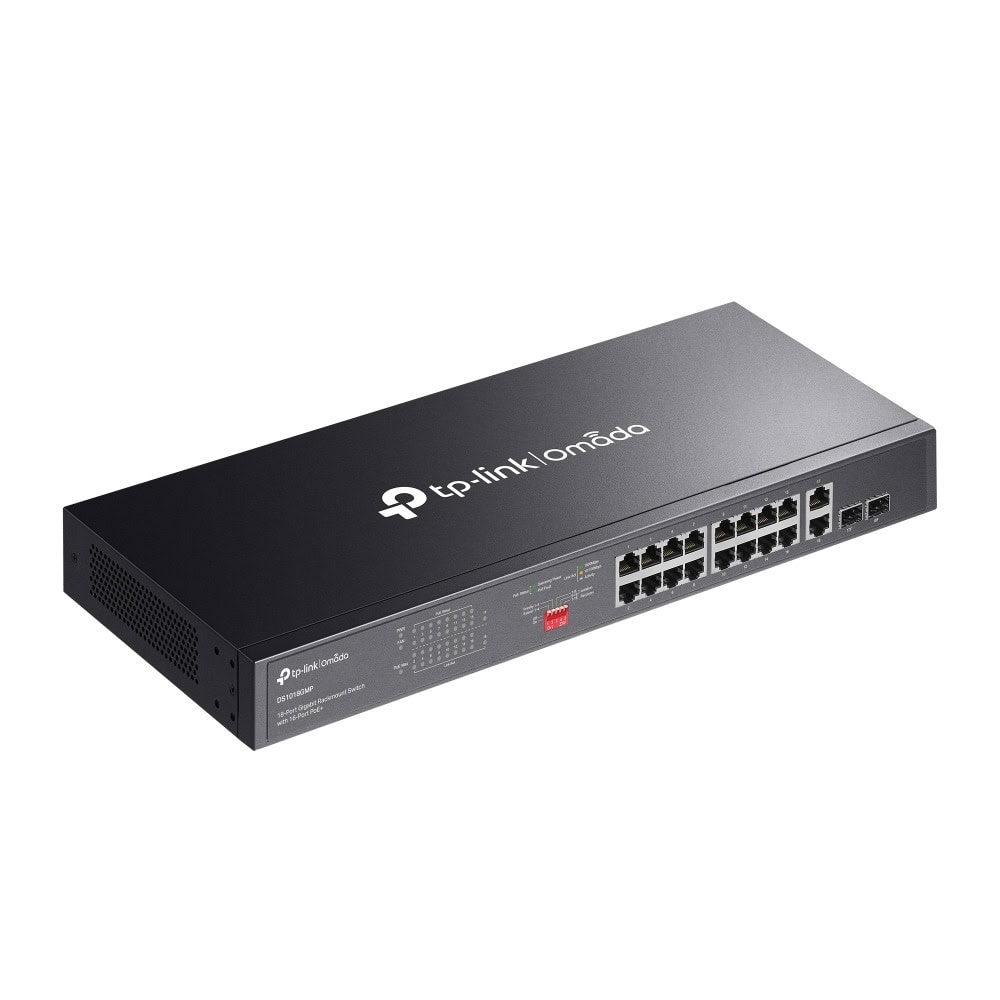

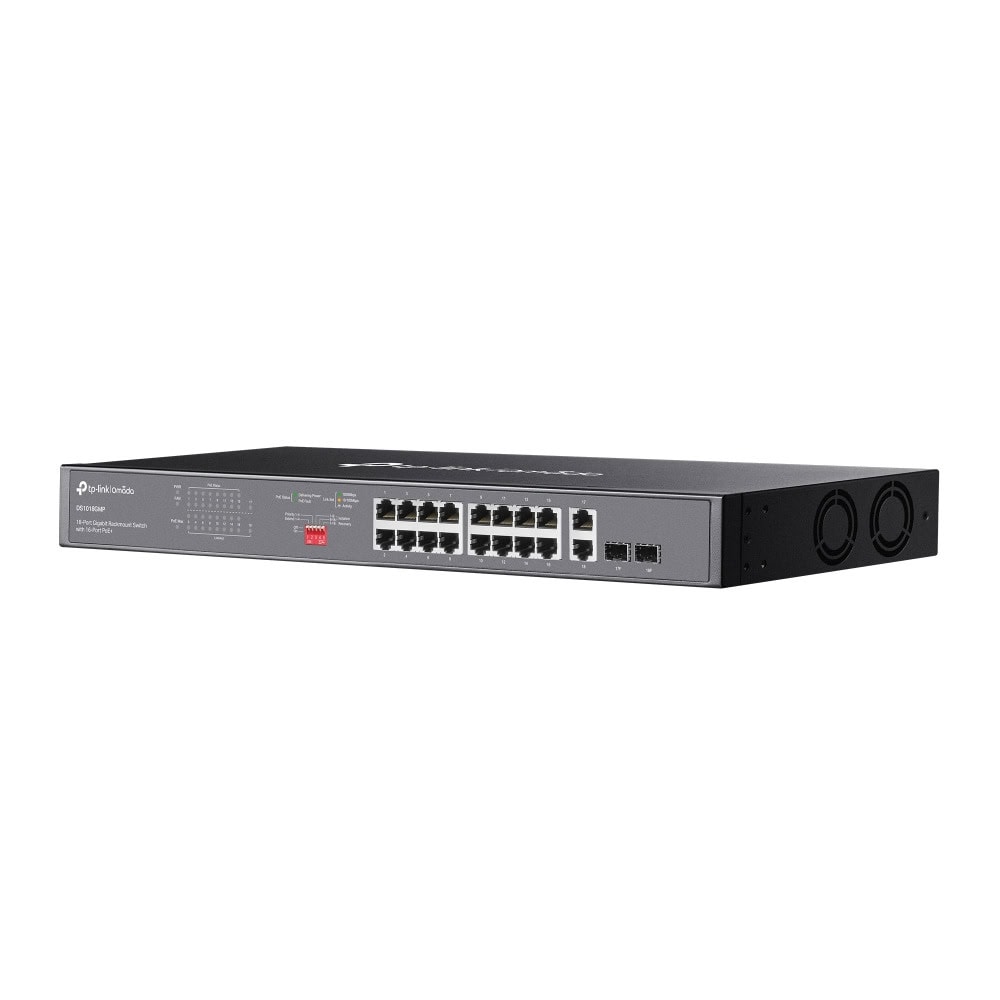

Omada 18-Port Gigabit Unmanaged Rackmount Switch with 16-Port PoE+
- 16× Gigabit PoE+ RJ45 ports and 2× Combo Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W* for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 250 W with 30 W max per PoE+ port. When total power consumption exceeds 250 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
HARDWARE FEATURES
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p |
| Интерфейс | • 16× 10/100/1000 Mbps PoE+ RJ45 ports · • 2× Combo Gigabit SFP slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Да |
| Захранване | 100–240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant · • PoE Ports: Ports 1–16 · • PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Монтаж | Rack Mountable |
| Max Power Consumption | • 19 W (220/50 Hz. no PD connected) · • 293.34 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 64.79 BTU/h (no PD connected) · • 1000.29 BTU/h (with 250 W PD connected) |
PERFORMANCE
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs · • Extend Mode: Ports 1–4** · • Priority Mode: Ports 1–4 · • Isolation Mode: Ports 1-8/9-16 · • PoE Auto Recovery: Ports 1-16 · • Mac Address Auto-Learning and Auto-Aging · • 802.1p/DSCP QoS · • IEEE802.3x Flow Control |
| Jumbo Frame | 10 KB |
