TP-Link
Суич TP-Link Omada Campus SG5428XF
Артикул №: 1000146158
Категория:
Мрежови адаптери
967,99 €
✓ Ограничена наличност

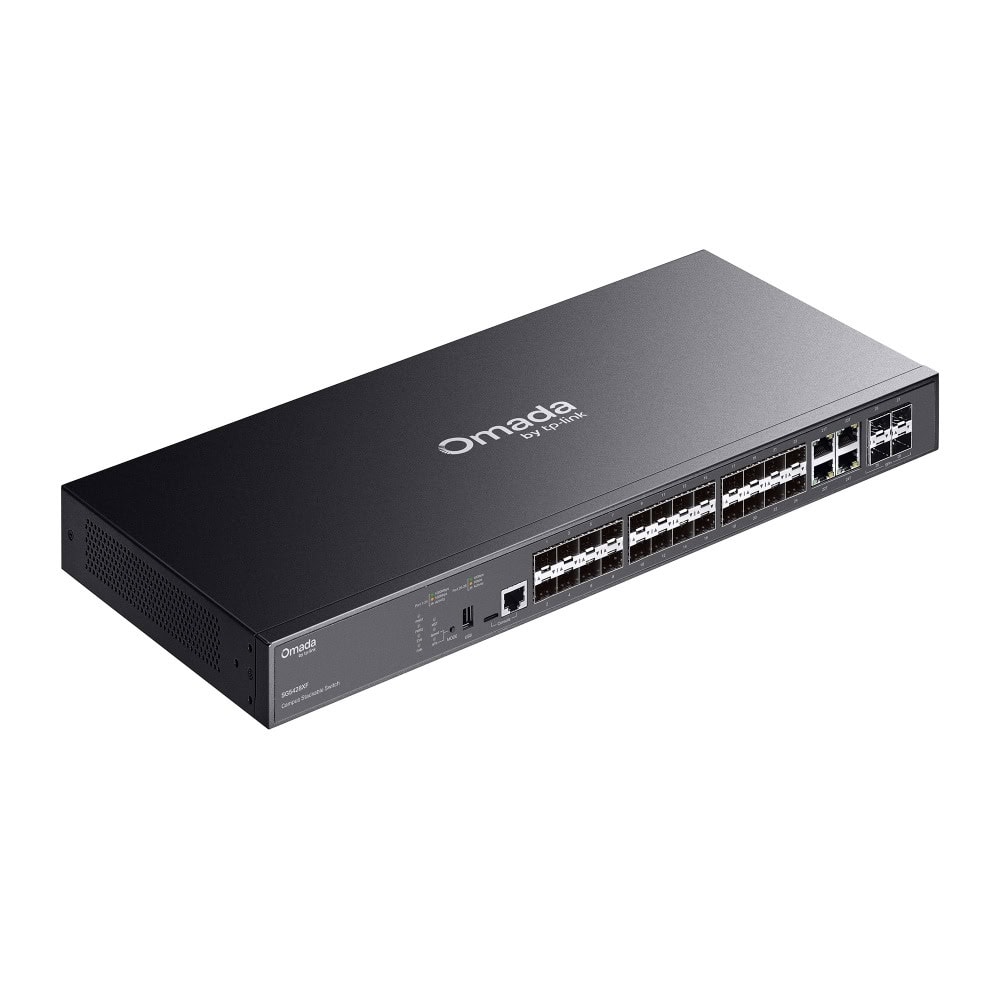

SG5428XF

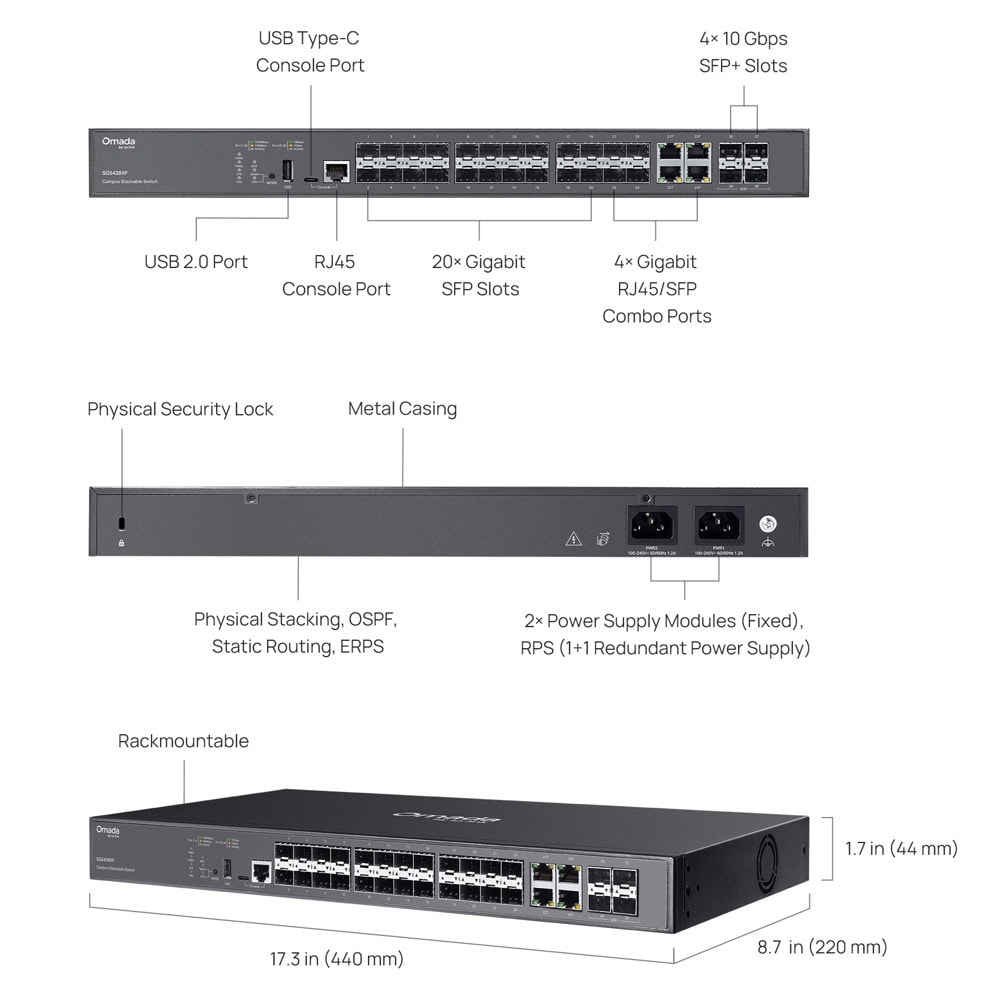

Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
- 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
- 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit

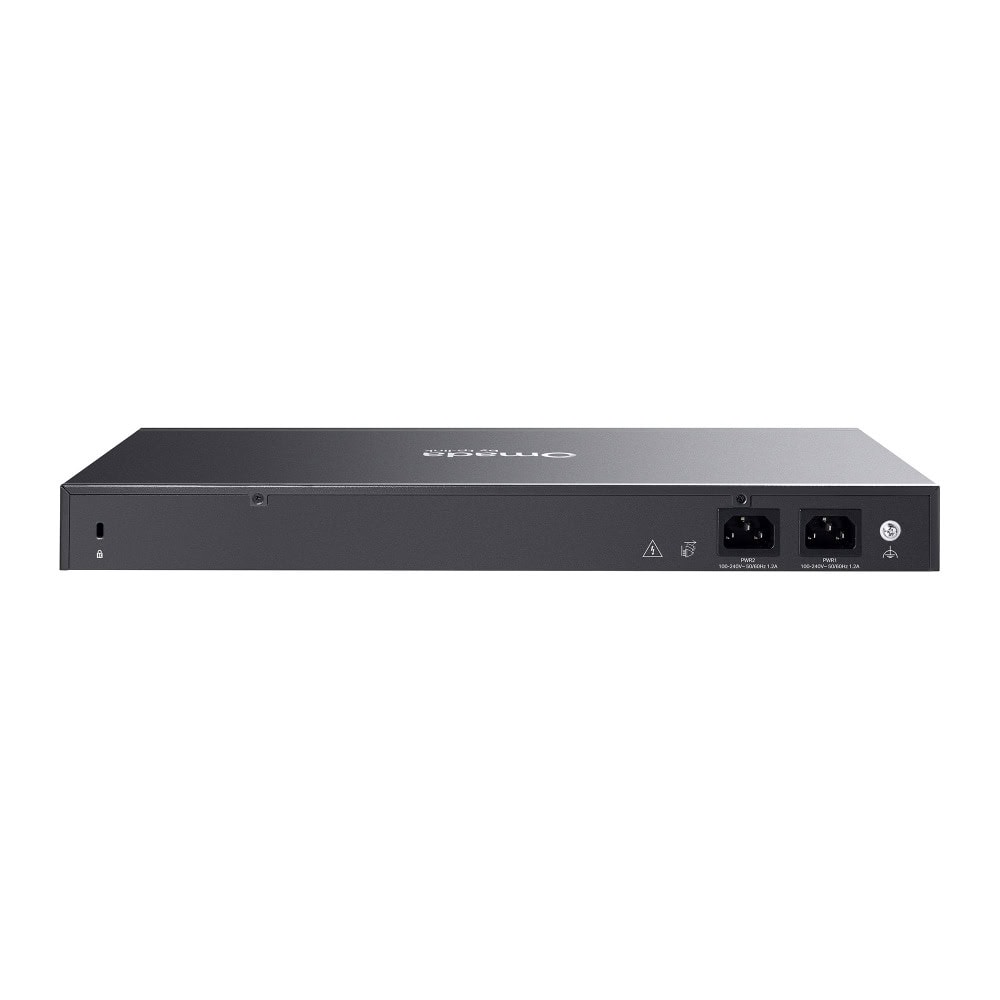

- Dual internal power supplies provide mutual backup
- Physical stacking up to 4 units for built-in redundancy and performance
Характеристики
| L3 features | RIP, OSPF, Static Routing, and DHCP Server/Relay |
| Security strategies | ACL, Port Security, DoS Defend, 802.1X |
| Centralized cloud management via the Omada SDN controller | Да |
| Standalone management via web, CLI, SNMP, and RMON | Да |
| Category | HARDWARE FEATURES Interface20× 100/1000 Mbps SFP Slots 4× Gigabit RJ45/SFP Combo Ports 4× 1/10 Gbps SFP+ Slots 1× USB 2.0 Port 1× RJ45 Console Port 1× USB Type-C Console Port Fan Quantity1 Fan Power Supply100–240 V~ 50/60 Hz Dimensions (W × D × H)17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) MountingRackmountable Max. Power Consumption28.3 W (220V/50Hz @ 25 °C)28.98 W (110V/60Hz @ 25 °C) Max. Heat Dissipation96.503 BTU/hr (220V/50Hz @ 25 °C)98.822 BTU/hr (110V/60Hz @ 25 °C) PERFORMANCE Switching Capacity128 Gbps per Unit StackingStacking Number: 4Stacking Port: 10G SFP+ Slot (all uplink ports usable)Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) Packet Forwarding Rate95.23 Mpps MAC Address Table16K Packet Buffer Memory12 Mbit Jumbo Frame9 KB SOFTWARE FEATURES Quality of Service (QoS)8 Priority QueuesPort / IEEE 802.1p / DSCP PriorityQueue Min-BandwidthSchedule Mode (SP, WRR, SP+WRR)Rate Limit & Storm ControlVoice VLANUser-Defined OUIQoS Remark (802.1P, DSCP) L3 FeaturesIPv4/IPv6 Interfaces (Max 128 each)ARP (512 Static / 3,600 Dynamic)ND Dynamic Entries: 3,600Static Routes (IPv4 512 / IPv6 128)Host Routes (IPv4 1,024 / IPv6 890)Network Routes (IPv4 1,796 / IPv6 450)RIP v1/v2, RIPngOSPF v2/v3Proxy ARPDHCP Server (64 IP Pools, 8,000 Leases, 1,000 Manual Bindings)DHCP Relay (Interface & VLAN) L2 & L2+ FeaturesLink AggregationSpanning Tree ProtocolLoopback Detection (Port/VLAN)802.3x Flow ControlERPSPort Mirroring & RSPANIGMP & MLD SnoopingL2 Multicast (Max 2,000 Entries)Fast Leave, MVRStatic Multicast GroupsMulticast Filtering Advanced FeaturesAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradeIntelligent MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule802.3ah Ethernet Link OAML2PTDLDPDDMsFlow VLAN4K VLAN Groups (802.1Q)Tagged VLANMAC VLAN (60 Entries)Multicast VLANManagement VLANQinQ (Max 256 Entries)GVRPProtocol VLAN (16 Templates / 12 Entries)Voice VLANPrivate VLAN SecurityPort IsolationCPU-DefendDynamic ARP InspectionDoS DefendIP-MAC-Port Binding (1,024 Entries)DHCP SnoopingIPv4/IPv6 Source GuardDHCPv6 & ND SnoopingStatic/Dynamic Port Security (64 MAC per port)Storm Control (kbps/ratio)802.1X (Port/MAC Base, VLAN Assignment, MAB, Guest VLAN, RADIUS)AAA (TACACS+)HTTPS (SSLv3/TLS 1.2)SSHv2IP/Port/MAC ACL MANAGEMENT FEATURES Omada AppYes (Requires Omada Controller) Centralized ManagementOmada Cloud-Based Controller (v5.15.22+)Omada Hardware Controller (v5.15.20+)Omada Software Controller (v5.15.20+) Cloud AccessYes (Requires Omada Controller) Zero-Touch ProvisioningYes (Cloud-Based Controller Required) Management CapabilitiesWeb GUICLI (Console/Telnet)SNMP v1/v2c/v3RMON (1,2,3,9)SDM TemplateDHCP/BOOTP ClientLLDP/LLDP-MEDDHCP Auto InstallDual Image & ConfigCPU MonitoringCable DiagnosticsPassword RecoverySNTPSystem LogIEEE 802.3az EEE OTHERS System RequirementsWindows 98SE/NT/2000/XP/Vista/7/8/10/11macOSNetWareUNIXLinux |
