TP-Link

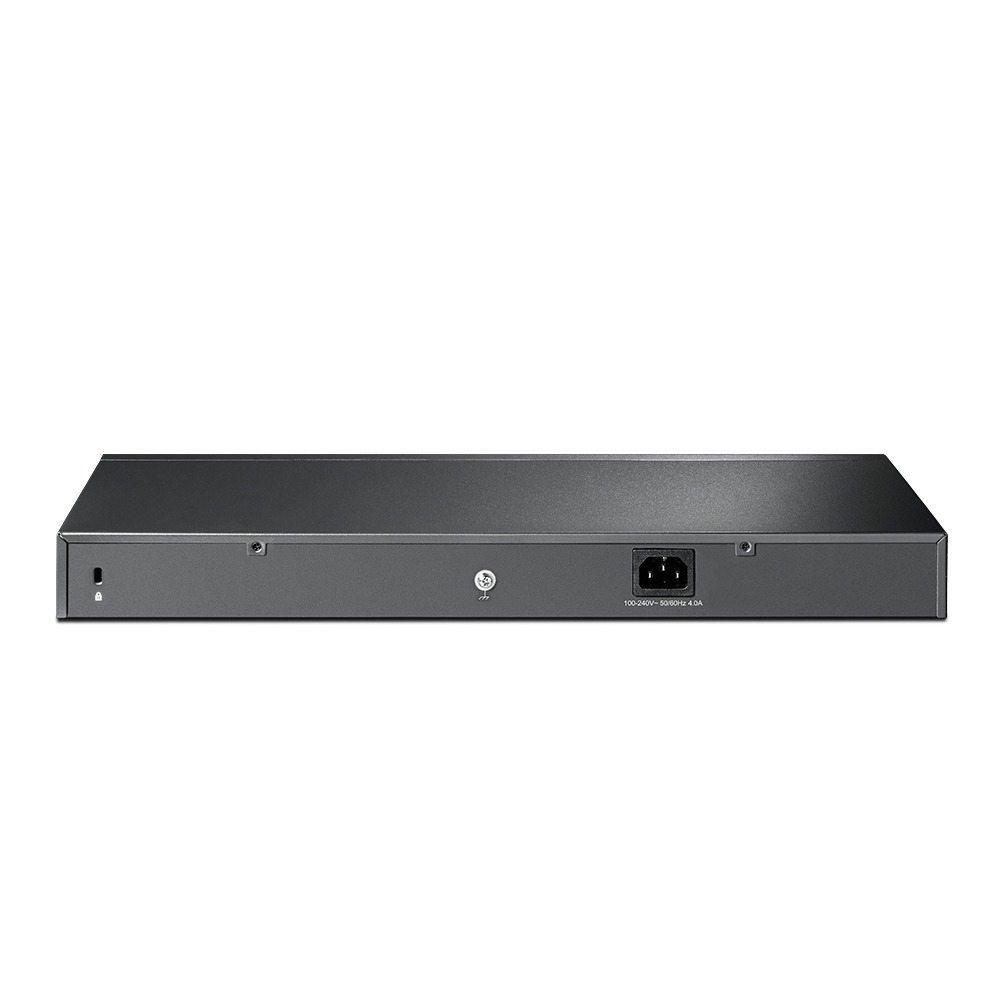

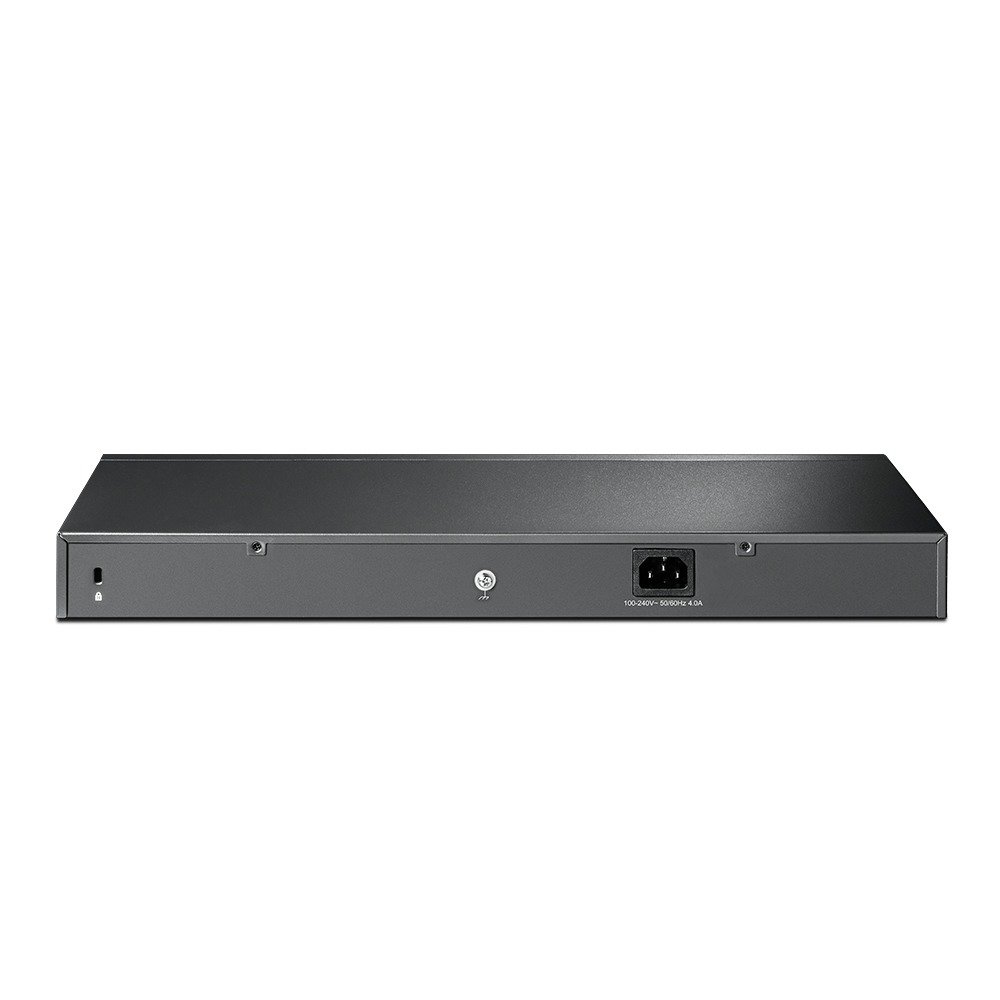

Суич TP-Link JetStream TL-SG3210XHP-M2
Артикул №: 1000003897
Категория:
Суич
478,99 €
✓ Налично във външен склад
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
| Интерфейс | • 8× 100/1000/2500 Mbps RJ45 Ports · • 2× 10G SFP+ Slots · • 1× RJ45 Console Port · • 1× Micro-USB Console Port |
| Брой вентилатори | 2 |
| Захранване | 100-240 V AC~50/60 Hz |
| Размери (Ш x Д x В ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Монтаж | Rack Mountable |
| Макс. консумация на енергия | 17.24 W (110V/60Hz) (no PD connected) · 291.49 W (110V/60Hz) (with 240 W PD connected) |
| Max Heat Dissipation | 58.82 BTU/h (110 V/60 Hz) (no PD connected) · 994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected) |
ПРОИЗВОДИТЕЛНОСТ
| Комутационен капацитет | 80 Gbps |
| Скорост на предаване на пакети данни | 59.52 Mpps |
| Таблица на МАС адресите | 16 K |
| Jumbo кадър | 9 KB |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ
| Качество на услугата | • 8 priority queues · • 802.1p CoS/DSCP priority · • Queue scheduling · - SP (Strict Priority) · - WRR (Weighted Round Robin) · - SP+WRR · • Bandwidth Control · - Port/Flow based Rating Limiting · • Smoother Performance · • Action for Flows · - Mirror (to supported interface) · - Redirect (to supported interface) · - Rate Limit · - QoS Remark |
| L2 and L2+ Features | • Link Aggregation · - static link aggregation · - 802.3ad LACP · - Up to 8 aggregation groups, containing 8 ports per group · • Spanning Tree Protocol · - 802.1d STP · - 802.1w RSTP · - 802.1s MSTP · - STP Security: TC Protect, BPDU Filter, Root Protect · • Loopback Detection · - Port based · - VLAN based · • Flow Control · - 802.3x Flow Control · - HOL Blocking Prevention · • Mirroring · - Port Mirroring · - CPU Mirroring · - One-to-One · - Many-to-One · - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping · - IGMP v1/v2/v3 Snooping · - Fast Leave · - IGMP Snooping Querier · - IGMP Authentication · • IGMP Authentication · • MLD Snooping · - MLD v1/v2 Snooping · - Fast Leave · - MLD Snooping Querier · - Static Group Config · - Limited IP Multicast · • MVR · • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group · - Max 4K VLAN Groups · • 802.1Q Tagged VLAN · • MAC VLAN: 7 Entries · • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 · • Private VLAN · • GVRP · • VLAN VPN (QinQ) · - Port-Based QinQ · - Selective QinQ · • Voice VLAN |
| Access Control List | • Time-based ACL · • MAC ACL · - Source MAC · - Destination MAC · - VLAN ID · - User Priority · - Ether Type · • IP ACL · -Source IP · - Destination IP · - Fragment · - IP Protocol · - TCP Flag · - TCP/UDP Port · - DSCP/IP TOS · - User Priority · • Combined ACL · • Packet Content ACL · • IPv6 ACL · • Policy · - Mirroring · - Redirect · - Rate Limit · - QoS Remark · • ACL apply to Port/VLAN |
| Защита | • IP-MAC-Port Binding · - 512 Entries · - DHCP Snooping · - ARP Inspection · - IPv4 Source Guard: 100 Entries · • IPv6-MAC-Port Binding · - 512 Entries · - DHCPv6 Snooping · - ND Detection · - IPv6 Source Guard: 100 Entries · • DoS Defend · • Static/Dynamic Port Security · - Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control · - kbps/ratio control mode · • 802.1X · - Port base authentication · - Mac base authentication · - VLAN Assignment · - MAB · - Guest VLAN · - Support Radius authentication andaccountability · • AAA (including TACACS+) · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 · • Multicast Listener Discovery (MLD) Snooping · • IPv6 ACL · • IPv6 Interface · • Static IPv6 Routing · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications · - DHCPv6 Client · - Ping6 · - Tracert6 · - Telnet (v6) · - IPv6 SNMP · - IPv6 SSH · - IPv6 SSL · - Http/Https · - IPv6 TFTP |
| L3 Features | • 16 IPv4/IPv6 Interfaces · • Static Routing · - 48 static routes · • Static ARP · - 128 Static Entries · • Proxy ARP · • Gratuitous ARP · • DHCP Server · • DHCP Relay · - DHCP Interface Relay · - DHCP VLAN Relay · • DHCP L2 Relay |
| Управление | • Web-based GUI · • Command Line Interface (CLI) through the console port, telnet · • SNMP v1/v2c/v3 · - Trap/Inform · - RMON (1,2,3,9 groups) · • SDM Template · • DHCP/BOOTP Client · • 802.1ab LLDP/LLDP-MED · • DHCP AutoInstall · • Dual Image, Dual Configuration · • CPU Monitoring · • Cable Diagnostics · • EEE · • Password Recovery · • SNTP · • System Log |
| Разширени характеристики | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller · • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule · • ZTP (Zero-Touch Provisioning)** |
| MIBs | • MIB II (RFC1213) · • Interface MIB (RFC2233) · • Ethernet Interface MIB (RFC1643) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • RMON MIB (RFC2819) · • RMON2 MIB (RFC2021) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIB |
ДРУГИ
| Сертификати | CE, FCC, RoHS |
| Съдържание на пакета | •TL-SG3210XHP-M2 Switch · • Power Cord · • Quick Installation Guide · • Rackmount Kit · • Rubber Feet |
| Околна среда | • Operating Temperature: 0–50 ℃ (32–122 ℉); · • Storage Temperature: -40–70 ℃ (-40–158 ℉) · • Operating Humidity: 10–90% RH non-condensing · • Storage Humidity: 5–90% RH non-condensing |
