TP-Link
Суич TP-Link DS105GP
Артикул №: 1000137144
Категория:
Мрежови адаптери
36,99 €
✓ Налично във външен склад
DS105GP

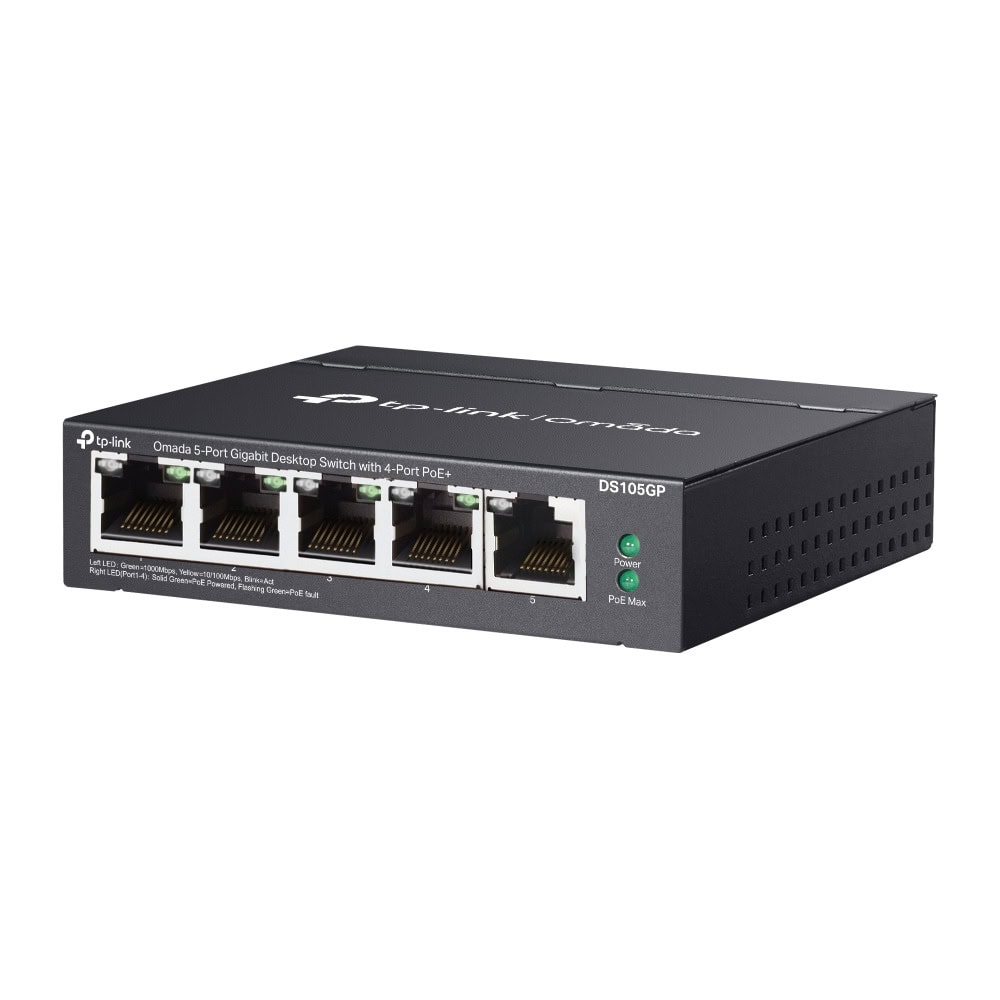

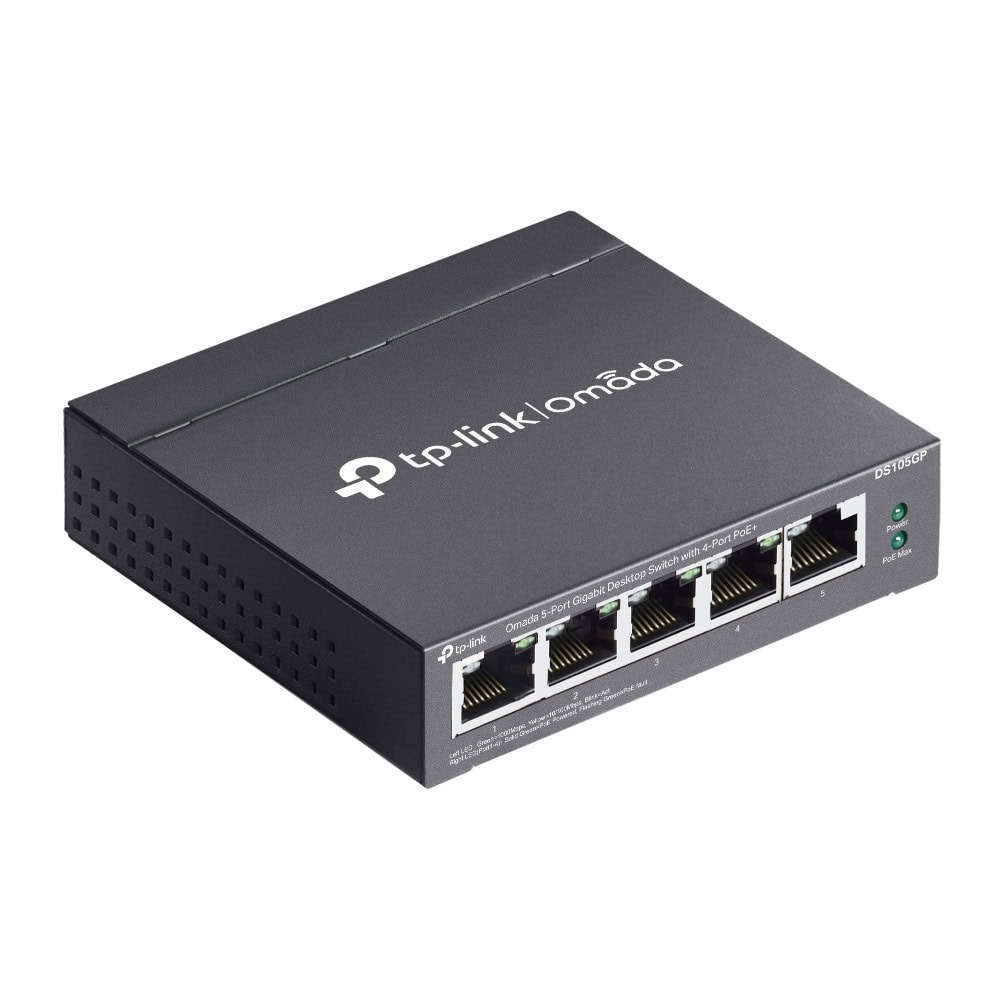

Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Power over Ethernet, Flexible Network Deployment
| priority ports power to protect devices from damage | Да |
| HARDWARE FEATURES | Interface: • 5× 10/100/1000Mbps RJ45 Ports · • AUTO Negotiation · • AUTO MDI/MDIX · Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate: 7.44 Mpps PoE Ports (RJ45): • Standard: 802.3 af/at compliant · • PoE Ports: Ports 1–4 · • Power Supply: 65 W · Mac Address Table: 2K Jumbo Frame: 16 KB Switching Capacity: 10 Gbps Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption: • 3.44 W (220/50 Hz. no PD connected) · • 74.49 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation: • 11.73 BTU/h (no PD connected) · • 254.01 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs · • Mac Address Auto-Learning And Auto-Aging · • IEEE 802.3x Flow Control · • 802.1p/DSCP QoS · • IGMP Snooping · • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) · • PoE Auto Recovery (Ports 1-4) · Transfer Method: Store-And-Forward |
