Tenda

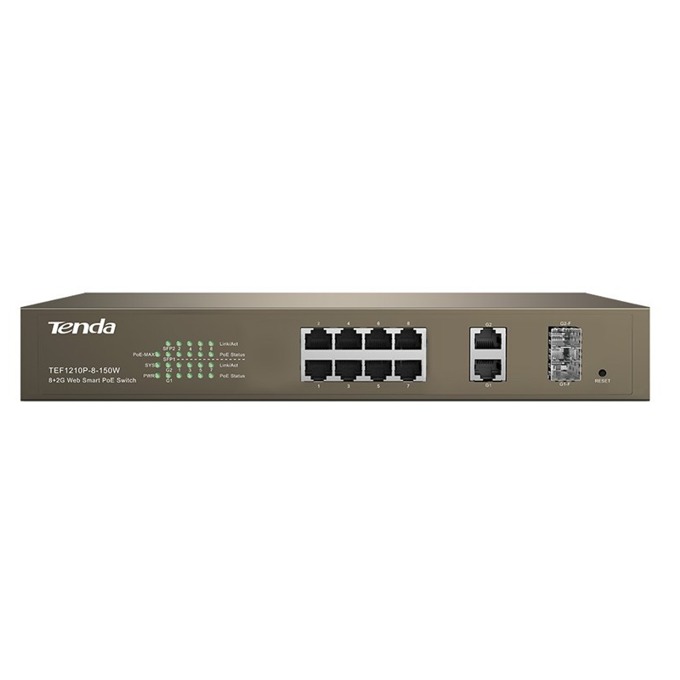

Суич Tenda TEF1210P-8-150W
Артикул №: 1000006255
Категория:
Суич
94,99 €
✓ Налично във външен склад
Standard & ProtocolIEEE: 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at
MTBF100,000hours
Indicator: Link/Act, PoE Status,System, Power,PoE Max
Interface: Fixed Ports: 8x 10/100Base-TX ports
2x 10/100/1000Base-T ports
2x 1000Base-X SFP ports Combo)
lightning protection: ≥6KV
Performance: Store and forward: Yes
Exchange capacity: 5.6 Gbit/s
MAC address entries: 4K MAC
Power: Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)
PoE through pin: 1 2 4 5 +，3 6 7 8 -
Voltage input range: AC：100－240V～ 50/60Hz
Dimension: 294mm*178.8mm*44mm（L×W×H）
Weight: ≤5kg
Power Consumption: <150W
PoE consumption up to 130W
Temperature: Perating temperature:0 ℃～40 ℃
Storage temperature: -40 ℃～70 ℃
HumidityOperational: 10%～95%(noncondensing)
Storage: 10%～95%(noncondensing)
PoE supply management: Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module
VLAN: Support VLAN(4K) based on ports
Support: 802.1QVLAN
Mirroring: Support local mirror image
Link Aggregation: Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS: Support message transmission for ports and limitation of speed
Support SP & WRR
Layer 2 ring network protocolSupport STP/RSTP and looped Network for devices
Certification: FCC/CE/RoHS
MTBF100,000hours
Indicator: Link/Act, PoE Status,System, Power,PoE Max
Interface: Fixed Ports: 8x 10/100Base-TX ports
2x 10/100/1000Base-T ports
2x 1000Base-X SFP ports Combo)
lightning protection: ≥6KV
Performance: Store and forward: Yes
Exchange capacity: 5.6 Gbit/s
MAC address entries: 4K MAC
Power: Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)
PoE through pin: 1 2 4 5 +，3 6 7 8 -
Voltage input range: AC：100－240V～ 50/60Hz
Dimension: 294mm*178.8mm*44mm（L×W×H）
Weight: ≤5kg
Power Consumption: <150W
PoE consumption up to 130W
Temperature: Perating temperature:0 ℃～40 ℃
Storage temperature: -40 ℃～70 ℃
HumidityOperational: 10%～95%(noncondensing)
Storage: 10%～95%(noncondensing)
PoE supply management: Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module
VLAN: Support VLAN(4K) based on ports
Support: 802.1QVLAN
Mirroring: Support local mirror image
Link Aggregation: Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS: Support message transmission for ports and limitation of speed
Support SP & WRR
Layer 2 ring network protocolSupport STP/RSTP and looped Network for devices
Certification: FCC/CE/RoHS
Характеристики
| Standard & ProtocolIEEE | 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at |
| MTBF100,000hours | Да |
| Indicator | Link/Act, PoE Status,System, Power,PoE Max |
| Интерфейс | Fixed Ports: 8x 10/100Base-TX ports |
| 2x 10/100/1000Base-T ports | Да |
| 2x 1000Base-X SFP ports Combo) | Да |
| lightning protection | ≥6KV |
| Performance | Store and forward: Yes |
| Exchange capacity | 5.6 Gbit/s |
| MAC address entries | 4K MAC |
| Мощност | Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W) |
| PoE through pin | 1 2 4 5 +，3 6 7 8 - |
| Voltage input range | AC：100－240V～ 50/60Hz |
| Размер | 294mm*178.8mm*44mm（L×W×H） |
| Тегло | ≤5kg |
| Консумация на енергия | <150W |
| PoE consumption up to | 130W |
| Температура | Perating temperature:0 ℃～40 ℃ |
| Температура на съхранение | -40 ℃～70 ℃ |
| HumidityOperational | 10%～95%(noncondensing) |
| Капацитет за съхранение | 10%～95%(noncondensing) |
| PoE supply management | Support setup of PoE |
| Support power adjustable by priority | Да |
| Support over temperature protection for PoE module | Да |
| VLAN | Support VLAN(4K) based on ports |
| Поддръжка | 802.1QVLAN |
| Mirroring | Support local mirror image |
| Link Aggregation | Support LACP, manual link aggregation |
| QoS | Support message transmission for ports and limitation of speed |
| Support SP & WRR | Да |
| Сертификация | FCC/CE/RoHS |
