Stonet
Суич Stonet ST3105GC
Артикул №: 1000137541
Категория:
Мрежови адаптери
12,99 €
✓ Налично във външен склад
Stonet ST3105GC

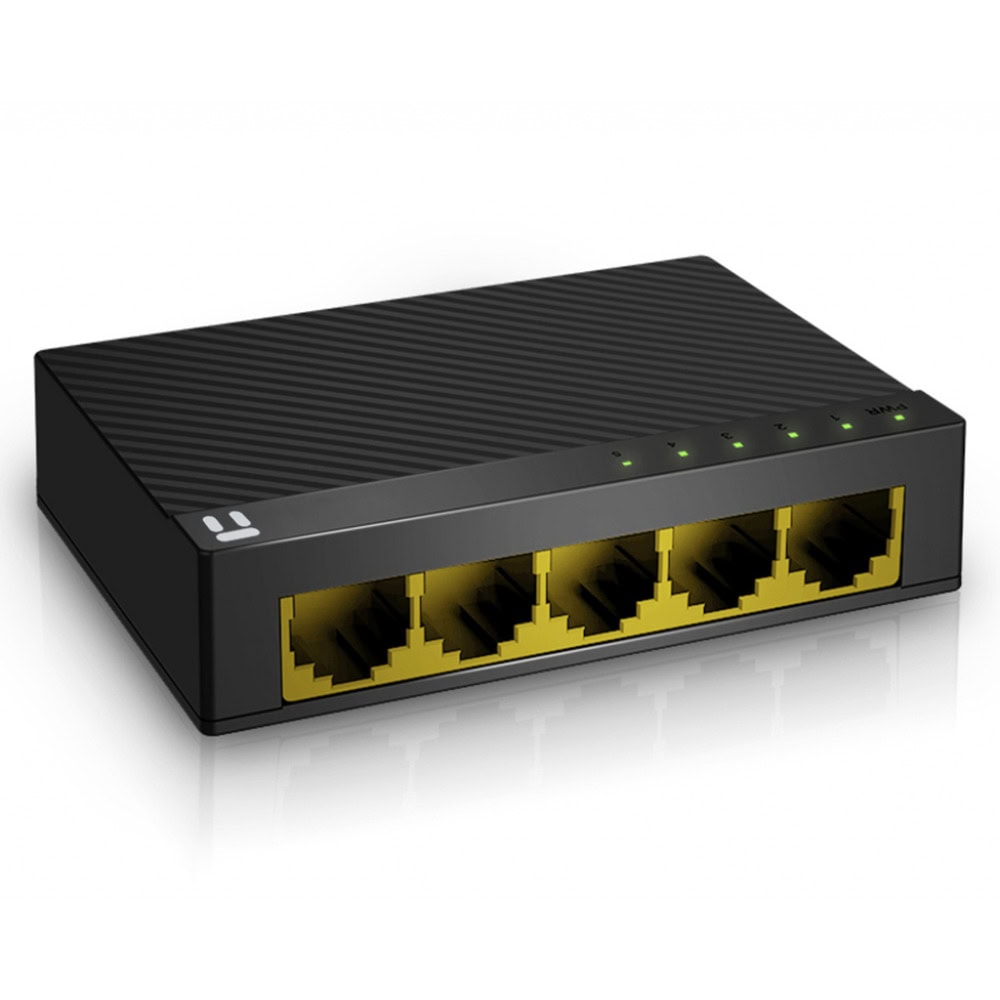

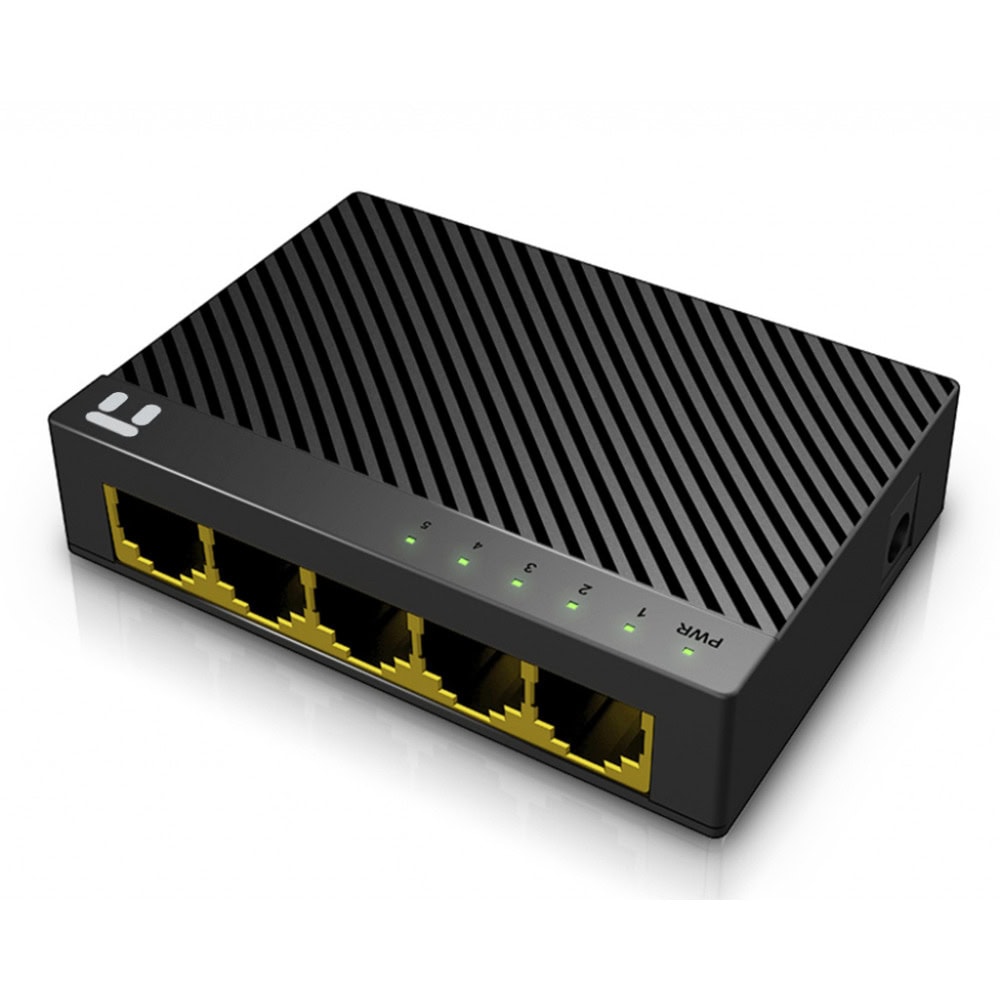

Switch ST3105GC provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. This Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network. It will boost your network performance with up to 2000Mbps full duplex data transfer speed.
- 5*10/100/1000Mbps RJ45 ports, Auto-Negotiation & Auto MDI/MDIX
- IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- 10Gbps switching fabric capacity/backplane bandwidth
- Support 9216-byte jumbo packet length forwarding at wired speed
- Supports 2K MAC address table, MAC address auto-learning & auto-aging
- Green Ethernet technology for effective power saving

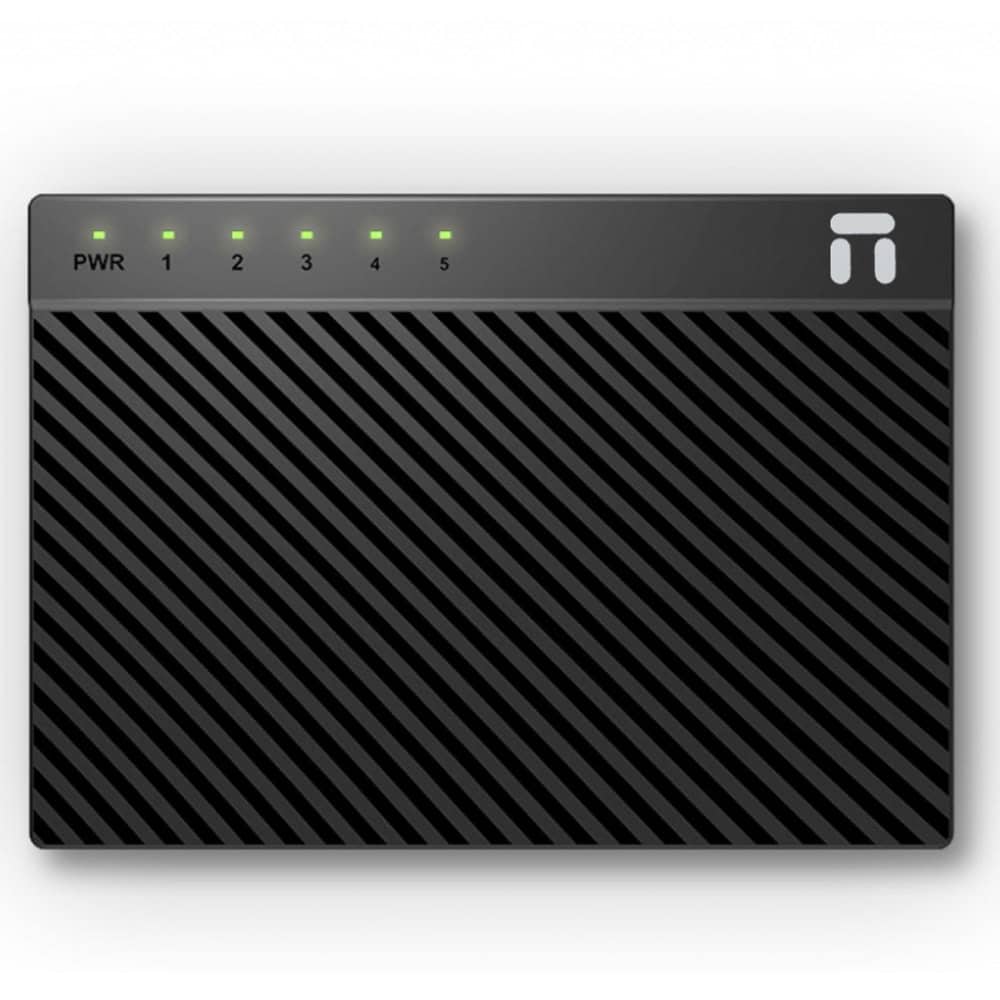

- LED indicators for simple diagnostics and management
- Plug and play, no configuration required
Hardware
Interface5* 10/100/1000M TX ports
LEDPWR, LAN1-LAN5
Power SupplyDC 5V/600mA (Output)
Dimensions (L x W x H )85 x 75x 22mm
Cabling Type10Base-T: UTP Cat.3 or up 100Base-TX: UTP Cat.5 or up 1000Bast-T: UTP Cat.5 or up
Характеристики
| Софтуер | StandardIEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T |
| Access MethodCSMA/CD | Transmission MethodStore and Forward |
| Switch ArchitectureNon-blocking | Data Transmission Rate10/100Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| MAC Address Table2K | Others |
| CertificationFCC, CE | EnvironmentOperating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
