Суич Stonet ST106PDI-2-65

Артикул №: 1000149419

Категория: Мрежови адаптери

31,99 €

✓ Налично във външен склад

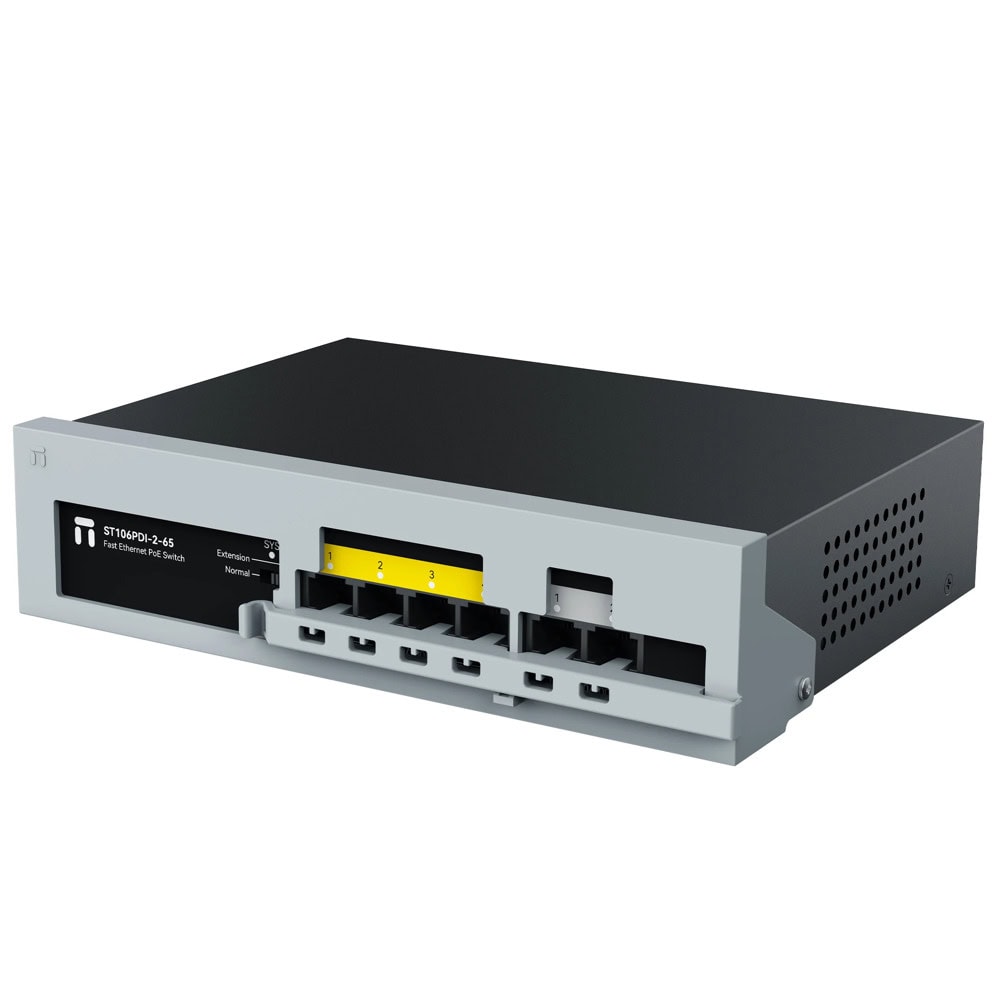

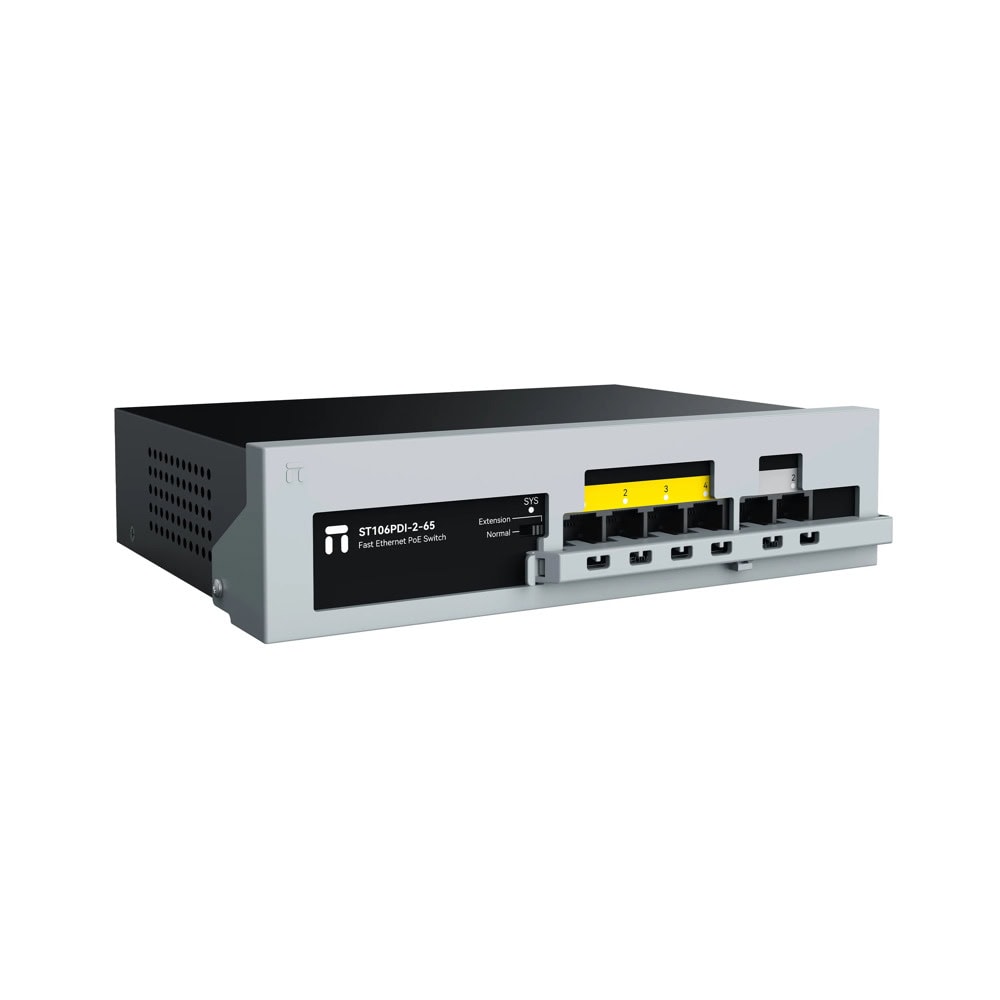

Stonet ST106PDI-2-65

Fast Ethernet PoE Switch with Attached Safety Lock

Attached safety lock, more stable.
6*10/100M ports: 4 PoE ports+2 uplink ports.
Internal 65W power supply with up to 30W PoE output per port.
Durable steel housing for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between normal mode and extension mode.

More Durable!

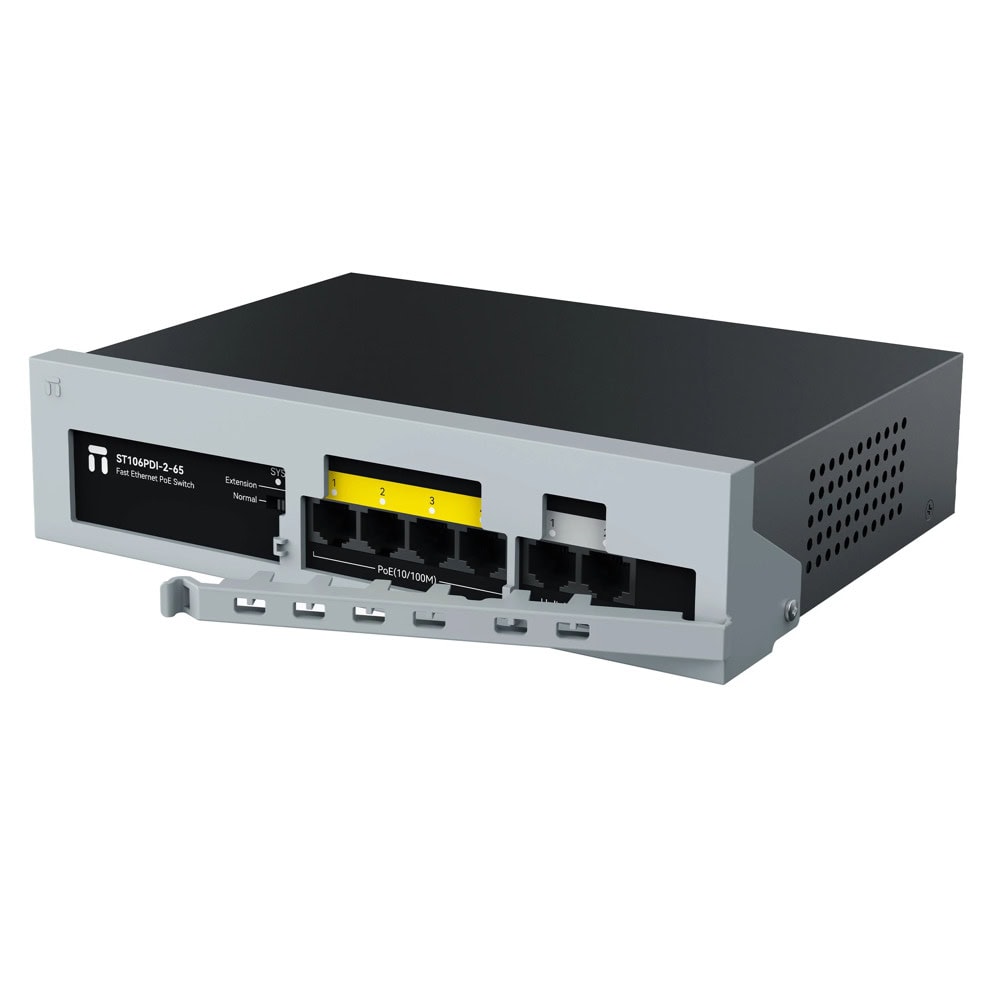

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.

Standard PoE Power Supply

Up To 30W PoE Output Per Port

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.

ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

Switch PortsNormal mode / Cable Extension mode	Да
Ports4 ×	100Mbps PoE ports + 2 × 100Mbps uplink ports
Backplane Bandwidth1.2 Gbps	Да
MAC Address Table2K	Да

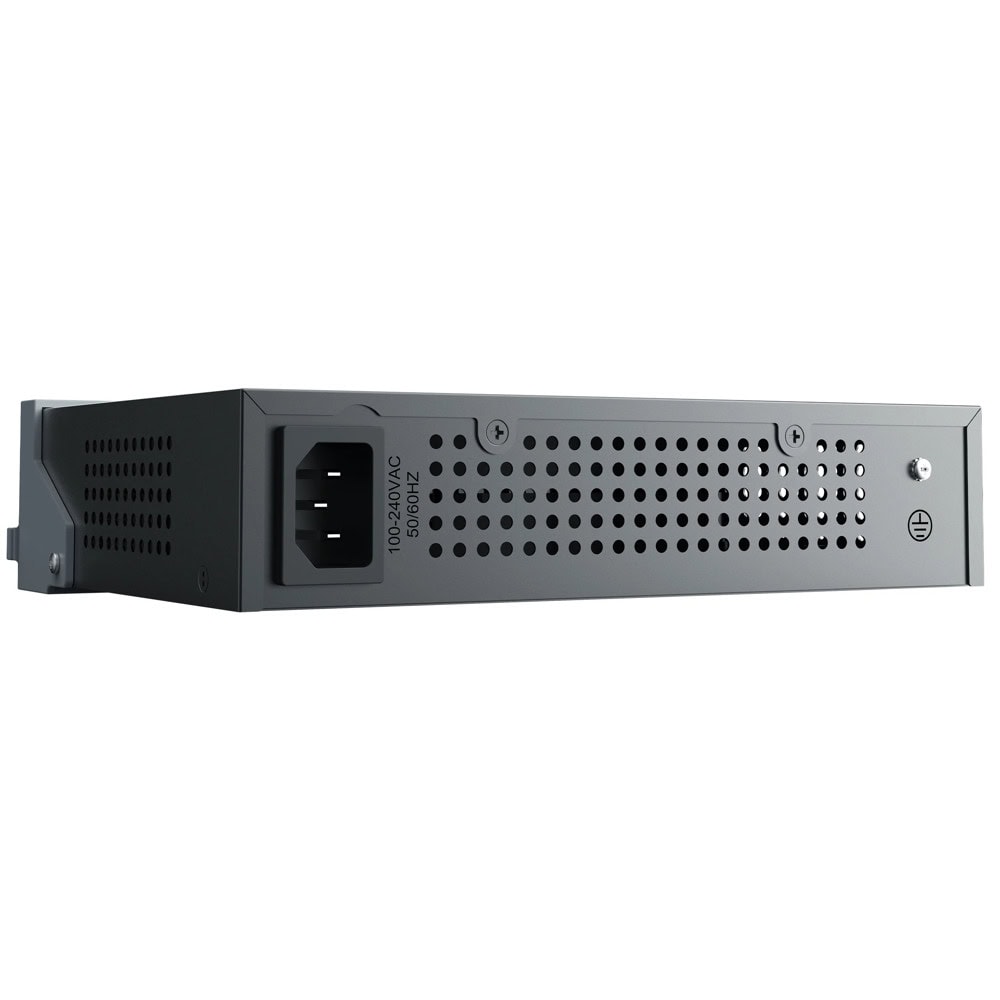

Input Power100–240V ~	50/60Hz
Power Supply65W (54V /	1.2A)
Maximum PoE Output Power55W	Да
Network Media & Transmission Distance100Base-TX	Cat5 or higher UTP/STP (≤100m)10Base-TX: Cat6 or higher UTP/STP (≤250m)
Data Transfer Rates10/100 Mbps (full-duplex and half-duplex)	Да
TemperatureOperating	0°C ~ 40°CStorage: -40°C ~ 70°C
HumidityOperating	10% ~ 90% RH (non-condensing)Storage: 5% ~ 90% RH (non-condensing)
AltitudeOperating	≤2000 m (6500 ft)Storage: ≤2000 m (6500 ft)
Differential Mode4KV	Да
Common Mode4KV	Да
Dimensions (W × D × H)190 ×	140 × 43 mm
Protective PackingEPE protection	Да
Stacking LimitMaximum	4 layers (fully packaged)
Humidity5% ~	90% RH (non-condensing)
