Суич Ruijie RG-S5300-24GT4XS-E
Артикул №: 1000128621
Категория:
Мрежови адаптери
721,99 €
✓ Налично във външен склад
Ruijie RG-S5300-24GT4XS-E
Highlight Features

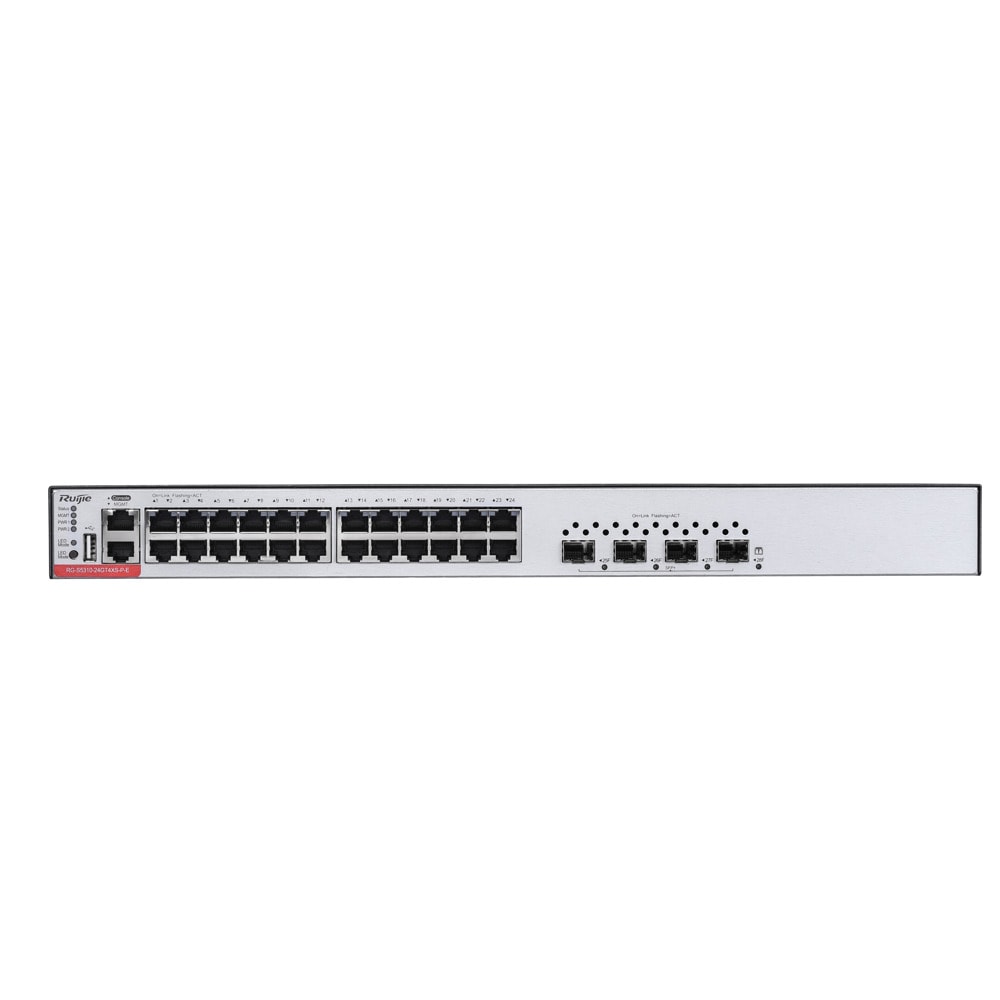

- Rich port types, 24 x 1000 Mbps Ethernet ports, 4 x 10G optical ports for uplink
- VSU virtualization, flexible networking and high performance
- Network security policies and real-time monitoring, delivering enhanced network robustness
- Abundant QoS policies for flexible resource allocation, making congestion a thing of the past
- Multiple management modes, simplified and easy network maintenance
Характеристики
| Interface specifications | Fixed port 24 x 10/100/1000M auto-negotiation electrical ports, 4 x 1G/10G SFP+ ports Power module Built-in power module Fixed management port 1 x MGMT port, 1 x console port, and 1 x USB port |
| System specifications | Packet forwarding rate 96 Mpps/126 Mpps System switching capacity 336 Gbps/3.36 Tbps Number of MAC addresses 32,000 ARP table size 2,000 ND table size 1,000 Routing table size (IPv4/IPv6) 4000(IPv4/IPv6) Number of ACEs Ingress: 3,500, Egress: 1,500 Number of VSU members 4 Number of IGMP groups 2,500 Number of MLD groups 1,000 Number of VRFs 512 Dimensions (W x D x H) 442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.), 1 RU CPU 1.2 GHz dual-core processor Storage Flash memory: 2, GBSDRAM: 1 GB Power and Consumption Maximum power consumption 200,000 hours Primary airflowFront-to-rear airflow Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude in the range of 0 m to 1,800 m (5905.51 ft.)Altitude 1,800 m (5905.51 ft.) to 5,000 m (16404.20 ft.): The maximum temperature decreases by 1°C (1.8°F) each time the altitude increases by 220 m (721.78 ft.). Storage temperature –40°C to +70°C (–40°F to +158°F) Operating humidity 10% to 90% RH (non-condensing) Storage humidity 5% to 90% RH (non-condensing) Operating altitude 0 m to 5,000 m (16404.20 ft.) Operating noise 40.9 dB at the temperature of 27°C (80.6°F)48.8 dB at the temperature of 45°C (113°F) Interface surge protection Communication port: 10 kV (common mode) (MGMT port: 4 kV)Power port: 6 kV (common/differential mode) |
| Software specifications | Да |
| Ethernet switching | IEEE 802.1Q (supporting 4K VLANs) Jumbo frame (maximum length: 9,216 bytes) Maximum number of VLANs that can be created: 4,094 Voice VLAN Super VLAN and private VLAN MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment GVRP Basic QinQ and selective QinQ STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) Auto errdisable recoveryBPDU filterBPDU guardPort fastRoot guard ERPS (G.8032 v1/v2), sing ring, tangent ring, intersecting ring, and load balancing LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE MAC address filtering Setting the MAC address aging time IP service Static and dynamic ARP, ARP proxy, and ARP entry timeout DHCP client, DHCP relay, DHCP server, and DHCP snooping DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping DNS client, DNS proxy, and DNSv6 client Neighbor Discovery (ND), ND proxy, and ND snooping IPv6 addressing, IPv6 ping, and IPv6 tracert GRE tunnel IP routing IPv4 and IPv6 static routing RIP and RIPng OSPFv2 and OSPFv3 IS-ISv4 and IS-ISv6 BGP4 and BGP4+ Routing policy IPv4/VRF IPv4/IPv6 PBR Multicast IGMPv1/v2/v3 IGMPv1/v2 snooping IGMP fast leavePIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6 MSDP for inter-domain multicast MLDv1/v2 and MLD proxy MLDv1/v2 snooping PIM-SMv6 Multicast source IP address check Multicast source port check ACL and QoS Standard IP ACLs (hardware ACLs based on IP addresses) Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) Time based ACLs, ACL 80, and IPv6 ACL Global ACLs ACL redirection Port traffic identification Port traffic rate limiting 802.1p/DSCP/ToS traffic classification Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ Congestion avoidance: tail drop, RED, and WRED Eight priority queues per port Security Multiple AAA modes RADIUS RADIUS and TACACS+ IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication Web authentication Hypertext Transfer Protocol Secure (HTTPS) SSHv1 and SSHv2 Global IP-MAC binding ICMP Port security IP source guard SAVI ARP spoofing prevention CPP and NFPP Multiple attack defense functions 3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1X authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard Port protection Reliability REUP RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control Data Link Detection Protocol (DLDP) IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) Device virtualization VSU Local and remote stacking Inter-chassis link binding in a stack Virtualization through standard service interfaces NMS and maintenance SPAN, RSPAN, and ERSPAN sFlow NTP client, NTP server, NTPv6 client, and NTPv6 server SNTP CLI (Telnet/Console) FTP client, FTP server, FTPv6 client, and FTPv6 server TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server FTP and TFTP SNMP v1/v2c/c3 Web Syslog/Debugging RMON (1, 2, 3, 9)Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groupsRMON used to implement Ethernet statistics, historical statistics, and alarm functions NETCONF MACC CWMP gRPC OpenFlow Special 1.3Flow table analysis defined by all protocolsTransmission of specified packets to the controllerConfiguring the controller's IP address and portNotifying port status changes to the controller RNS, configuration rollback, and 802.3ah IETF RFC 1058 Routing Information Protocol (RIP) RFC 1157 A Simple Network Management Protocol (SNMP) RFC 1305 Network Time Protocol Version 3 (NTP) RFC 1349 Internet Protocol (IP) RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1583 OSPF Version 2 RFC 1591 Domain Name System Structure and Delegation RFC 1643 Ethernet Interface MIB RFC 1757 Remote Network Monitoring (RMON) RFC 1812 Requirements for IP Version 4 Router RFC 1901 Introduction to Community-based SNMPv2 RFC 1902-1907 SNMP v2 RFC 1918 Address Allocation for Private Internet RFC 1981 Path MTU Discovery for IP version 6 RFC 1997 BGP Communities Attribute RFC 2131 Dynamic Host Configuration Protocol (DHCP) RFC 2132 DHCP Options and BOOTP Vendor Extensions RFC 2236 IGMP RFC 2328 OSPF Version 2 RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option RFC 2439 BGP Route Flap Damping RFC 2460 Internet Protocol, Version 6 (IPv6) RFC 2461 Neighbor Discovery for IP Version 6 (IPv6) RFC 2462 IPv6 Stateless Address Auto configuration RFC 2463 Internet Control Message Protocol for IPv6 (ICMPv6) RFC 2545 Use of BGP 4 Multiprotocol Extensions for IPv6 Inter Domain Routing RFC 2571 SNMP Management Frameworks RFC 2711 IPv6 Router Alert Option RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol RFC 2863 The Interfaces Group MIB RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2918 Route Refresh Capability for BGP 4 RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) RFC 2934 Protocol Independent Multicast MIB for IPv4 RFC 3046 DHCP Option82 RFC 3065 Autonomous System Confederation for BGP RFC 3101 OSPF Not so stubby area option RFC 3137 OSPF Stub Router Advertisement sFlow RFC 3417 (SNMP Transport Mappings) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3509 Alternative Implementations of OSPF Area Border Routers RFC 3513 IP Version 6 Addressing Architecture RFC 3575 IANA Considerations for RADIUS RFC 3579 RADIUS Support For EAP RFC 3623 Graceful OSPF Restart RFC 3768 VRRP RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 RFC 3973 PIM Dense Mode RFC 4022 MIB for TCP RFC 4271 A Border Gateway Protocol 4 (BGP 4) RFC 4273 Definitions of Managed Objects for BGP 4 RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4486 Subcodes for BGP Cease Notification Message RFC 4552 Authentication/Confidentiality for OSPFv3 RFC 4724 Graceful Restart Mechanism for BGP RFC 4750 OSPFv2 MIB partial support no SetMIB RFC 4760 Multiprotocol Extensions for BGP 4 RFC 4940 IANA Considerations for OSPF RFC 5065 Autonomous System Confederation for BGP RFC 5187 OSPFv3 Graceful Restart RFC 5340 OSPFv3 for IPv6 RFC 5492 Capabilities Advertisement with BGP 4 RFC 6620 FCFS SAVI RFC 768 User Datagram Protocol (UDP) RFC 783 TFTP Protocol (revision 2) RFC 792 Internet Control Message Protocol (ICMP) RFC 793 Transmission Control Protocol (TCP) RFC 813 Window and Acknowledgement Strategy in TCP RFC 815 IP datagram reassembly algorithms RFC 826 Ethernet Address Resolution Protocol (ARP) RFC 854 Telnet Protocol RFC 959 File Transfer Protocol (FTP) IEEE IEEE 802.2 Logical Link Control IEEE 802.1ab Link Layer Discovery Protocol IEEE 802.1ad Provider Bridges IEEE 802.1ax/ IEEE802.3ad Link Aggregation IEEE 802.1D Media Access Control (MAC) Bridges IEEE 802.1D Spanning Tree Protocol IEEE 802.1Q Virtual Bridged Local Area Networks (VLAN) IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3bt Power over Ethernet IEEE Std 802.3x Full Duplex and flow control |
