Суич Netgear M4250

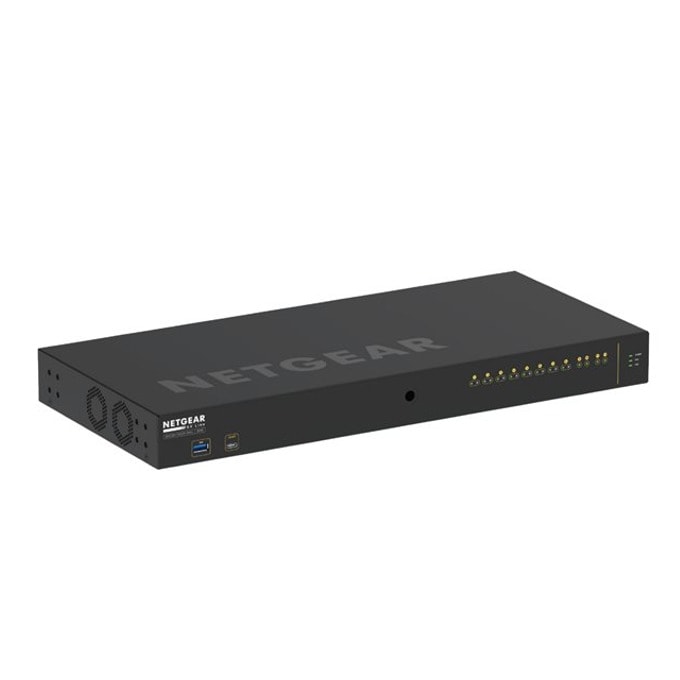

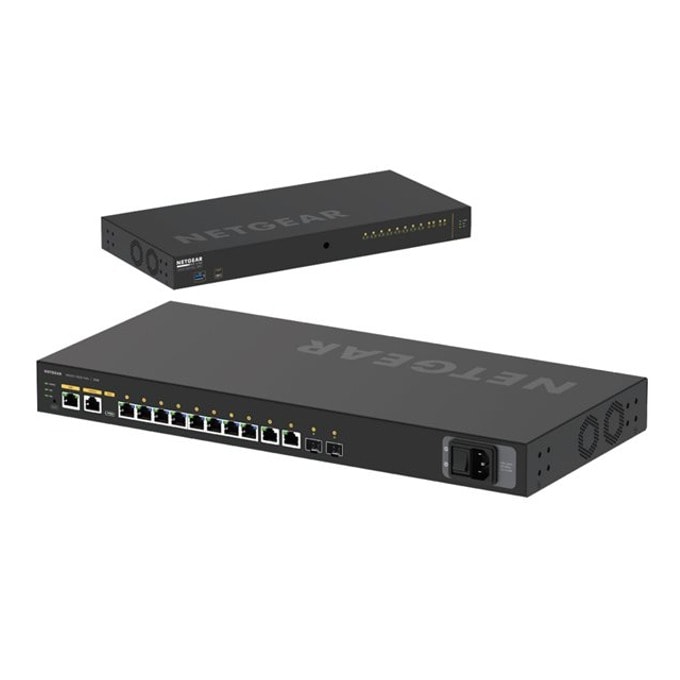

NETGEAR M4250 12-Port AV Line PoE+ Switch 125W 2x1G 2xSFP Managed Switch

General

Device Type: Switch - 12 ports - L3 - Managed

Enclosure Type Side to side airflow rack-mountable 1U

Subtype: Gigabit Ethernet

Ports: 10 x 10/100/1000 (8 PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE): PoE+

PoE Budget: 125 W

Performance: Switching capacity: 24 Gbps

Firewall throughput (64-byte packet size): 17.86 Mpps

Latency (1 Gbps): < 2.27 µs

Capacity:l VLANs supported: 4093

ARP entries: 4000

Multicast entries (IPv4): 512

Multicast entries (IPv6): 128

Jumbo frame size: up to 12000

IGMP multicast groups: 2000

MSTP instances: 16

PVST instances: 32

MAC Address Table Size 16K entries

Routing Protocol: RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2

Remote Management Protocol: RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS

Encryption Algorithm: SSL 3.0, TLS 1.2

Features

VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG)

Compliant Standards

IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav

Processor: X ARM A9: 1.25 GHz

RAM: 2 GB

Flash Memory: 256 MB

Expansion / Connectivity
