Netgear

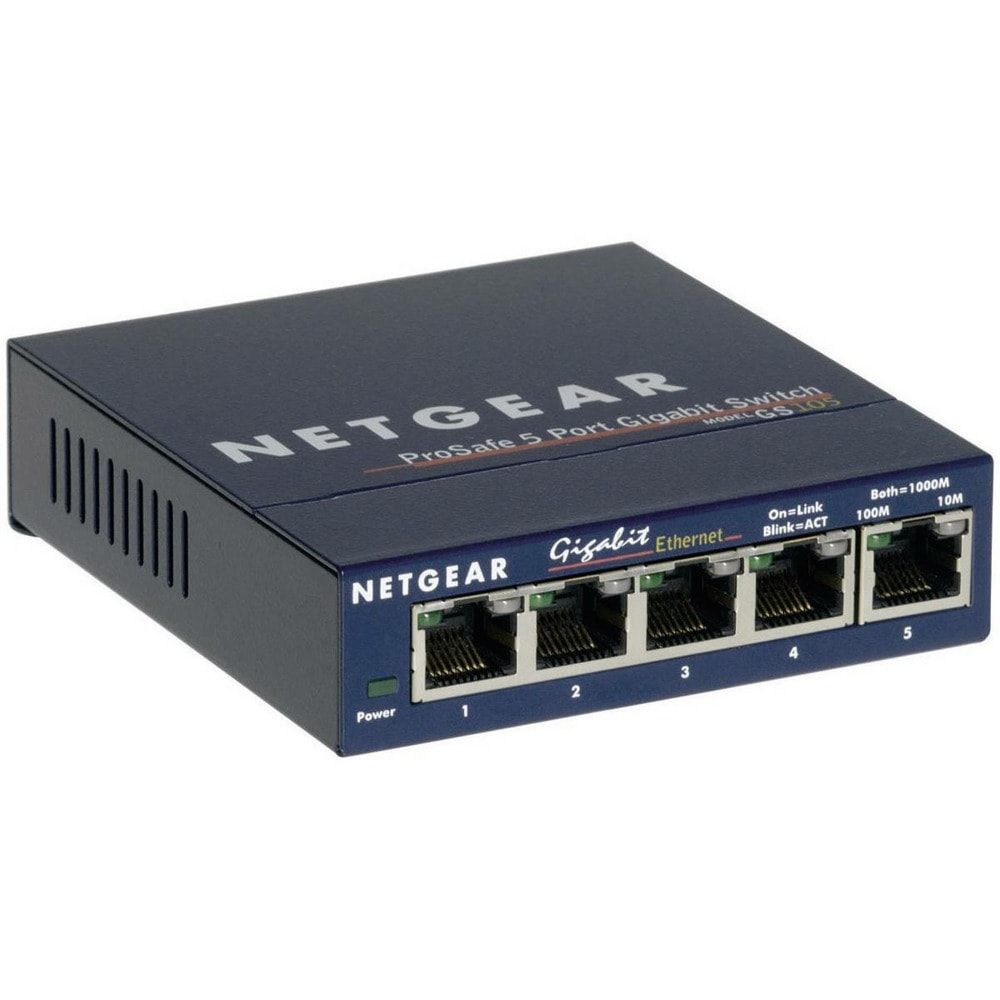

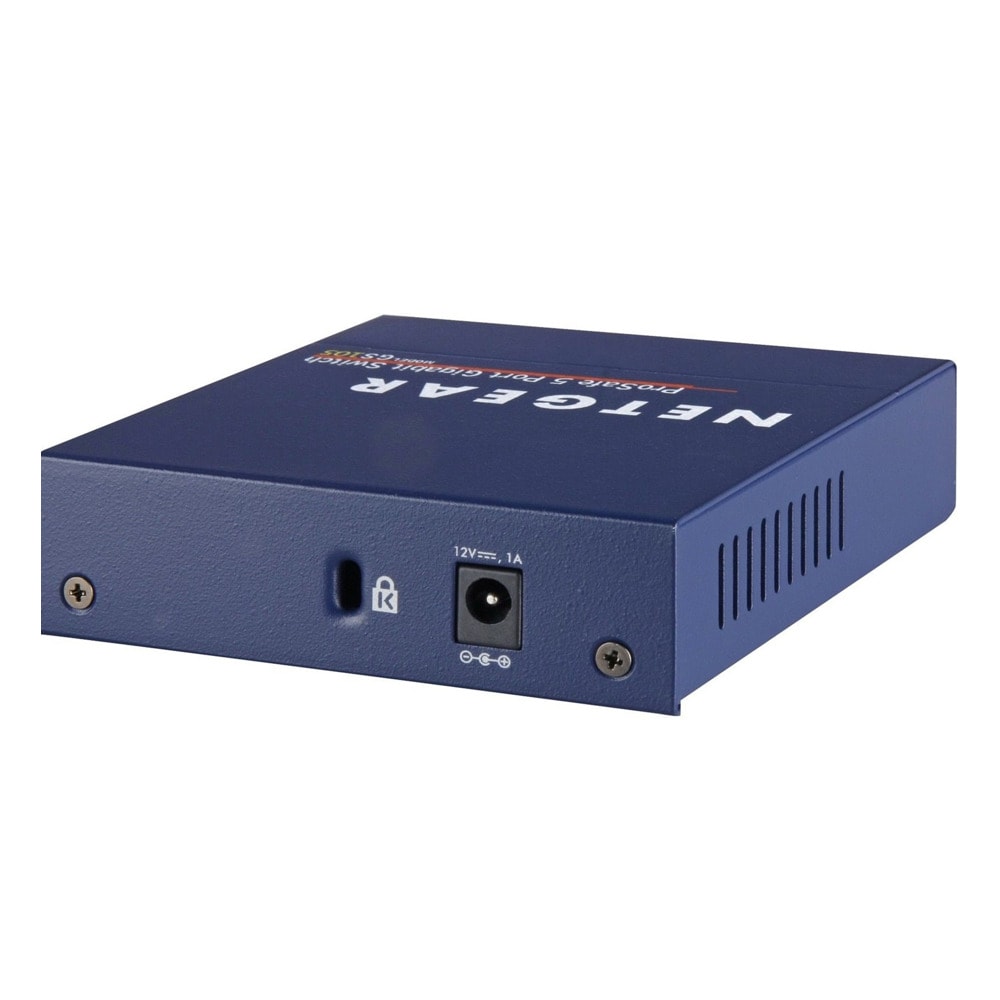

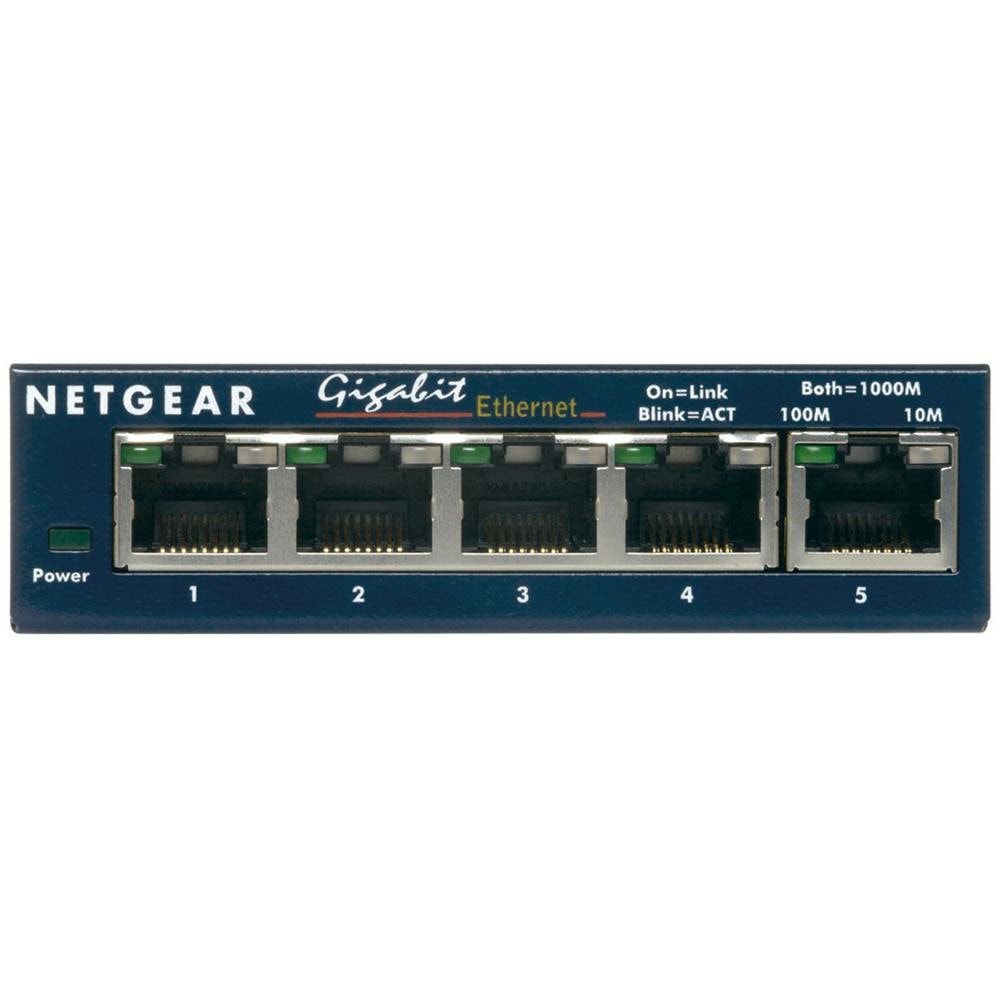

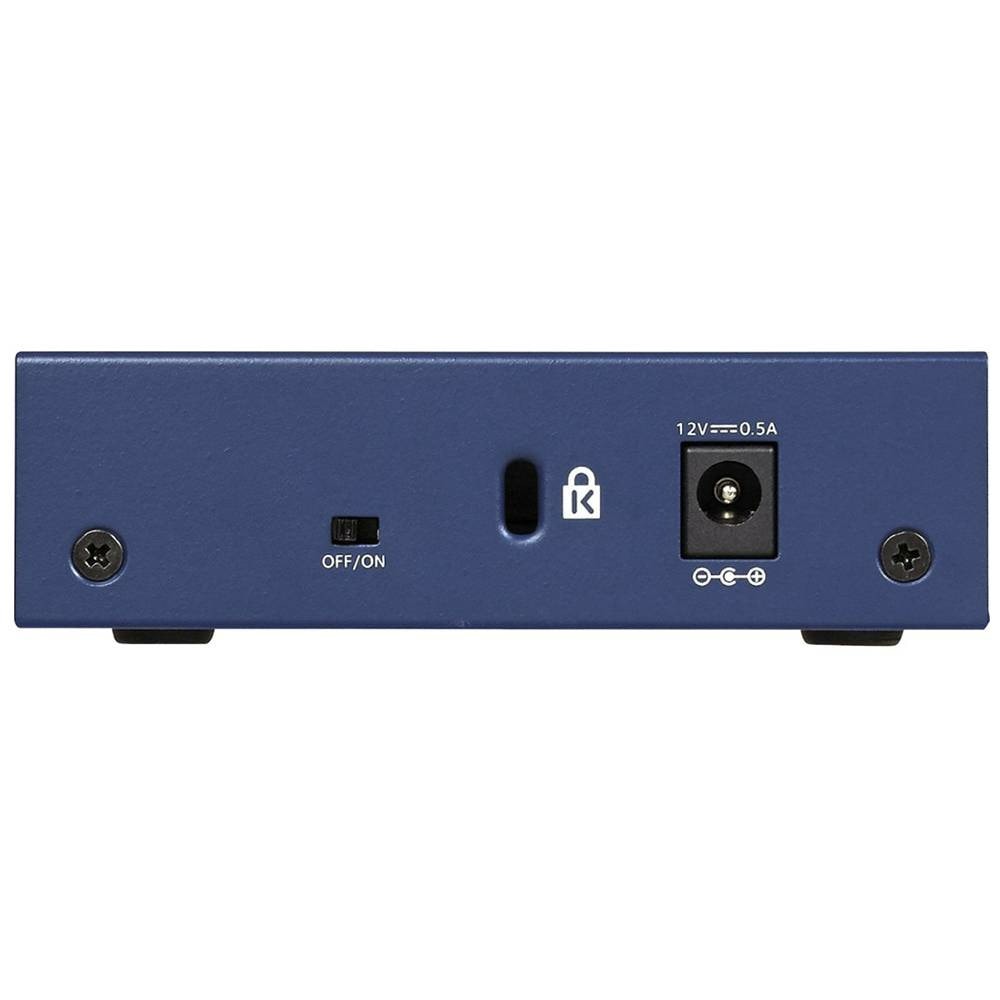

Суич Netgear GS105GE
Артикул №: 1000131599
Категория:
Мрежови адаптери
32,99 €
✓ Ограничена наличност
Характеристики
| GS105 | 5 auto-sensing UTP ports |
| GS108 | 8 auto-sensing UTP ports |
| Forwarding Mode | Да |
| Store-and-forward | Да |
| GS105 | 128 KB on-chip packet buffering |
| GS108 | 192 KB on-chip packet buffering |
| Performance | Да |
| Честотна лента | GS105: 10 Gbps (non-blocking) GS108: 16 Gbps (non-blocking) |
| Forwarding rate | - 10 Mbps port: 14,800 packets/sec - 100 Mbps port: 148,000 packets/sec - 1000 Mbps port: 1,480,000 packets/sec |
| Latency (using 1500-byte packets) | - 10 Mbps: 30μs (max) - 100 Mbps: 6μs (max) - 1000 Mbps: 4μs (max) – MAC address database: 4,000 |
| Mean time between failures (MTBF) | >1 million hours (~114 years) • Status LEDs – System power – Link, speed, and activity indicators per port built into each RJ-45 port • AC Power – Power adapter: 12W, 12V DC, 1A – Maximum power consumption GS105: 3.5W |
| GS108 | - 4.92W (if cable length > 10 m) - 4.08W (if cable length < 10 m) • Physical Specifications |
| Dimensions (w x d x h) | GS105: 94 x 104 x 28 mm (3.7 x 4.1 x 1.1 in) GS108: 158 x 105 x 27 mm (6.2 x 4.1 x 1.1 in) – Weight: GS105: 0.30 kg (0.66 lb) GS108: 0.522 kg (1.15 lb) • Environmental Specifications – Operating temperature: 0º to 50º C (32º to 122º F) – Operating humidity: 10% to 90% non-condensing – Storage temperature: -20º to 70° C (-4º to 158º F) – Storage humidity: 10% to 95% relative humidity • Standards Compliance – IEEE 802.3i 10BASE-T Ethernet – IEEE 802.3u 100BASE-TX Fast Ethernet – IEEE 802.3ab 1000BASE-T Gigabit Ethernet – Honors IEEE 802.1p and DSCP priority tags – Jumbo frame: up to 9,720 bytes • Safety Agency Approvals – C-Tick, CE Mark • Electromagnetic Compliance – GS105: FCC Class B, VCCI Class B – GS108: FCC Class B, VCCI class B, CE Class B |
