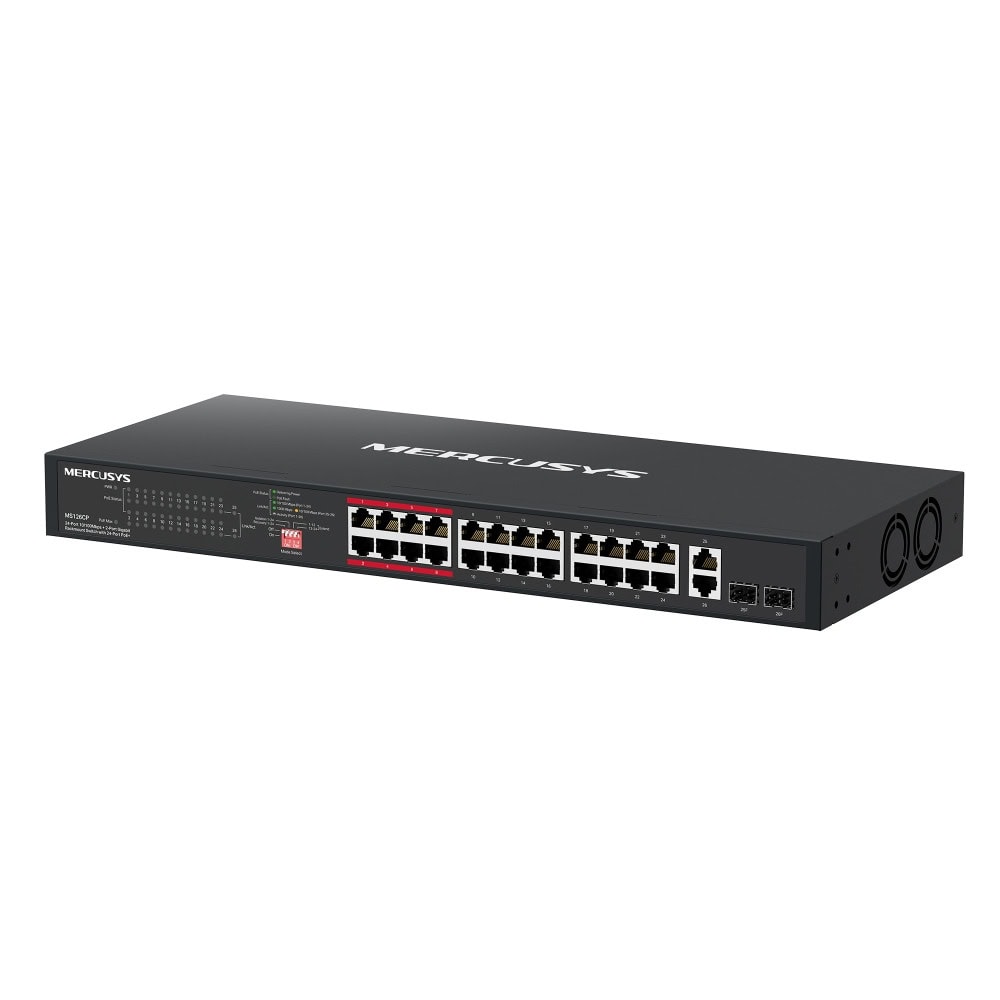

Суич Mercusys MS126CP

Артикул №: 1000049353

Категория: Суич

126,99 €

✓ Ограничена наличност

24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

Характеристики

24 PoE+ Ports with 2 Gigabit Combo Uplink	24× 10/100 Mbps PoE+ RJ45 ports , 2× Gigabit Combo RJ45 ports, and 2× Gigabit Combo SFP Slots

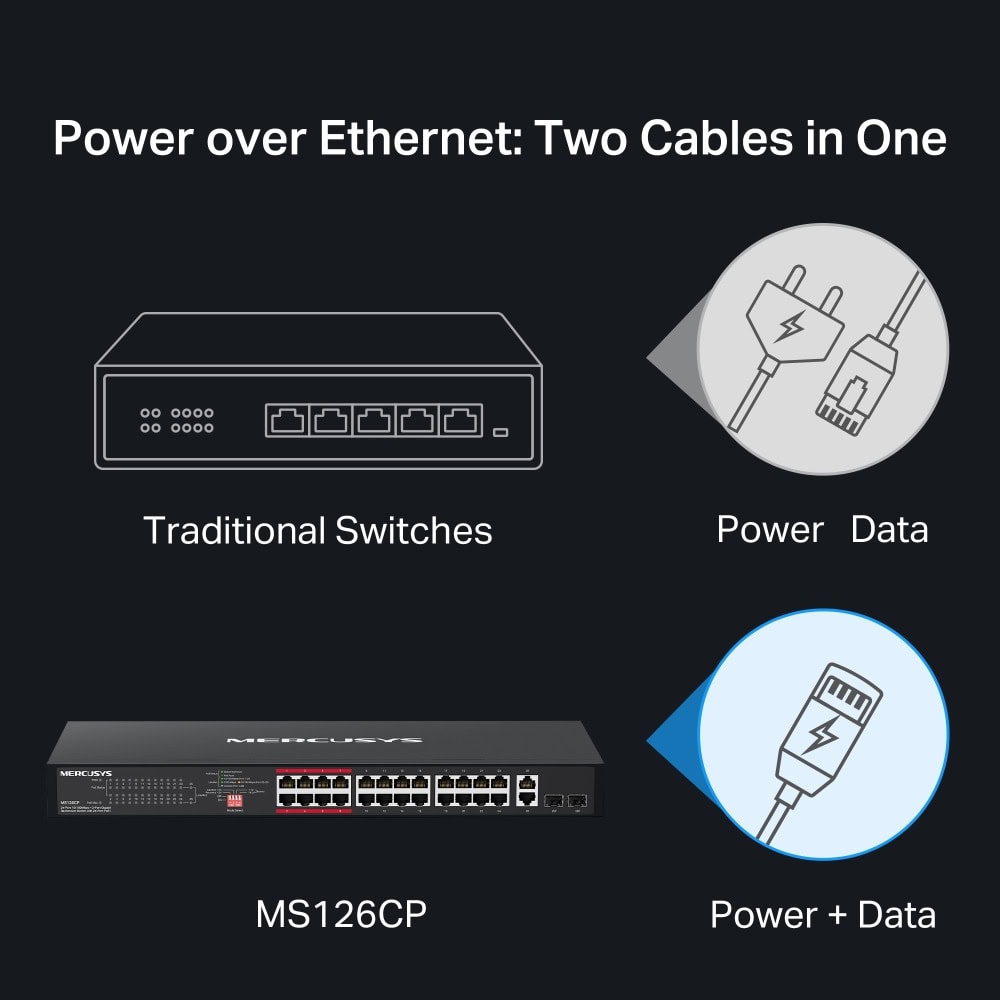

High Power PoE+	Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports. * Working with IEEE 802.3af/at compliant PDs

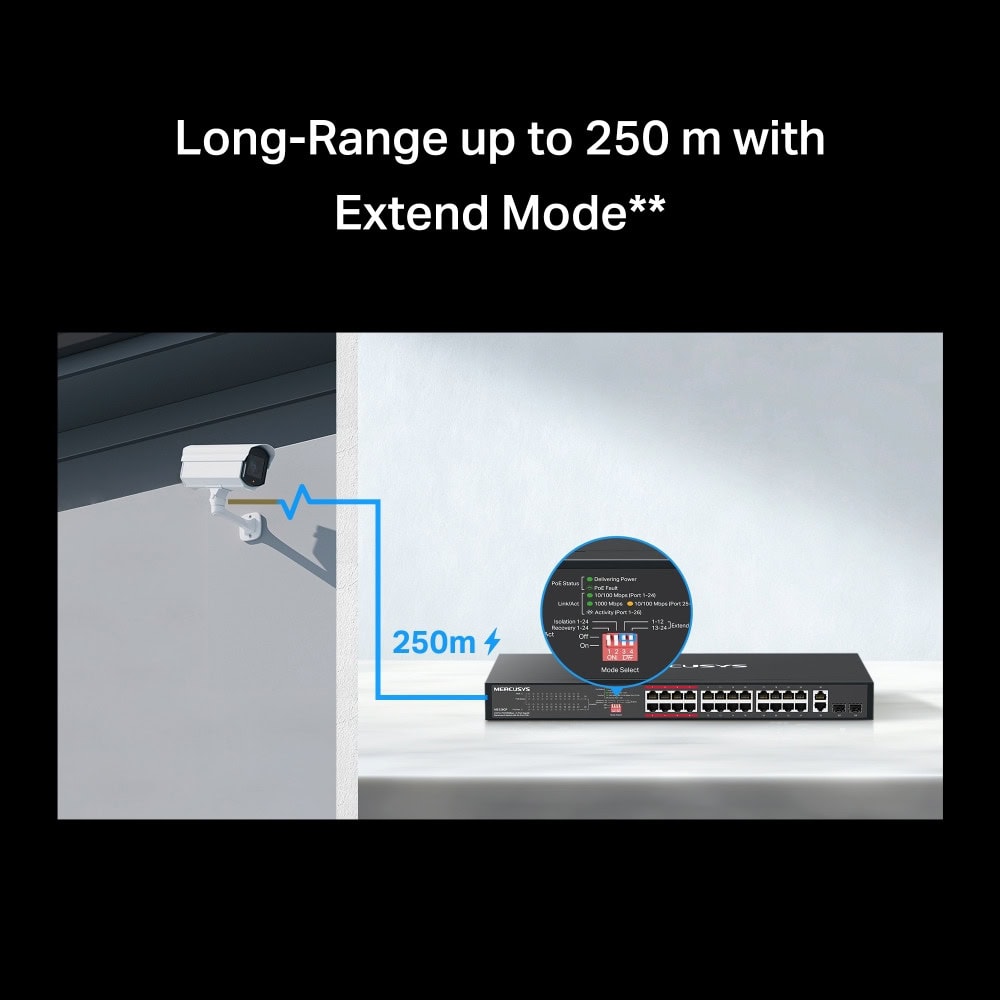

Long-Range up to 250 m	Increases PoE transmission distance to 250 m by Extend Mode**

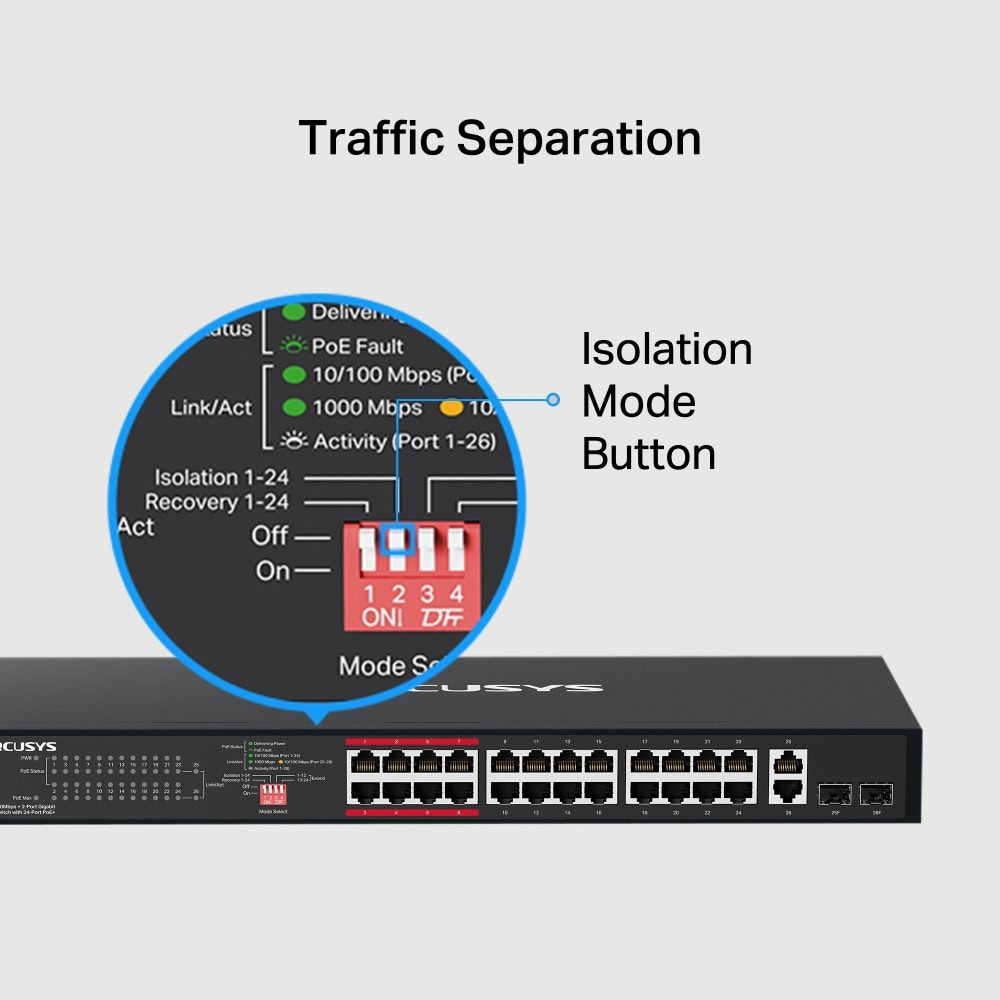

Isolation Mode	One click to divide traffic for specific ports for stability and security

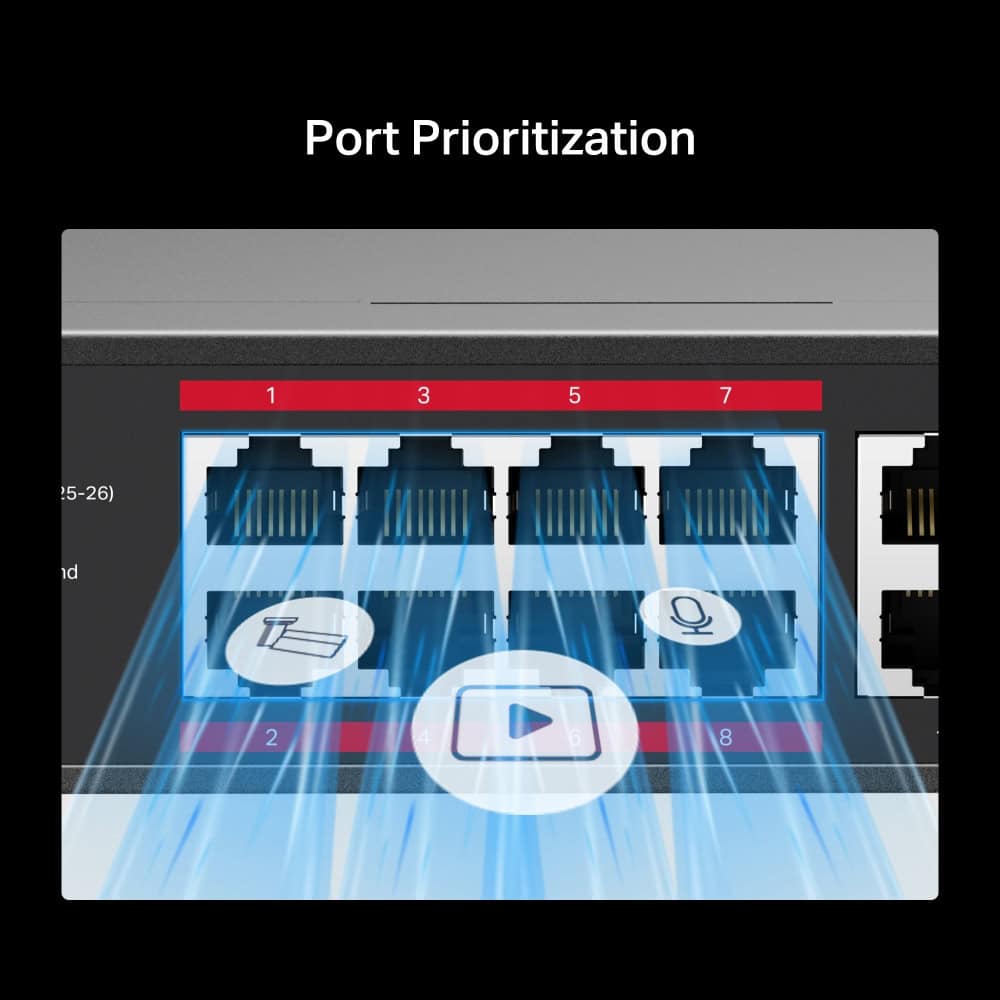

Priority Mode	Guarantees the quality of sensitive applications like video monitor

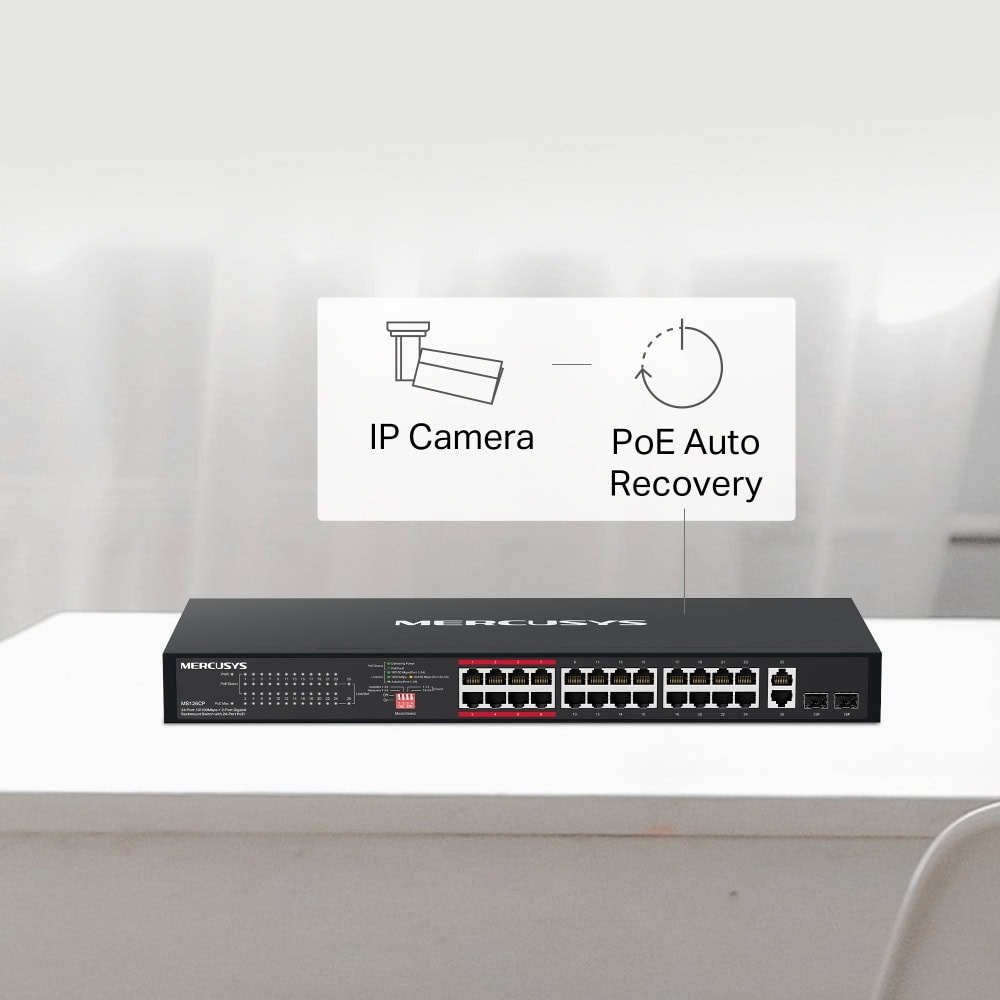

PoE Auto Recovery	Automatically reboots your dropped or unresponsive PoE-powered devices

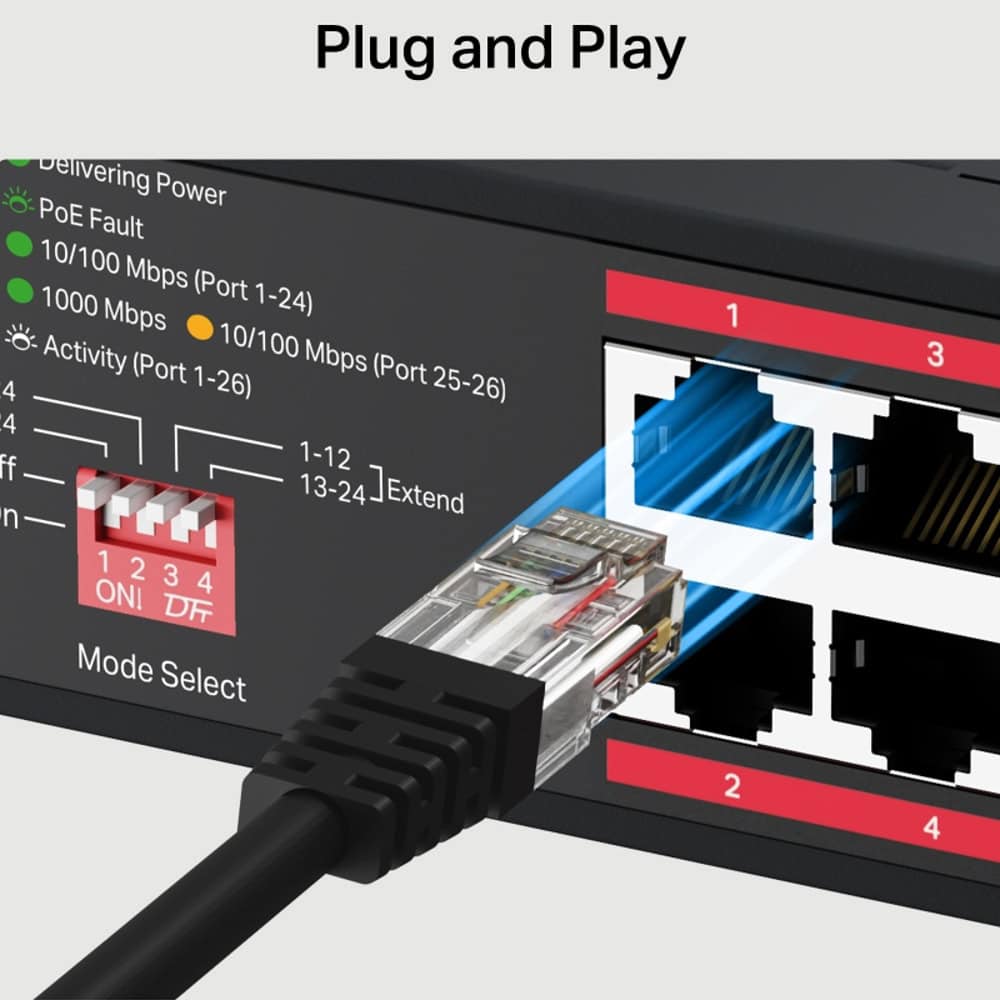

Plug and Play	No configuration or central management required

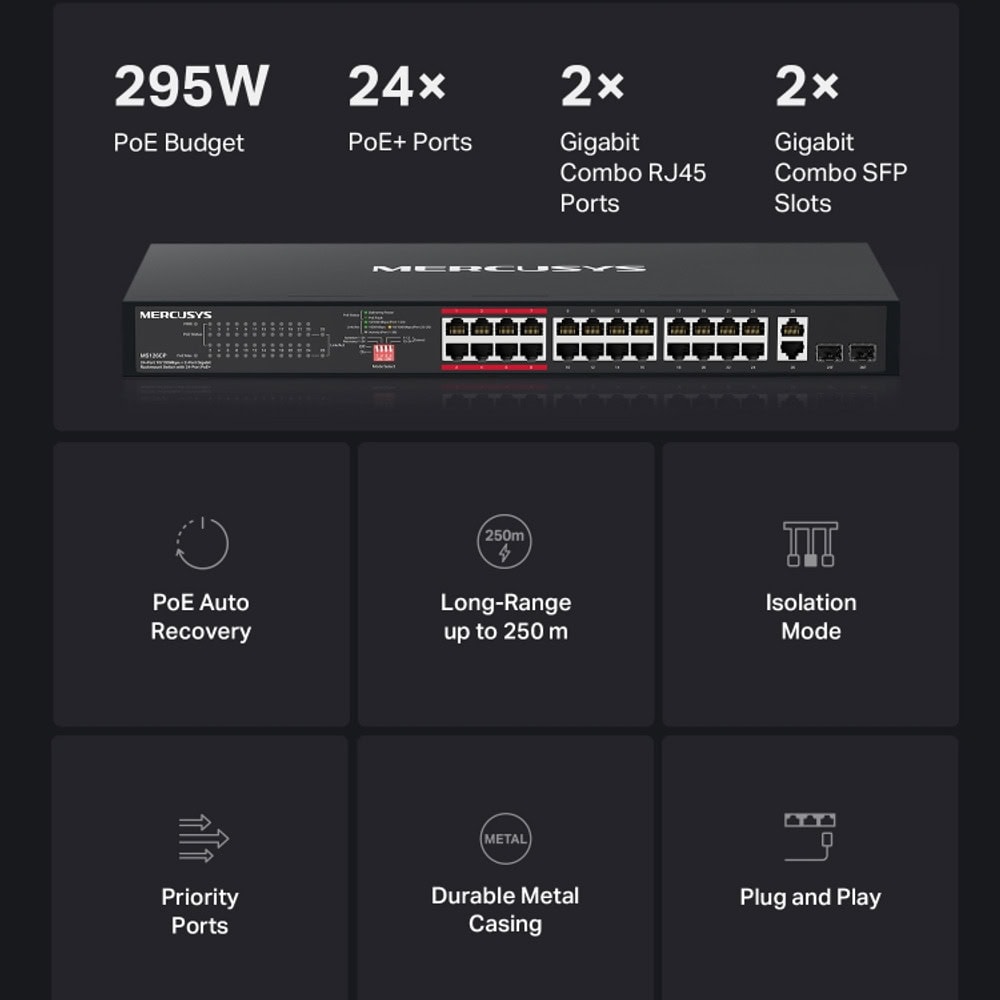

PoE+ Ports (295 W Budget) for Network Deployment	24
Long-Range up to	250 m with Extend Mode**
Метод на трансфер на данни	Store-And-Forward
Advanced Features	• Compatible With IEEE 802.3at/af Compliant PDs · • Extend Mode (Ports1-12 and Ports13-24 up to 250m PoE power supply and data · transmission) · • Priority Mode (Ports 1-8) · • Isolation Mode (Ports 1-24) · • PoE Auto Recovery (Ports 1-24) · • MAC Address Auto-Learning And Auto-Aging · • IEEE802.3x Flow Control
Размери (ШxДxВ)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports	RJ45 · • Standard: 802.3at/802.3af compliant · • PoE Ports: Ports 1–24 · • PoE Power Budget: 295 W
Интерфейси	• 24× PoE+ 10/100 Mbps RJ45 Ports · • 2× Combo Gigabit RJ45 ports · • 2× Combo Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable(maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-X MMF, SMF
Захранване	100–240V AC, 50/60 Hz
Брой вентилатори	2 Fans
Physical Security Lock	Да
Jumbo кадър	16 KB
Комутационен капацитет	8.8 Gbps
Mac Address Table	16 K
Max Power Consumption	• 11.72W（220/50HZ no PD connected） · • 326.95W（220/50HZ with 295W PD connected）
Max Heat Dissipation	• 1168.47 BTU/hr (110 V/60 Hz @ 25 °C, with 295 W PD connected) · • 1114.9 BTU/hr (220 V/50 Hz @ 25 °C, with 295 W PD connected)
Packet Forwarding Rate	6.54 Mpps
