Суич Mercusys MS105

Mercusys MS105

5-Port 10/100Mbps Desktop Switch

Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required

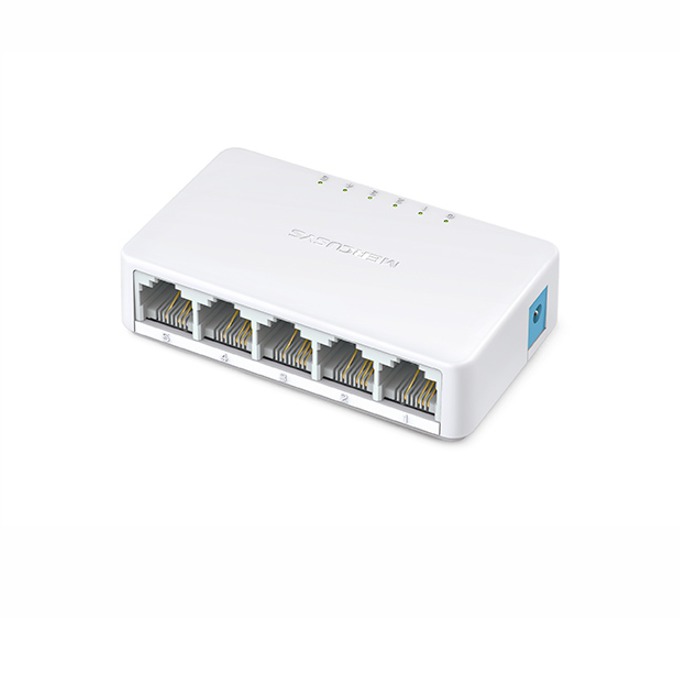

Sleek,Ultra-Compact Design

About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.

Expand Ethernet Network

With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.

Ease of Use

Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance

With Half/Full Duplex and MAC Address Learning Technology, the MS105 provides up to 1Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS105 will provide reliable, uninterrupted connections for years to come.

Dimensions (W X D X H)

82 x 49 x 21 mm
Interfaces 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX

External Power Supply

External power adapter
(Output: 5.0VDC/0.6A)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity Fanless

Data Rates

10/100Mbps at half duplex
20/200Mbps at full duplex
Buffer Capacity 768Kb
Jumbo Frame 2KB
Switching Capacity 1Gbps
LED Ethernet (1, 2, 3, 4, 5), Power
Transfer Method Store and forward
Certifications CE, RoHS

Environment

Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
