Lanberg

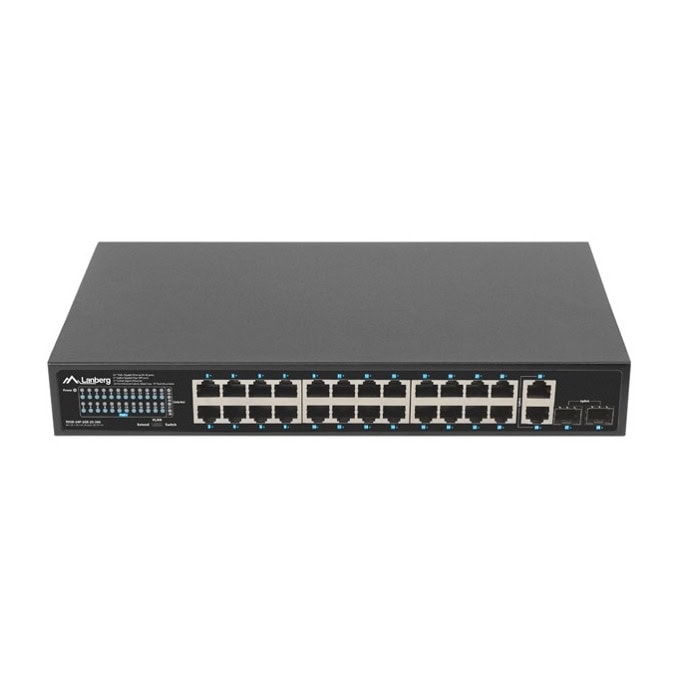

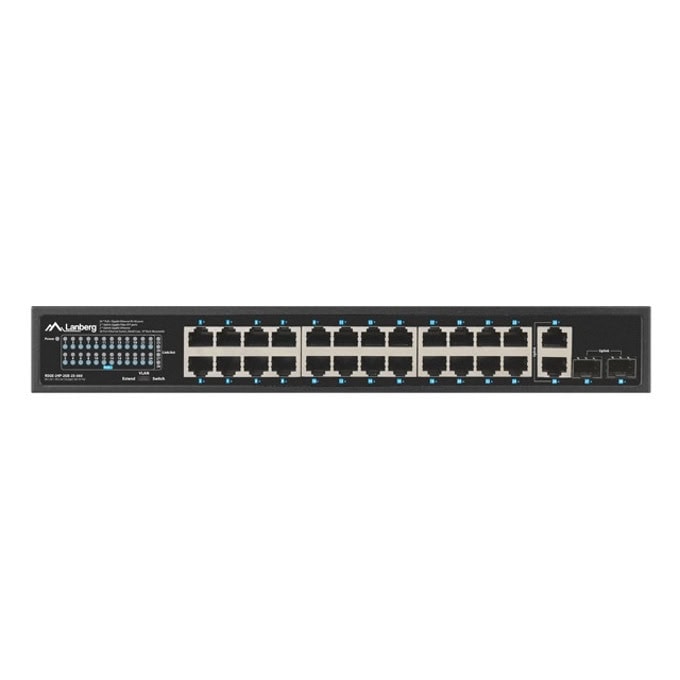

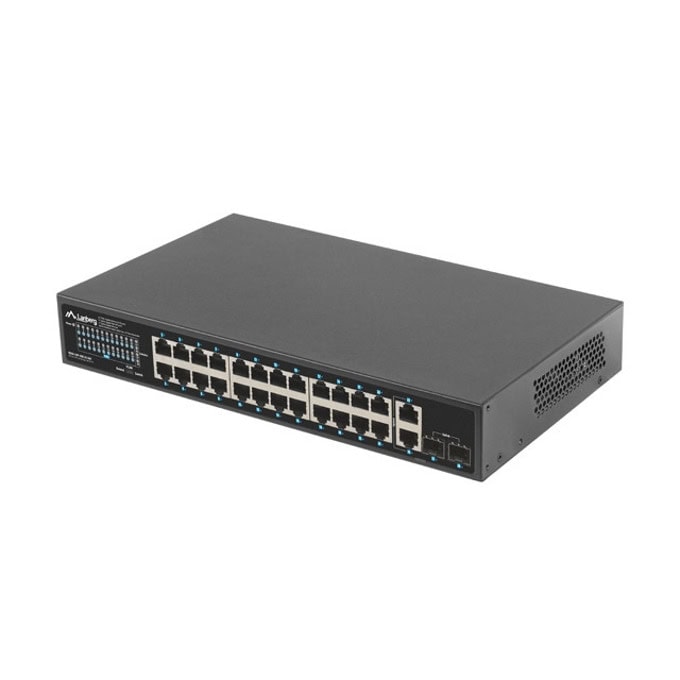

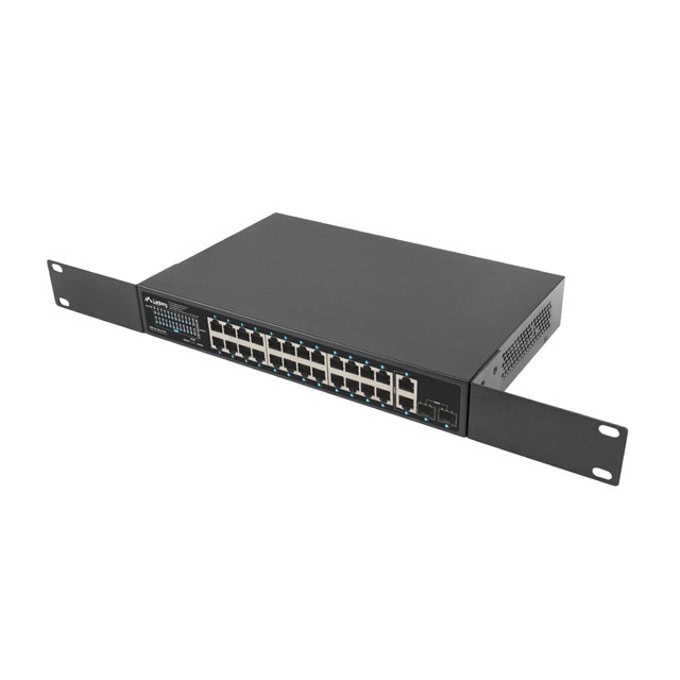

Суич Lanberg RSGE-24P-2GE-2S-360
Артикул №: 1000037806
Категория:
Суич
247,99 €
✓ Ограничена наличност
Specifications
Number of Ethernet ports
26
Number of fiber ports
2
Number of POE ports
24
Ports specification
24x 1000BASE-TX 802.3af/802.3at PoE+, 2x 1000 Mbps Uplink, 2x 1000BASE-X SFP
Maxiumum network link speed
1 Gbps
Network Link Type
Ethernet, Fiber
Management
Unmanaged
Size
19"
Specialized
Industrial, Rack
Type of casing
Rack
Weatherproof rating
IP20
Chipset
RTL8382L
PoE support
Yes
PoE standards
802.3af, 802.3at
PoE power supply type
PoE, PoE+
Total budget for PoE
360 W
Maximum power per port
30 W
Bandwith
56 Gbps
MAC address table
8K
Cooling
Active - fan
Power Requirements
100~240V AC
Power consumption
20 W
Surge protection
4 kV
Work signal
LED
Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX
Functions
Extend mode, Intelligent PoE port disconnection function
Material
Metal
Software
No
ICT height
1 U
Length
320 mm
Width
207 mm
Height
45 mm
Weight
2.26 kg
Environment temperature
5 - 40 °C
Environment humidity
0 - 80 %
Number of Ethernet ports
26
Number of fiber ports
2
Number of POE ports
24
Ports specification
24x 1000BASE-TX 802.3af/802.3at PoE+, 2x 1000 Mbps Uplink, 2x 1000BASE-X SFP
Maxiumum network link speed
1 Gbps
Network Link Type
Ethernet, Fiber
Management
Unmanaged
Size
19"
Specialized
Industrial, Rack
Type of casing
Rack
Weatherproof rating
IP20
Chipset
RTL8382L
PoE support
Yes
PoE standards
802.3af, 802.3at
PoE power supply type
PoE, PoE+
Total budget for PoE
360 W
Maximum power per port
30 W
Bandwith
56 Gbps
MAC address table
8K
Cooling
Active - fan
Power Requirements
100~240V AC
Power consumption
20 W
Surge protection
4 kV
Work signal
LED
Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX
Functions
Extend mode, Intelligent PoE port disconnection function
Material
Metal
Software
No
ICT height
1 U
Length
320 mm
Width
207 mm
Height
45 mm
Weight
2.26 kg
Environment temperature
5 - 40 °C
Environment humidity
0 - 80 %
