Dahua

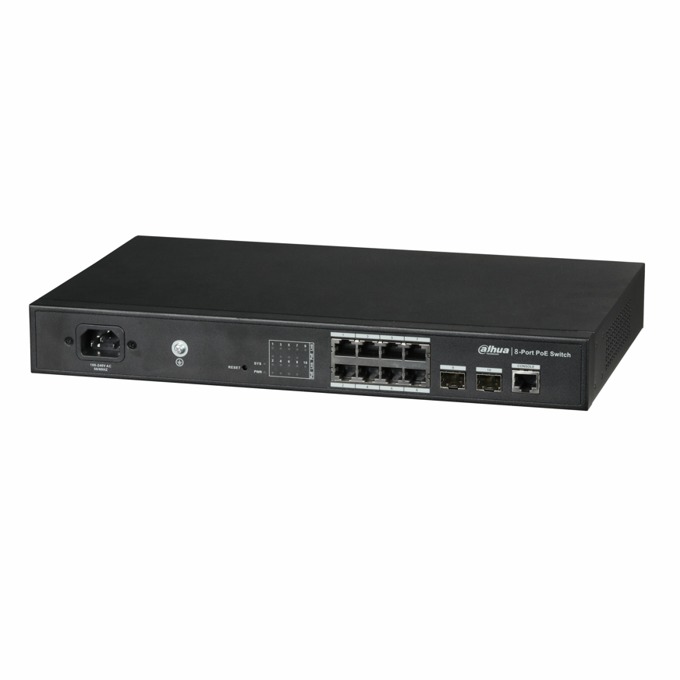

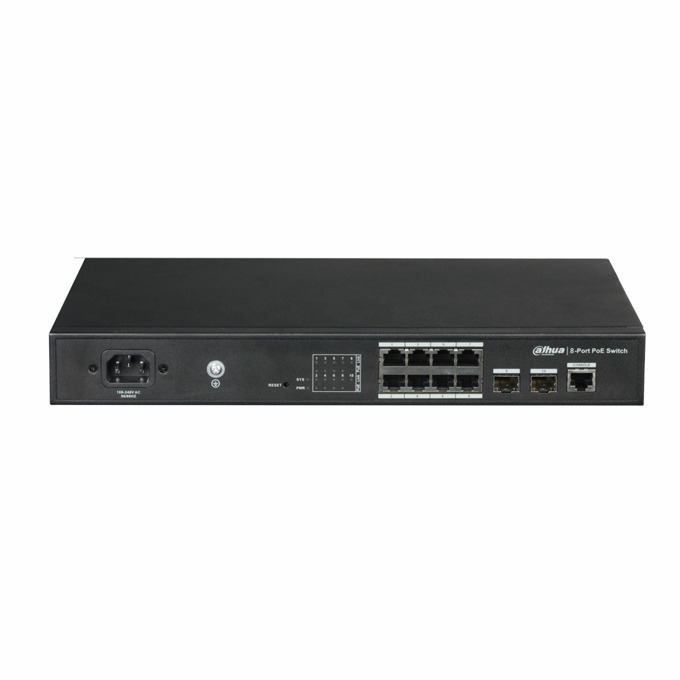

Суич Dahua PFS4210-8GT-150
Артикул №: 1000010819
Категория:
Суич
231,99 €
✓ Налично във външен склад
Technical Specification
Model: DH-PFS4210-8GT-150
Ethernet Port: 8*10/100/1000 Base-T (PoE power supply), 2*100/1000 Base-X
RS232 Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Model: DH-PFS4210-8GT-150
Ethernet Port: 8*10/100/1000 Base-T (PoE power supply), 2*100/1000 Base-X
RS232 Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Технически характеристики
| Модел | DH-PFS4210-8GT-150 |
| Ethernet Port | 8*10/100/1000 Base-T (PoE power supply), 2*100/1000 Base-X |
| RS232 Serial Console | 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
| PoE Power Consumption | Each power ≤30W, Total≤150W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer Memory | 4Mb |
| Application Humidity | 5%~95% |
| Мощност | AC100-240V, 50/60Hz |
| Lightning Protection | Common Mode 2KV, Differential Mode 1KV |
| Working Temperature | 0°C~45°C |
| Dimension(W×D×H) | 340mm x 200mm x 44mm |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| System | Username / password: admin/admin, IP Address :192.168.1.110/24 |
| PoE Budget | Total≤150W |
| MAC Table | 8K |
| NTP | Поддръжка |
| DHCP | Support DHCP client/server, Support DHCP snooping |
| VLAN | 802.1Q Standard VLAN |
| Port Aggregation | Manual aggregation/LACP |
| Mirroring | Many-to-one port mirroring |
| Multicast | IGMP Snooping v1/v2/v3 |
| Spanning tree | Support STP/RSTP/MSTP |
| LLDP | Поддръжка |
| MAC Table | Support MAC address table configuration |
| Network Management | WEB(http protocol), serial, SNMP |
