Dahua
Суич Dahua PFS3110-8T
Артикул №: 1000007642
Категория:
Суич
103,99 €
✓ Налично във външен склад
DH-PFS3110-8T
Features:
2-layer industrial level switch
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
100M/1000M self-adaptive SFP fiber port
Industrial wide temperature design
Technical Specifications:
Model: DH-PFS3110-8T

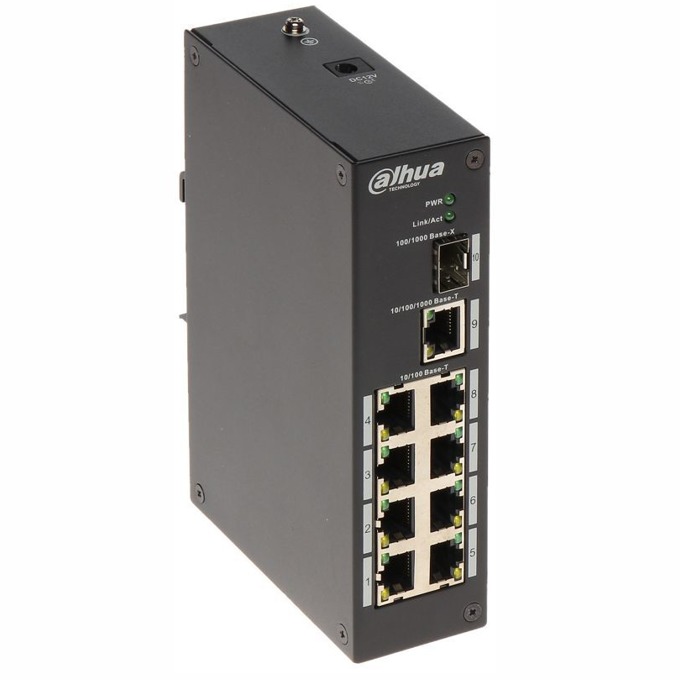

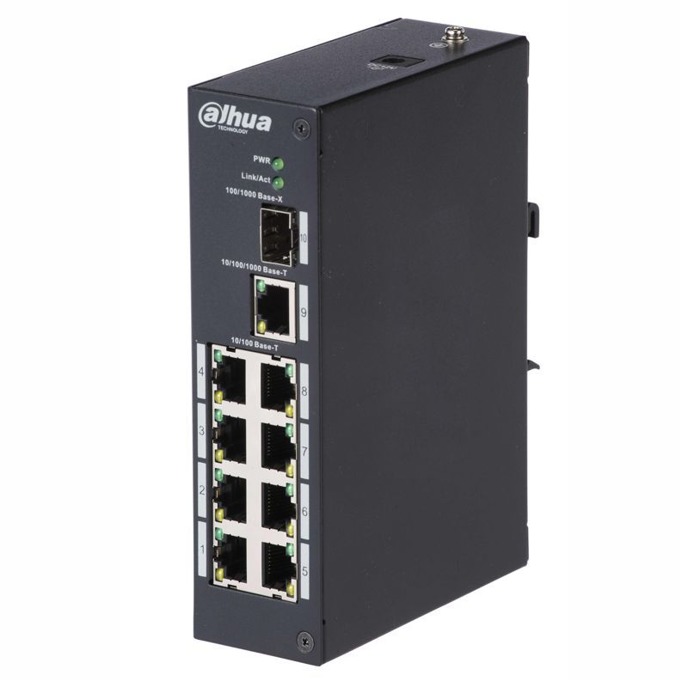

Ethernet port: 1*100/1000 Base-X, 1*10/100/1000 Base-T, 8*10/100 Base-T
Switching Capacity: 13.6G
Packet Forwarding Rate: 4.17Mpps
Packet Buffer Memory: 2Mb
MAC Table Size: 8K
Exchange Mode: Store & forward
Application Humidity: 10%－90%

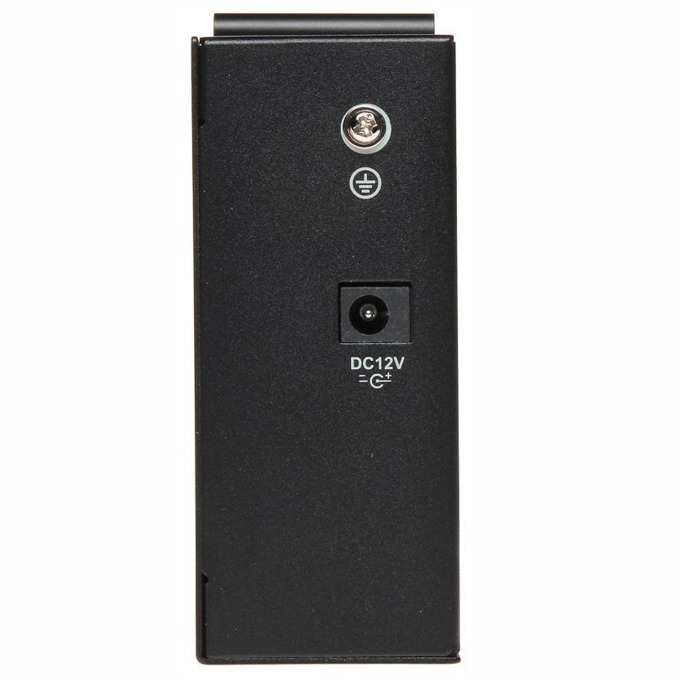

Power: DC 12V
Power Consumption: 3W
Lightning Protection: Common Mode 4KV, Differential Mode 2KV
Working Temperature: -40℃～70℃
Weight: 540g
Dimension(W×D×H): 150mm× 100mm× 42mm
Features:
2-layer industrial level switch
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
100M/1000M self-adaptive SFP fiber port
Industrial wide temperature design
Technical Specifications:
Model: DH-PFS3110-8T
Ethernet port: 1*100/1000 Base-X, 1*10/100/1000 Base-T, 8*10/100 Base-T
Switching Capacity: 13.6G
Packet Forwarding Rate: 4.17Mpps
Packet Buffer Memory: 2Mb
MAC Table Size: 8K
Exchange Mode: Store & forward
Application Humidity: 10%－90%
Power: DC 12V
Power Consumption: 3W
Lightning Protection: Common Mode 4KV, Differential Mode 2KV
Working Temperature: -40℃～70℃
Weight: 540g
Dimension(W×D×H): 150mm× 100mm× 42mm
Технически характеристики
| Модел | DH-PFS3110-8T |
| Ethernet port | 1*100/1000 Base-X, 1*10/100/1000 Base-T, 8*10/100 Base-T |
| Switching Capacity | 13.6G |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 2Mb |
| MAC Table Size | 8K |
| Exchange Mode | Store & forward |
| Application Humidity | 10%－90% |
| Мощност | DC 12V |
| Консумация на енергия | 3W |
| Lightning Protection | Common Mode 4KV, Differential Mode 2KV |
| Working Temperature | -40℃～70℃ |
| Тегло | 540g |
| Dimension(W×D×H) | 150mm× 100mm× 42mm |
