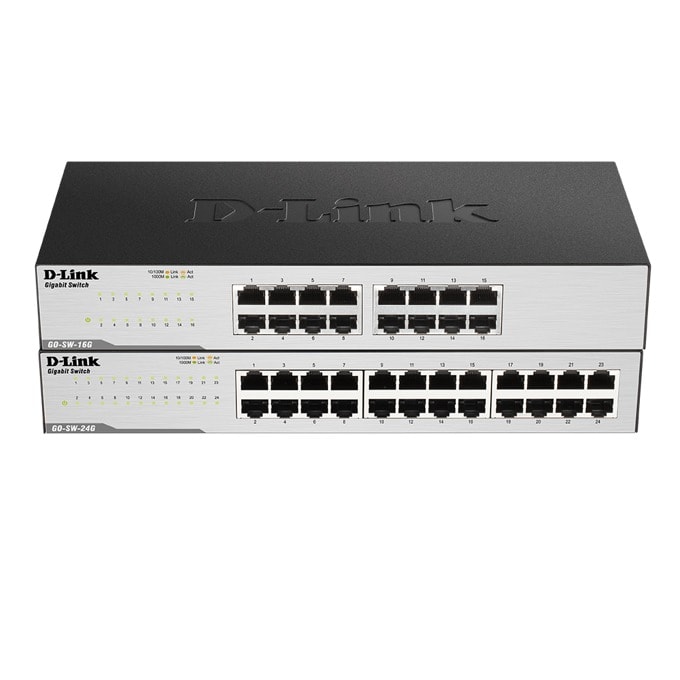

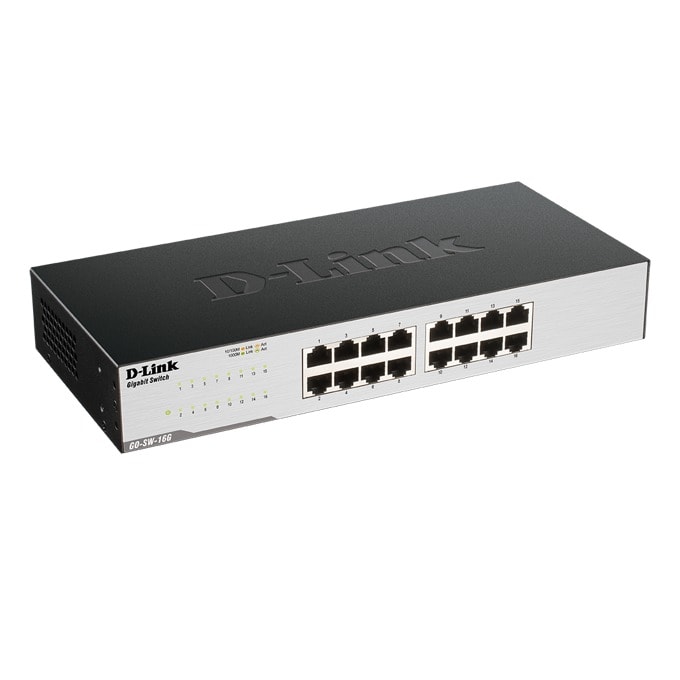

Суич D-Link (GO-SW-16G)

Key Features

D-Link Green Technology

Power saving by cable length detection and link status

Inexpensive Gigabit solution for SOHO/SMB

Silent, fanless design

Auto MDI/MDI-X crossover for all ports

Store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast

Ethernet speeds

IEEE 802.3x Flow Control

Supports 9,600Bytes Jumbo Frames

Supports IEEE 802.1p QoS (4 Queues, Strict Mode)

Supports Cable Diagnostics Function

Supports D-Link’s unique EEE+ mode

RoHS compliant

Plug-and-play installation

Number of Ports

16 Gigabit ports

Switching Fabric

32 Gbps switching fabric

Standards

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS (4 queues, strict mode)

IEEE802.3az EEE

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Gigabit Ethernet:

2000 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDI-X adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

8K entries per device

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates (half duplex)

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

512 KB per device

Power Consumption

Standby: 3.8 watts

Maximum: 11.0 watts

Heat Dissipation

Standby: 12.958 BTU/h

Maximum: 37.51 BTU/h

Acoustics
