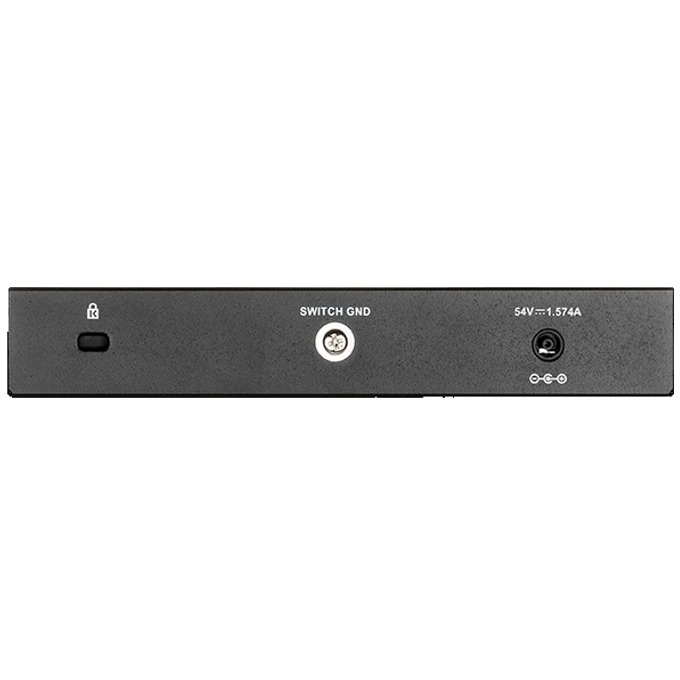

Суич D-Link DGS-1100-08PV2

D-Link 8-Port PoE Gigabit Smart Switch

Суич, тип : Fixed Port

Общ брой портове : 8

Основни портове, тип : 8x 10/100/1000 Mbps (PoE)

Power Over Ethernet (PoE) : IEEE 802.3af/802.3at, Ports 1~8 up to 30 W max. per PoE port, PoE Power Budget: 64 W

Uplink портове : -

Свободни (10GB) слотове : -

Управление : Web-based GUI (Supports IPv4), D-Link Network Assistant (DNA)

Stackable : -

Fans : Fanless design

Захранване : External power adapter (100 to 240 V AC, 50 to 60 Hz); Power Consumption: 2W (Standby Mode), 77.9 W (PoE on), 4.6 W (PoE off)

Routing : Layer 2 Only

Памет (Flash, RAM) : Flash Memory: 2 MB

Капацитет за маршрутизиране/превключване, Gbps : 16 Gbps

Пропускателна способност, Mpps : 11.9 Mpps

MAC адреси : 4000 MAC address table size

VLAN (брой, стандарти) : Port-based/802.1Q tagged/Surveillance/Voice/ Management VLAN, VLAN Group, Supports 32 static VLAN groups, Max. 4094 VIDs, Asymmetric VLAN

QoS : 802.1p Quality of Service, 4 queues per port, Queue handling, Strict, Weighted Round Robin (WRR), Bandwidth control, Port-based (Ingress/Egress, min. granularity 8 Kb/s), DSCP

L2 мрежови стандарти : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af/at/bt, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p

L3 мрежови стандарти : -

IPv6 functionality : -

Сигурност : Static MAC addresses, Up to 32 entries, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, Port security

Размери (Ш, Д, В), mm : 171 x 97.8 x 28.6

Опция за монтаж : Desktop
