D-Link
Суич D-Link DGS-1008MP
Артикул №: 1000011988
Категория:
Суич
117,99 €
✓ Налично във външен склад

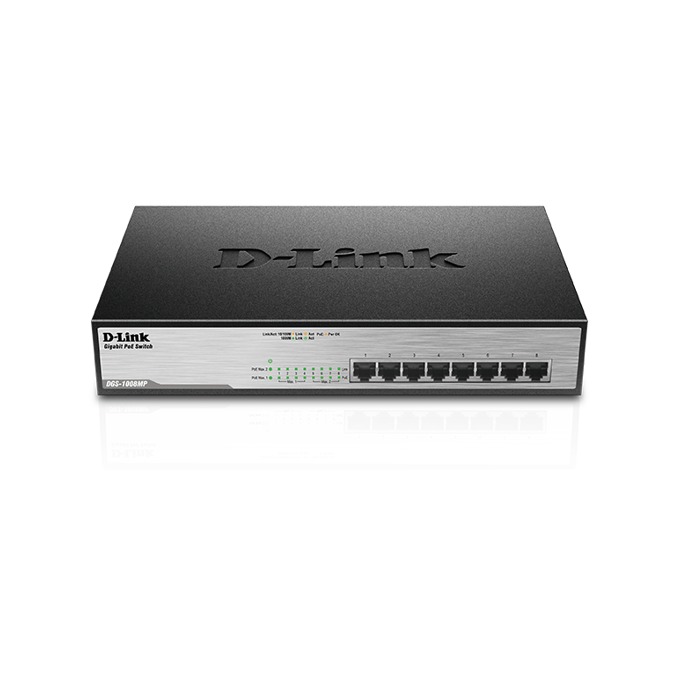

D-Link DGS-1008MP
8-Port Desktop Gigabit Max PoE Switch
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
PoE
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
Superior Performance
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
Technical Specifications
General
Size
11-inch Desktop/Rackmount size, 1U height
Number of Ports
8 10/100/1000 Mbps Ports
Port Standards & Functions
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control supports half/full duplex mode
ANSI/IEEE 802.3 NWay auto-negotiation
Switching Capacity
16 Gbps switching fabric
Media Interface Exchange
Auto MDI/MDI-X
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
Packet Buffer Memory
128 KB per device
Packet Filtering / Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
Data Transfer Rates
Ethernet
8-Port Desktop Gigabit Max PoE Switch
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
PoE
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
Superior Performance
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
Technical Specifications
General
Size
11-inch Desktop/Rackmount size, 1U height
Number of Ports
8 10/100/1000 Mbps Ports
Port Standards & Functions
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control supports half/full duplex mode
ANSI/IEEE 802.3 NWay auto-negotiation
Switching Capacity
16 Gbps switching fabric
Media Interface Exchange
Auto MDI/MDI-X
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
Packet Buffer Memory
128 KB per device
Packet Filtering / Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
Data Transfer Rates
Ethernet
Характеристики
| IEEE | 802.3i 10BASE-T Ethernet |
| IEEE | 802.3u 100BASE-TX Fast Ethernet |
| IEEE | 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE | 802.3at Power over Ethernet |
| IEEE | 802.3az Energy Efficient Ethernet |
| IEEE | 802.3x Flow Control supports half/full duplex mode |
| ANSI/IEEE | 802.3 NWay auto-negotiation |
| Gbps switching fabric | 16 |
| KB per device | 128 |
| Ethernet | 14,880 pps per port |
| Fast Ethernet | 148,800 pps per port |
| Gigabit Ethernet | 1,488,000 pps per port |
| Mbps (half duplex) | 10 |
| Mbps (full duplex) | 20 |
| Mbps (half duplex) | 100 |
| Mbps (full duplex) | 200 |
| Mbps (full duplex) | 2000 |

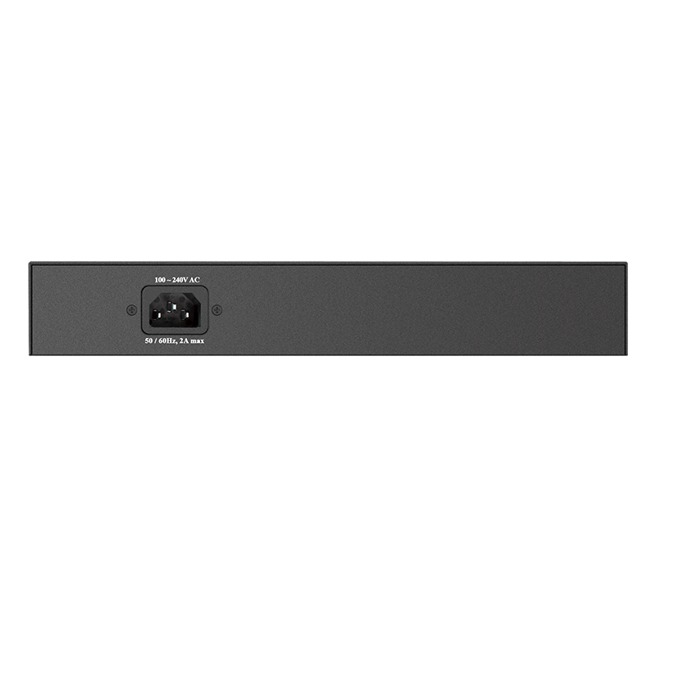

| 10BASE-T | UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 max.) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 max.) 1000BASE-T UTP CAT 5/5e(100 m max.) EIA/TIA-568 100-ohm STP(100 max.) Physical LED Indicators Per port: Activity / Link and Speed Per port: Power / Status PoE Max 1: Ports 1-4 PoE Max 2: Ports 5-8 Dimensions 280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches) Power Input AC Input: 100 to 240 V AC, 50/60 Hz Maximum PoE Budget 140 watts Power Consumption 13.5 watts (PoE off) 151 watts (PoE on) PoE up to 30 watts per port Temperature Operating: 0 to 40 ˚C (32 to 104 ˚F) Storage: -10 to 70 ˚C (14 to 158 ˚F) Humidity Operating: 0% to 95% RH non-condensing Storage: 5% to 95% RH non-condensing EMI CE Class A FCC Class A VCCI Class A CCC Class A BSMI Class A Safety cUL CB LVD CCC BSMI |
