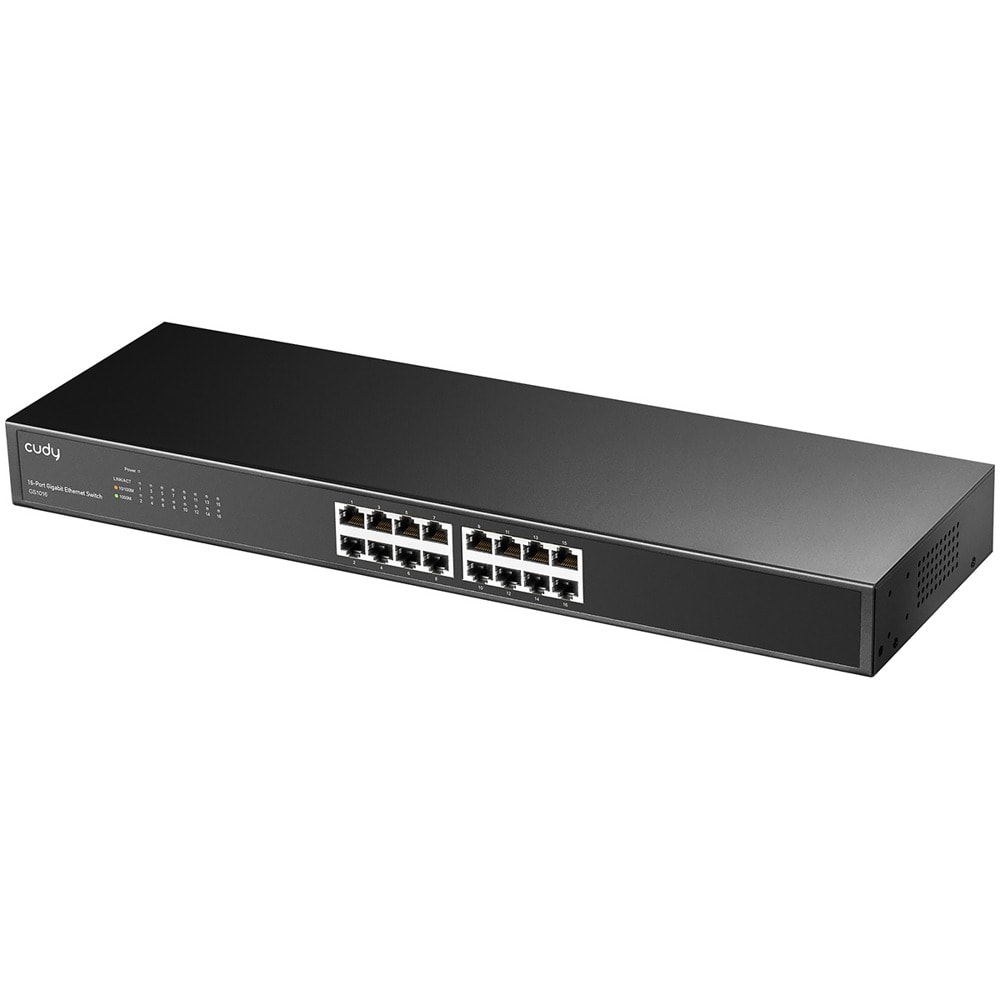

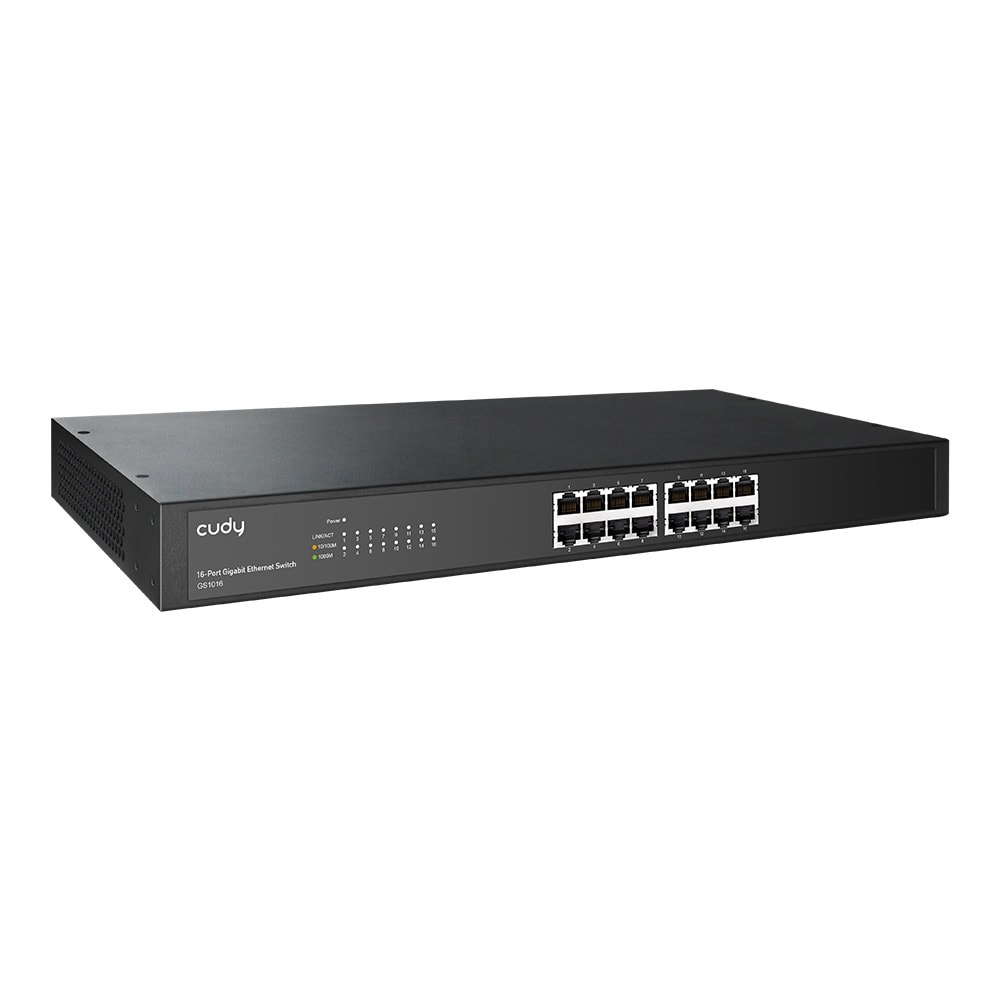

Cudy GS1016
Product Name
16-Port Gigabit Ethernet Switch
Product Model
GS1016
Chipset
RTL8382L+RTL8218B-VC-CG+RTL8231
Standards
IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az
Number of Ports
16 x 10/100/1000Mbps Auto-Negotiation ports
Network Media (Cable)
10Base-T: UTP category 3,4,5 cable (maximum 100m)
100Base-Tx: UTP category 5,5e cable (maximum 100m)
1000Base-T:UTP category 5e,6 cable (maximum 100m)
Transfer Method
Store-and-Forward
MAC Address Table
8K
Switching Capacity
Product Name
16-Port Gigabit Ethernet Switch
Product Model
GS1016
Chipset
RTL8382L+RTL8218B-VC-CG+RTL8231
Standards
IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az
Number of Ports
16 x 10/100/1000Mbps Auto-Negotiation ports
Network Media (Cable)
10Base-T: UTP category 3,4,5 cable (maximum 100m)
100Base-Tx: UTP category 5,5e cable (maximum 100m)
1000Base-T:UTP category 5e,6 cable (maximum 100m)
Transfer Method
Store-and-Forward
MAC Address Table
8K
Switching Capacity
Характеристики
| Store-and-Forward | MAC Address Table |
| 8K | Switching Capacity |
| 32Gbps | Packet Forwarding Rate |
| 23.81Mbps | Packet Buffer |
| 4.1 Mbit | Jumbo Frame |
| 9216 bytes | LED indicators Per-Port |
| 10M/100M Link/ACT：Orange | 1000M Link/ACT：Green |
| Per Device | Power ：Green |
| Захранване | 100-240VAC 50/60Hz |
| Консумация на енергия | Maximum: 10.1W(220V/50Hz) |
| Dimensions ( W x D x H ) | 440*140*44mm |
| Environment | Operating Temperature: 0℃ ~ 40℃ |
