Суич Cudy GS1010PE
Cudy GS1010PE
● Up to 120 watts total PoE budget
● Up to 30 watts PoE power one port
● 8 x 10/100/1000Mbps PoE+ ports
● 2 x 10/100/1000Mbps uplink ports
● Comply with IEEE802.3af/at standards
● IEEE 802.3x Flow control
120W Power budget & 30W Maximum One Port Supports 120W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard
Rack Mount & Wall Mount & Desktop ● Provide a variety of installation methods for easy deployment in any environment ● Support Wall mount installation ● Support Desktop installation
Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

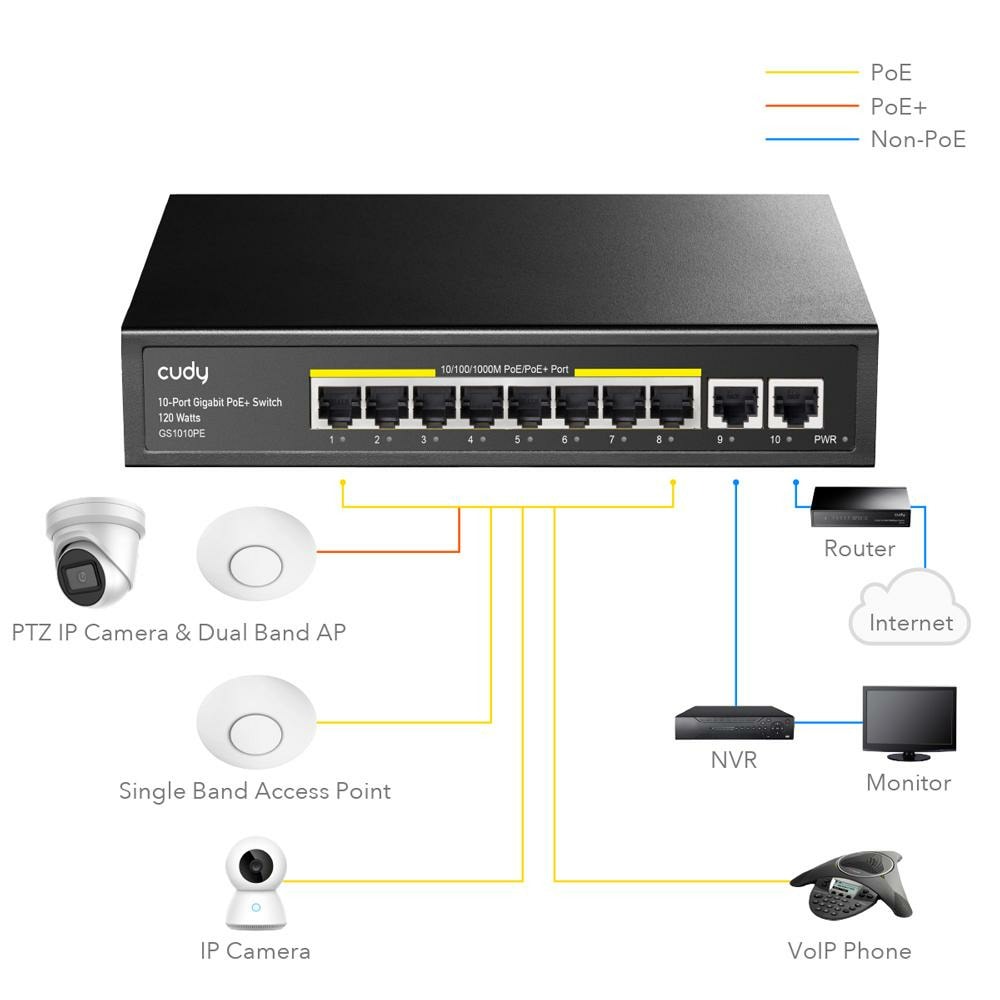

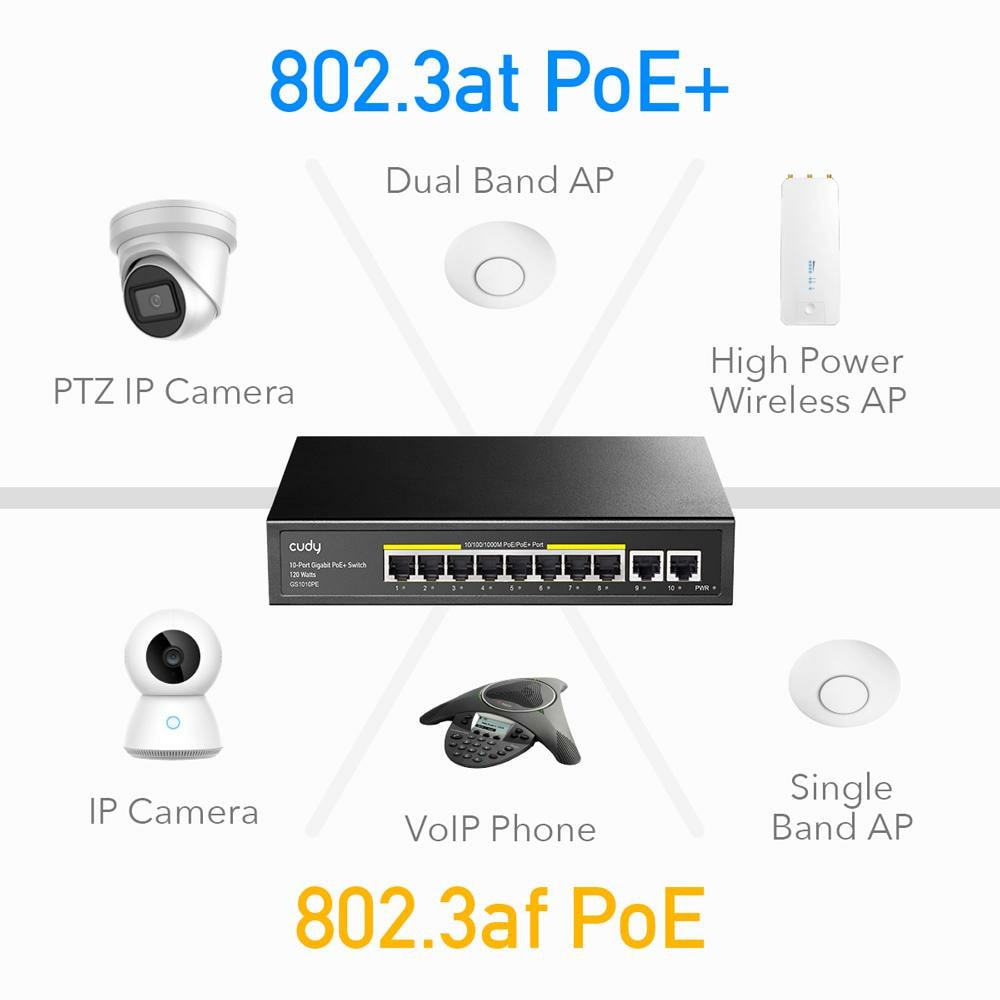

Surveillance Works with IP Cameras for home and office, small business
VoIP Conference Call Works with VoIP phones for business conference
Wi-Fi Coverage Works with WiFi APs for office and business
Характеристики
| PoE standard IEEE802.3af/at | Да |
| POE port output DC | 48-55V |
| PoE port | 1-8 |
| AC Input Voltage AC100~240V | Да |
| Захранване | 120W |
| Power Pin Power over spare pairs | 1/2(+) , 3/6 (-) |
| PoE output-port Max | 30W |
| MAC Address | 2K MAC address table |
| Packet buffer | 2M bit |
| Transfer Mode Store-and-forward | Да |
| Честотна лента | 20Gbps |
| Fan Fanless | Да |
| Device Dimension | 222mm*163mm*40mm |
| Operating Temperature -20°C ~ | 50 °C |
| Storage Temperature -40 °C ~ | 80 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
