Суич Cudy FS1018PS1

Cudy FS1018PS1

● 200 watts PoE power supply, up to 30 watts per port

● 2 10/100/1000M uplink ports +1 SFP Port

● 16 10/100M PoE+ ports

● CCTV mode support remote PoE feeding up to 250m

● VLAN mode isolate each PoE Ports for security

● IEEE 802.3at / IEEE 802.3af standard compliant

● Plug&play, simple setup with no configuration needed

● Watchdog reactivates the abnormalPD by resuming POE power

200 W Power budget & 30 W Maximum One Port Supports a total PoE power of 200 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

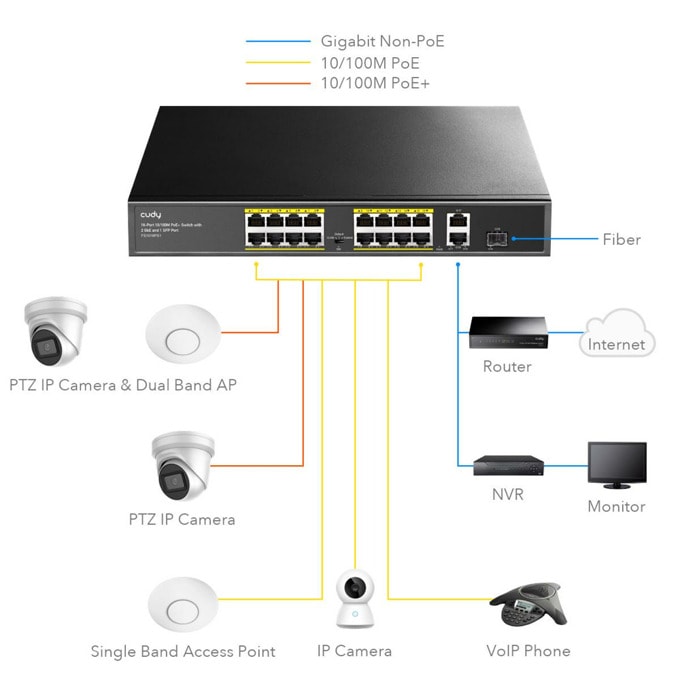

Surveillance Works with IP Cameras for home and office, small business

VoIP Conference Call Works with VoIP phones for business conference

Wi-Fi Coverage Works with WiFi APs for office and business

Specifications:

Mode FS1018PS1

Power Power Supply Built-in power supply

Voltage Range AC100~240V

Consumption 190W for 16 PoE

Ethernet Speed 1~16 Port: 10/100/Mbps

G17~G18 Port:10/100/1000Mbps

G19 Port: SFP 1.25bps

Transmission Distance 100Meter(328ft)for RJ-45

The distance is determined by the optical module
