Смарт контролер Ubiquiti mPort-S

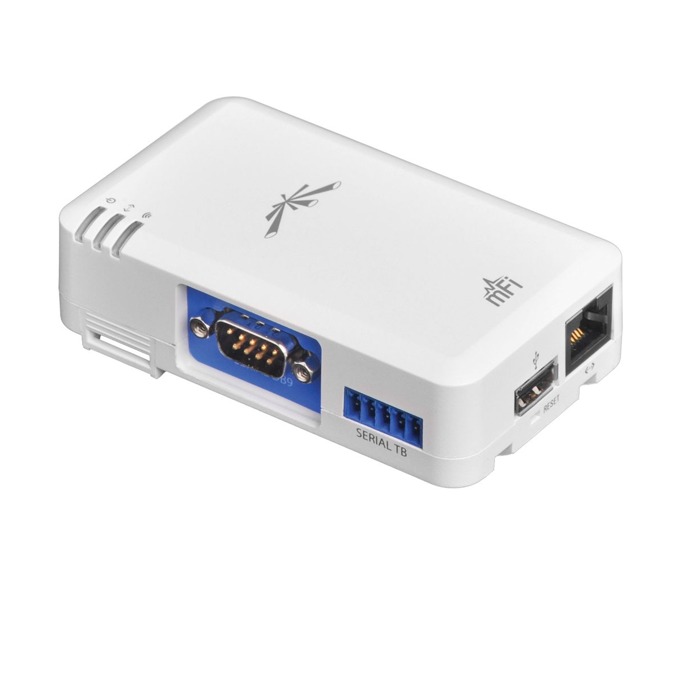

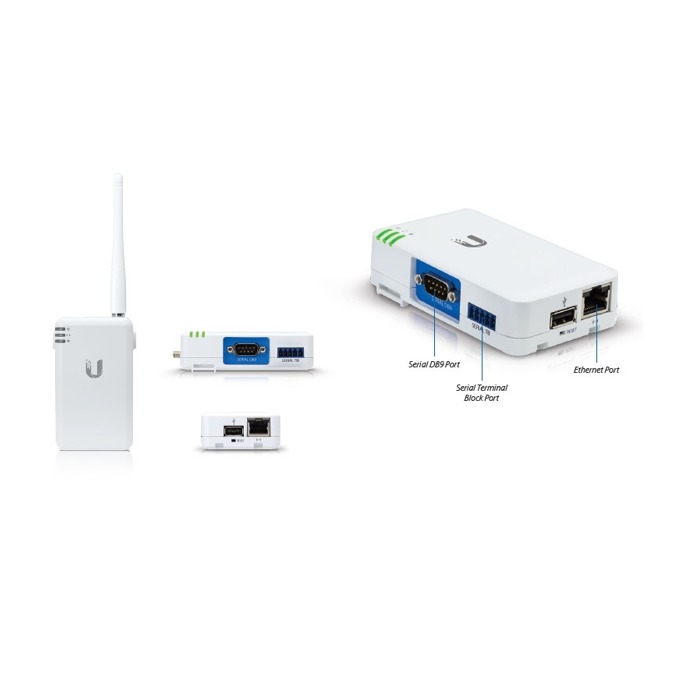

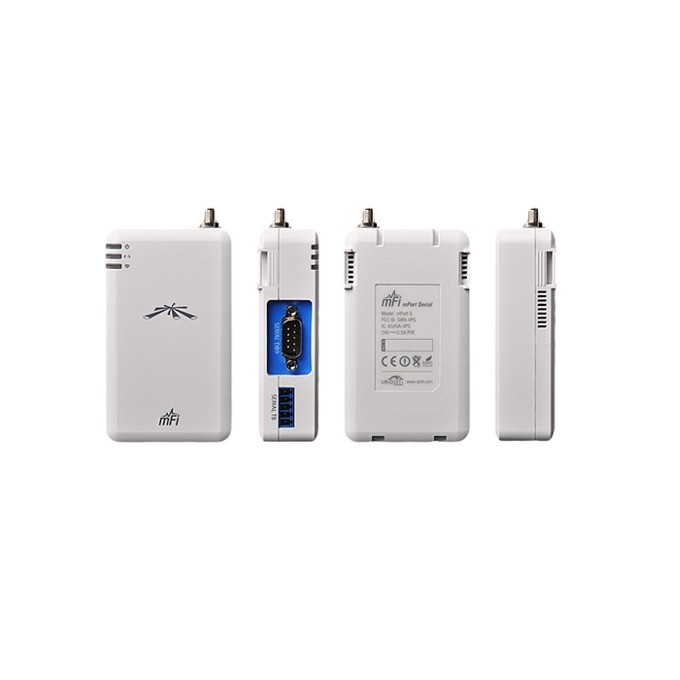

Ubiquiti mPort Serial
mPort-S
mPort™ е мрежови контролер, посредством който се наблюдават и управляват множество mFi® устройства.
Easy Bridging to IP Network
The mPort™ instantly bridges any serial connection, sensor or other device to your Ethernet or Wi-Fi network.
mFi® Sensors
Ubiquiti offers a wide selection of sensors including motion, temperature, current and door/window sensors. Connect sensors to the mPort™ to create an intelligent mFi® network for machine management and smart building automation.
Advanced Management Software
Make buildings smarter and more efficient using the intuitive UI and powerful features of the mFi® Controller software.
mPort-S
Dimensions (without Bracket)
(with Bracket)
100 x 60 x 27.5 mm (3.94 x 2.36 x 1.08")
100 x 60 x 36.5 mm ( 3.94 x 2.36 x 1.44")
Weight (with Bracket)
119 g (4.2 oz)
Power Supply
24V, 0.5A Surge Protection
Integrated PoE Adapter (Included)
Max. Power Consumption
Характеристики
| 3W | Networking Interface |
| 1) 10/100 Ethernet Port | Портове |
| 1) DB9 Serial Port | (1) Terminal Block Serial Port |
| Antenna | Internal and External, Antenna included |
| Output Power | 18 dBm |
| Wi-Fi Standards | 802.11b/g/n |
| Serial Protocols | RS232, RS422, RS485 |
| Памет | 16 MB RAM, 8 MB Flash |
| LEDs | 3 LEDs (Power, Ethernet, Status) |
| Монтаж | Wall-Mount Bracket (Included) |
| Работна температура | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 80% Noncondensing |
