TP-Link

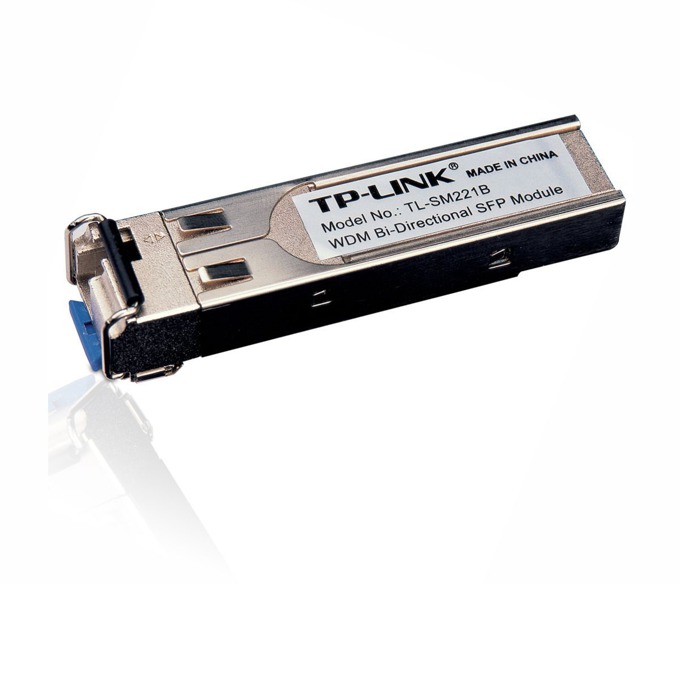

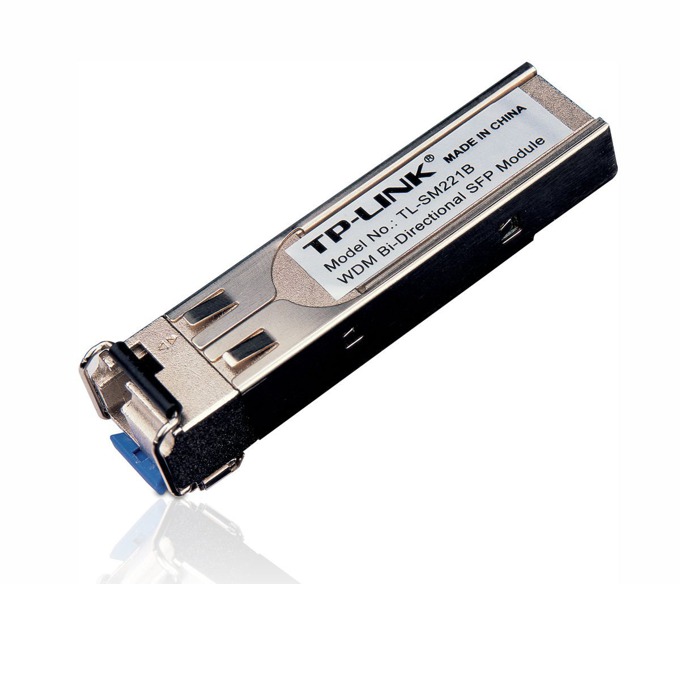

SFP модул TP-Link TL-SM221B
Артикул №: 1000113607
Категория:
Мрежови адаптери
33,99 €
✓ Налично във външен склад
TP-LINK TL-SM221B
TP-LINK´s TL-SM221B adopts the latest standard 100Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 15Km with TP-LINK´s Switches or other equivalent devices to provide high speed and stability.
Standards and Protocols IEEE 802.3ah 100Base-BX, CSMA/CD, TCP/IP
Характеристики
| Wave Length TX | 1310nm / RX: 1550nm |
| Захранване | 3.3V |
| Safety & Emission FCC, CE | Да |
| Cabel Single-mode Fiber | Да |
| Fiber Type | 9/125 um Single-mode |
| Max. Cable Length | 9.3 mile (15km) |
| Data Rate | 155Mbps |
| Port Type LC | Да |
| Environment Operating Temperature | 0℃~70℃ (32℉~158℉) |
| Температура на съхранение | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| TX | 1310nm / RX: 1550nm |
| Internal +3.3V Power Supply | Да |
| In pairs with TL-SM221A | Да |
| Plug-and-Play | Да |
| Suitable | TL-SG2216WEB / TL-SG2224WEB and the other equivalent devices |
