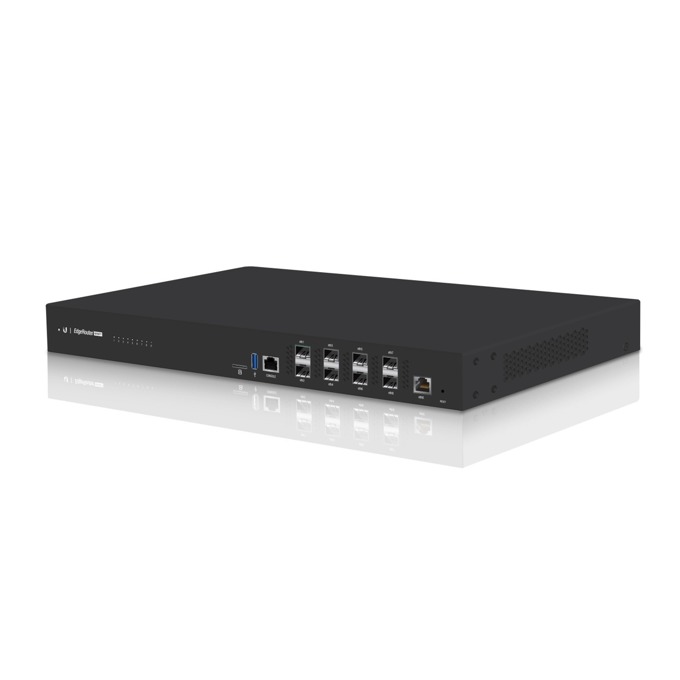

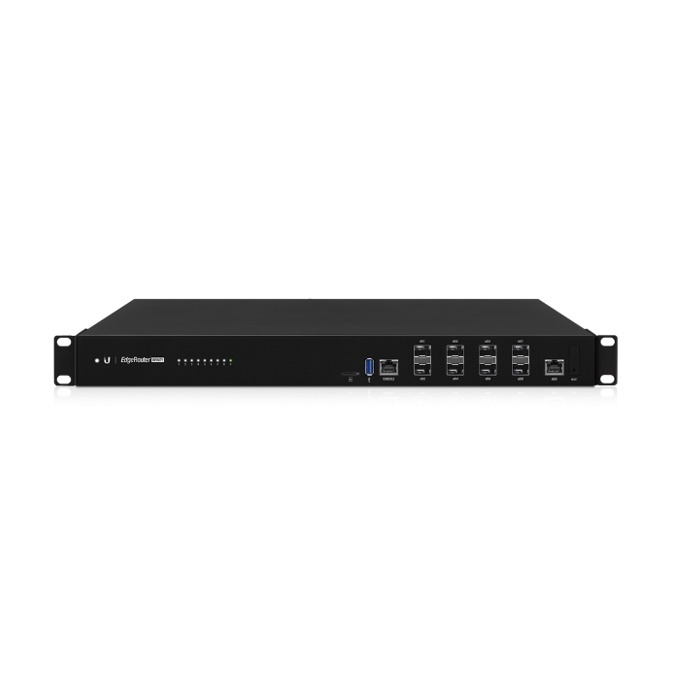

Рутер Ubiquiti ER-8-XG

Console:

RJ45 serial console port for Command

Line Interface (CLI) management. Use an

RJ45-to-DB9, serial console cable, also

known as a rollover cable, to connect the

port to your computer. (If your

computer does not have a DB9 port, then

you will also need a DB9 adapter.) Then

configure the following settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

SFP+(eth1-eth8):

Hot-swappable SFP+ ports support

10 Gbps connections.

RJ45(eth0):

RJ45 port supports 10/100/1000 Ethernet connections.

microSD:

Reserved for future use.

USB:

Reserved for future use.
