TP-Link
Рутер TP-Link Omada ER605 (TL-R605)
Артикул №: 1000138611
Категория:
Мрежови адаптери
69,99 €
✓ Налично в централен склад

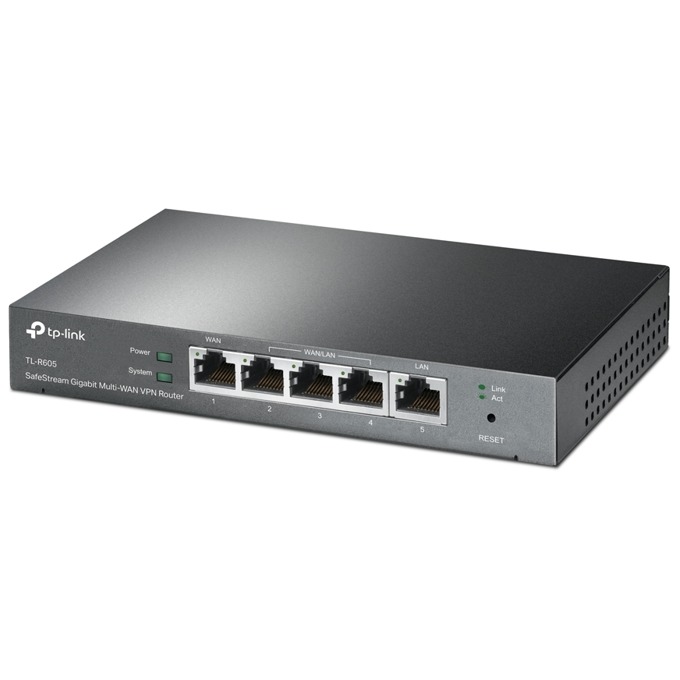

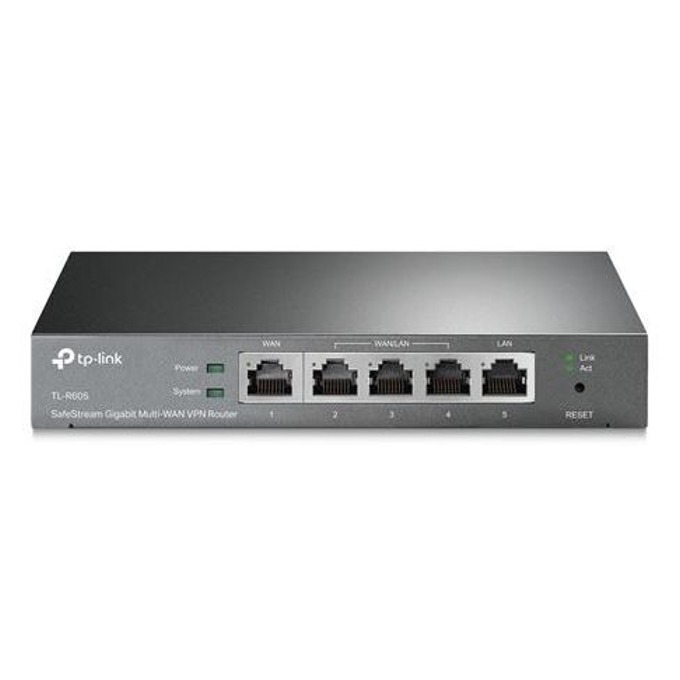

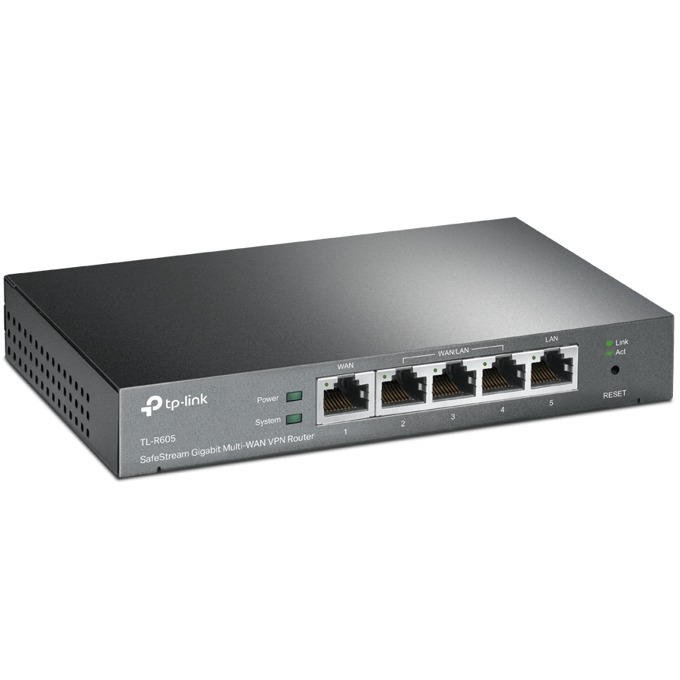

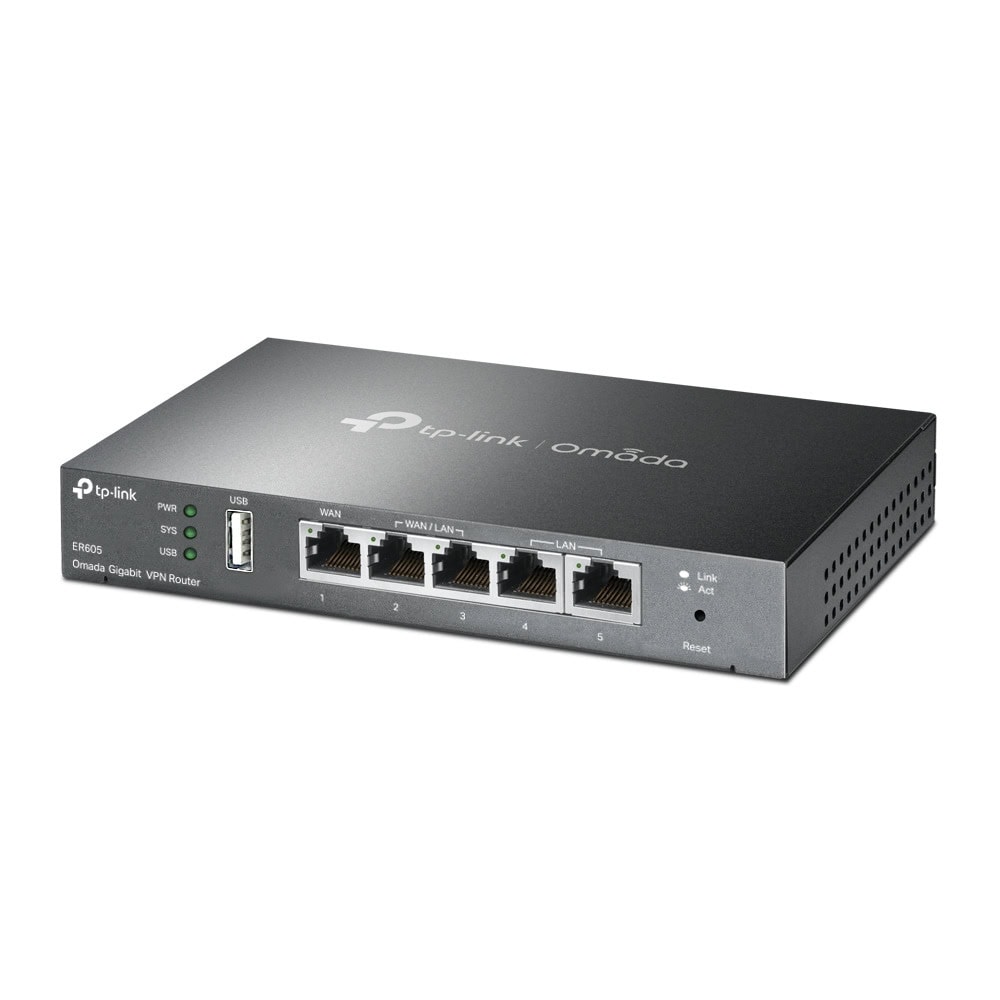

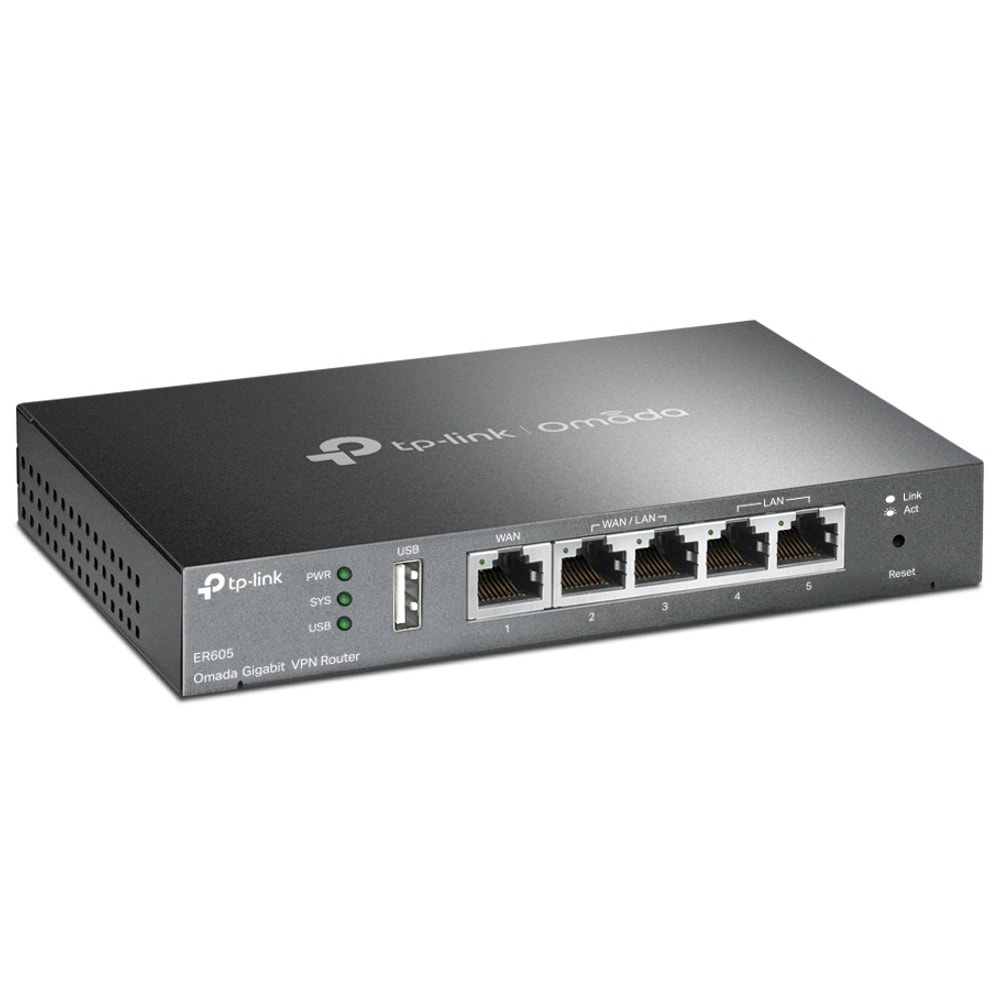

TL-ER605
SafeStream Gigabit Multi-WAN VPN Router
Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.

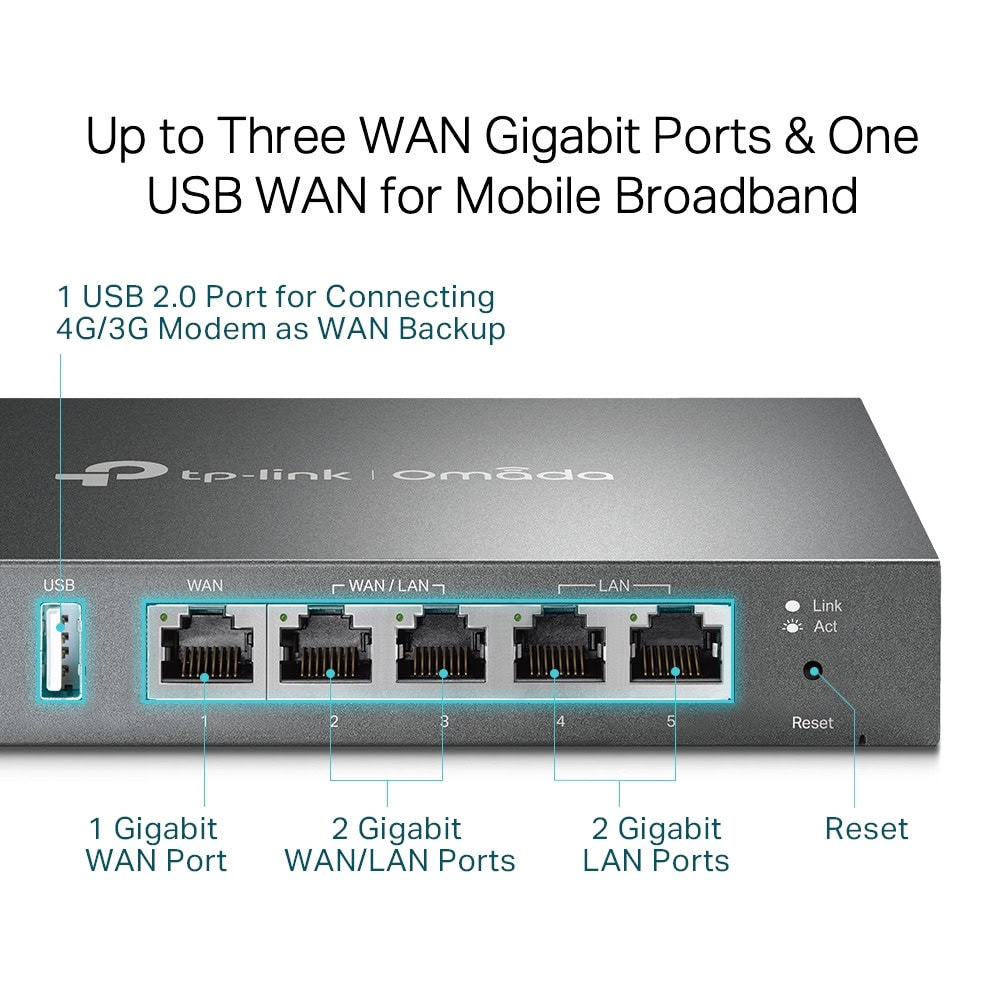

Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡

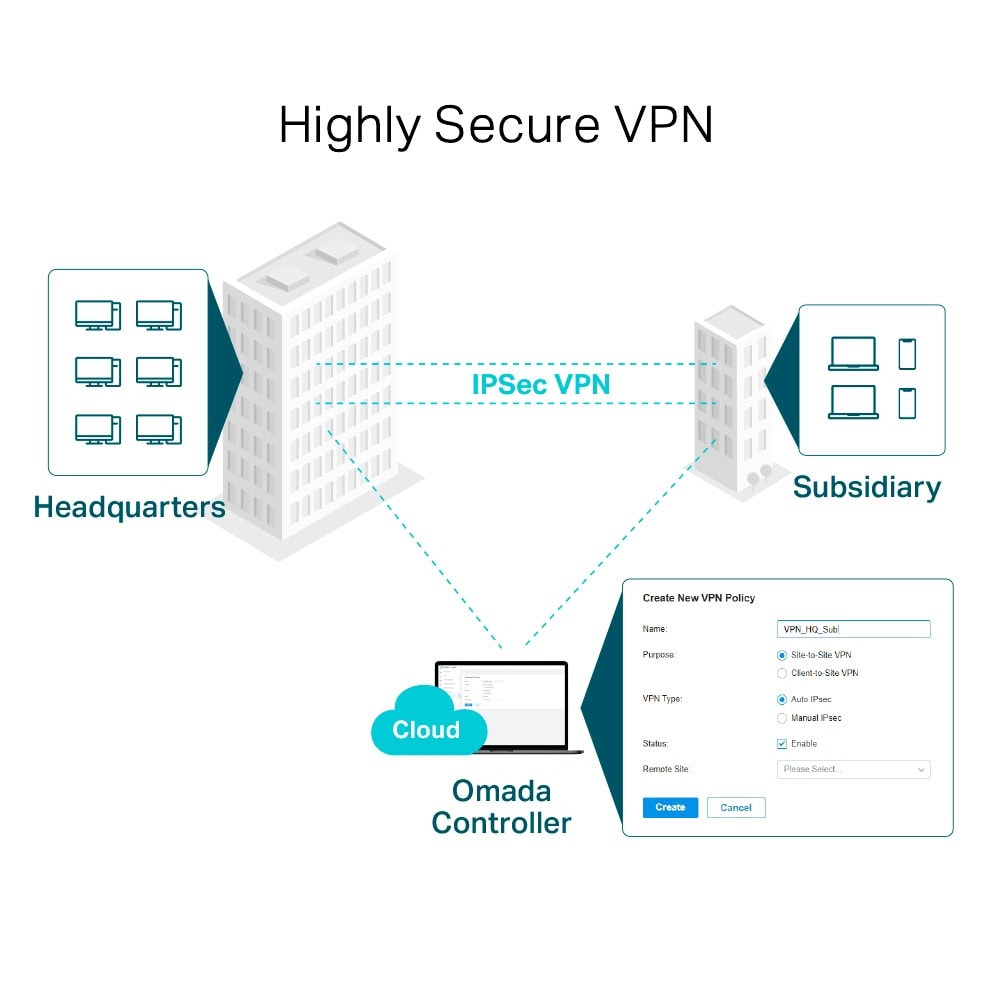

Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Характеристики
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • WEB Group Filtering§ · • URL Filtering · • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ · • ARP Scanning§ · • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense · • Block TCP Scan (Stealth FIN/Xmas/Null) · • Block Ping from WAN |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q · • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |
| Интерфейс | • 1 Gigabit WAN port · • 2 Gigabit LAN/WAN ports · • 2 Gigabit LAN ports · • 1 USB2.0(supports USB LTE dongle‡) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |

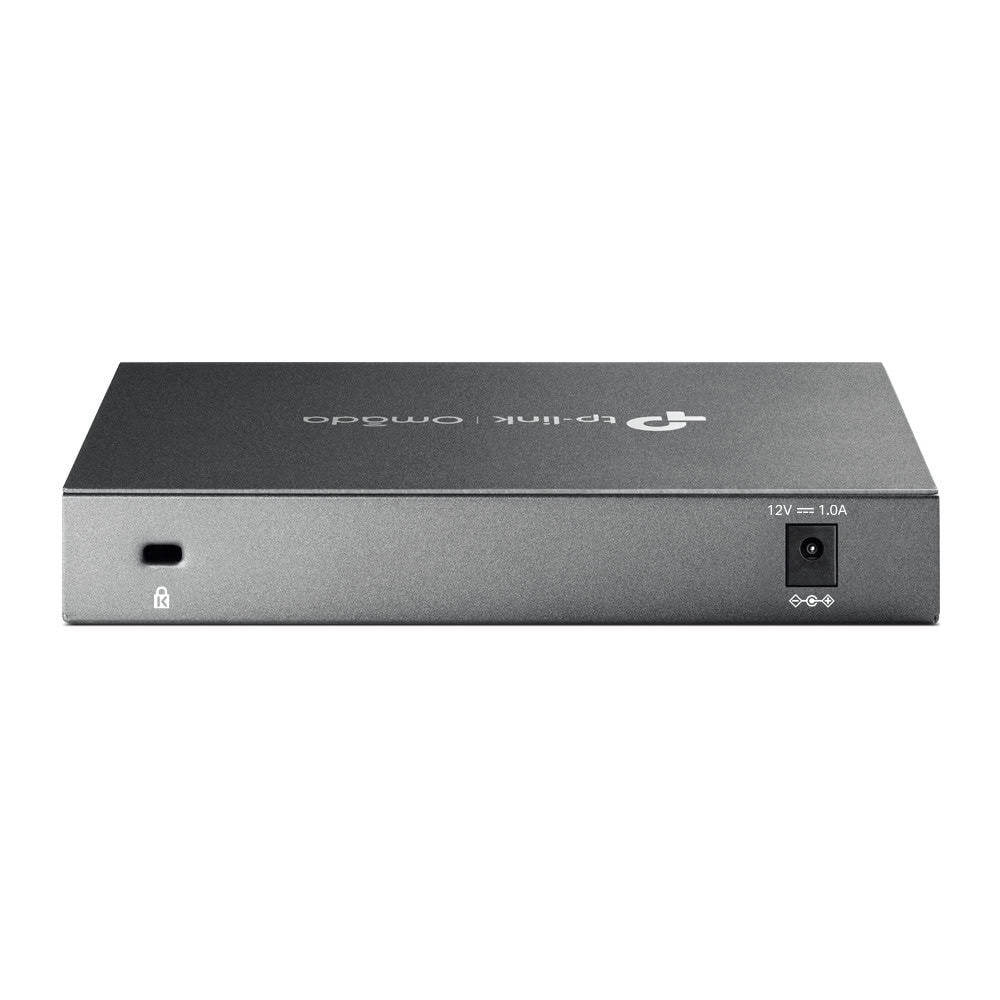

| Захранване | External 12V/1A DC Adapter |
| PoE Budget | - |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
| Защита | 4 kV surge protection |
| Enclosure | Steel |
| Монтаж | Desktop/Wall-mount |
| Max Power Consumption | 7.94 W |
| DPI Throughput | TCP: 905 Mbps; · UDP: 788 Mbps |
| WireGuard VPN Throughput | • 123.4 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 2,600 |
| NAT (Static IP) | • Upload: 945.77 Mbps · • Download: 938.79 Mbps · • Bi-Directional: 1808.29 Mbps |
| NAT(DHCP) | • Upload: 945.54 Mbps · • Download: 945.66 Mbps · • Bi-Directional: 1802.77 Mbps |
| NAT(PPPoE) | • Upload: 939.71Mbps · • Download: 939.43 Mbps · • Bi-Directional: 1788.54 Mbps |
| NAT (L2TP) | • Upload: 815.55 Mbps · • Download: 835.59 Mbps · • Bi-Directional: 903.13 Mbps |
| NAT (PPTP) | • Upload: 813.23 Mbps · • Download: 850.91 Mbps · • Bi-Directional: 894.41 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 259.78 Mbps · • ESP-SHA256-AES256: 260.81 Mbps · • ESP-SHA384-AES256: 37.65 Mbps · • ESP-SHA512-AES256: 38.32 Mbps |
| OpenVPN | • 21.70 Mbps |
| L2TP VPN Throughput | • Unencrypted: 640.99 Mbps · • Encrypted: 77.31 Mbps |
| PPTP VPN Throughput | • Unencrypted: 759.55 Mbps · • Encrypted: 75.80 Mbps |
| SSL VPN Throughput | - |
| 66 Byte Packet forwarding rate | • Upload/Download: 954.50 Mbps · • Bi-Directional: 1130.00 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload/Download: 997.50 Mbps · • Bi-Directional: 1965.00 Mbps |
| WAN Connection Type | • Static · • Dynamic IP · • PPPoE(supports MRU Configuration) · • PPTP · • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server · • DHCPv6 PD Server (only in Standalone Mode) · • DHCP Options Customization · • DHCP Address Reservation · • Multi-IP Interfaces · • Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Routing | • Static Routing · • Policy Routing · • RIP§ · • OSPF§ |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance · • Application Optimized Routing · • Link Backup (Timing, Failover) · • Online Detection |
| NAT | • One-to-One NAT · • Multi-Net NAT · • Port Forwarding · • Port Triggering§ · • NAT-DMZ · • FTP/H.323/SIP/IPSec/PPTP ALG · • UPnP |
| Session Limit | IP-based Session Limit |
| IPsec VPN | • 20 IPSec VPN Tunnels · • LAN-to-LAN, Client-to-LAN · • Main, Aggressive Negotiation Mode · • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm · • IPsec Failover · • IKE v1/v2 · • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm · • NAT Traversal (NAT-T) · • Dead Peer Detection (DPD) · • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server · • PPTP VPN Client (10) ** · • 16 Tunnels · • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server · • L2TP VPN Client (10) ** · • 16 Tunnels · • L2TP over IPSec |
| OpenVPN | • OpenVPN Server · • OpenVPN Client (10)§ · • 16 OpenVPN Tunnels · • "Certificate + Account" Mode · • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| Web Authentication | • No Authentication · • Simple Password* · • Hotspot（Local User / Voucher*/ SMS*/ Radius*） · • External Radius Sever · • External Portal Sever* · • LDAP§ · |
| Omada App | Да. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller (OC300) · • Omada Hardware Controller (OC200) · • Omada Software Controller · |
| Cloud Access | Да. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface · • Remote Management · • Export & Import Configuration · • SNMP v1/v2c/v3 · • Diagnostics (Ping & Traceroute)§ · • NTP Synchronize§ · • Port Mirroring · • CLI (only in Standalone Mode) · • Syslog Support |
| Zero-Touch Provisioning | Да. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule · • Captive Portal Configuration |
| Сертификация | CE, FCC, RoHS |
| Съдържание на пакета | • ER605 · • Power Adapter · • RJ-45 Ethernet Cable · • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) · • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) · • Operating Humidity: 10% to 90% non-condensing · • Storage Humidity: 5% to 90% non-condensing |
