Рутер MikroTik RB450Gx4

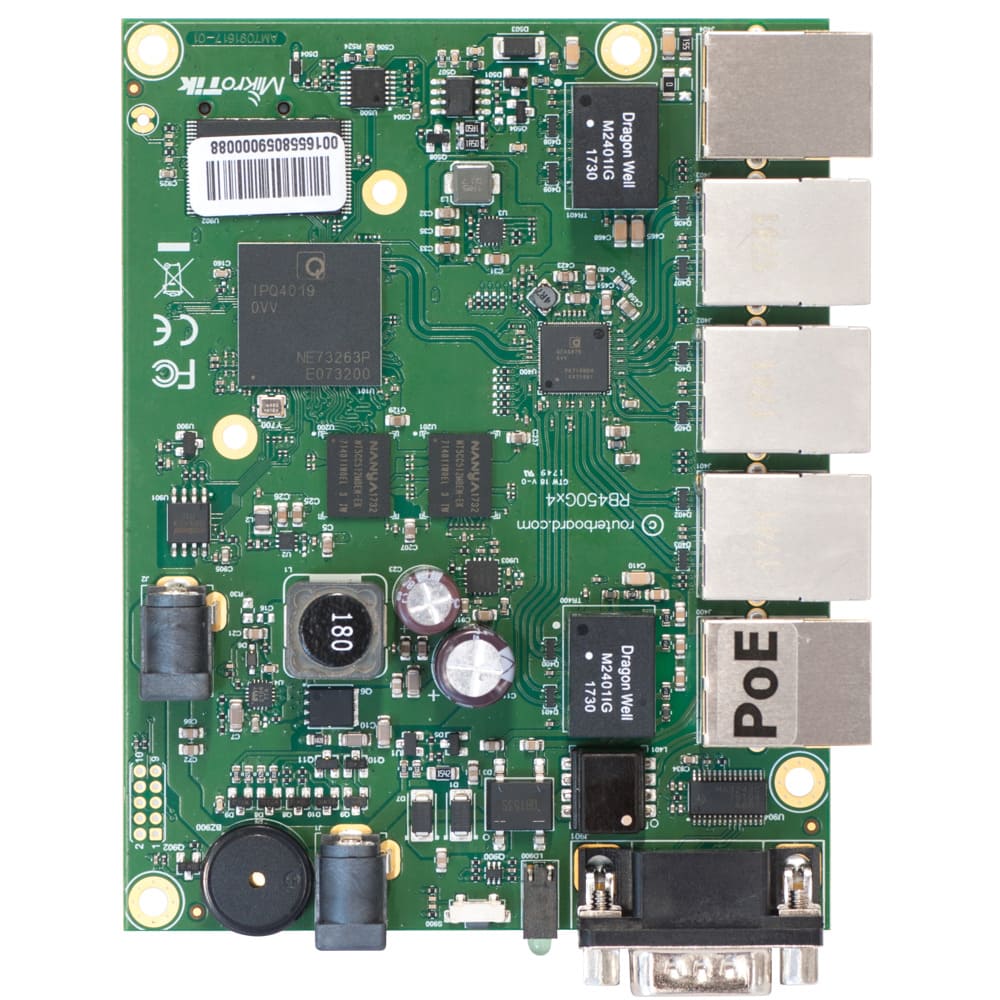

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.
It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.
The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Характеристики
| Details | ArchitectureARM 32bit CPUIPQ-4019 CPU core count4 CPU nominal frequency716 MHz Switch chip modelIPQ-4019 Dimensions90 x 116 mm RouterOS license5 Operating SystemRouterOS Size of RAM1 GB Storage size512 MB Storage typeNAND MTBFApproximately 100'000 hours at 25C Tested ambient temperature-40°C to 70°C IPsec hardware accelerationYes |
Powering
| Details | Number of DC inputs3 (DC jack, PoE-IN) DC jack input Voltage10-57 V Max power consumption16 W Max power consumption without attachments4 W Cooling typePassive PoE in802.3af/at PoE in input Voltage12-57 V |
PoE-out
| Details | PoE-out portsEther5 PoE outPassive PoE Max out per port output (input 18-30 V)500 mA Max out per port output (input 30-57 V)500 mA Max total out (A)500 mA |
Ethernet
| Details | 10/100/1000 Ethernet ports5 |
Peripherals
| Details | Memory card typemicroSD Serial console portRS232 |
Other
| Details | PCB temperature monitorYes Voltage MonitorYes BeeperYes |
