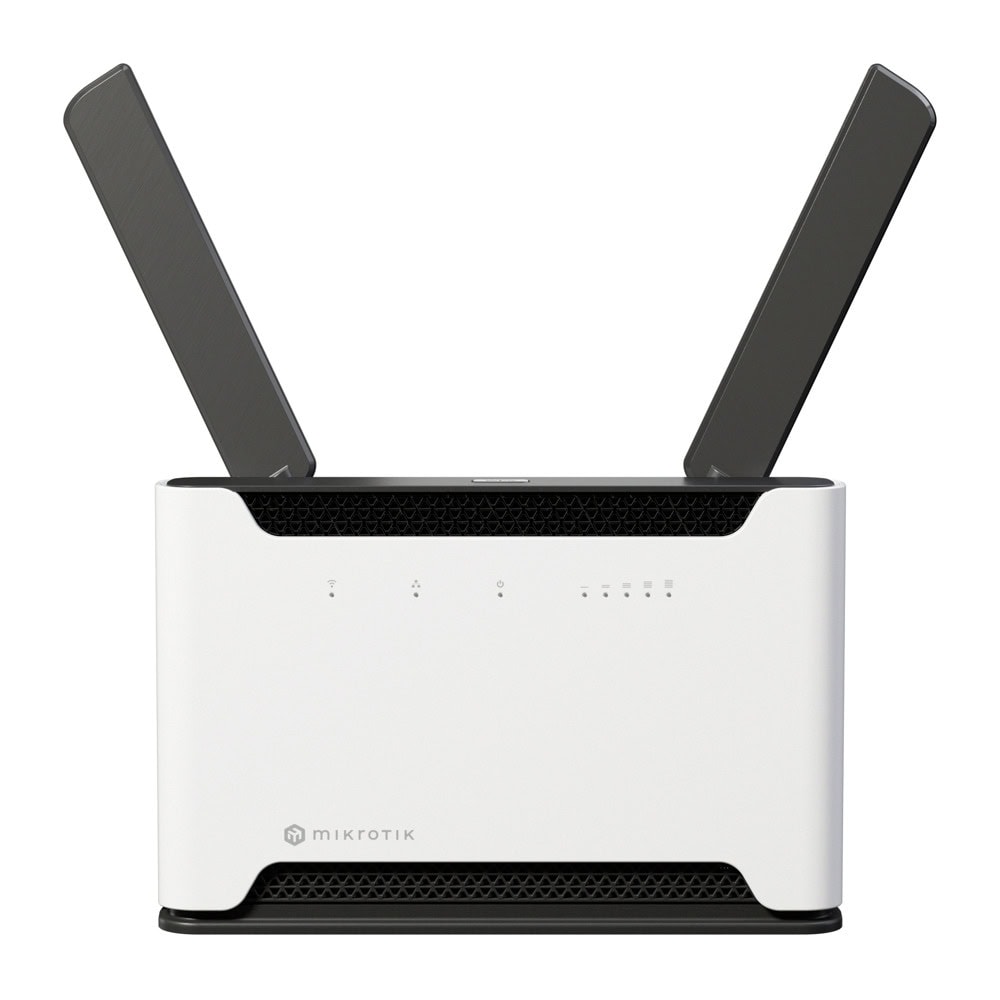

Рутер Mikrotik Chateau PRO ax
Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

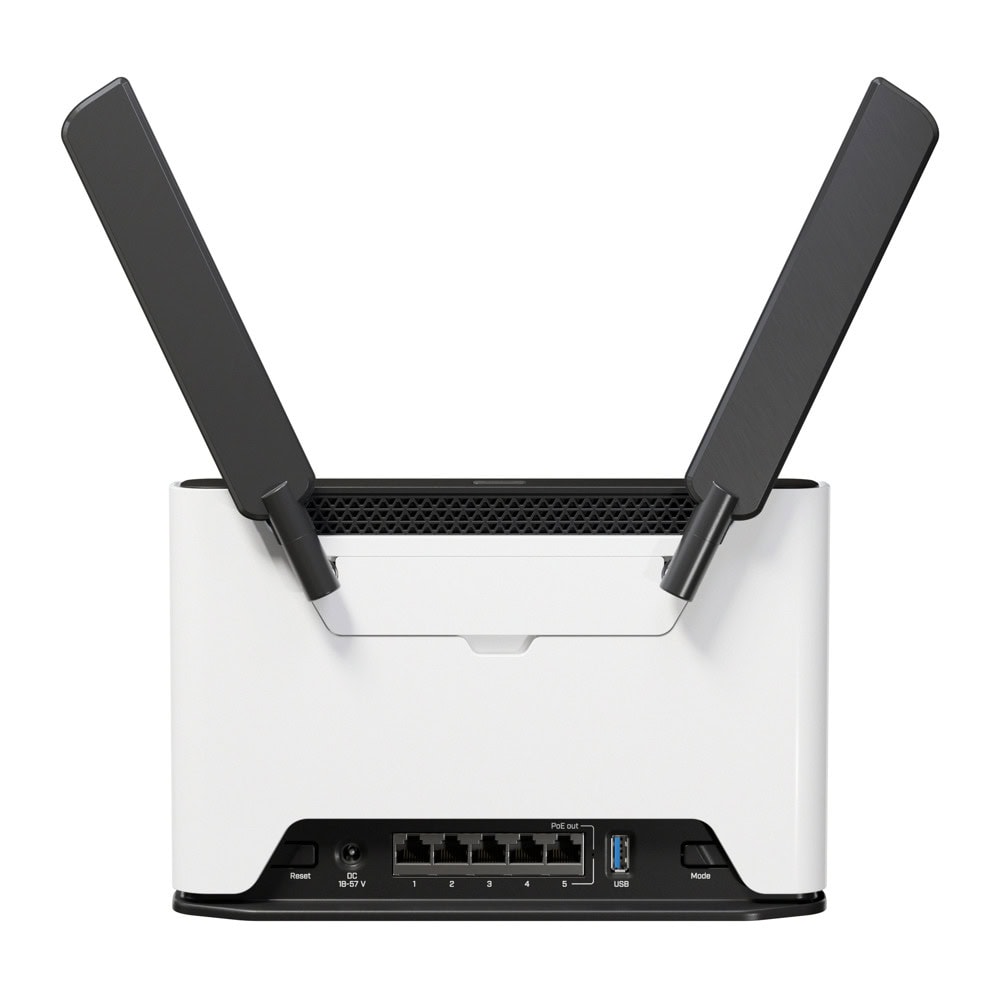

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!
Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.
Характеристики
| Details | ArchitectureARM 64bit CPUIPQ-8072A CPU core count4 CPU nominal frequency2208 MHz Switch chip modelIPQ-8072 RouterOS license6 Operating SystemRouterOS v7 Size of RAM1 GB Storage size128 MB Storage typeNAND MTBFApproximately 200'000 hours at 25C Tested ambient temperature-40°C to 70°C |
Wireless capabilities
| Details | Wireless 2.4 GHz Max data rate1148 Mbit/s Wireless 2.4 GHz number of chains4 Wireless 2.4 GHz standards802.11b/g/n/ax Antenna gain dBi for 2.4 GHz5 Wireless 2.4 GHz chip modelQCN-5024 Wireless 2.4 GHz generationWi-Fi 6 Wireless 5 GHz Max data rate2400 Mbit/s Wireless 5 GHz number of chains4 Wireless 5 GHz standards802.11a/n/ac/ax Antenna gain dBi for 5 GHz6 Wireless 5 GHz chip modelQCN-5054 Wireless 5 GHz generationWi-Fi 6 WiFi speedAX3600 |
Ethernet
| Details | 10/100/1000 Ethernet ports5 Number of 1G Ethernet ports with PoE-out1 |
Peripherals
| Details | Number of USB ports1 USB Power ResetYes USB slot typeUSB 3.0 type A Max USB current (A)1.5 |
Powering
| Details | Number of DC inputs1 (DC jack) DC jack input Voltage18-57 V Max power consumption55 W Max power consumption without attachments18 W Cooling typePassive |
PoE-out
| Details | PoE-out portsEther5 PoE outPassive PoE up to 57V Max out per port output (input 18-30 V)600 mA Max out per port output (input 30-57 V)500 mA Max total out (A)0.600 A Total output current0.600 Total output power22.8 |
