Рутер Mercusys MR85X
Mercusys MR85X
AX3000 Dual-Band Wi-Fi 6 Router

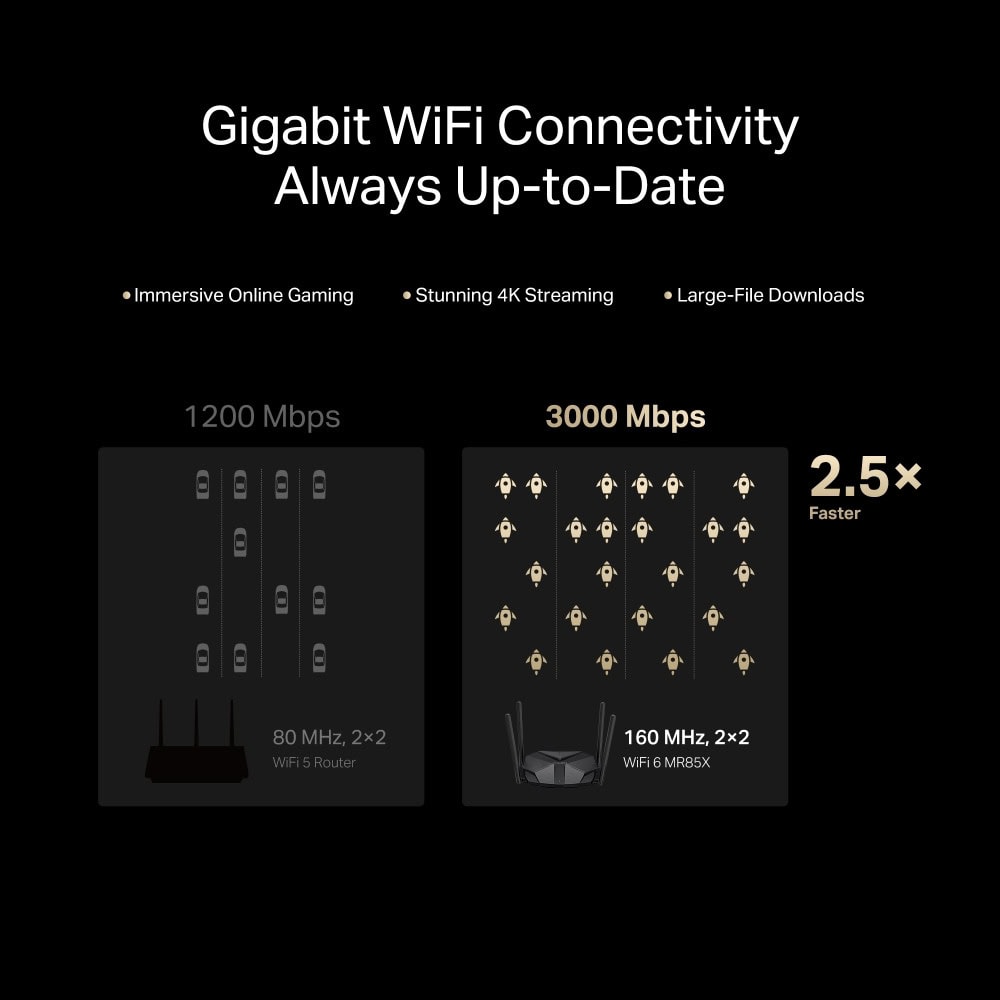

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

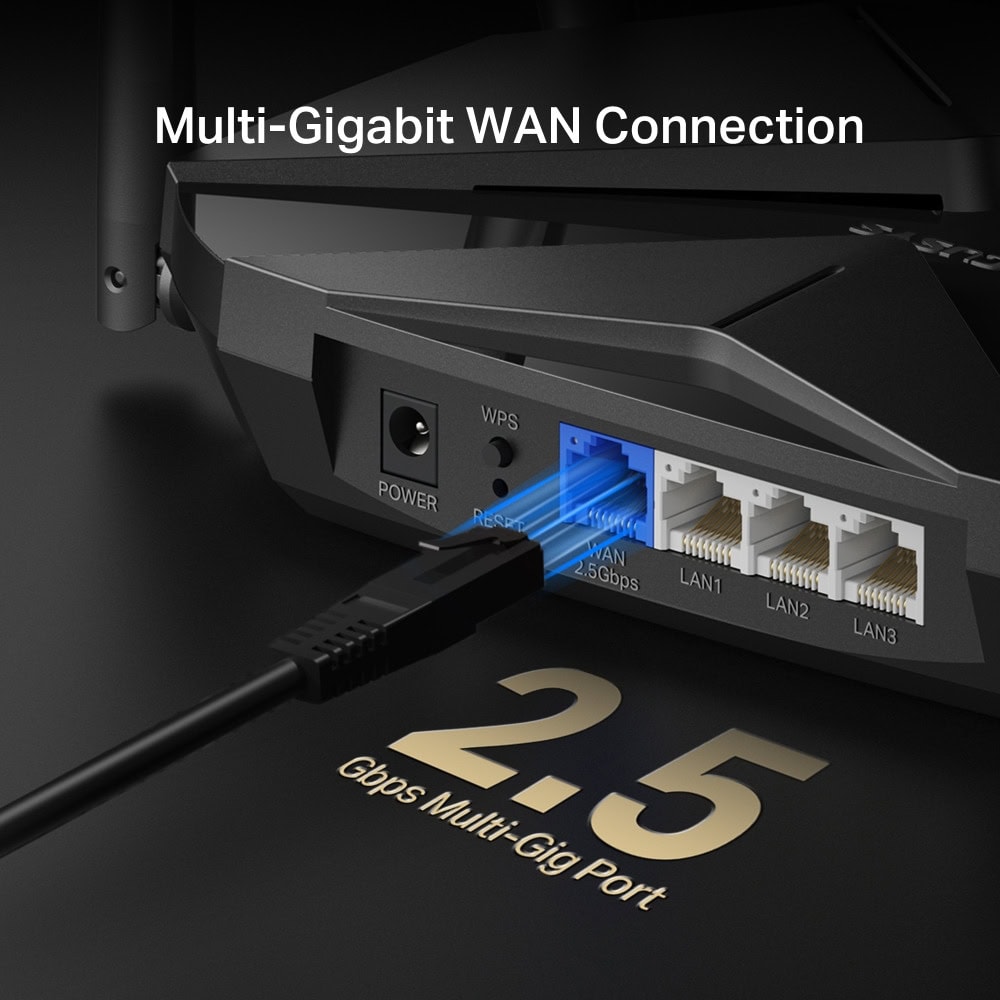

2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.

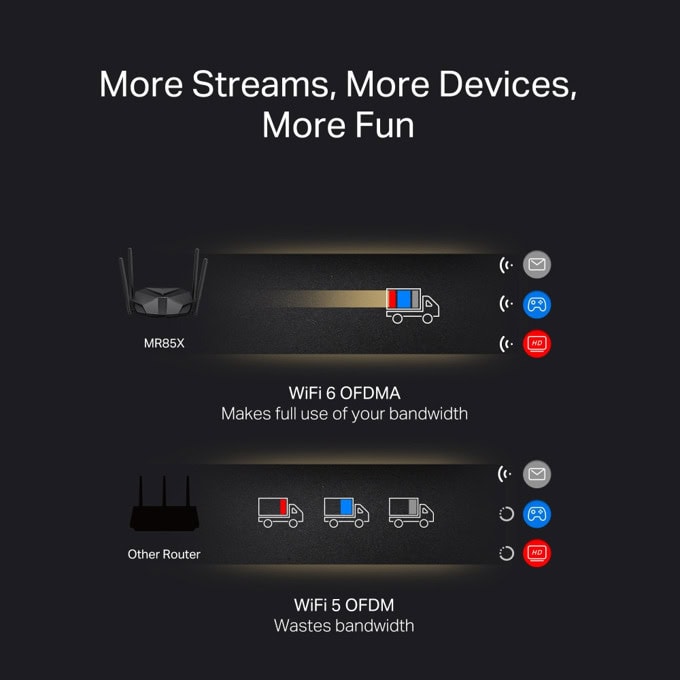

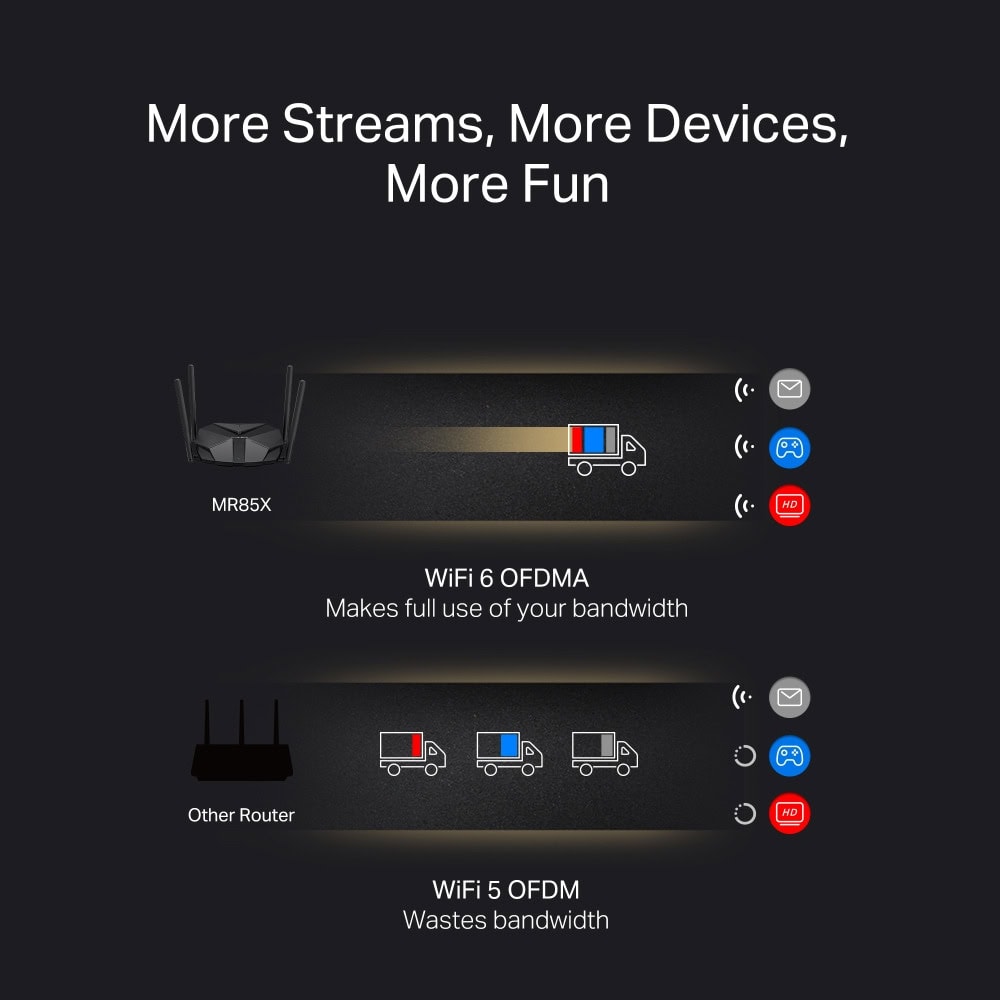

MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
SMART CONNECT – Intelligently chooses the best available band for each device
Here’s a fully merged, standard-format table containing all the specs you provided, organized neatly for easy reference:
Характеристики
| Wi-Fi (2.4 GHz)574 Mbps | Да |
| Wi-Fi (5 GHz)2402 Mbps | Да |
| Wireless Standards802.11ax/ac/a/b/g/n | Да |
| Max Channel Width160 MHz | Да |
| Reception Sensitivity (5 GHz)11a 6Mbps | -95 dBm11a 54Mbps: -76.5 dBm11n HT20 MCS7: -76 dBm11n HT40 MCS7: -73 dBm11ac VHT20 MCS8: -71.5 dBm11ac VHT40 MCS9: -67 dBm11ac VHT80 MCS9: -63.5 dBm11ax HE20 MCS11: -64.5 dBm11ax HE40 MCS11: -63 dBm11ax HE80 MCS11: -58.5 dBm11ax HE160 MCS11: -56 dBm |
| Reception Sensitivity (2.4 GHz)11g 6Mbps | -97 dBm11g 54Mbps: -79 dBm11n HT20 MCS7: -78 dBm11n HT40 MCS7: -75 dBm11ax HE20 MCS11: -66.5 dBm11ax HE40 MCS11: -65.5 dBm |
| Max Wi-Fi Modulation1024 QAM | Да |
| Wireless SecurityWPA/WPA2/WPA3 | Да |
| Dimensions209 × | 171.7 × 42.4 mm (8.2 × 6.8 × 1.7 in) |

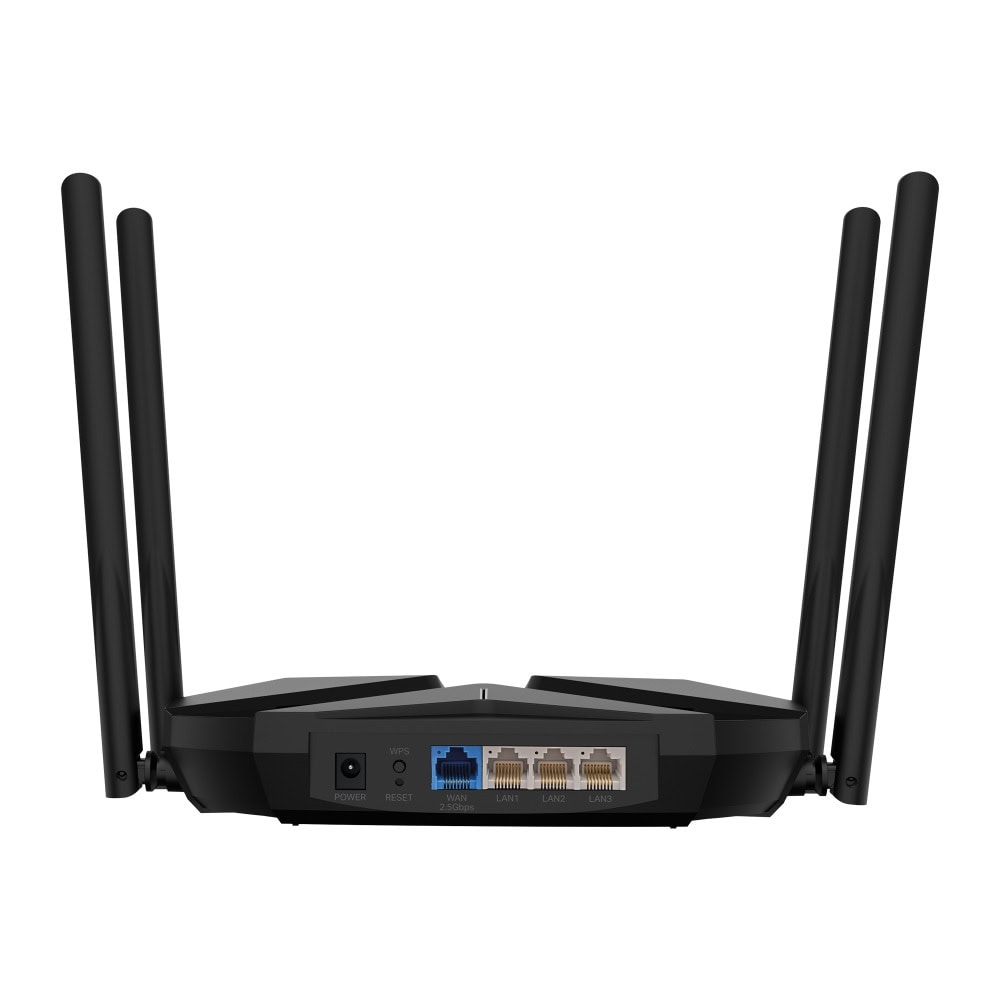

| Interfaces1× | 2.5G WAN, 3× GE LAN |
| Button1× WPS Button, | 1× Reset Button |
| InstallationDesktop, Wall-mount | Да |
| LED1× SYS | Да |
| Retail Package Dimension359 × | 274 × 60 mm |
| Units per Carton10 | Да |
| Carton Dimension560 × | 370 × 310 mm |
| IPTVIGMP Proxy, IGMP Snooping, Bridge, Tag VLAN | Да |
| PowerInput | 100~240V, 50/60HzOutput: 12V/1.5A |
| Operation ModeRouter/AP mode | Да |
| WAN ModeDynamic IP, Static IP, PPPoE, PPTP, L2TP | Да |
| NAT ForwardingPort Forwarding, Port Triggering, DMZ, UPnP | Да |
| ProtocolsIPv4, IPv6 | Да |
| Guest Network2.4G Guest Network, | 5G Guest Network |
| DHCPAddress Reservation, DHCP Client List, Server | Да |
| DDNSMERCUSYS, NO-IP, DynDNS | Да |
| VPN ServerOpenVPN, PPTP, L2TP/IPSec, WireGuard | Да |
| VPN ClientOpenVPN, PPTP, L2TP/IPSec, WireGuard | Да |
| EasymeshEasymesh Compatible | Да |
| QoSTime Settings, Priority Control | Да |
| SecuritySPI Firewall, Access Control, IP & MAC Binding | Да |
| Kill SwitchSupport | Да |
| ISP FeatureCWMP, ISP Preset (Agile Config), Superadmin | Да |
| DiagnosticsPing, Traceroute | Да |
| LED ManagementLED Control, Night Mode | Да |
| Device ManagementMERCUSYS APP, Webpage | Да |
| CloudMERCUSYS ID | Да |
| Advanced FeaturesOFDMA, MU-MIMO, BSS Color, Beamforming | Да |
| DHCP ServerIP address assignment (DHCP), Port | 67, Protocol: UDP |
| DNSDNS, Port | 53, Protocol: TCP & UDP |
| App ManagementManage and configure device through app, Port | 20001 TCP, Port: 20002 UDP |
