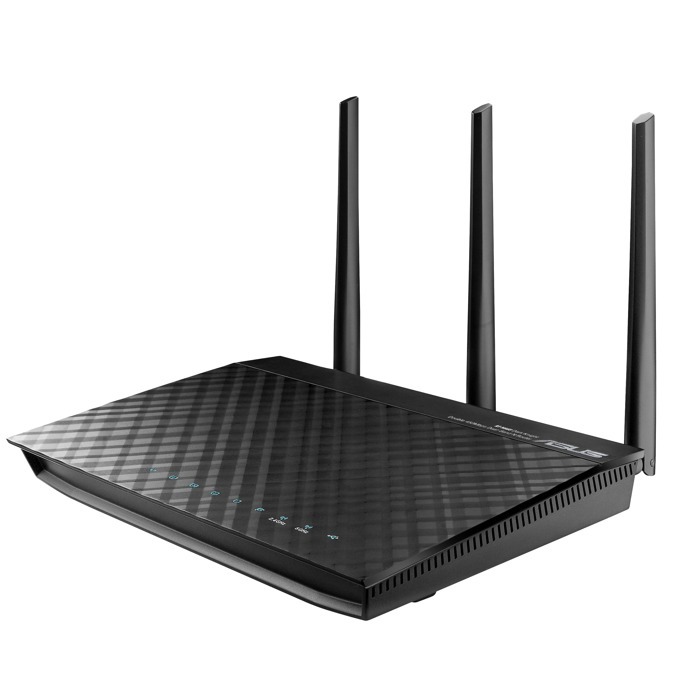

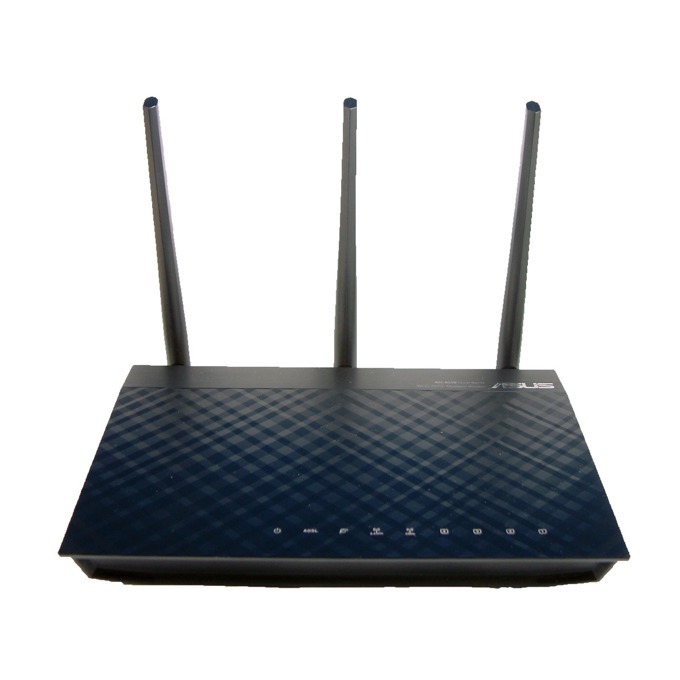

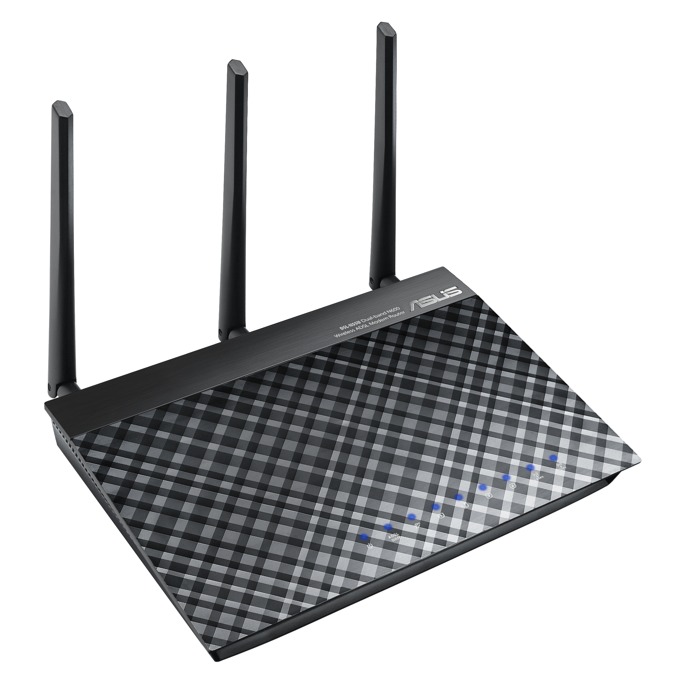

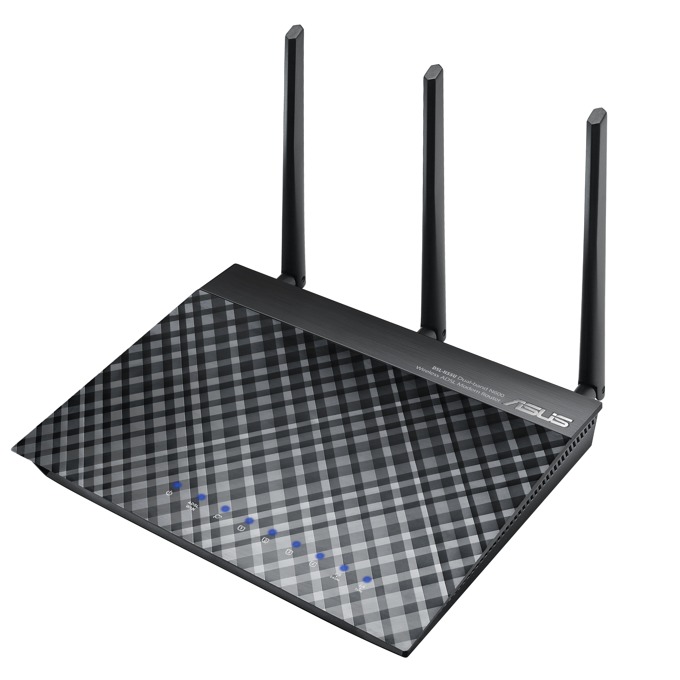

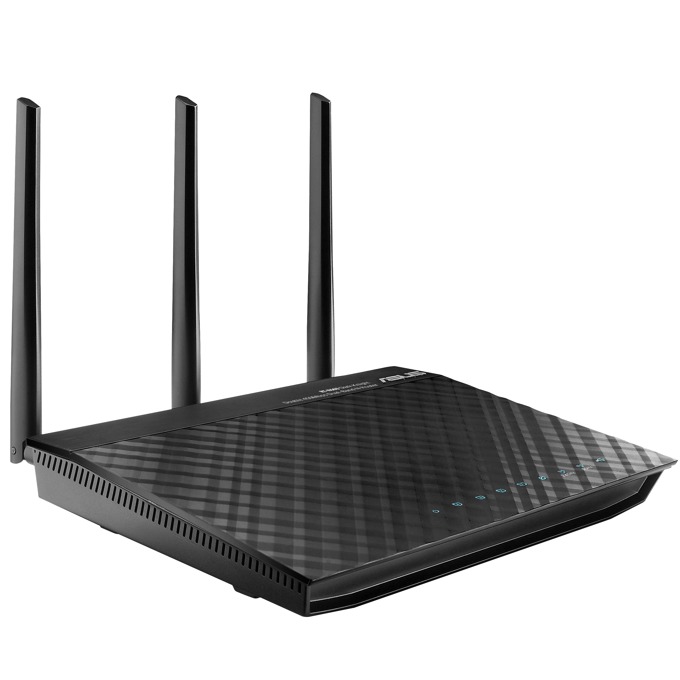

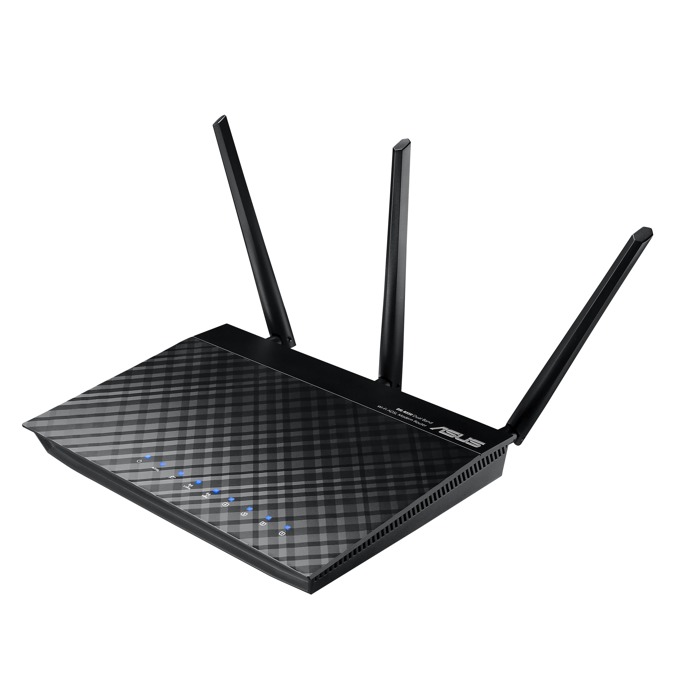

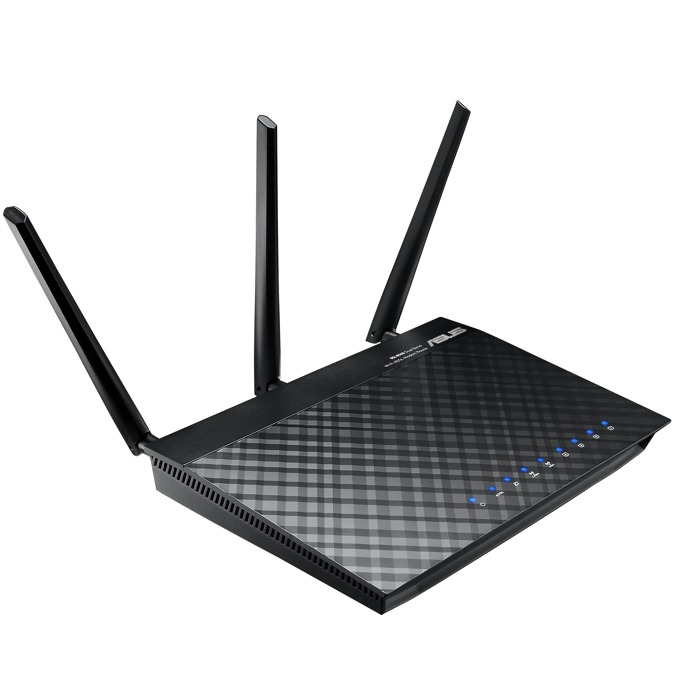

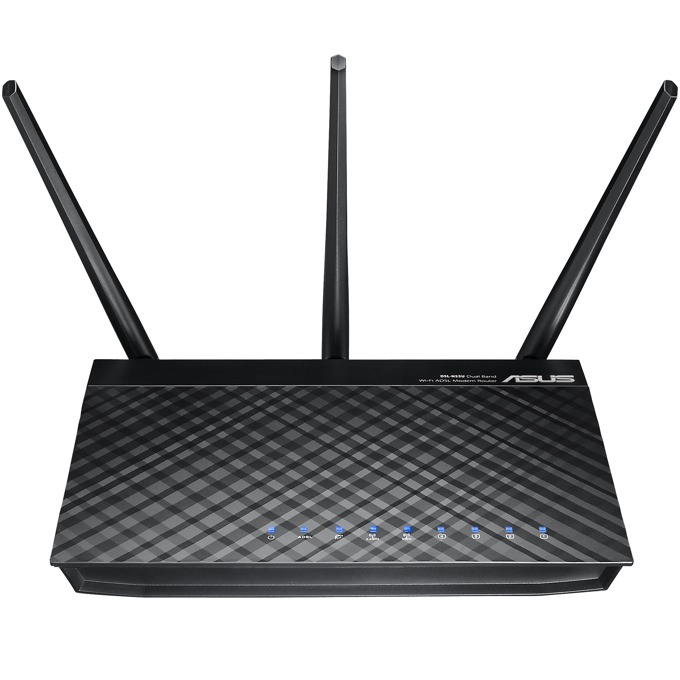

Рутер Asus DSL-N55U Annex A

Dual-Band Wireless-N600 Gigabit ADSL Modem Router

- Integrated home gateway with independent CPUs for modem and router

- Dual-band Wi-Fi delivers up to 600Mbps in bandwidth

- 4x Gigabit Ethernet ports provide enhanced wired network performance

- Auto-detecting ADSL connection with CD/manual-free setup

- Finest P2P experience via 300,000 concurrent data sessions

- 3G/4G sharing, file sharing, printer sharing, and iPad charging using multi-functional twin USB ports

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6

Product Segment

N600 advanced performance; 300+300Mbps

Wi-Fi Data Rate

802.11a : 6,9,12,18,24,36,48,54Mbps

802.11b : 1, 2, 5.5, 11Mbps

802.11g : 6,9,12,18,24,36,48,54Mbps

802.11n : up to 600Mbps

xDSL Data Rate

ANSI T1.413 Issue 2,

ITU-T G.992.1 Annex A (G.dmt),

ITU-T G.992.2 (G.lite),

ITU-T G.994.1 (G.hs),

ITU-T G.992.3 (G.dmt.bis),

ITU-T G.992.5 Annex A/M

ADSL 2/2+ 24Mbps downstream

Antenna

Detachable dBi dipole antenna x 3

LED Indicator

Power, ADSL, Internet, WLAN, LAN x 4

Button

WPS Button, Reset Button, Power Switch, Wireless on/off Switch

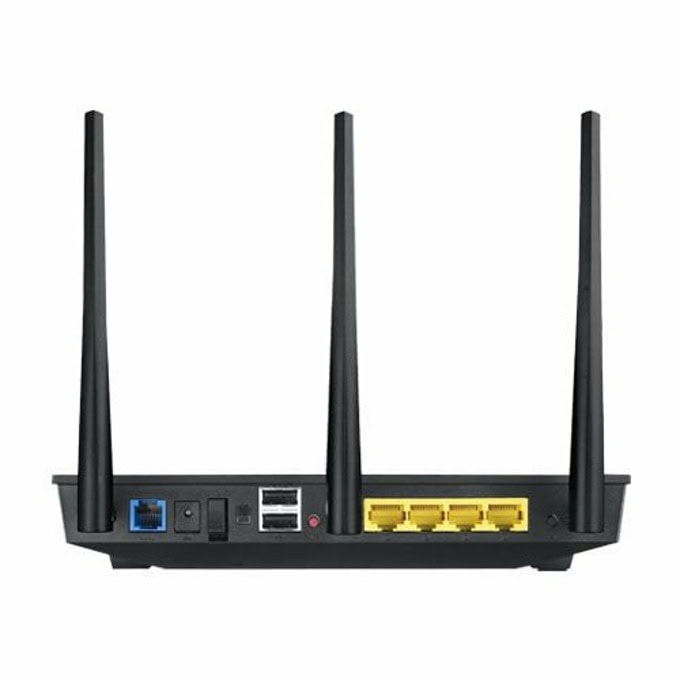

Ports

1 x RJ11 for ADSL

4 x RJ45 for 10/100/Gigabits BaseT for LAN

USB Ports

USB 2.0 x 2

USB Applications

Printer Server

FTP Server

3G/4G sharing

Operating Frequency

2.4GHz

5GHz

Operation Channel

13 Europe (ETSI)

Memory

8MB Flash/128MB DDR2 for Wi-Fi,

1MB Flash/2MB SDRAM for ADSL

Receive Sensitivity

-95dBm@1Mbps

-89dBm@11Mbps

-75dBm@54Mbps

-72dBm@72.2Mbps

-68dBm@150Mbps

Output Power

b mode : 17 ~19 dBm

g mode : 15 ~17 dBm

n mode : 15 ~17 dBm
