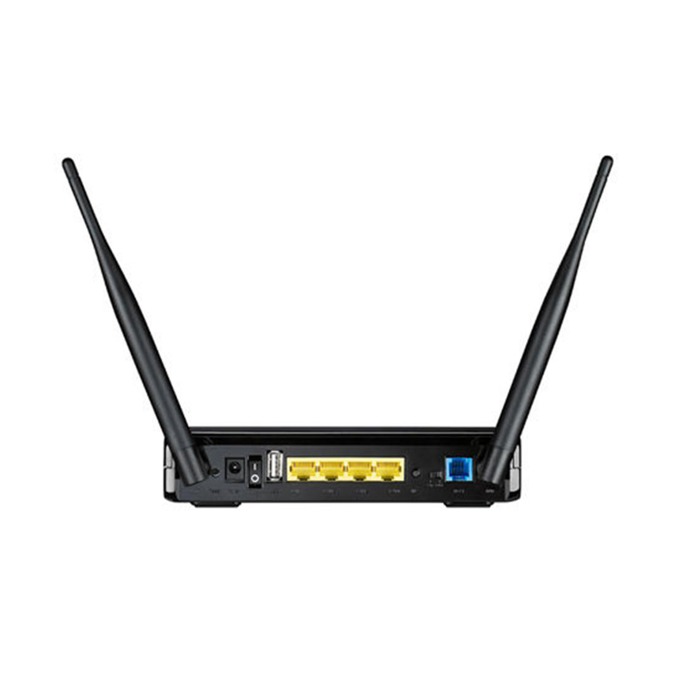

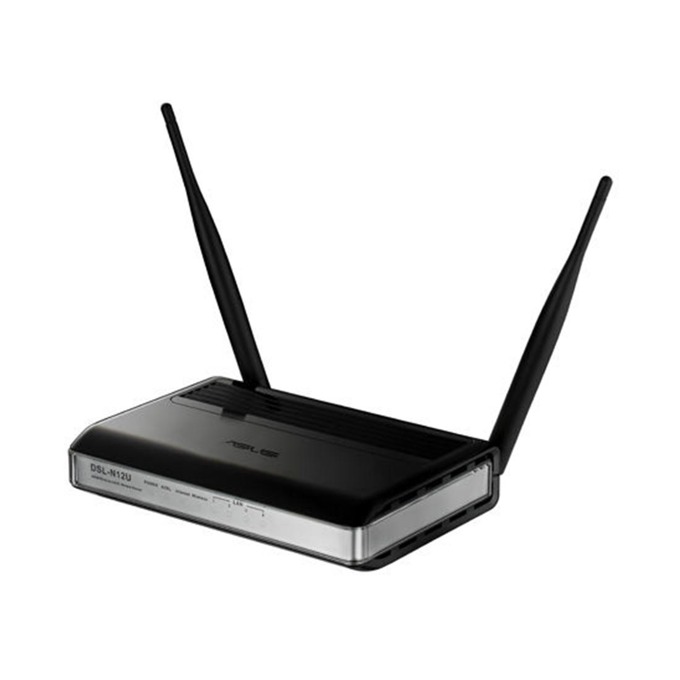

Рутер Asus DSL-N12U

Wireless-N300 ADSL Modem Router

- Device including modem & router functions

- Easy All-in-One Printer Sharing

- 3 steps configuring your ADSL ISP settings

- 4 Multiple SSIDs

- 5 dBi powerful antennas

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4

Product Segment

N300 complete networking; 300Mbps

Wi-Fi Data Rate

802.11b : 1, 2, 5.5, 11Mbps

802.11g : 6,9,12,18,24,36,48,54Mbps

802.11n : up to 300Mbps

xDSL Data Rate

ANSI T1.413 Issue 2,

ITU-T G.992.1 Annex A (G.dmt),

ITU-T G.992.2 (G.lite),

ITU-T G.994.1 (G.hs),

ITU-T G.992.3 (G.dmt.bis),

ITU-T G.992.5 Annex A/M

ADSL 2/2+ 24Mbps downstream

Antenna

Fixed 5 dBi antenna x 2

LED Indicator

Power, ADSL, Internet, WLAN, LAN x 4

Button

WPS Button, Reset Button, Power Switch, Wireless on/off Switch

Ports

1 x RJ11 for ADSL

4 x RJ45 for 10/100 BaseT for LAN

USB Ports

USB 2.0 x 1

USB Applications

Printer Server

3G/4G sharing

Operating Frequency

2.4GHz

Operation Channel

11 for N. America

13 Europe (ETSI)

Memory

8MB Flash/32MB SDRAM for Wi-Fi

1MB Flash/2MB SDRAM for ADSL

Receive Sensitivity

-95dBm@1Mbps

-92dBm@11Mbps

-75dBm@54Mbps

-72dBm@72.2Mbps

-68dBm@150Mbps

Output Power

b mode : 17 ~19 dBm

g mode : 15 ~17 dBm

n mode : 15 ~17 dBm
