Areca

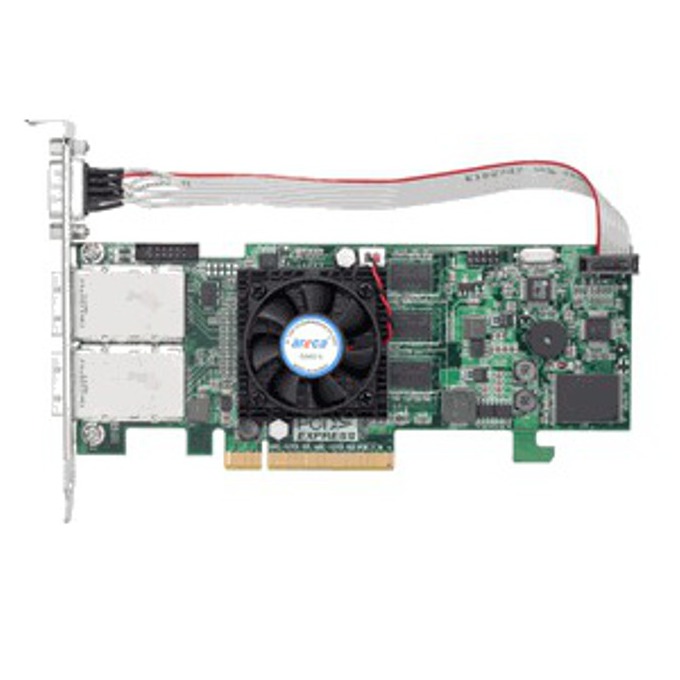

RAID Контролер Areca ARC-1223-8x
Артикул №: 1000110710
Категория:
Компютърни компоненти
183,99 €
✓ Ограничена наличност
Areca
ARC-1223-8x
SAS builds on parallel SCSI by providing higher performance, improving data availability, and simplifying system design. The SAS interface supports both SAS disk drives for data-intensive applications and Serial ATA (SATA) drives for low-cost bulk storage of reference data. The ARC-1213-4x/ARC-1223-8x support directly attach 4/8 SAS ports via 1/2 external SFF-8088 connector. Each port on the SAS controllers supports SAS and/or SATA devices. Since there is no expander support on those boards, this can meet the customer inquiry SAS solution (using same enclosure) to replace SATA solution. - See more at: http://www.arecadirect.com/arc12238x.html#sthash.iEVIDKCn.dpuf
Характеристики
| Adapter Architecture | 800MHz RAID-on-Chip (ROC) processor PCIe 2.0 x8 lane host interface Support up to 4/8 External 6Gb/s SAS physical links ARC-1213-4x/8x supports up to 4/8 x 6Gb/s SAS/SATA HDDs Multi-adapter support for large storage requirements BIOS boot support for greater fault tolerance BIOS PnP (plug and play) and BBS (BIOS boot specification |
| Поддръжка | Support EFI BIOS for Mac Pro NVRAM for RAID event & transaction log Redundant flash image for controller availability Battery Backup Module (BBM) ready (Option) RoHS compliant |
| Raid Features | RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD Multiple RAID selection Online array roaming Offline RAID set Online RAID level/stripe size migration Online capacity expansion and RAID level migration simultaneously Online volume set growth Instant availability and background initialization Support global and dedicated hot spare Automatic drive insertion/removal detection and rebuilding Greater than 2TB capacity per disk drive support Greater than 2TB per volume set (64-bit LBA support) Support intelligent power management to save energy and extend service life Support NTP protocol synchronize RAID controller clock over the on board Ethernet port |
| Monitors/Indicators | System status indication through global HDD activity/fault connector, individual activity/fault connector, LCD/I2C connector and alarm buzzer SMTP support for email notification SNMP support for remote manager Enclosure management (SES-2, SMP and SGPIO) ready |
| Raid Management | Field-upgradeable firmware in flash ROM In-Band Manager Hot key "boot-up" McBIOS RAID manager via M/B BIOS Web browser-based McRAID storage manager via ArcHttp proxy server for all Operating systems. Support Command Line Interface (CLI) API library for customer to write monitor utility Single Admin Portal (SAP) monitor utility Out-of-Band Manager Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent and Telnet function via Ethernet port. API library for customer to write monitor utility Support push button and LCD display panel (option) |
