Areca

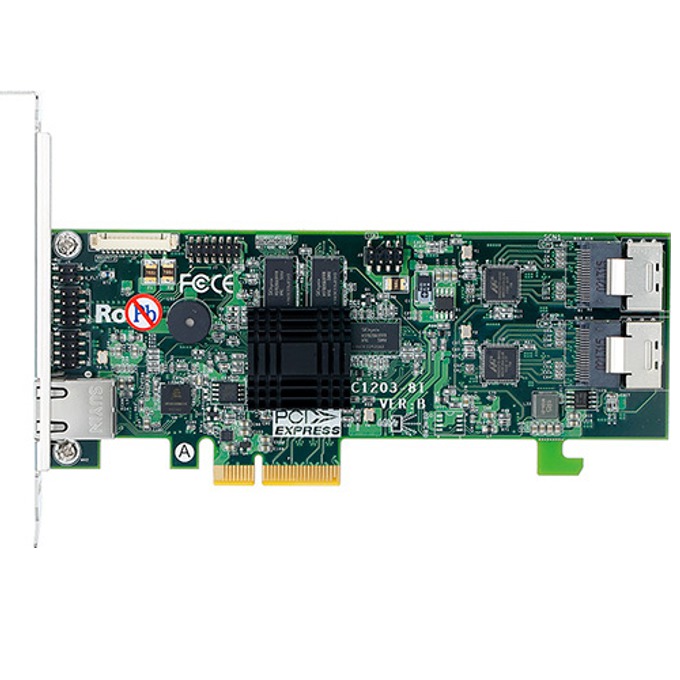

RAID Контролер Areca ARC-1203-8I
Артикул №: 1000106128
Категория:
Компютърни компоненти
526,99 €
✓ Ограничена наличност
Areca
ARC-1203-8i
Architecture:
ARM_based 1066MHz storage I/O processor
512MB on-board DDR3-1066 SDRAM with ECC
protection
PCIe 2.0 x4 lanes host interface
Support up to 4/8 x 6Gb/s SATA HDDs/SSD
Multi-adapter support for large storage
requirements
BIOS boot support for greater fault tolerance
Boot support for the uEFI host BIOS
BIOS PnP (plug and play) and BBS (BIOS boot
Характеристики
| Redundant flash image for adapter availability | Да |
| Battery Backup Module (BBM) ready (optional) | Да |
| RoHS Compliant | Да |
| RAID Features | RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD Multi-level RAID 0 and RAID 10 (R00 and R100) Support up to 1MB stripe size Multiple RAID selection Online array roaming Online RAID level/stripe size migration Online capacity expansion and RAID level migration simultaneously Online volume set growth Instant availability and background initialization Support global and dedicated hot spare Automatic drive insertion/removal detection and rebuilding Greater than 2TB capacity per disk drive support Greater than 2TB per volume set (64-bit LBA support) Support intelligent power management to save energy and extend service life Support for native 4K and 512 byte sector SATA devices Multiple pairs SSD/HDD disk clone function SSD automatic monitor clone (AMC) support Support HDD firmware update |
| Monitors/Indicators | System status indication through global HDD activity/fault connector, individual fault connector, LCD/serial bus connector an d alarm buzzer SMTP support email notification SNMP support for remote manager Enclosure management (Serial bus & SGPIO) ready |
| RAID Management | Field-upgradeable firmware in flash ROM |
