Intel

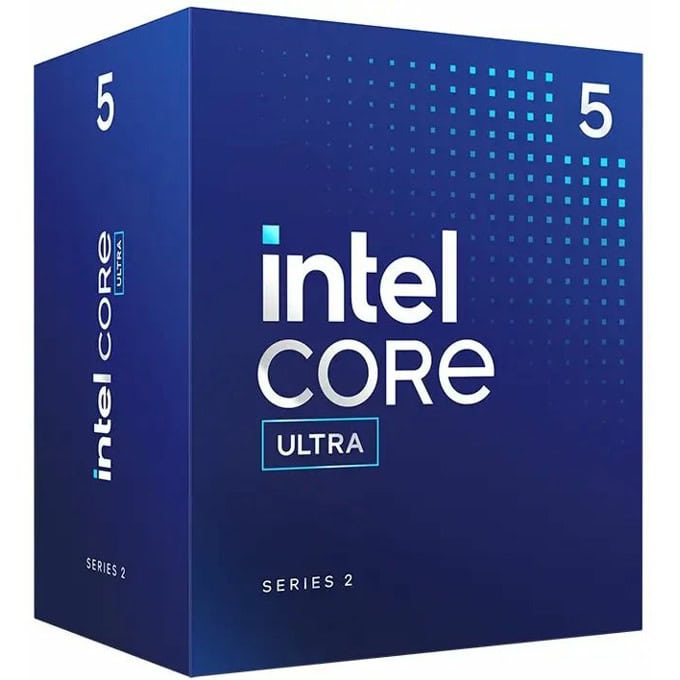

Процесор Intel Core Ultra 5 225
Артикул №: 1000146688
Категория:
Компютърни компоненти
210,99 €
✓ Налично във външен склад
Характеристики
| Product Collection | Intel Core Ultra Processors (Series 2) |
| Code Name | Products formerly Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 225F |
| Overall Peak TOPS (Int8) | 23 |
| CPU Specifications | Да |
| Total Cores | 10 |
| of Performance-cores | 6 |
| of Efficient-cores | 4 |
| Total Threads | 10 |
| Max Turbo Frequency | 4.9 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Base Frequency | 3.3 GHz |
| Efficient-core Base Frequency | 2.7 GHz |
| Кеш | 20 MB Intel Smart Cache |
| Total L2 Cache | 22 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 121 W |
| Intel Deep Learning Boost (Intel DL Boost) on CPU | Да |
| AI Software Frameworks Supported by CPU | OpenVINO | WindowsML | DirectML | ONNX RT | WebNN |
| CPU Lithography | TSMC N3B |
| Memory Specifications | Max Memory Size (dependent on memory type): 192 GB Memory Types: Up to DDR5 6400 MT/s Max # of Memory Channels: 2 GPU Specifications GPU Name: Intel Graphics Graphics Base Frequency: 300 MHz Graphics Max Dynamic Frequency: 1.8 GHz GPU Peak TOPS (Int8): 4 Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores: 2 Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) Max Resolution (DP): 8K @ 60Hz Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz DirectX Support: 12 OpenGL Support: 4.5 OpenCL Support: 3 Intel Quick Sync Video: Yes # of Displays Supported: 4 Device ID: 0x7D67 Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes |
| NPU Specifications | NPU Name: Intel AI Boost NPU Peak TOPS (Int8): 13 Sparsity Support: Yes Windows Studio Effects Support: Yes AI Software Frameworks Supported by NPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN Expansion Options Direct Media Interface (DMI) Revision: 4 Max # of DMI Lanes: 8 Intel Thunderbolt 4: Yes Scalability: 1S Only PCI Express Revision: 5.0 and 4.0 PCI Express Configurations: Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4 Max # of PCI Express Lanes: 24 |
| Package Specifications | Sockets Supported: FCLGA1851 Thermal Solution Specification: PCG 2022C Max Operating Temperature: 105 °C Advanced Technologies Intel Volume Management Device (VMD): Yes Intel Gaussian & Neural Accelerator: 3.5 Intel Thread Director: Yes Intel Speed Shift Technology: Yes Intel Turbo Boost Technology: 2 Intel 64: Yes Instruction Set: 64-bit Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2 Idle States: Yes Enhanced Intel SpeedStep Technology: Yes Thermal Monitoring Technologies: Yes |
| Security & Reliability | Intel Standard Manageability (ISM): Yes Intel Control-Flow Enforcement Technology: Yes Intel AES New Instructions: Yes Secure Key: Yes Intel Trusted Execution Technology: Yes Execute Disable Bit: Yes Intel OS Guard: Yes Intel Boot Guard: Yes Mode-based Execute Control (MBEC): Yes Intel Virtualization Technology (VT-x): Yes Intel Virtualization Technology for Directed I/O (VT-d): Yes Intel VT-x with Extended Page Tables (EPT): Yes |
