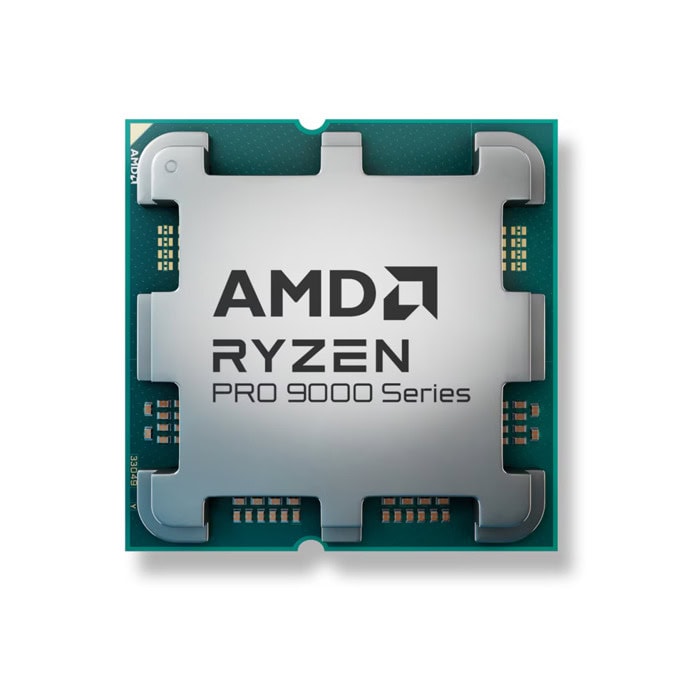

Процесор AMD Ryzen 7 Pro 9745

Tray version: Does not include box and cooler

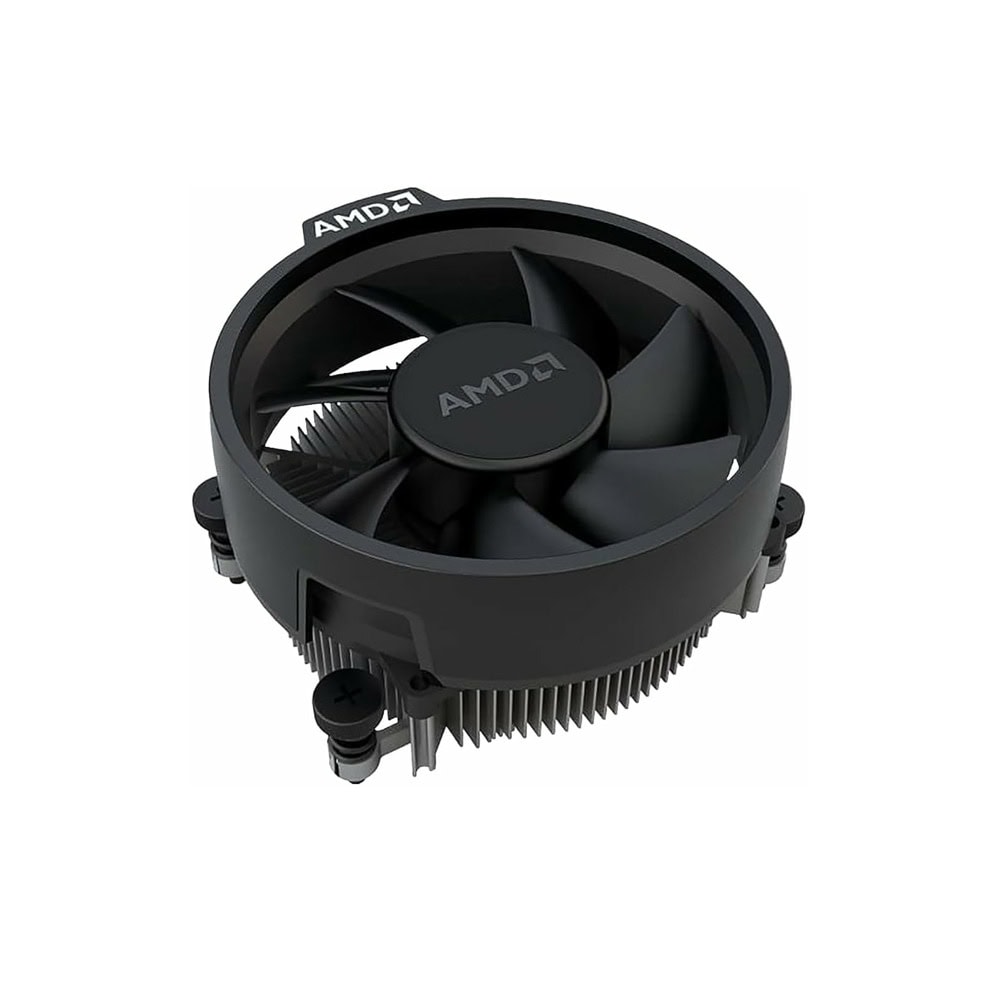

• General Specifications Form Factor Desktops , Boxed Processor AMD PRO Technologies Yes Regional Availability Global Former Codename Granite Ridge AM5 Processor Architecture Zen 5 # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.4 GHz Base Clock 3.8 GHz L1 Cache 640 KB L2 Cache 8 MB L3 Cache 32 MB Default TDP 65W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 2 Unlocked for Overclocking No AMD EXPO™ Memory Overclocking Technology No Precision Boost Overdrive No Curve Optimizer Voltage Offsets No CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C Launch Date 9/16/2025 *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
• Connectivity Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 2.0 (480Mbps) 1 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support)
• Graphics Capabilities Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DisplayPort™ Alternate Mode Yes
• Manageability DASH support

Yes

• Security AMD Memory Guard Yes AMD Secure Processor Yes AMD Platform Secure Boot Yes Windows Secure Boot Yes UEFI Secure Boot Yes Windows Device Guard Yes Supervisor Mode Execution Prevention (SMEP) Yes Guest Mode Execution (GMET) Trap Yes Virtualization-Based Security (VBS) Yes Firmware TPM Yes AMD-V (SVM) Yes AMD AVIC (Interrupt Virtualization) Yes AMD-Vi (I/O MMU Virtualization) Yes Second Level Address Translation (SLAT) Yes Advanced Encryption Standard New Instructions (AES-NI) Yes AMD Enhanced Virus Protection (NX bit) Yes FIPS Certification Yes AMD Shadow Stack Yes
